UBIQUITI

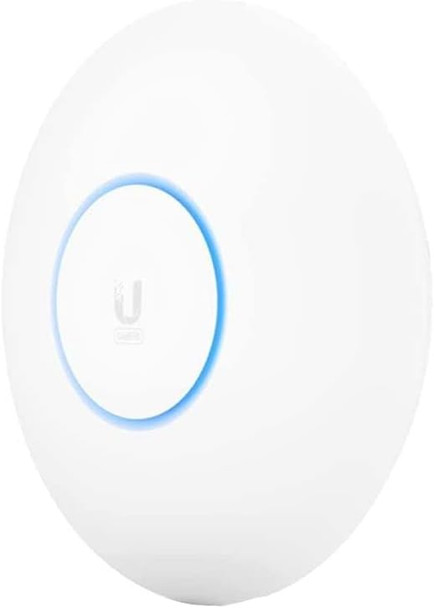

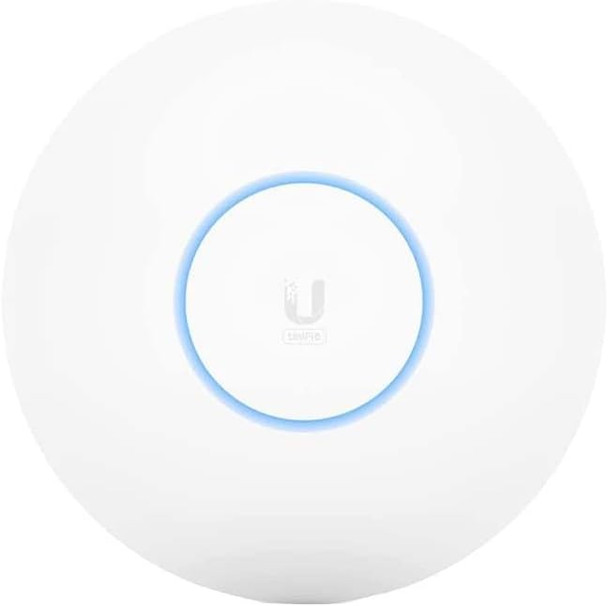

Ubiquiti U6+ (U6-Plus) Long Range Wi-Fi 6 Wireless Access Point
- SKU:
- NPUBI-U6PLUS
- UPC:
- 810084691090
- MPN:
- U6+
Description
Ubiquiti UniFi U6+ WiFi 6 Access Point – Dual-Band PoE Ceiling and Wall Mounted Wireless AP
The Ubiquiti UniFi U6+, also known as the U6-Plus, is a compact WiFi 6 wireless access point designed to deliver faster, more reliable wireless coverage for homes, offices, retail spaces, small businesses, guest networks and managed UniFi installations. With dual-band WiFi 6 performance, 4 spatial streams, support for 300+ connected clients and coverage of up to 140m², the U6+ is a strong upgrade for users who want better WiFi capacity, smoother roaming and centralised network management.
This access point is ideal for customers searching for a Ubiquiti WiFi 6 access point, UniFi U6+ AP, PoE ceiling mounted WiFi access point, or a professional wireless solution for small and medium-sized business networks. It is powered by PoE, connects through a Gigabit Ethernet uplink, and is managed using the UniFi Network application.
Key Features of the Ubiquiti UniFi U6+
- WiFi 6 dual-band access point for faster and more efficient wireless networking
- 4 spatial streams for improved wireless performance compared with entry-level APs
- Up to 2.4Gbps on 5GHz with 160MHz channel support
- Up to 573.5Mbps on 2.4GHz for everyday wireless devices and wider compatibility
- Supports 300+ connected clients, depending on environment and network configuration
- Coverage area up to 140m², suitable for homes, offices and small business spaces
- PoE powered for cleaner installation with a compatible PoE switch or injector
- 1 x Gigabit Ethernet RJ45 uplink for wired network connection
- Ceiling or wall mounting supported with mounting hardware included
- UniFi Network management for monitoring, configuration and firmware updates
- Guest network, VLAN, captive portal and traffic control features through UniFi Network
- Compact design with a clean white/blue system LED
- MPN: U6+
- UPC: 810084691090
Fast Dual-Band WiFi 6 for Modern Networks
The Ubiquiti UniFi U6+ uses WiFi 6 / 802.11ax technology to improve wireless efficiency, speed and capacity compared with older WiFi 5 access points. This makes it a good choice for environments with multiple devices such as laptops, smartphones, tablets, smart TVs, VoIP devices, card terminals, printers and wireless office equipment.
On the 5GHz band, the U6+ supports up to 2.4Gbps using 160MHz channel bandwidth. On the 2.4GHz band, it supports up to 573.5Mbps, helping maintain compatibility with everyday devices that still rely on 2.4GHz wireless connections.
Better Capacity for Busy Homes and Small Businesses
With support for 300+ clients, the U6+ is suitable for busy home networks, small offices, shops, cafés, clinics, classrooms, guest WiFi areas and managed business networks. Actual performance will depend on your broadband speed, layout, wall materials, interference, connected devices and UniFi configuration.
Ideal for UniFi Managed Networks
The U6+ is designed to work with the UniFi Network ecosystem, making it easy to configure wireless networks, monitor connected clients, apply firmware updates, create guest WiFi, manage VLANs and control network settings from a central dashboard.
This makes it especially useful for users already running UniFi equipment such as UniFi gateways, UniFi switches, Cloud Gateway devices or other UniFi access points. It can also be used as part of a larger UniFi deployment where multiple access points are installed across a building for wider coverage and smoother roaming.
Useful UniFi Software Features
- Wireless meshing support
- Band steering
- Fast roaming support
- Guest network isolation
- Captive hotspot portal support
- Private Pre-Shared Key support
- WiFi speed limiting
- Client device isolation
- WiFi schedules
- VLAN support through UniFi Network
PoE Installation with Ceiling or Wall Mounting
The Ubiquiti U6+ is powered by Power over Ethernet, allowing data and power to run through a single network cable when connected to a compatible PoE switch or PoE injector. This helps create a cleaner installation without needing a separate power socket near the access point.
The access point can be mounted on a ceiling or wall, making it suitable for offices, homes, retail premises, corridors, meeting rooms, reception areas and other indoor locations where reliable wireless coverage is required.
Important PoE Note
The U6+ requires PoE power. Please check whether your network switch provides PoE or whether you need a compatible PoE injector. A PoE adapter may not be included depending on the retail package, so always check the product contents before installation.
Compact Access Point for Professional WiFi Coverage
With dimensions of approximately 160 x 33mm, the U6+ is compact and discreet once mounted. Its clean UniFi design makes it suitable for customer-facing areas, business spaces and modern home installations where visible networking equipment needs to look professional.
The U6+ is best used indoors and is designed for ceiling or wall deployment. For outdoor or more demanding long-range installations, buyers should compare it with other UniFi access points such as the U6 Long-Range or outdoor-rated models.
Who Is the Ubiquiti UniFi U6+ Best For?
- Home users upgrading from older WiFi 5 access points
- Small businesses needing reliable managed WiFi
- Retail shops, cafés and reception areas needing guest WiFi
- Offices with multiple wireless devices
- Installers building a UniFi Network system
- Schools, clinics and professional workspaces
- Users who want centralised WiFi management instead of a basic router-only setup
Technical Specifications
- Brand: Ubiquiti
- Product family: UniFi
- Model: U6+
- Also known as: U6-Plus
- MPN: U6+
- UPC: 810084691090
- WiFi standard: WiFi 6 / 802.11ax
- Wireless bands: Dual-band 2.4GHz and 5GHz
- Spatial streams: 4
- 5GHz MIMO: 2 x 2 DL/UL MU-MIMO
- 2.4GHz MIMO: 2 x 2 DL/UL MU-MIMO
- Maximum 5GHz data rate: 2.4Gbps
- Maximum 2.4GHz data rate: 573.5Mbps
- Coverage area: Up to 140m² / 1,500ft²
- Maximum client count: 300+
- Network interface: 1 x Gigabit Ethernet RJ45 port
- Power method: PoE
- Supported voltage range: 44–57V DC
- Maximum power consumption: 9W
- Mounting: Ceiling or wall mount
- Dimensions: Ø160 x 33mm
- Weight: 338g without mount / 413g with mount
- Enclosure material: Polycarbonate and aluminium
- Mount material: ABS and SGCC steel
- Operating temperature: -30°C to 60°C
- Operating humidity: 5% to 95% non-condensing
- Management: UniFi Network application
- UniFi Network requirement: Version 7.3.76 or later
- Certifications: CE, FCC, IC and others depending on region
Ubiquiti U6+ vs U6 Long-Range – Important Difference
The Ubiquiti U6+ and Ubiquiti U6 Long-Range are different UniFi access point models. The U6+ is a compact WiFi 6 AP with 4 spatial streams, PoE power and up to 140m² coverage. The U6 Long-Range is a larger model with 8 spatial streams, PoE+ power, IP54 weatherproofing and up to 185m² coverage.
If you need a compact, affordable and efficient UniFi WiFi 6 access point for indoor home, office or small business use, the U6+ is a strong choice. If you specifically need the larger long-range U6-LR model, check the MPN carefully before ordering.
Why Buy the Ubiquiti UniFi U6+?
The Ubiquiti UniFi U6+ is a practical upgrade for users who want faster WiFi 6 performance, better client capacity and professional UniFi management without moving to a larger or more expensive access point. It offers dual-band wireless performance, PoE installation, clean ceiling or wall mounting, support for 300+ clients and advanced software features through the UniFi Network platform.
For homes, offices, shops and small businesses already using or planning to use UniFi equipment, the U6+ is a reliable and scalable access point for building a stronger managed wireless network.
Buying Advice
Before ordering, check that you have a compatible PoE switch or PoE injector, a wired Ethernet connection to the installation location, and access to the UniFi Network application for setup and management. For best results, place the access point in a central indoor location and avoid installing it behind metal objects, inside cabinets or in areas with heavy signal obstruction.
Specification
Ubiquiti UniFi U6+ WiFi 6 Access Point Specifications
The Ubiquiti UniFi U6+, also known as the U6-Plus, is a compact dual-band WiFi 6 access point designed for ceiling or wall mounting in homes, offices, retail spaces, small businesses and UniFi managed networks. It supports 4 spatial streams, 300+ connected clients, PoE power and centralised management through the UniFi Network application.
General Information
| Brand | Ubiquiti |
| Product Family | UniFi |
| Model | U6+ |
| Also Known As | U6-Plus / UniFi U6+ |
| Manufacturer Part Number | U6+ |
| EAN / UPC | 810084691090 |
| Product Type | Wireless Access Point |
| Recommended Use | Home WiFi, office WiFi, small business networks, guest WiFi, retail spaces and managed UniFi installations |
Wireless Performance
| WiFi Standard | WiFi 6 / 802.11ax |
| Wireless Bands | Dual-band 2.4GHz and 5GHz |
| Spatial Streams | 4 |
| 5GHz MIMO | 2 x 2 DL/UL MU-MIMO |
| 2.4GHz MIMO | 2 x 2 DL/UL MU-MIMO |
| Maximum 5GHz Data Rate | 2.4Gbps / 2402Mbps with 160MHz channel bandwidth |
| Maximum 2.4GHz Data Rate | 573.5Mbps with 40MHz channel bandwidth |
| Total Theoretical Wireless Rate | Up to approximately 3Gbps combined theoretical wireless rate |
| Coverage Area | Up to 140m² / 1,500ft² |
| Maximum Client Count | 300+ clients |
| Maximum BSSIDs | 8 per radio |
Antenna and Radio Details
| Antenna Type | Internal antenna |
| 5GHz Antenna Gain | 5.4dBi |
| 2.4GHz Antenna Gain | 3dBi |
| 5GHz Maximum TX Power | 23dBm |
| 2.4GHz Maximum TX Power | 23dBm |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 MHz |
| Operating Frequency | Worldwide: 2400–2483.5MHz and 5150–5850MHz |
Networking and Power
| Network Interface | 1 x Gigabit Ethernet RJ45 port |
| Uplink | GbE |
| Power Method | PoE |
| Supported Voltage Range | 44–57V DC |
| Maximum Power Consumption | 9W |
| PoE Injector Included | No / not normally included unless supplied as part of a specific bundle |
| USB Ports | None |
Supported WiFi Standards and Security
| Supported WiFi Standards | 802.11a/b/g, WiFi 4 / 802.11n, WiFi 5 / 802.11ac, WiFi 6 / 802.11ax |
| Wireless Security | WPA-PSK, WPA-Enterprise, WPA/WPA2/WPA3 support through UniFi Network |
| VLAN Support | Yes, 802.1Q VLAN support |
| Guest Traffic Isolation | Supported |
| QoS / Rate Limiting | Per-user rate limiting supported through UniFi Network |
| 6GHz Support | No |
UniFi Network Features
| Wireless Meshing | Supported |
| Band Steering | Supported |
| 802.11v BSS Transition Management | Supported |
| 802.11r Fast Roaming | Supported |
| 802.11k Radio Resource Management | Supported |
| Advanced Radio Management | Supported |
| Passpoint / Hotspot 2.0 | Supported |
| Captive Hotspot Portal | Supported |
| Guest Network Isolation | Supported |
| Private Pre-Shared Key | Supported |
| WiFi Speed Limiting | Supported |
| Client Device Isolation | Supported |
| WiFi Schedules | Supported |
Management Requirements
| Management Platform | UniFi Network application |
| Management Interface | Ethernet |
| UniFi Network Requirement | Version 7.3.76 or later |
| Factory Reset Button | Yes |
| System LED | White / Blue |
Physical Specifications
| Dimensions | Ø160 x 33mm / Ø6.3 x 1.3 inches |
| Device Weight | 338g |
| Weight with Mount | 413g |
| Product Colour | White |
| Enclosure Material | Polycarbonate and aluminium |
| Mount Material | ABS and SGCC steel |
| Mounting | Ceiling or wall mounting |
| Mount Included | Yes |
Environmental and Compliance
| Operating Temperature | -30°C to 60°C / -22°F to 140°F |
| Operating Humidity | 5% to 95% non-condensing |
| Certifications | CE, FCC, IC, SRRC, Anatel: 10539-23-08356 |
| NDAA Compliant | Yes |
Package Contents
| Access Point | Ubiquiti UniFi U6+ Access Point |
| Mounting Kit | Included |
| Quantity Per Pack | 1 |
| PoE Injector / Adapter | Not included unless your specific retail bundle states otherwise |
Important Model Note
This product is the Ubiquiti UniFi U6+ / U6-Plus with MPN U6+. It should not be confused with the separate U6-LR / U6 Long-Range model. The U6-LR has different specifications, including a larger Ø220 x 48mm body, 8 spatial streams, 185m² coverage, 350+ client support, PoE+ power and IP54 weatherproofing. The U6+ is the compact U6+ model with 4 spatial streams, PoE power and up to 140m² coverage.
Compatibility Notes
For installation, this access point requires a wired Ethernet connection and PoE power from a compatible PoE switch or PoE injector. It is designed for UniFi Network management and requires UniFi Network version 7.3.76 or later. Actual WiFi speed, range and client capacity will vary depending on building layout, wall materials, interference, device capability and network configuration.
Return
FAQ: Frequenlty Asked Questions
Ubiquiti UniFi U6+ FAQ
The Ubiquiti UniFi U6+ is a compact dual-band Wi-Fi 6 access point designed for homes, offices, and small to medium business environments that need reliable wireless coverage, PoE power, and UniFi ecosystem management. Below are the most common questions buyers ask before choosing the UniFi U6+ access point.
1. What is the Ubiquiti UniFi U6+?
The UniFi U6+ is a dual-band Wi-Fi 6 access point designed for ceiling or wall mounting. Ubiquiti positions it as a compact UniFi AP for homes, offices, and small to medium-sized business environments that want managed Wi-Fi with modern wireless performance.
2. Is the U6+ a Wi-Fi 6 access point?
Yes. Ubiquiti officially lists the U6+ as a Wi-Fi 6 access point supporting 802.11ax on both 2.4 GHz and 5 GHz bands.
3. What speeds does the Ubiquiti U6+ support?
Ubiquiti lists a maximum data rate of up to 2.4 Gbps on 5 GHz and up to 573.5 Mbps on 2.4 GHz. Actual real-world speed depends on client devices, signal conditions, channel width, and overall network environment.
4. Is the U6+ dual-band?
Yes. The UniFi U6+ is a dual-band access point using both 2.4 GHz and 5 GHz wireless bands.
5. Does the U6+ support MU-MIMO?
Yes. Ubiquiti lists 2x2 DL/UL MU-MIMO on both 5 GHz and 2.4 GHz for the U6+.
6. Is the U6+ better than the U6 Lite?
Ubiquiti’s own store describes the U6+ as improving on the U6 Lite with higher performance and dual-band Wi-Fi 6 support. Buyers commonly compare the two when choosing an entry-to-mid UniFi access point.
7. Is the U6+ good for home Wi-Fi?
Yes. Many buyers use the U6+ in homes, especially when they want ceiling-mounted Wi-Fi, PoE power, and UniFi management instead of an all-in-one consumer router setup.
8. Is the U6+ good for a small business or office?
Yes. Ubiquiti’s UK store specifically says it is ideal for small and medium-sized businesses, which makes it suitable for offices, shops, meeting rooms, and similar managed Wi-Fi environments.
9. Does the U6+ need PoE power?
Yes. Ubiquiti lists the power method as PoE. Buyers normally power it using a compatible PoE switch or a separate PoE injector if one is not included with the purchase.
10. Does the U6+ include a power adapter?
Ubiquiti’s store lists a separate 15W PoE adapter as an accessory rather than a built-in included feature on the main product page. Buyers should check the exact package contents from the seller before ordering.
11. Does the U6+ use a Gigabit Ethernet uplink?
Yes. Ubiquiti lists the networking uplink as GbE, which is one of the key practical limitations buyers ask about when comparing it with higher-end access points that use faster uplinks.
12. Can the U6+ be mounted on a ceiling or wall?
Yes. Ubiquiti officially lists both ceiling and wall mounting, and the official specs indicate that mounts are included.
13. Does the U6+ need a UniFi controller?
Buyers commonly ask this because UniFi works differently from simple consumer routers. In practice, UniFi access points are usually set up and managed through UniFi Network software or UniFi hardware that runs the controller platform.
14. Is the U6+ a router?
No. The U6+ is an access point, not a full standalone router. It is designed to provide wireless access as part of a wider network that includes routing, switching, and UniFi management.
15. How much area can one U6+ cover?
Coverage depends heavily on wall materials, floor layout, placement, client devices, and interference. Community discussions show that expectations can vary a lot, so buyers should think of the U6+ as something that benefits from good placement and, in larger homes or offices, multiple APs rather than relying only on one device for every space.
16. Why do some users say range is weaker than expected?
Reddit discussions show that perceived range problems are often linked to building materials, windows, placement, and network tuning rather than just the AP model itself. In multi-AP UniFi environments, lower or medium transmit power can also improve roaming and reduce sticky-client issues.
17. Is the U6+ good for roaming with multiple access points?
Yes. That is one of the main reasons buyers choose UniFi. Community discussion around UniFi deployments often focuses on tuning placement and transmit power to improve roaming and avoid clients staying attached to a distant AP for too long.
18. Does the U6+ support many client devices?
The U6+ is designed for normal home and small-business densities, but buyers with high-density environments often compare it with higher-tier UniFi models that are better suited to larger numbers of clients and more demanding throughput needs.
19. What should I check before buying the U6+?
Before ordering, check that you have a PoE power source, that a Gigabit uplink is acceptable for your setup, that you have a UniFi controller environment for management, and that your coverage plan matches the building size and layout.
20. Who is the Ubiquiti UniFi U6+ best for?
The U6+ is best for buyers who want a compact, ceiling- or wall-mounted Wi-Fi 6 access point for a home, office, or small business network, especially if they want PoE deployment and UniFi ecosystem management without stepping up to a more expensive enterprise model.
