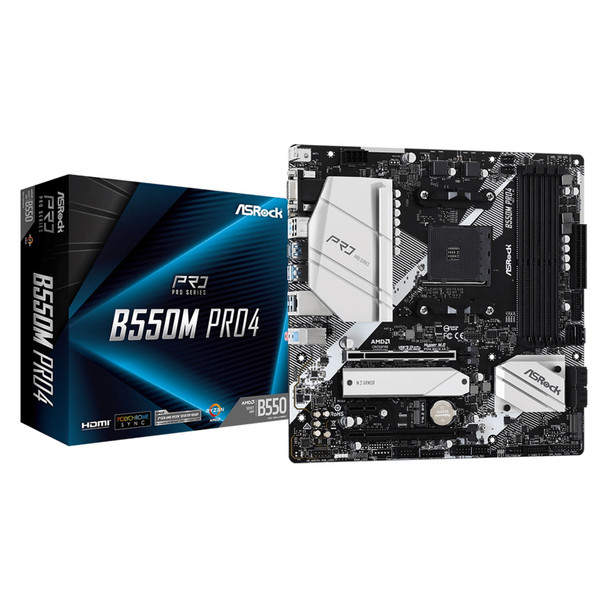

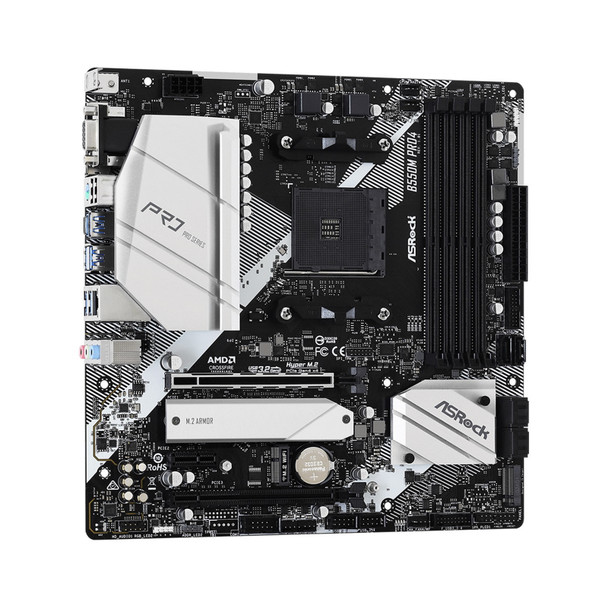

ASRock B550M Pro4 AM4 Micro-ATX Motherboard – DDR4, Dual M.2 & PCIe 4.0

SKU:
MBASR-B550MPRO4
UPC:
4710483931598
MPN:
B550M PRO4
Availability:
Free Click & Collect in Peterborough. UK delivery also available.
  • ASRock B550M Pro4 AM4 Micro-ATX Motherboard – DDR4, Dual M.2 & PCIe 4.0
  • ASRock B550M Pro4 AM4 Micro-ATX Motherboard – DDR4, Dual M.2 & PCIe 4.0
  • ASRock B550M Pro4 AM4 Micro-ATX Motherboard – DDR4, Dual M.2 & PCIe 4.0
  • ASRock B550M Pro4 AM4 Micro-ATX Motherboard – DDR4, Dual M.2 & PCIe 4.0
  • ASRock B550M Pro4 AM4 Micro-ATX Motherboard – DDR4, Dual M.2 & PCIe 4.0
£84.95
Frequently bought together:

Description



ASRock B550M Pro4 AMD AM4 Micro-ATX Motherboard – DDR4, PCIe 4.0, Dual M.2, USB-C

The ASRock B550M Pro4 is a feature-rich AMD B550 Micro-ATX motherboard designed for gaming PCs, home computers, productivity systems and compact workstation builds using compatible AMD Ryzen AM4 processors. It combines PCIe 4.0 graphics and NVMe capability with four DDR4 memory slots, dual M.2 storage, six SATA 6Gb/s ports, USB 3.2 Gen 2 Type-C, Gigabit Ethernet, high-quality 7.1-channel audio and flexible RGB and cooling connectivity.

ASRock's current CPU support covers compatible AMD Ryzen 3000 Series, Ryzen 3000 G-Series, Ryzen 4000 G-Series, Ryzen 5000 Series and Ryzen 5000 G-Series desktop processors. Exact processor compatibility depends on the CPU model and motherboard BIOS version, so the ASRock CPU Support List should always be checked when building or upgrading a system.

With compatible Ryzen 5000 or Ryzen 3000 desktop processors, the reinforced primary graphics slot operates at PCI Express 4.0 x16 and the Hyper M.2 socket can provide PCIe 4.0 x4 NVMe connectivity with up to 64Gb/s theoretical interface bandwidth. Ryzen G-Series APUs use different PCIe capabilities, so the effective PCIe generation depends on the processor installed.

The B550M Pro4 supports up to 128GB of dual-channel DDR4 memory across four DIMM slots and supports XMP memory profiles. ASRock combines this with an 8-phase Digi Power design, Premium 50A power chokes, a 2oz copper PCB, large aluminium heatsinks, a reinforced Steel Slot Gen4 and Full Spike Protection.

The exact motherboard sold here is ASRock B550M Pro4, Memox SKU MBASR-B550MPRO4, EAN 4710483931598. It is an excellent choice for customers looking for a compact B550 Micro-ATX motherboard for Ryzen 5000 with PCIe 4.0, dual M.2, USB-C, four DDR4 slots and substantial storage and expansion flexibility.

Key Features of the ASRock B550M Pro4

  • AMD AM4 CPU socket
  • AMD B550 chipset
  • Micro-ATX form factor – 24.4 × 24.4cm
  • Compatible Ryzen 3000 Series support
  • Compatible Ryzen 3000 G-Series support
  • Compatible Ryzen 4000 G-Series support
  • Compatible Ryzen 5000 Series support
  • Compatible Ryzen 5000 G-Series support
  • 8-phase Digi Power design
  • Premium 50A power chokes
  • 2oz copper PCB
  • 4 × DDR4 DIMM slots
  • Up to 128GB DDR4 memory
  • Dual-channel memory architecture
  • XMP memory-profile support
  • DDR4 speeds up to 4733+MHz OC with suitable APU/memory configuration
  • 1 × PCIe 4.0 x16 primary slot with compatible Ryzen CPUs
  • 1 × PCIe 3.0 x16-length slot operating at x4
  • 1 × PCIe 3.0 x1 slot
  • ASRock Steel Slot Gen4 reinforcement
  • AMD CrossFireX support
  • 1 × Hyper M.2 PCIe 4.0 x4 socket
  • 1 × PCIe 3.0 x2 / SATA M.2 socket
  • 6 × SATA 6Gb/s ports
  • RAID 0, RAID 1 and RAID 10 support
  • 1 × M.2 Key-E socket for optional 2230 WiFi/Bluetooth module
  • HDMI 2.1
  • DisplayPort 1.4
  • D-Sub / VGA output
  • Triple-monitor support with compatible integrated graphics
  • Realtek RTL8111H Gigabit Ethernet
  • 7.1-channel Realtek HD Audio
  • Nahimic Audio support
  • Rear USB 3.2 Gen 2 Type-C – up to 10Gbps
  • Rear USB 3.2 Gen 2 Type-A – up to 10Gbps
  • 4 × rear USB 3.2 Gen 1 ports
  • 4 × front USB 3.2 Gen 1 capability through internal headers
  • 4 chassis/water-pump fan headers
  • CPU/water-pump fan header
  • 2 × RGB headers
  • 2 × addressable RGB headers
  • ASRock Polychrome RGB Sync
  • POST Status Checker
  • Full Spike Protection
  • Windows 10 and Windows 11 64-bit support

AMD B550 Motherboard for Ryzen 3000, 4000G and Ryzen 5000

The ASRock B550M Pro4 uses AMD's AM4 socket and B550 chipset, giving PC builders access to a broad selection of Ryzen processors.

ASRock's current CPU compatibility information covers suitable processors from:

  • Ryzen 3000 Series
  • Ryzen 3000 G-Series
  • Ryzen 4000 G-Series
  • Ryzen 5000 Series
  • Ryzen 5000 G-Series

Check the BIOS Version for Your Exact Ryzen CPU

Using an AM4 socket does not automatically mean every AM4 processor will boot with every BIOS revision.

Different CPUs require different minimum BIOS versions. For example, newer processors introduced after the motherboard was originally released can require a BIOS update before installation.

Before building or upgrading, check:

  • The exact AMD processor model
  • The ASRock B550M Pro4 CPU Support List
  • The minimum BIOS revision required by that CPU
  • The BIOS currently installed on the motherboard where known

Ryzen 7 5800X3D and 5700X3D Support

The B550M Pro4 can support popular AM4 gaming processors including the Ryzen 7 5800X3D and Ryzen 7 5700X3D when the appropriate BIOS version is installed.

ASRock lists the Ryzen 7 5800X3D from BIOS P2.30 and the Ryzen 7 5700X3D from BIOS P3.20.

This makes the motherboard useful for customers building or upgrading a high-performance AM4 gaming system, but BIOS compatibility should be confirmed before CPU installation.

Ryzen 5 3400G and Ryzen 3 3200G Compatibility Update

Older B550M Pro4 documentation originally stated that the Ryzen 5 3400G and Ryzen 3 3200G were not supported.

ASRock's current CPU Support List now lists compatible Ryzen 5 3400G and Ryzen 3 3200G processors for the B550M Pro4 with BIOS P2.10.

Because CPU support has changed through later BIOS development, the current ASRock CPU Support List should take priority over old launch-era compatibility wording.

PCIe 4.0 Graphics Support

The primary reinforced PCIe graphics slot provides high-bandwidth connectivity for modern graphics cards.

With Ryzen 5000 and Ryzen 3000 Desktop CPUs

With compatible Vermeer or Matisse processors, the primary slot operates at:

  • PCIe 4.0 x16

This makes the board suitable for PCIe 4.0 graphics cards while retaining backward compatibility with many PCIe 3.0 devices.

With Ryzen 5000G and 4000G APUs

Compatible Cezanne and Renoir APUs operate the primary graphics slot at:

  • PCIe 3.0 x16

The B550 chipset does not by itself determine the PCIe generation of CPU-connected slots; the installed processor also determines their capability.

With Supported Picasso APUs

ASRock lists the primary PCIe slot operating at PCIe 3.0 x8 with supported Picasso-generation APUs.

ASRock Steel Slot Gen4

The primary PCIe x16 slot uses ASRock Steel Slot Gen4 reinforcement.

The reinforced slot helps provide improved mechanical support for large and heavy graphics cards while maintaining reliable electrical contact.

This can be particularly useful with modern multi-slot GPUs fitted with large cooling systems.

Additional PCIe Expansion

The motherboard also provides:

  • 1 × secondary PCIe 3.0 x16-length slot operating at x4
  • 1 × PCIe 3.0 x1 slot

Compatible expansion cards can include:

  • Capture cards
  • Sound cards
  • Storage controllers
  • USB expansion cards
  • Additional network adapters
  • Other suitable PCIe devices

AMD CrossFireX Support

ASRock lists support for AMD CrossFireX multi-GPU configurations.

However, current game and graphics-card support for traditional multi-GPU rendering is highly application dependent. For most modern gaming builds, one powerful graphics card is generally a more practical configuration.

Dual M.2 Storage Slots

The B550M Pro4 provides two M.2 storage sockets, but they have different interface capabilities.

Understanding the difference between M2_1 and M2_2 is important when choosing SSDs.

M2_1 Hyper M.2 – PCIe 4.0 x4

The primary Hyper M.2 socket supports an M.2 2280 PCIe NVMe SSD.

With compatible Ryzen 5000 or Ryzen 3000 desktop CPUs, it can operate at:

  • PCIe Gen4 x4
  • Up to 64Gb/s theoretical interface bandwidth

With compatible Cezanne, Renoir or Picasso APUs, the same socket operates at PCIe Gen3 x4, up to a theoretical 32Gb/s.

Full-Coverage M.2 Heatsink

ASRock includes its Full Coverage M.2 Heatsink design to help dissipate heat from compatible high-performance M.2 storage.

Actual SSD temperature depends on the SSD controller, workload, case airflow and surrounding components.

M2_2 – PCIe 3.0 x2 and SATA

The second M.2 socket supports M.2 2280 drives using:

  • PCIe Gen3 x2 – up to 16Gb/s theoretical interface bandwidth
  • SATA 6Gb/s M.2 mode

The second socket is therefore slower than the primary PCIe 4.0-capable M2_1 socket when using an NVMe SSD.

Important M2_2 and SATA Port Sharing

M2_2 shares lanes with SATA3_5 and SATA3_6.

If M2_2 is being used, SATA ports 5 and 6 are unavailable. Conversely, using the shared SATA connections can prevent M2_2 from being used.

This is an important consideration when planning a system with several storage drives.

Example Storage Configuration

A typical high-performance configuration could use:

  • 1 × PCIe 4.0 NVMe SSD in M2_1
  • 1 × PCIe 3.0 x2 NVMe SSD in M2_2
  • Up to 4 additional SATA drives using the non-shared SATA ports

If M2_2 is not populated, all six SATA ports can be available.

Six SATA 6Gb/s Ports

The B550M Pro4 provides six SATA3 6Gb/s connectors for compatible storage hardware.

These can be used with devices such as:

  • 2.5-inch SATA SSDs
  • 3.5-inch SATA hard drives
  • SATA optical drives
  • Other compatible SATA devices

RAID 0, RAID 1 and RAID 10

The motherboard supports RAID 0, RAID 1 and RAID 10 storage configurations.

RAID 0

RAID 0 stripes data across drives for performance but provides no redundancy.

RAID 1

RAID 1 mirrors data between drives to provide redundancy if one drive fails.

RAID 10

RAID 10 combines mirroring and striping across an appropriate number of drives.

RAID should not replace a separate backup of important data.

Four DDR4 Slots with up to 128GB RAM

The ASRock B550M Pro4 provides four DDR4 DIMM slots and supports up to 128GB of system memory.

The board uses dual-channel memory architecture.

DDR4 4733+MHz OC Support

ASRock lists DDR4 frequencies up to 4733+MHz overclocked for suitable Cezanne and Renoir APU configurations.

Ryzen 5000 and Ryzen 3000 desktop CPUs have different published memory-frequency ranges, with the maximum achievable speed depending on:

  • CPU memory controller
  • Memory modules
  • Number of modules installed
  • Single-rank or dual-rank configuration
  • BIOS version
  • Memory voltage and timings

XMP Memory Profile Support

The board supports Extreme Memory Profile / XMP memory modules, allowing compatible RAM kits to load their rated overclocking profile through UEFI.

A memory kit's advertised speed is not guaranteed with every processor and four-DIMM configuration, so ASRock's current memory QVL should be checked for demanding setups.

ECC Memory Support

ASRock lists ECC and non-ECC unbuffered DDR4 support with applicable Ryzen processors.

ECC functionality is CPU dependent. With Picasso, Cezanne and Renoir APUs, ASRock specifies ECC support only when a compatible PRO processor is installed.

Customers requiring ECC for professional or business workloads should verify the complete processor, memory and motherboard configuration before purchase.

8-Phase Digi Power Design

The B550M Pro4 uses an 8-phase Digi Power design intended to provide stable CPU power delivery.

This is combined with:

  • Premium 50A power chokes
  • Large aluminium heatsinks
  • Solid capacitors
  • 2oz copper PCB construction

Premium 50A Power Chokes

ASRock states that its Premium 50A power chokes provide substantially increased saturation current compared with traditional chokes, helping deliver stable Vcore power to the processor.

2oz Copper PCB

The motherboard uses 2-ounce copper inner PCB layers.

The additional copper is designed to improve power and signal delivery while assisting thermal performance and system stability.

High-Density Glass-Fabric PCB

ASRock's high-density glass-fabric PCB construction is designed to reduce gaps between PCB layers, helping protect the board from electrical shorts caused by humidity in demanding environments.

HDMI 2.1, DisplayPort 1.4 and VGA

When used with a compatible Ryzen APU containing integrated Radeon graphics, the motherboard provides three video outputs:

  • HDMI
  • DisplayPort 1.4
  • D-Sub / VGA

HDMI Resolution

ASRock specifies HDMI support up to:

  • 4096 × 2160 at 60Hz

ASRock currently describes this interface as HDMI 2.1 for supported modern APUs, while older Picasso configurations have different HDMI/HDCP capability.

DisplayPort 1.4 Resolution

DisplayPort supports up to:

  • 5120 × 2880 at 120Hz

Actual supported resolution and refresh rate depend on the integrated GPU, display, cable and operating configuration.

D-Sub / VGA Output

The legacy analogue D-Sub output supports up to:

  • 1920 × 1200 at 60Hz

This is useful when connecting older monitors, displays or projectors that still use VGA.

Triple-Monitor Support

ASRock lists triple-monitor support when the motherboard is used with compatible processor graphics.

The available outputs are HDMI, DisplayPort and D-Sub.

Important Integrated Graphics Requirement

The video connectors on the motherboard do not contain their own graphics processor.

They only operate when the installed AMD processor provides compatible integrated graphics.

Many standard Ryzen processors such as Ryzen 5 5600X, Ryzen 7 5700X and Ryzen 7 5800X3D do not provide integrated graphics. When one of these CPUs is installed, a dedicated graphics card is required for display output.

Realtek Gigabit Ethernet

Wired networking is provided by a Realtek RTL8111H Gigabit Ethernet controller.

It supports:

  • 10Mb/s Ethernet
  • 100Mb/s Fast Ethernet
  • 1000Mb/s Gigabit Ethernet
  • Wake-on-LAN
  • Energy Efficient Ethernet 802.3az
  • PXE network boot

LAN Protection

The Ethernet connection also forms part of ASRock's Full Spike Protection system and includes lightning/ESD protection features.

M.2 Key-E Slot for Optional WiFi and Bluetooth

The B550M Pro4 includes a dedicated M.2 Key-E socket for a compatible type-2230 PCIe WiFi/Bluetooth module.

WiFi Is Not Included

The standard ASRock B550M Pro4 does not contain an installed WiFi module.

The M.2 Key-E socket gives users the option to add compatible wireless hardware later.

Bluetooth Is Not Included

Bluetooth is also not built into the standard motherboard.

A compatible WiFi/Bluetooth M.2 module or another suitable PCIe/USB solution must be purchased separately if wireless connectivity is required.

Realtek 7.1-Channel HD Audio

The B550M Pro4 includes high-definition onboard audio using ASRock's current specified Realtek ALC1220/ALC1200 audio platform, with production documentation commonly referencing ALC1200.

Features include:

  • Up to 7.1-channel HD Audio
  • Content protection
  • Premium Blu-ray audio support
  • Audio surge protection
  • PCB isolate shielding
  • Separate PCB layers for left and right audio channels
  • Nahimic Audio software support

Three Rear Analogue Audio Jacks

The rear I/O provides:

  • Line In
  • Front Speaker / Line Out
  • Microphone

For a complete 7.1-channel analogue configuration, the front-panel audio connection is also used according to ASRock's documented jack assignment.

Nahimic Audio

Nahimic Audio provides additional audio processing for compatible headphones, headsets and speakers.

Features include enhanced gaming audio and Sound Tracker functionality, which can provide a visual representation of directional sounds in supported games.

Rear USB 3.2 Gen 2 Type-C

The rear I/O provides a USB 3.2 Gen 2 Type-C port with up to 10Gbps theoretical interface bandwidth.

This can be used with compatible:

  • External SSDs
  • USB-C storage drives
  • Smartphones
  • USB hubs
  • Other USB-C peripherals

USB-C Does Not Automatically Mean DisplayPort or Thunderbolt

The rear USB-C port is specified as USB 3.2 Gen 2 for USB connectivity.

Do not assume that it provides Thunderbolt or USB-C DisplayPort video output unless a feature is explicitly specified.

Rear USB Connectivity

The rear I/O provides:

  • 1 × USB 3.2 Gen 2 Type-A – up to 10Gbps
  • 1 × USB 3.2 Gen 2 Type-C – up to 10Gbps
  • 4 × USB 3.2 Gen 1 Type-A
  • 2 × USB 2.0 Type-A

This gives the motherboard eight rear USB ports in total.

Front USB Expansion

Internal headers provide support for:

  • Up to 4 × front USB 3.2 Gen 1 ports
  • Up to 4 × front USB 2.0 ports

The exact number available at the front of the PC depends on the case and its internal USB cables.

Comprehensive Cooling Connectivity

The B550M Pro4 provides extensive fan and water-pump control for a Micro-ATX motherboard.

Connections include:

  • 1 × CPU fan header
  • 1 × CPU/water-pump fan header
  • 4 × chassis/water-pump fan headers

Water-Pump Header Power

The CPU/water-pump and chassis/water-pump headers support suitable cooling devices up to the manufacturer-listed electrical limits.

ASRock specifies:

  • CPU fan: up to 1A / 12W
  • CPU/water pump: up to 2A / 24W
  • Chassis/water pump headers: up to 2A / 24W

3-Pin and 4-Pin Fan Detection

Applicable pump/fan headers can automatically detect whether a compatible 3-pin or 4-pin fan is connected.

Fan speeds can be managed through ASRock's UEFI and software controls.

ASRock Polychrome RGB

The motherboard supports ASRock Polychrome RGB Sync for compatible lighting components.

Standard RGB Headers

The board includes:

  • 2 × 12V RGB LED headers

ASRock specifies a combined maximum of 12V / 3A / 36W for the applicable RGB strip configuration.

Addressable RGB Headers

The board also provides:

  • 2 × 5V addressable RGB headers

These support compatible addressable LED equipment such as selected fans, coolers and LED strips.

Never Mix 5V ARGB and 12V RGB

5V addressable RGB and 12V conventional RGB are electrically different.

Connecting a 5V ARGB device to a 12V RGB header can damage the lighting device. Always identify the correct header before installation.

ASRock POST Status Checker

The motherboard includes ASRock POST Status Checker / PSC diagnostic LEDs.

These can help identify startup problems involving major components such as:

  • CPU
  • Memory
  • Graphics
  • Boot storage

This can make troubleshooting a new PC build easier when the system does not complete its normal startup process.

ASRock Full Spike Protection

ASRock's Full Spike Protection technology covers sensitive motherboard interfaces including:

  • USB
  • Audio
  • LAN

The protection system is designed to reduce the risk of component damage from unexpected voltage spikes and electrostatic discharge.

256Mb AMI UEFI BIOS

The B550M Pro4 uses a 256Mb AMI UEFI BIOS with graphical interface support.

UEFI provides configuration for areas such as:

  • CPU
  • DDR4 memory
  • XMP profiles
  • Storage
  • Fan control
  • Boot devices
  • Security
  • Voltage and performance settings

ASRock Instant Flash

ASRock Instant Flash provides a convenient method for updating motherboard firmware from a supported BIOS file.

When updating BIOS, follow ASRock's instructions carefully and do not interrupt power during the firmware update.

Micro-ATX Form Factor

The B550M Pro4 measures approximately:

  • 24.4 × 24.4cm
  • 9.6 × 9.6 inches

Its Micro-ATX size makes it suitable for many compact and mid-tower PC cases while still providing four DDR4 slots and multiple PCIe expansion positions.

Case Compatibility

The case must support a Micro-ATX motherboard or a larger compatible motherboard format.

Mini-ITX-only cases will normally not accommodate the B550M Pro4.

Motherboard Power Requirements

The board requires:

  • 1 × 24-pin ATX motherboard power connection
  • 1 × 8-pin 12V CPU power connection

The required PSU wattage depends on the processor, graphics card, storage drives, cooling hardware and other components installed in the system.

Windows 10 and Windows 11 Support

ASRock's current specification lists:

  • Microsoft Windows 10 64-bit
  • Microsoft Windows 11 64-bit

Windows 11 installation also depends on meeting Microsoft's current CPU, TPM, Secure Boot and other system requirements.

Suitable for Gaming PCs

The B550M Pro4 provides many of the features needed for a capable AM4 gaming system:

  • Ryzen 5000 CPU compatibility
  • PCIe 4.0 x16 graphics
  • PCIe 4.0 NVMe storage
  • Up to 128GB DDR4
  • Gigabit Ethernet
  • Nahimic audio
  • Multiple fan headers
  • RGB and ARGB connectivity

Example Gaming Build

A suitable configuration could include:

  • AMD Ryzen 5 5600 / 5600X
  • AMD Ryzen 7 5700X / 5700X3D / 5800X3D
  • 16GB or 32GB DDR4 memory
  • PCIe NVMe SSD in M2_1
  • Dedicated PCIe graphics card
  • Appropriately rated ATX power supply

Always confirm the BIOS version required by the exact processor.

Suitable for Ryzen G-Series Systems Without a Dedicated GPU

A compatible Ryzen G-Series APU can use its integrated Radeon graphics through the motherboard's HDMI, DisplayPort or D-Sub connections.

This can make the board suitable for:

  • Home PCs
  • Office systems
  • Media PCs
  • Compact productivity builds
  • General-purpose computers that do not require a dedicated GPU

Who Is the ASRock B550M Pro4 Best For?

  • AMD Ryzen 5000 PC builders
  • Ryzen 7 5700X3D and 5800X3D gaming upgrades
  • Micro-ATX gaming PCs
  • Users wanting PCIe 4.0 NVMe storage
  • Users needing four DDR4 DIMM slots
  • Systems requiring multiple SATA drives
  • Ryzen G-Series builds needing integrated display outputs
  • Users wanting optional M.2 WiFi expansion
  • RGB-enabled PC builds
  • Home and productivity computers

Who May Need a Different Motherboard?

Consider another motherboard if you specifically require:

  • Built-in WiFi
  • Built-in Bluetooth
  • 2.5Gb Ethernet
  • More than two M.2 storage sockets
  • Multiple PCIe 4.0 M.2 sockets
  • An ATX board with more expansion slots
  • A newer AM5 / DDR5 platform

Compatibility Checklist Before Ordering

  1. Confirm that your processor is listed in ASRock's B550M Pro4 CPU Support List.
  2. Check the minimum BIOS revision required for the CPU.
  3. Confirm that your case supports Micro-ATX motherboards.
  4. Choose compatible DDR4 desktop memory.
  5. Check the ASRock memory QVL for high-frequency RAM where possible.
  6. Determine whether you need a dedicated GPU or a Ryzen APU with integrated graphics.
  7. Check which M.2 slot best matches your SSD.
  8. Remember that M2_2 shares lanes with SATA ports 5 and 6.
  9. Confirm that your power supply provides 24-pin ATX and 8-pin CPU power.
  10. Add a WiFi/Bluetooth module or adapter separately if wireless connectivity is required.

ASRock B550M Pro4 Technical Specifications

  • Brand: ASRock
  • Model: B550M Pro4
  • MPN: B550M PRO4
  • Memox SKU: MBASR-B550MPRO4
  • EAN: 4710483931598
  • Form Factor: Micro-ATX
  • Dimensions: 24.4 × 24.4cm / 9.6 × 9.6in
  • Socket: AMD AM4
  • Chipset: AMD B550
  • Supported CPU Families: Compatible Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series desktop processors
  • Power Design: 8-phase Digi Power
  • PCB: 2oz copper, high-density glass fabric
  • Memory Type: DDR4
  • Memory Slots: 4
  • Maximum Memory: 128GB
  • Memory Architecture: Dual channel
  • XMP: Supported
  • Maximum Manufacturer-Listed Memory OC: Up to DDR4-4733+ with applicable CPU/memory configuration
  • Primary PCIe Slot: Up to PCIe 4.0 x16 with Vermeer/Matisse CPUs
  • Secondary PCIe x16-Length Slot: PCIe 3.0 x4
  • PCIe x1: 1 × PCIe 3.0 x1
  • CrossFireX: Supported
  • M.2 Storage Slots: 2
  • M2_1: M.2 2280 PCIe up to Gen4 x4 with compatible CPU
  • M2_2: M.2 2280 PCIe Gen3 x2 or SATA3
  • SATA: 6 × SATA3 6Gb/s
  • Storage Sharing: M2_2 shares lanes with SATA3_5 and SATA3_6
  • RAID: RAID 0 / RAID 1 / RAID 10
  • WiFi M.2: 1 × Key-E socket for compatible type-2230 PCIe WiFi/Bluetooth module
  • Built-In WiFi: No
  • Built-In Bluetooth: No
  • LAN: Realtek RTL8111H Gigabit Ethernet
  • HDMI: Up to 4096 × 2160 at 60Hz with compatible APU
  • DisplayPort: DisplayPort 1.4, up to 5120 × 2880 at 120Hz with compatible APU
  • VGA: D-Sub, up to 1920 × 1200 at 60Hz
  • Triple Monitor: Supported with suitable integrated graphics
  • Audio: Realtek ALC1220/ALC1200 7.1-channel HD Audio
  • Nahimic Audio: Supported
  • Rear USB 3.2 Gen 2: 1 × Type-A + 1 × Type-C
  • Rear USB 3.2 Gen 1: 4
  • Rear USB 2.0: 2
  • Internal USB 3.2 Gen 1: 2 headers supporting up to 4 ports
  • Internal USB 2.0: 2 headers supporting up to 4 ports
  • CPU Fan Header: 1
  • CPU/Water Pump Header: 1
  • Chassis/Water Pump Headers: 4
  • 12V RGB Headers: 2
  • 5V Addressable RGB Headers: 2
  • POST Status Checker: Yes
  • TPM Header: SPI TPM header
  • BIOS: 256Mb AMI UEFI
  • ASRock Instant Flash: Supported
  • Main Power: 24-pin ATX
  • CPU Power: 8-pin 12V
  • Operating Systems: Windows 10 64-bit / Windows 11 64-bit
  • Certifications: FCC, CE, ErP/EuP ready with suitable PSU
  • Memox Advertised Warranty: 2 years

What Is Included?

  • 1 × ASRock B550M Pro4 motherboard
  • 1 × rear I/O shield
  • 2 × SATA data cables
  • 2 × M.2 socket screws
  • Quick installation / product documentation

CPU, CPU cooler, DDR4 memory, SSDs, graphics card and WiFi/Bluetooth module are not included unless explicitly stated elsewhere in the offer.

Important CPU and BIOS Compatibility Information

Always check the exact CPU against ASRock's current B550M Pro4 CPU Support List. Processor support has expanded through BIOS updates since the motherboard originally launched, so older printed manuals and retailer descriptions may contain outdated CPU compatibility information.

Important PCIe 4.0 Information

PCIe 4.0 capability depends on the processor. Compatible Vermeer / Ryzen 5000 and Matisse / Ryzen 3000 desktop CPUs support PCIe 4.0 on the primary graphics slot and M2_1.

Ryzen G-Series APUs use different PCIe configurations and should not automatically be assumed to provide PCIe 4.0.

Important M.2 Speed Information

The two M.2 storage sockets do not provide equal performance.

M2_1 can provide up to PCIe 4.0 x4, while M2_2 is limited to PCIe 3.0 x2 for NVMe or SATA3 for a SATA M.2 SSD.

Important M2_2 and SATA Sharing Information

M2_2 shares lanes with SATA3_5 and SATA3_6. If M2_2 is used, SATA ports 5 and 6 become unavailable.

Plan the storage configuration carefully when installing multiple SATA and M.2 drives.

Important Integrated Graphics Information

HDMI, DisplayPort and D-Sub outputs require a compatible Ryzen processor with integrated Radeon graphics.

Installing a Ryzen processor without an integrated GPU requires a dedicated graphics card for video output.

Important WiFi and Bluetooth Information

The motherboard includes an M.2 Key-E socket for an optional compatible WiFi/Bluetooth module, but WiFi and Bluetooth hardware are not included as standard.

Important RGB Voltage Information

The motherboard provides both 12V conventional RGB and 5V addressable RGB headers.

Never connect a 5V ARGB device to a 12V RGB header. The voltage and pin configuration must match the connected lighting equipment.

Important USB-C Information

The rear USB-C connection is a USB 3.2 Gen 2 data port supporting up to 10Gbps theoretical bandwidth.

USB-C describes the connector shape and does not automatically mean the port supports Thunderbolt or DisplayPort video output.

Important Memory Overclocking Information

DDR4 speeds above the processor's standard memory specification are overclocked settings. Maximum achievable frequency depends on the CPU memory controller, memory kit, DIMM layout and BIOS configuration.

For high-speed memory, check ASRock's current memory QVL and use matched memory kits wherever possible.

Why Choose the ASRock B550M Pro4?

The ASRock B550M Pro4 offers an unusually broad feature set for a compact Micro-ATX AM4 motherboard.

Support for current BIOS-compatible Ryzen 5000 processors allows it to form the basis of powerful AM4 gaming systems, including builds using popular X3D processors, while four DDR4 slots with up to 128GB capacity provide more memory flexibility than many compact boards.

The primary PCIe 4.0 graphics slot and PCIe 4.0 Hyper M.2 connection provide high-bandwidth connectivity for modern GPUs and NVMe SSDs when a suitable Ryzen processor is installed. A second M.2 socket and six SATA ports provide further storage expansion.

USB 3.2 Gen 2 Type-C and Type-A, Gigabit Ethernet, Nahimic-enhanced 7.1-channel audio, optional M.2 WiFi expansion, extensive fan and water-pump headers and Polychrome RGB connectivity make it suitable for gaming, productivity and enthusiast systems.

For Ryzen G-Series builds, HDMI, DisplayPort and D-Sub outputs provide flexible integrated-graphics connectivity, including triple-monitor support with compatible processors.

Choose the ASRock B550M Pro4 when you need a compact AMD B550 Micro-ATX motherboard with Ryzen 5000 support, four DDR4 slots, PCIe 4.0, dual M.2 storage, six SATA ports, USB-C and flexible upgrade options.



Specification


ASRock B550M Pro4 AMD B550 AM4 Micro-ATX Motherboard Specifications

The ASRock B550M Pro4 is a Micro-ATX AMD AM4 motherboard based on the B550 chipset. It supports compatible Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series desktop processors, with exact CPU compatibility dependent on the installed BIOS version.

The board provides four DDR4 DIMM slots with up to 128GB capacity, PCIe 4.0 graphics and NVMe capability with suitable Ryzen processors, dual M.2 storage, six SATA 6Gb/s ports, USB 3.2 Gen 2 Type-A and Type-C, Gigabit Ethernet, 7.1-channel audio, three display outputs and extensive fan, pump and RGB connectivity.

General Information

Brand ASRock
Product Series Pro4
Product Name ASRock B550M Pro4
Manufacturer Part Number B550M PRO4
Memox SKU MBASR-B550MPRO4
EAN / GTIN 4710483931598
Product Type Desktop PC motherboard
Form Factor Micro-ATX
CPU Socket AMD AM4
Chipset AMD B550

Processor Compatibility

AMD Ryzen 5000 Series Supported – check exact CPU and required BIOS revision
AMD Ryzen 5000 G-Series Supported – check exact CPU and required BIOS revision
AMD Ryzen 4000 G-Series Supported – check exact CPU and required BIOS revision
AMD Ryzen 3000 Series Supported – check exact CPU and required BIOS revision
AMD Ryzen 3000 G-Series Supported for CPUs listed by ASRock with the required BIOS revision
Ryzen 5 3400G Supported from BIOS P2.10 according to ASRock's current CPU Support List
Ryzen 3 3200G Supported from BIOS P2.10 according to ASRock's current CPU Support List
Ryzen 7 5800X3D Supported from BIOS P2.30 according to ASRock's current CPU Support List
Ryzen 7 5700X3D Supported from BIOS P3.20 according to ASRock's current CPU Support List
CPU Compatibility Check Always check the exact processor against ASRock's current B550M Pro4 CPU Support List before installation

CPU Power Design

Power Design 8 Power Phase
Power Control ASRock Digi Power
Power Chokes Premium 50A Power Chokes
Main Motherboard Power 1 × 24-pin ATX connector
CPU Power 1 × 8-pin 12V connector

Memory Specifications

Memory Type DDR4
DIMM Slots 4
Maximum System Memory 128GB
Memory Architecture Dual channel
Memory Type Unbuffered DDR4
XMP Support Yes – Extreme Memory Profile modules supported
DIMM Slot Contacts 15μ gold contacts

DDR4 Memory Speeds

Ryzen 5000 / Vermeer Up to DDR4-4533+ (OC); standard supported frequencies include 3200 / 2933 / 2667 / 2400 / 2133MHz
Ryzen 3000 / Matisse Up to DDR4-4533+ (OC); standard supported frequencies include 3200 / 2933 / 2667 / 2400 / 2133MHz
Ryzen 5000 G-Series / Cezanne Up to DDR4-4733+ (OC)
Ryzen 4000 G-Series / Renoir Up to DDR4-4733+ (OC)
Ryzen 3000 G-Series / Picasso Up to DDR4-3333+ (OC)
Maximum Memory Speed Guaranteed No – actual achievable frequency depends on CPU memory controller, DIMMs, rank configuration, BIOS and overclocking settings
Memory QVL Recommended Yes, particularly for high-frequency, high-capacity and four-DIMM configurations

ECC Memory Support

ECC Unbuffered Memory Supported with applicable processors
Non-ECC Unbuffered Memory Supported
Picasso / Cezanne / Renoir ECC ECC functionality requires a compatible PRO-series processor according to ASRock

Primary PCIe Graphics Slot – PCIE1

Physical Slot PCI Express x16
Ryzen 5000 / Vermeer PCIe 4.0 x16
Ryzen 3000 / Matisse PCIe 4.0 x16
Ryzen 5000G / Cezanne PCIe 3.0 x16
Ryzen 4000G / Renoir PCIe 3.0 x16
Supported Picasso APUs PCIe 3.0 x8
Slot Reinforcement ASRock Steel Slot Gen4
NVMe Boot Support via Applicable PCIe Devices Supported

Additional PCIe Expansion Slots

Secondary x16-Length Slot – PCIE3 PCIe 3.0 x16 physical slot operating at x4
PCIe x1 Slot 1 × PCIe 3.0 x1
AMD CrossFireX Supported
AMD Quad CrossFireX Listed by ASRock

WiFi / Bluetooth Expansion Slot

M.2 Wireless Socket 1 × M.2 Key-E
Supported Module Size Type 2230
Intended Use Compatible PCIe WiFi / Bluetooth module
WiFi Module Included No
Built-In WiFi No
Built-In Bluetooth No
Rear Antenna Bracket Yes – antenna mounting positions are provided, but wireless module and antennas are not listed as included

M.2 Storage Overview

Storage M.2 Sockets 2
M.2 Key Type M-Key
Supported Storage Module Length M.2 2280
NVMe Boot Support Yes, subject to processor and configuration
M.2 Heatsink ASRock Full Coverage M.2 Heatsink

M2_1 Hyper M.2 Slot

Socket Hyper M.2 M2_1
Module Size M.2 2280
Ryzen 5000 / Vermeer PCIe 4.0 x4 – up to 64Gb/s theoretical interface bandwidth
Ryzen 3000 / Matisse PCIe 4.0 x4 – up to 64Gb/s theoretical interface bandwidth
Cezanne / Renoir / Picasso APUs PCIe 3.0 x4 – up to 32Gb/s theoretical interface bandwidth
SATA M.2 Support on M2_1 No SATA mode listed for M2_1
NVMe SSD Support Yes

M2_2 M.2 Slot

Socket M2_2
Module Size M.2 2280
NVMe Interface PCIe 3.0 x2
Maximum PCIe Interface Bandwidth Up to 16Gb/s theoretical interface bandwidth
SATA M.2 Support Yes – SATA3 6Gb/s
NVMe Boot Support Yes, subject to processor support
Bandwidth Sharing Shares lanes with SATA3_5 and SATA3_6

SATA Storage

SATA Ports 6 × SATA3 6Gb/s
NCQ Supported
AHCI Supported
SATA Hot Plug Supported where applicable
SATA3_5 / SATA3_6 Sharing These two ports share lanes with M2_2
SATA3_1 to SATA3_4 Not affected by M2_2 lane sharing

RAID Support

RAID 0 Supported
RAID 1 Supported
RAID 10 Supported
RAID Replaces a Backup No

Integrated Graphics Support

Integrated Graphics Provided by a compatible Ryzen APU with integrated Radeon graphics
Motherboard Integrated GPU No – graphics capability comes from the installed processor
DirectX DirectX 12
Pixel Shader 5.0
Default Shared Graphics Memory 2GB
Maximum Shared Graphics Memory Up to 16GB
Requirement for 16GB Shared Graphics Memory 32GB of system memory must be installed

Display Outputs

HDMI 1
HDMI Standard HDMI 2.1 with supported CPUs; Picasso uses different HDMI/HDCP capabilities
Maximum HDMI Resolution Up to 4096 × 2160 at 60Hz with compatible processor graphics
DisplayPort 1 × DisplayPort 1.4
Maximum DisplayPort Resolution Up to 5120 × 2880 at 120Hz with compatible processor graphics and display
D-Sub / VGA 1
Maximum D-Sub Resolution Up to 1920 × 1200 at 60Hz
Triple Monitor Support Yes, with compatible integrated processor graphics
HDR Supported through HDMI 2.1 with compatible hardware
HDCP HDCP 2.3 through HDMI 2.1 and DisplayPort 1.4; Picasso uses HDCP 2.2 with HDMI 2.0

Important Display Requirement

Can HDMI / DisplayPort / VGA Work with Any Ryzen CPU? No
Required Processor Type A compatible processor with integrated Radeon graphics
Dedicated GPU Needed with CPU Without Integrated Graphics Yes

Onboard Audio

Audio Codec Realtek ALC1220 / ALC1200 according to ASRock's current specification
Audio Channels 7.1-channel High Definition Audio
Content Protection Supported
Premium Blu-ray Audio Supported
Audio Surge Protection Yes
PCB Isolate Shielding Yes
Separate Left / Right Audio PCB Layers Yes
Nahimic Audio Supported

Rear Audio Connections

Rear Analogue Audio Jacks 3
Line In 1
Front Speaker / Line Out 1
Microphone 1
Front Panel Audio Header 1

Wired Networking

LAN Controller Realtek RTL8111H
Ethernet Speed 10 / 100 / 1000Mb/s
Maximum Ethernet Class Gigabit Ethernet / 1GbE
RJ45 Port 1
Wake-on-LAN Supported
Energy Efficient Ethernet IEEE 802.3az supported
PXE Network Boot Supported
LAN Lightning / ESD Protection Supported

Rear USB Connectivity

USB 3.2 Gen 2 Type-A 1 × rear port – up to 10Gb/s
USB 3.2 Gen 2 Type-C 1 × rear port – up to 10Gb/s
USB 3.2 Gen 1 Type-A 4 × rear ports
USB 2.0 Type-A 2 × rear ports
Total Rear USB Ports 8
USB ESD Protection Supported on the listed rear USB ports

Front USB Headers

USB 3.2 Gen 1 Internal Headers 2
Maximum Front USB 3.2 Gen 1 Ports 4
USB 2.0 Internal Headers 2
Maximum Front USB 2.0 Ports 4
Dedicated Front-Panel USB-C Header Not listed

Rear I/O Connections

PS/2 Keyboard / Mouse 1
D-Sub / VGA 1
HDMI 1
DisplayPort 1.4 1
USB 3.2 Gen 2 Type-A 1
USB 3.2 Gen 2 Type-C 1
USB 3.2 Gen 1 4
USB 2.0 2
Gigabit LAN 1 × RJ45
Analogue Audio Jacks 3
WiFi Antenna Bracket Yes

Cooling and Fan Headers

CPU Fan Header 1 × 4-pin
CPU Fan Maximum Output 1A / 12W
CPU / Water-Pump Header 1 × 4-pin
CPU / Water-Pump Maximum Output 2A / 24W
Chassis / Water-Pump Headers 4 × 4-pin
Chassis / Water-Pump Maximum Output Up to 2A / 24W per applicable header
Smart Fan Speed Control Supported
3-Pin / 4-Pin Auto Detection Supported on CPU_FAN2/WP and CHA_FAN1/WP through CHA_FAN4/WP

Motherboard Cooling Features

XXL Aluminium Alloy Heatsink Yes
Chipset Heatsink Yes
Full Coverage M.2 Heatsink Yes

RGB and Addressable RGB

ASRock Polychrome RGB Supported
12V RGB Headers 2
RGB Header Combined Rating Up to 12V / 3A / 36W total according to ASRock specification
5V Addressable RGB Headers 2
Addressable Header Combined Rating Up to 5V / 3A / 15W total according to ASRock specification
5V ARGB and 12V RGB Interchangeable No

Internal Headers and Connectors

24-Pin ATX Power 1
8-Pin 12V CPU Power 1
COM Header 1
SPI TPM Header 1
Power LED / Speaker Header 1
Front Panel Audio Header 1
RGB LED Headers 2
Addressable LED Headers 2
CPU Fan Header 1
CPU / Water-Pump Header 1
Chassis / Water-Pump Headers 4
USB 3.2 Gen 1 Headers 2
USB 2.0 Headers 2

POST Status Checker

POST Status Checker / PSC Yes
CPU Diagnostic Yes
DRAM Diagnostic Yes
VGA Diagnostic Yes
Boot Diagnostic Yes

PCB and Protection Features

PCB Sapphire Black PCB
Copper PCB 2oz copper
High-Density Glass-Fabric PCB Yes
Solid Capacitor Design Yes
Premium 50A Power Chokes Yes
Full Spike Protection USB, audio and LAN ports
Steel Slot Gen4 Yes – primary PCIe graphics slot

BIOS and Firmware

BIOS 256Mb AMI UEFI Legal BIOS
Graphical UEFI Interface Yes
ASRock Full HD UEFI Supported
ASRock Instant Flash Supported
Plug and Play Supported
ACPI ACPI 5.1 compliant wake-up events
SMBIOS 2.3
Dedicated Rear BIOS Flashback Button Not listed for this motherboard

ASRock Software

ASRock Motherboard Utility / A-Tuning Supported
ASRock Live Update & APP Shop Supported
Nahimic Audio Supported
Polychrome RGB Supported

Hardware Monitoring

CPU Temperature Monitoring Supported
CPU / Water-Pump Monitoring Supported
Chassis / Water-Pump Fan Monitoring Supported
Fan Tachometer Supported
Quiet Fan Control Supported
Fan Multi-Speed Control Supported
Voltage Monitoring Includes +12V, +5V, +3.3V, CPU Vcore, CPU SOC, DRAM and other board voltages

Physical Specifications

Form Factor Micro-ATX
Dimensions 24.4 × 24.4cm
Dimensions in Inches 9.6 × 9.6in
Product Weight Not published in ASRock's current official motherboard specification
PCB Colour Sapphire Black

Operating System Support

Windows 10 64-bit supported
Windows 11 64-bit supported
Windows 11 Requirements System must also meet Microsoft's applicable CPU, TPM, Secure Boot and other requirements

Certifications

FCC Yes
CE Yes
ErP / EuP Ready Yes, when used with an ErP / EuP-ready power supply

Package Contents

Motherboard 1 × ASRock B550M Pro4
Rear I/O Shield Included
SATA Data Cables 2 × listed by ASRock
M.2 Socket Screws 2 × listed by ASRock
Quick Installation Guide Listed in ASRock's motherboard manual
Support Media ASRock's original manual lists a Support CD; package contents can vary by production date and region
CPU Not included
CPU Cooler Not included
DDR4 Memory Not included
Graphics Card Not included
M.2 / SATA Storage Not included
WiFi / Bluetooth Module Not included
WiFi Antennas Not listed as included

Warranty

Memox Advertised Warranty 2 years
ASRock Manufacturer Warranty ASRock states that warranty periods can vary by region and directs end users to the retailer, store or distributor for warranty service
Proof of Purchase May be required for warranty service
UK Statutory Rights Any manufacturer or retailer warranty is additional to applicable UK consumer statutory rights

Important Ryzen 5 3400G and Ryzen 3 3200G Compatibility Note

Older launch-era documentation and some retailer listings state that the Ryzen 5 3400G and Ryzen 3 3200G are not compatible with the B550M Pro4.

ASRock's current CPU Support List now lists both processors as supported with BIOS P2.10. The current ASRock CPU database should therefore be used instead of the older launch-era compatibility warning.

Important CPU and BIOS Compatibility Note

AM4 socket compatibility alone does not guarantee that every AM4 processor will boot with every BIOS version.

Before installing a processor, check the exact CPU model against ASRock's current B550M Pro4 CPU Support List and confirm the minimum BIOS revision required.

For example, ASRock currently lists the Ryzen 7 5800X3D from BIOS P2.30 and the Ryzen 7 5700X3D from BIOS P3.20.

Important PCIe 4.0 Note

PCIe 4.0 availability depends on the installed processor.

With compatible Ryzen 5000 / Vermeer and Ryzen 3000 / Matisse desktop CPUs, PCIE1 operates at PCIe 4.0 x16 and M2_1 can operate at PCIe 4.0 x4.

With Cezanne and Renoir G-Series APUs, the CPU-connected interfaces operate at PCIe 3.0. Supported Picasso APUs operate PCIE1 at PCIe 3.0 x8.

Important M2_1 Speed Note

The primary Hyper M.2 socket, M2_1, supports M.2 2280 PCIe NVMe SSDs.

It operates up to PCIe 4.0 x4 / 64Gb/s theoretical interface bandwidth with compatible Vermeer and Matisse CPUs, or PCIe 3.0 x4 / 32Gb/s with compatible Cezanne, Renoir and Picasso APUs.

Important M2_2 Speed Note

The second M.2 socket is not PCIe 3.0 x4. ASRock specifies M2_2 as PCIe 3.0 x2, with a theoretical interface bandwidth up to 16Gb/s, or SATA3 6Gb/s when using a compatible SATA M.2 SSD.

Important M2_2 and SATA Sharing Note

M2_2 shares lanes with SATA3_5 and SATA3_6.

If M2_2 is used, SATA ports 5 and 6 become unavailable. Conversely, use of the shared SATA connection can prevent M2_2 from operating. SATA ports 1 to 4 are not affected by this particular sharing arrangement.

Important Athlon 3000G NVMe Note

ASRock specifically states that NVMe SSD operation is not supported with AMD Athlon 3000G processors on this motherboard.

Customers considering an Athlon-based configuration should therefore check both CPU support and storage limitations before purchase.

Important Integrated Graphics Note

The motherboard's HDMI, DisplayPort and D-Sub outputs require a compatible processor with integrated Radeon graphics.

A Ryzen CPU without integrated graphics will require a dedicated graphics card for display output.

Important Display Resolution Note

Maximum published resolutions such as HDMI 4096 × 2160 at 60Hz and DisplayPort 5120 × 2880 at 120Hz depend on the installed processor graphics, monitor, cable and operating configuration.

They should not be interpreted as guaranteed output capabilities with every supported AM4 processor.

Important WiFi and Bluetooth Note

The B550M Pro4 includes an M.2 Key-E socket for an optional type-2230 WiFi/Bluetooth module, but the standard motherboard does not include WiFi or Bluetooth hardware.

The antenna mounting bracket on the rear I/O should not be interpreted as meaning that a wireless module or antennas are supplied.

Important Audio Note

ASRock's current specification lists the onboard audio codec as Realtek ALC1220 / ALC1200. It is safest to retain this manufacturer wording rather than guarantee only one codec variant.

The rear panel has three analogue audio jacks even though the codec supports up to 7.1-channel HD Audio. Audio connection configuration can therefore depend on the selected speaker setup and front-panel audio connections.

Important USB-C Note

The rear USB-C connector is a USB 3.2 Gen 2 data port rated up to 10Gb/s.

USB-C describes the connector type and should not be interpreted as automatic Thunderbolt or DisplayPort video support. ASRock does not list those functions for this rear USB-C port.

Important Front USB-C Note

The motherboard provides two internal USB 3.2 Gen 1 headers and two USB 2.0 headers, but ASRock does not list a dedicated internal front-panel USB-C header.

Important RGB Header Voltage Note

The motherboard provides both conventional 12V RGB and 5V addressable RGB headers.

These are not interchangeable. Connecting a 5V ARGB product to a 12V RGB header can damage the lighting hardware.

Important Memory Speed Note

DDR4-4533+ and DDR4-4733+ figures are overclocked memory ratings and are not guaranteed with every CPU or memory kit.

Actual stable frequency depends on the processor's integrated memory controller, DIMM count, memory rank, module quality, BIOS version and settings. Check ASRock's current Memory QVL when building a high-frequency configuration.

Important Warranty Note

ASRock's global support guidance states that motherboard warranty periods can vary by region and that end users should contact the original retailer, store or distributor for warranty service. The 2-year Memox warranty should therefore be presented as the retailer warranty rather than claiming a universal 2-year ASRock manufacturer warranty.

Return

30 Days Return

FAQ: Frequenlty Asked Questions



ASRock B550M Pro4 AM4 Motherboard FAQ

The ASRock B550M Pro4 is a Micro-ATX AMD B550 motherboard for compatible AM4 Ryzen systems. It supports current ASRock-listed Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series processors, four DDR4 DIMM slots up to 128GB, dual M.2 storage, six SATA3 ports, PCIe 4.0 with compatible CPUs, Realtek Gigabit Ethernet, rear USB 3.2 Gen 2 Type-A and Type-C, optional M.2 Key E Wi-Fi, Polychrome RGB and ASRock Post Status Checker diagnostics.

Below are the most common questions buyers ask before choosing the B550M Pro4, including Ryzen 5700X3D/5800X3D BIOS support, PCIe 4.0 by processor, M.2 and SATA lane sharing, RAM/XMP setup, optional Wi-Fi, rear vs front USB-C, RGB and fan headers, Windows 11, POST troubleshooting, storage upgrades and whether AM4 still makes sense in 2026.

1. What is the ASRock B550M Pro4?

The ASRock B550M Pro4 is a Micro-ATX AMD AM4 motherboard based on the B550 chipset. It supports compatible Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series processors, four DDR4 memory slots, dual M.2 storage, six SATA ports, PCIe 4.0 with compatible CPUs, Gigabit Ethernet, rear USB-C and optional M.2 Wi-Fi.

2. What is the exact model number?

The exact motherboard model is ASRock B550M Pro4. The Memox SKU is MBASR-B550MPRO4.

3. What is the EAN / UPC?

The Memox listing identifies UPC/EAN 4710483931598.

4. What form factor is the B550M Pro4?

It is a Micro-ATX motherboard, suitable for Micro-ATX cases and larger ATX cases that support Micro-ATX mounting.

5. What chipset does it use?

It uses the AMD B550 chipset.

6. What CPU socket does it use?

It uses the AMD AM4 socket.

7. Which processor families does ASRock currently list as supported?

ASRock currently lists compatible Ryzen 3000, Ryzen 3000 G-Series, Ryzen 4000 G-Series, Ryzen 5000 and Ryzen 5000 G-Series desktop processors. Exact support depends on the processor and BIOS version.

8. Does the B550M Pro4 support Ryzen 5000?

Yes. Ryzen 5000 support is officially listed, but some processors require a newer BIOS than early production boards shipped with.

9. Does it support Ryzen 5000 G-Series APUs?

Yes. Ryzen 5000 G-Series processors are supported with the required BIOS version.

10. Does it support Ryzen 4000 G-Series processors?

Yes. Compatible Ryzen 4000 G-Series desktop APUs are supported.

11. Does it support Ryzen 3000 processors?

Yes. Compatible Ryzen 3000 desktop CPUs are supported.

12. Does it support Ryzen 3000 G-Series processors?

ASRock's current CPU database includes selected Ryzen 3000 G-Series/Picasso processors with later BIOS support. Check the exact CPU part number and minimum BIOS before installation.

13. Does it support Ryzen 7 5700X3D?

Yes. ASRock's current CPU support list specifies BIOS P3.20 or later for the Ryzen 7 5700X3D.

14. Does it support Ryzen 7 5800X3D?

Yes. ASRock lists the Ryzen 7 5800X3D as supported from BIOS P2.30.

15. Does it support Ryzen 5 5600X?

Yes. ASRock lists the Ryzen 5 5600X as supported from BIOS P1.20.

16. Does it support Ryzen 5 5600?

Yes. ASRock lists the Ryzen 5 5600 as supported from BIOS P2.30.

17. Does it support Ryzen 5 5500?

Yes with a sufficiently recent BIOS. Check ASRock's live CPU support list for the exact part number.

18. Does it support Ryzen 5 5600G?

Yes. ASRock lists the Ryzen 5 5600G as supported from BIOS P1.80.

19. Does it support Ryzen 7 5700G?

Yes with the appropriate BIOS.

20. Does it support Ryzen 7 5800X?

Yes with a Ryzen 5000-compatible BIOS.

21. Does it support Ryzen 9 5900X?

Yes with a compatible BIOS.

22. Does it support Ryzen 9 5950X?

Yes. ASRock lists the Ryzen 9 5950X as supported from BIOS P1.20.

23. Can I run a Ryzen 9 5950X on this Micro-ATX board?

Yes. ASRock officially supports it. Use a strong CPU cooler, good case airflow and an appropriately sized power supply for sustained heavy workloads.

24. Does it support Ryzen 5 3400G now?

ASRock's current CPU support database lists the non-PRO Ryzen 5 3400G as supported from BIOS P2.10. This is newer information than older launch-era descriptions that said it was not compatible.

25. Does it support Ryzen 3 3200G now?

ASRock's current CPU support database lists the non-PRO Ryzen 3 3200G as supported from BIOS P2.10.

26. Why do older B550M Pro4 descriptions say 3200G and 3400G are unsupported?

B550 launch-era compatibility was more limited. ASRock's current CPU support database now lists those CPUs with later BIOS support, so the live CPU table should take priority over old marketing text.

27. What BIOS version first added Ryzen 5000 support?

ASRock BIOS P1.20 added Ryzen 5000 Series processor support.

28. What BIOS version is required for Ryzen 7 5700X3D?

ASRock specifies P3.20 or later.

29. What BIOS version is required for Ryzen 7 5800X3D?

ASRock specifies P2.30 or later.

30. What BIOS version is required for Ryzen 5 5600X?

ASRock specifies P1.20 or later.

31. What BIOS version is required for Ryzen 5 5600G?

ASRock specifies P1.80 or later.

32. What is the latest stable BIOS currently listed by ASRock?

As of August 2026, ASRock lists stable BIOS P3.90, released 9 October 2025. Check ASRock before updating because later versions may appear.

33. What does BIOS P3.90 change?

ASRock describes P3.90 as updating Secure Boot keys to the newer 2023 KEK/DB/PK set.

34. Should I always install the latest BIOS?

Not necessarily. ASRock says that if the system is working properly, keeping the current BIOS is acceptable unless you need a compatibility, security or feature update.

35. Should I update the BIOS before changing to a 5700X3D?

Yes if your installed BIOS is older than P3.20. Updating with your existing working CPU before the swap is the easiest approach.

36. Does the B550M Pro4 have BIOS Flashback?

No dedicated rear USB BIOS Flashback button is listed. Normal updates use ASRock Instant Flash from UEFI.

37. What is ASRock Instant Flash?

Instant Flash is ASRock's built-in UEFI BIOS update utility. It updates firmware from a supported BIOS file on USB storage.

38. Can I update BIOS without entering Windows?

Yes. Instant Flash runs inside UEFI.

39. Should I back up my BitLocker recovery key before a BIOS update?

Yes. Recent ASRock BIOS notes specifically warn users to back up BitLocker keys before firmware/fTPM updates.

40. Will a BIOS update reset my settings?

Yes. Record important XMP, fan, boot and tuning settings before updating.

41. Can BIOS updates improve USB, RAM or GPU compatibility?

Yes. ASRock's BIOS history includes AGESA, USB compatibility, GPU compatibility, security and system-compatibility changes.

42. Does the board support Windows 11?

Yes. BIOS P2.20 enabled Windows 11 support by default and enabled AMD CPU fTPM by default.

43. Does it support TPM 2.0?

Yes. Compatible AMD processors can use firmware TPM, and the board also has an SPI TPM header.

44. Does it support Secure Boot?

Yes through UEFI.

45. Can Secure Boot changes stop Windows booting?

Yes if Secure Boot, CSM or boot-mode settings no longer match how Windows was installed. Record settings before changing them.

46. Does it support Windows 10?

Yes, although Microsoft's standard Windows 10 support ended in October 2025.

47. Can it run Linux?

Yes with a Linux distribution and kernel that support the AMD B550 platform and onboard controllers.

48. Does the board support PCIe 4.0?

Yes with compatible Ryzen CPUs. The primary graphics slot and M2_1 can use PCIe 4.0 with Vermeer or Matisse desktop processors.

49. Which CPUs enable PCIe 4.0 on this board?

ASRock specifies PCIe 4.0 for PCIE1 and M2_1 with Vermeer and Matisse. Cezanne, Renoir and Picasso APUs operate those interfaces at PCIe 3.0.

50. Does Ryzen 5 5600X enable PCIe 4.0?

Yes.

51. Does Ryzen 7 5700X3D enable PCIe 4.0?

Yes.

52. Does Ryzen 7 5800X3D enable PCIe 4.0?

Yes.

53. Does Ryzen 5 5600G enable PCIe 4.0?

No. The 5600G is a Cezanne APU, so the CPU-connected interfaces operate at PCIe 3.0.

54. Does Ryzen 7 5700G enable PCIe 4.0?

No. It is a Cezanne APU and uses PCIe 3.0.

55. Does Ryzen 5 5500 enable PCIe 4.0?

No. The Ryzen 5 5500 platform is PCIe 3.0.

56. Can I install a Gen4 SSD with a Ryzen 5600G?

Yes, but M2_1 will run it at PCIe 3.0 speed because of the processor.

57. Can I install a PCIe 5.0 graphics card?

Yes. PCIe is backward compatible, so a Gen5 GPU can operate at the highest mutually supported link speed.

58. Can I install an RTX 5090?

Yes from a PCIe compatibility standpoint. Check PSU capacity, case clearance and CPU performance because an RTX 5090-class card is extremely demanding.

59. Can I install an RTX 4090?

Yes, subject to case size, PSU capacity and suitable CPU pairing.

60. Can I install RTX 4070 / 4070 SUPER / 5070-class GPUs?

Yes.

61. Can I install Radeon RX 7800 XT, 7900 or 9070-class GPUs?

Yes, provided the case and PSU support the exact card.

62. What is PCIE1?

PCIE1 is the reinforced primary graphics slot. With Vermeer or Matisse it operates at PCIe 4.0 x16.

63. What is PCIE3?

PCIE3 is the second full-length slot and operates at PCIe 3.0 x4.

64. Does the second full-length slot run electrically at x16?

No. It is physically x16 length but electrically x4.

65. How many PCIe x1 slots are there?

There is one PCIe 3.0 x1 slot.

66. Can I install a capture card?

Yes, using a compatible PCIe slot.

67. Can I install a sound card?

Yes.

68. Can I install a 2.5GbE network card?

Yes.

69. Can I install a 10GbE network card?

Potentially. The lower PCIe 3.0 x4 slot is the better choice for higher-bandwidth adapters.

70. Does the board support CrossFire?

Yes. ASRock lists AMD Quad CrossFireX and CrossFireX.

71. Is CrossFire useful for modern gaming?

Usually not. The lower slot is generally more useful for storage, networking, capture or other expansion cards.

72. Does it support NVIDIA SLI?

NVIDIA SLI is not listed.

73. How many M.2 storage slots are there?

There are two M-Key M.2 storage slots.

74. What is M2_1 / Hyper M.2?

M2_1 is the CPU-connected primary M.2 slot. It supports a type 2280 PCIe SSD up to Gen4 x4 with Vermeer/Matisse or Gen3 x4 with Cezanne/Renoir/Picasso.

75. What is M2_2?

M2_2 supports type 2280 PCIe NVMe SSDs up to PCIe 3.0 x2 and SATA M.2 SSDs.

76. Can I install two NVMe SSDs?

Yes. M2_1 is the faster slot; M2_2 can run NVMe at up to PCIe 3.0 x2.

77. Can I use a Gen4 NVMe SSD in M2_2?

Yes if the SSD is backward compatible, but it will be limited to PCIe 3.0 x2.

78. Why is M2_2 slower?

It is a chipset-connected Gen3 x2/SATA slot rather than the four-lane CPU-connected M2_1 slot.

79. Which M.2 slot should I use for my fastest SSD?

Use M2_1.

80. Can M2_2 use a SATA M.2 SSD?

Yes.

81. Does M2_1 support SATA M.2 SSDs?

ASRock specifies M2_1 as a PCIe Hyper M.2 slot. Use M2_2 for SATA M.2.

82. Does M2_2 disable SATA ports?

Yes. M2_2 shares lanes with SATA3_5 and SATA3_6.

83. Which SATA ports stop working when M2_2 is occupied?

SATA3_5 and SATA3_6.

84. Why did two SATA drives disappear after installing an M.2 SSD?

If M2_2 is occupied and those drives are on SATA3_5/6, this is expected. Move them to SATA ports 1-4.

85. Can I use two M.2 SSDs and four SATA drives?

Yes.

86. Can I use two M.2 SSDs and all six SATA drives?

No. M2_2 disables SATA3_5 and SATA3_6.

87. Can I use one M.2 SSD and all six SATA drives?

Yes if you use M2_1 and leave M2_2 empty.

88. Can NVMe SSDs be boot drives?

Yes. ASRock states that both M.2 sockets support NVMe boot, subject to CPU limitations.

89. Does Athlon 3000G support NVMe on this board?

ASRock specifically states that NVMe SSDs are not supported with AMD Athlon 3000G processors.

90. Does the board include an M.2 heatsink?

Yes. ASRock lists a full-coverage M.2 heatsink.

91. Should I use the M.2 heatsink with a Gen4 SSD?

Yes where appropriate. High-performance SSD controllers can benefit from cooling under sustained load.

92. Can I use an SSD that already has its own heatsink?

Yes if it fits, but do not stack incompatible heatsinks.

93. What M.2 length is supported?

ASRock specifies type 2280 for the storage sockets.

94. Does it support M.2 22110?

The current ASRock specification lists 2280 for these M.2 storage sockets, so do not assume 22110 support.

95. How many SATA ports are there?

There are six SATA3 6Gb/s connectors.

96. Does it support SATA RAID?

Yes. RAID 0, RAID 1 and RAID 10 are listed.

97. Does it support AMD StoreMI?

Yes.

98. Can I install Windows on M2_2?

Yes. It can be a boot drive, though its maximum interface is PCIe 3.0 x2.

99. How much RAM does the motherboard support?

Up to 128GB of DDR4.

100. How many RAM slots are there?

Four.

101. Does it support DDR5?

No. It is DDR4 only.

102. Is memory dual-channel?

Yes.

103. Does it support DDR4-3200?

Yes.

104. Does it support DDR4-3600?

Yes as an overclocked/XMP setting with compatible CPU and memory.

105. What is the highest advertised DDR4 speed?

ASRock advertises DDR4 4733+ OC at the product level, with the exact maximum depending on CPU family and DIMM configuration.

106. Why is my 3200MHz or 3600MHz memory running at 2133MHz?

The system starts from the DIMM's safe SPD setting. Enable the appropriate XMP profile in UEFI if your CPU and memory support it.

107. Does the B550M Pro4 support XMP?

Yes. ASRock explicitly lists Extreme Memory Profile support.

108. Is XMP guaranteed to work?

No. XMP is memory overclocking and depends on the CPU memory controller, DIMM count, BIOS and kit.

109. Can four RAM sticks be harder to run at 3600MHz than two?

Yes. Four DIMMs create more electrical load on the memory controller and may require lower speed or manual tuning.

110. Which RAM slots should I use for two modules?

Use the paired slots recommended by ASRock, normally A2 and B2.

111. Can I use 2x16GB for 32GB?

Yes.

112. Can I use 4x8GB for 32GB?

Yes, although XMP can be more demanding with four sticks.

113. Can I use 2x32GB for 64GB?

Yes with compatible modules.

114. Can I install 128GB?

Yes with a compatible four-DIMM configuration.

115. Can I mix different RAM kits?

It may work, but a single matched kit is safer for stability.

116. Does the board support ECC memory?

ASRock lists ECC and non-ECC unbuffered DDR4 with compatible Ryzen CPUs. For Picasso, Cezanne and Renoir APUs, ECC is supported only with PRO processors.

117. Does it support registered RDIMM memory?

No. It uses unbuffered DDR4.

118. What is the memory QVL?

ASRock's Qualified Vendor List shows tested RAM kits and configurations.

119. Does RAM have to be on the QVL?

No, but QVL validation provides extra confidence.

120. Why can 3600MHz XMP fail even though the board advertises much higher speeds?

The headline OC rating is not a guarantee for every CPU and DIMM combination. Memory-controller quality, ranks and four-stick configurations matter.

121. Should I update BIOS if XMP is unstable?

A newer stable BIOS can improve memory compatibility, but first verify DIMM placement and stability at default settings.

122. Does the B550M Pro4 have built-in Wi-Fi?

No.

123. Does it have a dedicated M.2 Wi-Fi slot?

Yes. One M.2 Key E socket supports type 2230 PCIe Wi-Fi/Bluetooth modules.

124. Is a Wi-Fi module included?

No. ASRock explicitly states that it is not included.

125. Does the rear I/O provide antenna mounting space?

Yes. The rear I/O includes an antenna bracket area for a compatible wireless kit.

126. What type of Wi-Fi card should I buy?

Choose a type 2230 M.2 Key E PCIe Wi-Fi/Bluetooth module compatible with AMD desktop platforms, together with the required antenna leads and antennas.

127. Will every M.2 Wi-Fi card work?

No. Some modules require proprietary Intel CNVio interfaces. Check for standard PCIe/USB compatibility.

128. Can I add Wi-Fi 6?

Yes with a compatible M.2 Key E module.

129. Can I add Wi-Fi 6E?

Yes with a compatible module, drivers and antennas.

130. Can I add Wi-Fi 7?

Potentially, provided the module uses a compatible host interface and your OS/drivers support it.

131. Can the Wi-Fi M.2 slot take an SSD?

No. It is a Key E wireless slot, not an M-Key storage slot.

132. Can I add Wi-Fi with a PCIe card instead?

Yes.

133. Can I use a USB Wi-Fi adapter?

Yes.

134. Does it have built-in Bluetooth?

No. Add a Wi-Fi/Bluetooth card or USB Bluetooth adapter.

135. What Ethernet controller does it use?

Realtek RTL8111H Gigabit Ethernet.

136. Is the onboard LAN 2.5GbE?

No. It is 1GbE.

137. Can I add 2.5Gb Ethernet?

Yes with a PCIe network card.

138. Does LAN support Wake-on-LAN?

Yes.

139. Does it support PXE network boot?

Yes.

140. What onboard audio codec does it use?

ASRock's current page lists Realtek ALC1220/ALC1200 depending on revision/market documentation; the Memox specification identifies ALC1200.

141. Does it support 7.1-channel audio?

Yes.

142. Does it support Nahimic Audio?

Yes.

143. Does the motherboard have HDMI?

Yes.

144. What is the maximum HDMI resolution?

ASRock lists up to 4096x2160 at 60Hz with a compatible APU.

145. Does it have DisplayPort?

Yes, DisplayPort 1.4.

146. What is the maximum DisplayPort resolution?

ASRock lists up to 5120x2880 at 120Hz with compatible integrated graphics and display.

147. Does it have VGA / D-Sub?

Yes, up to 1920x1200 at 60Hz.

148. Can it drive three monitors from the motherboard outputs?

ASRock lists triple-monitor support with a compatible Ryzen APU.

149. Will motherboard HDMI work with Ryzen 5 5600X?

No. The 5600X has no integrated graphics. Connect the monitor to a discrete GPU.

150. Will motherboard HDMI work with Ryzen 7 5700X3D?

No.

151. Will motherboard HDMI work with Ryzen 7 5800X3D?

No.

152. Will HDMI work with Ryzen 5 5600G?

Yes.

153. Will HDMI work with Ryzen 7 5700G?

Yes.

154. Why is there no picture from the motherboard video output?

If the CPU has no integrated graphics, the motherboard video ports cannot produce an image. Connect the monitor to the graphics card.

155. Does the board have rear USB-C?

Yes. It has one rear USB 3.2 Gen 2 Type-C port at up to 10Gbps.

156. Does it have rear USB 3.2 Gen 2 Type-A?

Yes, one 10Gbps Type-A port.

157. How many rear USB 3.2 Gen 1 ports are there?

Four.

158. How many rear USB 2.0 ports are there?

Two.

159. How many rear USB ports are there altogether?

Eight.

160. Does the rear USB-C output video?

No USB-C DisplayPort Alt Mode is listed. Use the motherboard display outputs with an APU or the graphics card.

161. Does the rear USB-C support Thunderbolt?

No built-in Thunderbolt is listed.

162. Does the board have a front-panel USB-C header?

No dedicated internal Type-E front USB-C header is listed.

163. Why does my case front USB-C cable have nowhere to connect?

The motherboard lacks a native Type-E header. A compatible PCIe USB card with an internal Type-E connector can add this function.

164. How many front USB 3.x ports can be connected?

Two internal USB 3.2 Gen 1 headers support up to four front USB 3.2 Gen 1 ports.

165. How many front USB 2.0 ports can be connected?

Two USB 2.0 headers support up to four front USB 2.0 ports.

166. Can USB issues be caused by BIOS?

Yes. ASRock has released BIOS updates containing USB compatibility improvements, although cables, headers and drivers can also be responsible.

167. What should I check if USB devices keep disconnecting?

Test rear ports, remove hubs, update AMD chipset drivers, check the front header connection and consider a stable BIOS update if appropriate.

168. Does the board have RGB headers?

Yes. It has two 12V RGB headers and two 5V addressable RGB headers.

169. Can I connect 5V ARGB to a 12V RGB header?

No. Doing so can damage the lighting device.

170. Does it support Polychrome RGB?

Yes.

171. Can I synchronise compatible RGB devices?

Yes through ASRock Polychrome RGB Sync.

172. Can RGB software conflict with other lighting applications?

Yes. Multiple RGB-control applications can fight for control of the same hardware, so use one main lighting-control method where possible.

173. How many fan headers are there?

One CPU fan, one CPU/water-pump and four chassis/water-pump headers.

174. Can I connect an AIO cooler?

Yes.

175. What is the CPU fan header power limit?

ASRock lists CPU_FAN1 at up to 1A / 12W.

176. What is the pump/chassis header power limit?

ASRock lists the pump-capable headers at up to 2A / 24W each.

177. Do fan headers support 3-pin and 4-pin fans?

The pump/chassis headers can automatically detect supported 3-pin or 4-pin fans.

178. Can I use fan splitters?

Yes if combined current remains within the header limit. Use a powered hub for many fans.

179. Can I control fan curves in BIOS?

Yes.

180. Does the board have POST diagnostic LEDs?

Yes. ASRock calls them the Post Status Checker or PSC.

181. What does the Post Status Checker monitor?

CPU, DRAM, VGA and BOOT status.

182. What should I do if CPU and DRAM lights stay on?

Check the 8-pin CPU power, CPU seating, BIOS support and RAM seating. Test one DIMM, clear CMOS and remove unnecessary hardware.

183. What should I do if the VGA light stays on?

Reseat the GPU, verify GPU power and display cable, and make sure the monitor is connected to the graphics card when using a CPU without integrated graphics.

184. What should I do if the BOOT light stays on?

Check SSD detection, boot order, UEFI/CSM mode and operating-system installation.

185. Why do the fans spin but the PC does not POST?

Fans only show that some power is present. POST can still fail from CPU BIOS support, RAM, GPU, CPU power or other hardware problems.

186. Can a BIOS version cause no POST with a new CPU?

Yes. This is a key check when upgrading to Ryzen 5000/X3D processors.

187. How do I clear CMOS?

Turn off and unplug the system, then use the clear-CMOS procedure in the ASRock manual. Removing the battery temporarily is another common method when performed correctly.

188. Will clearing CMOS erase Windows?

No.

189. Will clearing CMOS disable XMP?

Yes. Firmware settings return to defaults.

190. Can memory training take longer after clearing CMOS?

Yes.

191. Can unstable XMP cause boot loops?

Yes. Test at default RAM speed first.

192. What motherboard power connectors are required?

One 24-pin ATX connector and one 8-pin CPU/EPS connector.

193. Can I use a PCIe GPU cable in the CPU socket?

No. Use the PSU cable labelled CPU/EPS.

194. How much PSU wattage do I need?

That depends mainly on the CPU, GPU and other components. Follow the graphics-card recommendation and leave reasonable headroom.

195. Will an ATX 3.0 or ATX 3.1 PSU work?

Yes.

196. Is the VRM suitable for Ryzen 9?

ASRock officially supports Ryzen 9 including the 5950X. Good case airflow is recommended for sustained all-core loads.

197. Can I overclock a Ryzen CPU?

B550 supports tuning with compatible unlocked Ryzen processors.

198. Does it support Precision Boost Overdrive?

Compatible Ryzen CPUs and BIOS versions support AMD performance-tuning features such as PBO.

199. Is the board good for Ryzen 7 5700X3D?

Yes. It is officially supported from P3.20 and is a strong AM4 gaming upgrade.

200. Is it good for Ryzen 7 5800X3D?

Yes. It is officially supported from P2.30.

201. Is it good for Ryzen 9 5950X?

Yes with suitable cooling and airflow.

202. Does the board have a chipset fan?

No. The B550 chipset is passively cooled.

203. Is the I/O shield included?

Yes. ASRock lists a separate I/O shield.

204. What accessories are included?

ASRock lists the I/O shield, two SATA data cables and two M.2 screws.

205. Does it include a Wi-Fi module or antennas?

No.

206. Does it have a PS/2 port?

Yes.

207. Does it have a COM header?

Yes.

208. Does it have a TPM header?

Yes.

209. Can I use the motherboard in an ATX case?

Yes.

210. Can I use it in a Micro-ATX case?

Yes.

211. Can I use it in a Mini-ITX-only case?

Usually no.

212. Can a large GPU block the PCIe x1 slot?

Yes. Thick graphics cards can cover adjacent slots.

213. Should I install M.2 SSDs before the graphics card?

That is usually easier, especially when using the M.2 heatsink.

214. Can I use an AM4 air cooler?

Yes if the cooler supports AM4 and fits the case.

215. Can I use a 240mm or 360mm AIO?

Yes from the motherboard-connection standpoint; radiator fit depends on the case.

216. Is the B550M Pro4 good for gaming?

Yes. Ryzen 5000/X3D support, PCIe 4.0 with compatible CPUs and dual M.2 make it a capable value gaming platform.

217. Is it good for 1440p gaming?

Yes. GPU and CPU selection matter much more than the motherboard for game resolution.

218. Is it good for 4K gaming?

Yes from a compatibility standpoint.

219. Is it suitable for office use?

Yes, especially with a Ryzen APU if you want to use the motherboard display outputs.

220. Is it suitable for content creation?

Yes. It supports Ryzen 9, up to 128GB DDR4 and several storage devices.

221. Can I use it for virtual machines?

Yes.

222. Can I enable AMD SVM virtualisation?

Yes through UEFI with a compatible CPU.

223. Is it suitable for a home server?

Yes for many home-server builds, but remember M2_2 disables SATA3_5/6 and onboard networking is 1GbE.

224. Can I build a TrueNAS or Unraid system with it?

Yes if you plan storage lanes, ECC requirements and network expansion carefully.

225. Can I use all six SATA ports in a NAS?

Yes if M2_2 is unused.

226. Can I add an HBA card?

Yes, normally in the lower PCIe 3.0 x4 slot if the HBA is compatible.

227. B550M Pro4 vs B450M Pro4: what is the main difference?

B550M Pro4 adds PCIe 4.0 with compatible CPUs and a more useful second M.2 slot that can run PCIe Gen3 x2 as well as SATA.

228. B550M Pro4 vs B550M Steel Legend: which is better?

B550M Steel Legend is the more premium option, with a stronger 10-phase Dr.MOS design and 2.5GbE. B550M Pro4 is the value-focused choice with 8-phase power and 1GbE.

229. B550M Pro4 vs MSI B550M PRO-VDH WIFI: what is the trade-off?

The MSI model is attractive when built-in Wi-Fi and BIOS Flashback are priorities. The ASRock offers strong storage, fan and RGB connectivity plus an optional M.2 Wi-Fi slot.

230. B550 vs B450: why choose B550?

B550 adds PCIe 4.0 from compatible Ryzen CPUs and broader later-AM4 support.

231. B550 vs X570: what is different?

X570 generally offers more chipset PCIe 4.0 connectivity, while B550 is usually simpler and more cost-effective.

232. B550M Pro4 vs AM5 motherboard: which is better in 2026?

B550M Pro4 is attractive for a lower-cost AM4/DDR4 build or upgrade. AM5 is better for a new premium build needing a longer future CPU upgrade path.

233. Is AM4 still worth buying in 2026?

Yes for value builds and upgrades, especially with Ryzen 5000 X3D processors and inexpensive DDR4.

234. Is Ryzen 7 5700X3D a sensible upgrade for this board?

Yes. It is officially supported from BIOS P3.20 and can substantially extend the useful life of an AM4 gaming system.

235. Can I upgrade from Ryzen 3600 to 5700X3D without reinstalling Windows?

Usually yes. Update BIOS first, replace the CPU, then update AMD chipset drivers and verify settings.

236. Can I upgrade from Ryzen 5600G to 5700X3D?

Yes, but the 5700X3D has no integrated graphics. You will need a discrete GPU and BIOS P3.20 or later.

237. Will motherboard video outputs stop working after moving from 5600G to 5700X3D?

Yes. Connect the monitor to a discrete graphics card.

238. Can a Gen4 SSD become faster after upgrading from 5600G to 5700X3D?

Yes if it is installed in M2_1. The 5600G limits that slot to Gen3, while the 5700X3D can enable Gen4.

239. Can the GPU link become Gen4 after upgrading from 5600G to 5700X3D?

Yes. PCIE1 can move from Gen3 x16 with Cezanne to Gen4 x16 with Vermeer.

240. What should I check before buying the B550M Pro4?

Confirm the exact CPU and minimum BIOS, case Micro-ATX support, DDR4 compatibility, M.2/SATA lane sharing, and whether 1GbE, no built-in Wi-Fi and no front USB-C header meet your needs.

241. Who is the B550M Pro4 best for?

It is best for value-conscious AM4 builders who want Ryzen 5000/X3D support, four DDR4 slots, dual M.2, six SATA ports, optional M.2 Wi-Fi, PCIe 4.0 and strong fan/RGB connectivity in a Micro-ATX board.

242. Who is the B550M Pro4 not ideal for?

It is not ideal for users who need built-in Wi-Fi, onboard 2.5GbE, a native front USB-C header, BIOS Flashback, DDR5, PCIe 5.0 or a future CPU path beyond AM4.

243. What are the biggest strengths?

Broad AM4 CPU support, good storage connectivity, PCIe 4.0 with compatible CPUs, four RAM slots, optional M.2 Wi-Fi, multiple pump/fan headers, RGB/ARGB support and POST diagnostic LEDs.

244. What are the biggest limitations?

1Gb Ethernet, no built-in Wi-Fi, no native front USB-C header, no dedicated BIOS Flashback button, a slower Gen3 x2 second M.2 slot and loss of SATA ports 5/6 when M2_2 is used.

245. Is the ASRock B550M Pro4 still a good motherboard in 2026?

Yes for a cost-effective AM4 build or upgrade, particularly when reusing DDR4 or pairing it with a Ryzen 5000/X3D processor. AM5 remains the better route for buyers prioritising future CPU upgrades.

View AllClose

Warranty Information

2 Year Warranty
View AllClose
