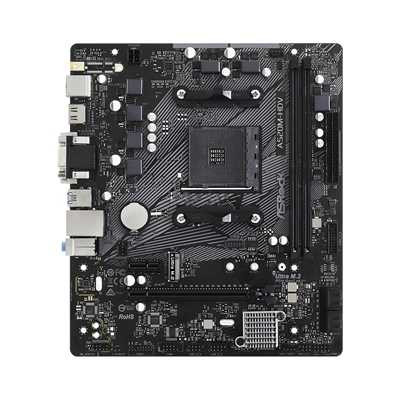

ASRock A520M-HDV Micro-ATX AM4 Motherboard – DDR4, M.2, HDMI, DVI and VGA

The ASRock A520M-HDV is a value-focused micro-ATX AM4 motherboard designed for practical AMD desktop builds. Based on the AMD A520 chipset, it is a strong option for users building an affordable home PC, office desktop, student computer, or entry-level gaming system with a compatible AMD Ryzen processor.

With support for DDR4 memory, an Ultra M.2 slot, HDMI, DVI-D and VGA display outputs, and a compact micro-ATX layout, the A520M-HDV offers the key modern features many buyers need for a cost-effective AM4 system.

Key Features of the ASRock A520M-HDV

• AMD A520 chipset
• Socket AM4
• Micro-ATX form factor
• 2 x DDR4 DIMM slots
• Supports DDR4 4733+ (OC)
• 1 x Ultra M.2 slot
• Ultra M.2 supports PCIe Gen3 x4 and SATA3 M.2 modules
• HDMI, DVI-D and D-Sub (VGA) graphics outputs
• 1 x PCIe 3.0 x16 slot
• 1 x PCIe 3.0 x1 slot
• Realtek Gigabit LAN
• 6 Phase Power Design

Designed for Affordable AMD AM4 Builds

The ASRock A520M-HDV is built for users who want a straightforward motherboard for everyday computing, office work, web browsing, media playback, and budget-conscious PC building. It is especially well suited to builders who want a reliable AM4 motherboard with M.2 SSD support and multiple display outputs in a smaller chassis.

This board is a good fit for buyers searching for a budget Ryzen motherboard, a micro-ATX AM4 motherboard, or an A520 motherboard for home or office use.

Good for Home, Office and Entry-Level PC Builds

If you are building a practical desktop rather than a high-end enthusiast machine, the A520M-HDV covers the essentials well. Its compact size, simple feature set, and M.2 storage support make it a sensible option for everyday systems.

AM4 CPU Support and DDR4 Memory

ASRock lists support for Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series desktop processors, with the note to check the official CPU support list for full details. The board includes 2 DDR4 DIMM slots, and retailer listings commonly show support for up to 64GB of DDR4 memory depending on module configuration.

Modern Platform for Cost-Effective Builds

For buyers who want to stay on the AM4 platform, the A520M-HDV offers a cost-effective route to a compact Ryzen system with modern SSD storage and DDR4 memory support.

Ultra M.2 Storage and SATA Expansion

One of the key features of this motherboard is its Ultra M.2 slot. ASRock states that it supports both PCIe Gen3 x4 and SATA3 M.2 modules, with transfer speeds up to 32Gb/s for supported PCIe drives. The board also provides 4 SATA3 ports for additional SSD or hard drive storage.

Useful for NVMe and SATA SSD Upgrades

This makes the board especially attractive for users searching for a budget motherboard with M.2, or for anyone who wants to combine fast SSD boot storage with extra SATA drives for larger file storage.

Display Outputs and Everyday Connectivity

The A520M-HDV includes HDMI, DVI-D, and D-Sub (VGA) outputs, giving users flexibility when pairing the board with a compatible Ryzen APU or another processor with supported integrated graphics. Matching retailer descriptions also highlight HDMI 4K at 60Hz support as a useful feature for modern displays.

Good for Legacy and Modern Monitor Setups

Having VGA, DVI-D and HDMI can be very useful in office and business environments where older screens may still be in use alongside newer monitors.

Core Expansion, USB and Networking

The motherboard includes a PCIe 3.0 x16 slot for a graphics card and a PCIe 3.0 x1 slot for other expansion devices. Networking is handled through Realtek Gigabit LAN, while USB support includes up to 6 USB 3.2 Gen1 ports and 6 USB 2.0 ports across rear I/O and headers.

Practical Layout for Everyday Systems

This combination gives the board enough flexibility for a dedicated GPU build or a simpler office PC, while keeping the layout compact and cost-effective.

Technical Specifications

• Brand: ASRock
• Model: A520M-HDV
• Chipset: AMD A520
• Socket: AM4
• Form factor: Micro-ATX
• Memory slots: 2 x DDR4 DIMM
• Memory support: DDR4 4733+ (OC)
• Maximum memory: up to 64GB (retailer-listed)
• Expansion slots: 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
• M.2: 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
• SATA: 4 x SATA3
• Graphics outputs: HDMI, DVI-D, D-Sub
• LAN: Realtek Gigabit LAN
• Audio: 7.1-channel HD Audio (Realtek ALC887)

Why Buy the ASRock A520M-HDV?

This motherboard is a good choice for buyers looking for a budget Ryzen motherboard, an AM4 board with M.2 support, or a compact micro-ATX AMD motherboard for a practical desktop build. It delivers the key essentials most users need for an affordable modern PC.

Buying Advice

Before ordering, make sure your processor is compatible with the AM4 socket and that your case supports the micro-ATX form factor. If you plan to use the motherboard’s display outputs, confirm that your chosen processor supports integrated graphics output, since not all Ryzen CPUs do.
