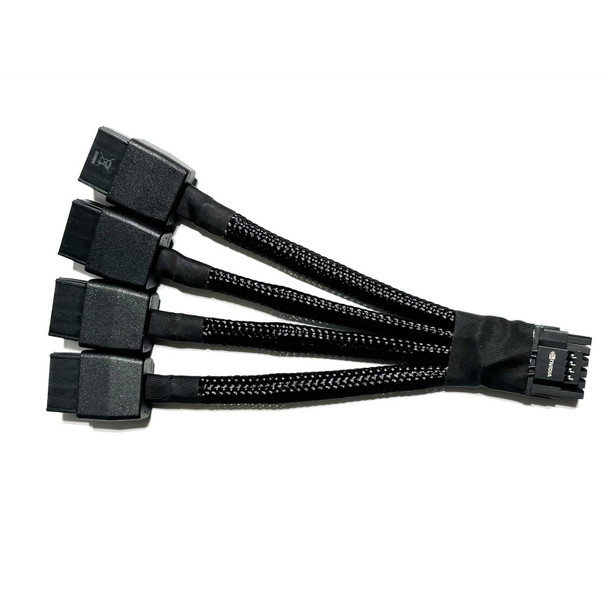

This is a short internal GPU power adapter cable designed to connect four PCIe 8-pin / 6+2-pin graphics card power connectors from a suitable PSU to one 12VHPWR 12+4-pin / 16-pin graphics card power input. It is mainly used for compatible high-performance GPUs where a native 12VHPWR cable is not available.

12VHPWR stands for 12-volt high-power connector. It is a compact 16-pin style GPU power connector, made from 12 larger power pins plus 4 smaller sense pins, commonly used on modern high-power graphics cards.

12+4 pin means the connector has 12 main power pins and 4 smaller sense pins. The 12 main pins carry power, while the 4 smaller pins help the graphics card detect available power and connection state.

It means the PSU side of the cable connects to four standard PCIe 8-pin / 6+2-pin GPU power connectors. All four PCIe inputs should be connected using proper PCIe GPU power cables from a suitable power supply.

Yes. This is a GPU power adapter cable. It is designed for graphics cards with a 12VHPWR-style power socket and for systems where the power supply provides standard PCIe 8-pin / 6+2-pin GPU power connectors instead of a native 12VHPWR cable.

No. This is not a modular PSU cable. It must not be plugged directly into modular PSU sockets. It connects to existing PCIe 8-pin / 6+2-pin GPU power leads from your PSU, not directly into the PSU modular ports.

No. Do not plug this cable directly into PSU modular sockets. Modular PSU pinouts vary by brand and model, and using the wrong cable directly in a PSU can damage the graphics card, PSU, motherboard or other components.

Connect the 12VHPWR 12+4-pin side fully into the graphics card, then connect the four PCIe 8-pin / 6+2-pin inputs to proper PCIe GPU power cables from your PSU. Use PCIe cables only, not SATA, Molex or CPU EPS cables.

Yes. For this 4 x 8-pin adapter, all four PCIe 8-pin / 6+2-pin connectors should be connected unless your GPU manufacturer specifically gives different instructions. Leaving connectors unplugged can cause instability, power warnings or unsafe load sharing.

No. If the adapter has four PCIe inputs, use all four. Using fewer connectors can overload the connected cables or prevent the graphics card from detecting the correct available power.

Where possible, yes. Using separate PCIe power cables from the PSU helps share the load better than relying heavily on daisy-chained connectors. This is especially important for high-power graphics cards.

It is better to use separate PCIe cables where possible, especially for high-power GPUs. Daisy-chained PCIe leads can put more load through fewer PSU cables. If your PSU does not have enough proper PCIe outputs, consider using a suitable higher-quality PSU instead.

No. Do not power this cable from SATA or Molex adapters. High-power graphics cards require proper PCIe GPU power cables from a suitable PSU. SATA and Molex adapters are not suitable for this type of GPU power load.

No. CPU EPS 8-pin cables and PCIe 8-pin GPU cables are not the same. Use only proper PCIe 6+2-pin GPU power connectors. Forcing the wrong connector can damage components.

This cable is for compatible graphics cards that use a 12VHPWR 12+4-pin / 16-pin power socket. Many NVIDIA GeForce RTX 40-series and RTX 50-series style cards use this type of connector, but compatibility depends on the exact GPU model and PSU setup.

It may be compatible with RTX 4090 cards that use a 12VHPWR power connector, provided your PSU has enough wattage and four proper PCIe 8-pin GPU power connectors. Because RTX 4090 cards can draw high power, correct installation and full connector seating are especially important.

It may be compatible with RTX 4080 or RTX 4080 Super cards that use a 12VHPWR connector. Check your exact GPU power requirement, recommended PSU wattage, and whether the GPU manufacturer recommends a 3 x 8-pin, 4 x 8-pin or native 12VHPWR/12V-2x6 connection.

It may be compatible if the card uses a 12VHPWR-style connector, but many RTX 4070 Ti-class cards may not need a 4 x 8-pin adapter. Check your graphics card’s included adapter and manufacturer recommendation before choosing this cable.

Some RTX 4060 or RTX 4070 models use standard 8-pin connectors rather than 12VHPWR. If your graphics card does not have a 12VHPWR / 16-pin socket, this cable is not suitable. Always check the exact GPU power connector before buying.

Some RTX 50-series cards use 12VHPWR or newer 12V-2x6 style power connectors. This cable may fit compatible 16-pin GPU inputs, but always check the card manufacturer’s PSU and cable guidance, especially for high-power models.

Only if the AMD graphics card uses a compatible 12VHPWR or 12V-2x6 style 16-pin connector. Many AMD graphics cards still use standard PCIe 8-pin connectors, so this cable is not needed for those models.

This cable is marketed as a PCIe 5.0-style 12VHPWR GPU power adapter. It is used for compatible graphics cards that require a 12VHPWR / 16-pin style power input, but your PSU and GPU requirements must still be checked separately.

12V-2x6 is the newer connector design that replaced 12VHPWR in the updated PCIe CEM standard. The connector looks similar, but internal pin and sense-pin changes were made to improve connection detection and reliability. Always follow your GPU and PSU manufacturer guidance for the exact connector used.

In many cases the physical connector is designed to be compatible, but the safest answer is to follow your graphics card and PSU manufacturer guidance. For high-power GPUs, a native 12V-2x6 cable from a compatible ATX 3.1 PSU may be preferable where available.

12VHPWR is commonly associated with up to 600W power delivery when properly implemented and when the graphics card, PSU and cable are designed for it. The actual power available depends on the GPU, sense pins, PSU, cable quality and connector configuration.

No cable should be treated as a guarantee by itself. The full system must be suitable: the PSU must have enough wattage, the PCIe cables must be proper GPU cables, all four inputs must be connected correctly, and the GPU must be installed according to the manufacturer’s instructions.

Reports and community testing often point to issues such as connectors not being fully seated, sharp bending near the plug, repeated unplugging, poor cable quality, high GPU power draw, contamination, or uneven contact. The connector must be fully inserted with no visible gap and should not be sharply bent near the GPU socket.

Push the 12VHPWR connector fully into the GPU until it is seated securely, check that there is no gap, avoid bending the cable close to the connector, use all required PCIe inputs, avoid cheap adapters, do not pull the cable sideways, and recheck the connection after cable management.

The connector should be pushed fully into the graphics card socket with no visible gap between the plug and the GPU connector. It should feel secure and should not wiggle loose. If it does not seat properly, do not power on the PC until the fit is corrected.

Yes. A partially inserted 12VHPWR connector can create poor contact, higher resistance, heat build-up and possible connector damage. Always inspect the plug from the side and front to confirm it is fully inserted before powering the GPU.

Avoid bending the cable sharply near the 12VHPWR connector. Leave a gentle bend and enough clearance from the GPU socket before routing the cable. Sharp bends close to the connector can pull the plug out slightly or stress the terminals.

Many builders try to leave at least several centimetres of straight cable before any bend. If your side panel presses against the cable or forces a sharp bend, use a wider case, different routing, or a suitable angled adapter/cable from a trusted manufacturer.

This is a short 10cm adapter cable, designed for compact internal routing and replacing a short GPU adapter. It is not intended as a long extension cable across the case. Check your cable routing and PSU lead length before buying.

Yes, if your existing PSU PCIe cables can reach the adapter location. The short braided design can help keep the area near the GPU tidy, but it may not be suitable if your PCIe cables need a longer extension path.

It works like a short adapter between existing PCIe GPU power leads and a 12VHPWR GPU input. It is not a direct modular PSU replacement cable and should not be connected directly into PSU modular sockets.

It may be suitable as a replacement if your GPU uses a 12VHPWR connector and your PSU has four proper PCIe 8-pin / 6+2-pin GPU power connectors. Compare the original adapter requirements and your GPU manufacturer guidance before replacing it.

Yes, it may be used as a replacement if the connector type and PSU requirements match. If your original adapter shows melting, burning, discolouration or loose pins, stop using it immediately and inspect the GPU power socket for damage before fitting any new cable.

Do not fit a new cable into a damaged GPU socket. Stop using the graphics card and contact the GPU manufacturer, retailer or a qualified repair technician. A damaged connector can overheat again even with a new cable.

No. Your PSU must have enough total wattage, enough PCIe GPU power outputs, and suitable PCIe cables. This cable should be connected to proper PCIe 6+2-pin GPU connectors only, not to CPU EPS, SATA, Molex or unknown modular PSU ports.

The required PSU wattage depends on your graphics card, CPU, drives, fans, overclocking and total system load. Always follow the graphics card manufacturer’s recommended PSU wattage. High-end GPUs may require 750W, 850W, 1000W or more depending on the model and system.

Only if your graphics card and full system power requirement are within the PSU’s safe capability and the PSU has four proper PCIe GPU power connectors. Many high-end 12VHPWR GPUs need more than 650W system capacity, so check the GPU recommendation carefully.

An 850W PSU may be suitable for many 12VHPWR GPU builds, depending on the exact GPU and CPU. The PSU must also have enough proper PCIe connectors and good-quality PCIe cables. Always follow the GPU manufacturer’s PSU recommendation.

A 1000W PSU is often suitable for high-end GPU systems, but wattage alone is not enough. You still need the correct PCIe GPU connectors, good cable quality, correct installation and proper connector seating at the graphics card.

For many modern systems, a native 12VHPWR or 12V-2x6 cable from a compatible ATX 3.0/3.1 PSU is the cleaner solution. This 4 x 8-pin adapter is useful when your suitable PSU does not have a native 16-pin GPU cable but does have enough PCIe 8-pin connectors.

If you are building a new high-end RTX system, an ATX 3.0 or ATX 3.1 PSU with a native 12VHPWR or 12V-2x6 cable may be the better long-term choice. This adapter is more useful for upgrading an existing compatible PSU that lacks a native GPU 16-pin cable.

For overclocking, GPU power draw and transient load can increase. Use a high-quality PSU with enough headroom, connect all four PCIe inputs properly, avoid daisy chains where possible, and make sure the 12VHPWR plug is fully seated with no sharp bend near the connector.

It may help if your old adapter was missing, damaged or not making good contact. However, GPU power warnings can also be caused by insufficient PSU wattage, missing PCIe inputs, poor cable seating, incorrect cables, or a damaged GPU connector.

Possible causes include an underpowered PSU, overloaded PCIe cables, a loose 12VHPWR connector, overheating, GPU power spikes, faulty PSU, unstable overclock or damaged cable. Stop using the system until all GPU power connections are checked properly.

A red light near the GPU power connector can indicate a power issue, missing connector, loose cable or PSU problem, depending on the graphics card brand. Check all four PCIe inputs, reseat the 12VHPWR plug fully, and consult the GPU manual.

Any GPU power cable can cause damage if it is the wrong type, poorly seated, overloaded, bent sharply, connected to the wrong PSU cables, or used with an unsuitable PSU. Install carefully and do not power on the system if the connector does not seat fully.

Extra extensions add more connection points and can increase resistance or cable clutter. For high-power GPUs, it is usually better to keep the power path simple and use proper PSU PCIe cables directly into this adapter, rather than stacking multiple extensions.

Yes. This cable is listed as a braided cable. The braided finish helps with appearance and tidy internal routing, especially in systems with glass side panels or visible GPU power cables.

The product is listed as a braided replacement GPU power cable. Check the product photos and listing details for the exact colour and finish before buying if matching your build theme is important.

No. This cable is intended for internal desktop PC GPU power connection only. It should be used inside a compatible PC case with proper cable routing and no strain on the GPU connector.

A properly installed cable should not become excessively hot. If you notice burning smell, visible melting, discolouration, unusually hot connector areas, instability or GPU power warnings, shut down immediately and inspect the cable and GPU connector.

Check the connector after first installation, after closing the side panel, after moving the PC, and after any cable management changes. Make sure the 12VHPWR plug is still fully seated and not being pulled sideways by the cable bend.

Avoid unnecessary repeated unplugging and reconnecting. Every connector has a limited mating life, and repeated handling can increase wear, looseness or contamination. If you must reconnect it, inspect the plug and socket carefully before use.

Choose a native PSU cable if your compatible PSU includes one or if you are buying a modern ATX 3.0/3.1 PSU. Choose this adapter if your existing suitable PSU has enough PCIe 8-pin outputs but does not have a native 12VHPWR cable.

Use the adapter type recommended for your graphics card. Higher-power GPUs often use a 4 x 8-pin adapter for more power headroom, while some lower-power 12VHPWR GPUs may use 2 x or 3 x 8-pin adapters. Do not guess; follow the GPU manual.

This cable is best for PC builders with a compatible 12VHPWR graphics card and a suitable PSU that has enough wattage plus four proper PCIe 8-pin / 6+2-pin GPU power connectors, but does not have a native 12VHPWR cable.

This cable is not for users who want a direct modular PSU cable, users without four proper PCIe GPU power connectors, users with SATA/Molex-only power, users with damaged GPU power sockets, or users whose graphics card does not have a 12VHPWR / 16-pin input.

Before buying, check your GPU uses a 12VHPWR / 16-pin input, your PSU has enough wattage, your PSU has four proper PCIe 8-pin / 6+2-pin GPU connectors, your case has enough space to avoid sharp cable bends, and you understand this is not a direct modular PSU cable.
