INTEL

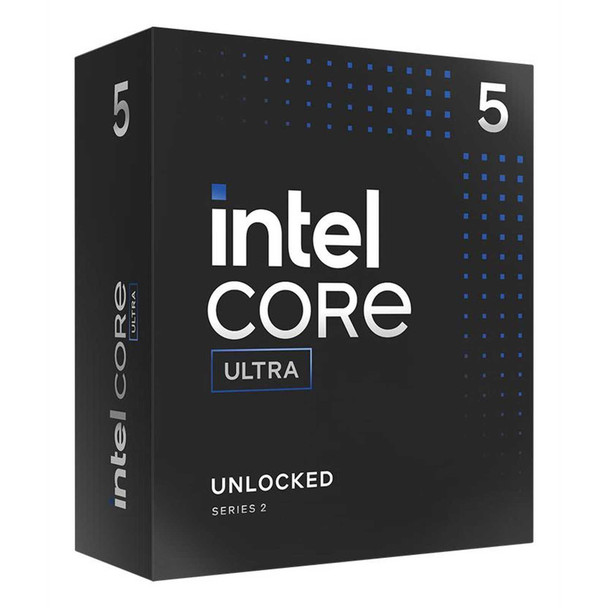

Intel Core Ultra 5 225F 10-Core 4.9GHz LGA1851 Processor

SKU:
PRINT-U5-225F
UPC:
5032037282376
MPN:
BX80768225F
Availability:
Free Click & Collect in Peterborough. UK delivery also available
Price (inc VAT): £153.65
Frequently bought together:

Description

Intel Core Ultra 5 225F 10-Core 4.9GHz LGA1851 Processor – DDR5, PCIe 5.0 & AI NPU

The Intel Core Ultra 5 225F is a 10-core desktop processor from Intel Core Ultra Processors Series 2, formerly known by the codename Arrow Lake. Designed for the modern LGA1851 desktop platform, it combines six high-performance P-cores with four power-efficient E-cores, reaches boost frequencies up to 4.9GHz and includes a dedicated Intel AI Boost NPU for supported artificial-intelligence workloads.

The processor provides 10 cores and 10 threads, 20MB Intel Smart Cache, 22MB total L2 cache, support for DDR5 memory up to 6400MT/s and up to 24 processor PCI Express lanes with PCIe 5.0 and PCIe 4.0 support.

The “F” suffix means this processor does not contain integrated Intel graphics. A compatible discrete graphics card is therefore required for normal display output. Motherboard HDMI or DisplayPort connectors cannot provide processor graphics with the Core Ultra 5 225F.

This boxed BX80768225F version is also supplied with Intel's Laminar RM2 thermal solution, providing a complete standard cooling solution for stock operation without requiring an aftermarket CPU cooler for a basic build.

Quick answer: The Intel Core Ultra 5 225F is a 10-core / 10-thread LGA1851 desktop CPU with 6 Performance-cores, 4 Efficient-cores, up to 4.9GHz boost, 20MB Smart Cache, DDR5-6400 support, PCIe 5.0/4.0 connectivity and a 13-TOPS Intel AI Boost NPU. It has a 65W processor base power and 121W maximum turbo power. Because it is an F-series processor, a separate graphics card is required.

Key Features of the Intel Core Ultra 5 225F

  • Intel Core Ultra 5 desktop processor
  • Intel Core Ultra Processors Series 2
  • Formerly codenamed Arrow Lake
  • Launched Q1 2025
  • 10 total CPU cores
  • 6 Performance-cores / P-cores
  • 4 Efficient-cores / E-cores
  • 10 total threads
  • No Hyper-Threading
  • Up to 4.9GHz maximum turbo frequency
  • P-core maximum turbo: 4.9GHz
  • E-core maximum turbo: 4.4GHz
  • P-core base frequency: 3.3GHz
  • E-core base frequency: 2.7GHz
  • 20MB Intel Smart Cache
  • 22MB total L2 cache
  • 65W processor base power
  • 121W maximum turbo power
  • FCLGA1851 socket
  • DDR5 memory support up to 6400MT/s
  • Up to 256GB memory according to Intel's current ARK specification
  • Dual-channel memory controller
  • PCI Express 5.0 and PCI Express 4.0 support
  • Up to 24 processor PCIe lanes
  • DMI 4.0
  • Intel AI Boost NPU
  • 13 TOPS NPU performance
  • 19 overall peak AI TOPS
  • Intel Deep Learning Boost on CPU
  • Intel Thread Director
  • Intel Turbo Boost Technology 2.0
  • Intel Speed Shift Technology
  • Intel Gaussian & Neural Accelerator 3.5
  • No integrated Intel graphics
  • No Intel Quick Sync Video
  • Discrete graphics card required for display output
  • Locked / non-K multiplier processor
  • Maximum operating temperature: 105°C
  • Intel Laminar RM2 cooler included with this boxed SKU
  • 3-year Intel boxed-processor limited warranty, subject to Intel terms

10-Core Hybrid Desktop Processor

The Core Ultra 5 225F uses Intel's modern performance hybrid architecture, combining two different types of CPU core within the same processor.

Its ten cores are divided into:

  • 6 Performance-cores
  • 4 Efficient-cores

This allows the processor to balance demanding foreground applications with background and multi-tasking workloads.

What Are Performance-Cores?

Intel Performance-cores, commonly called P-cores, are designed for demanding and latency-sensitive workloads.

They are particularly useful for tasks such as:

  • Gaming
  • Application responsiveness
  • Photo editing
  • Programming
  • Content creation
  • Single-thread-sensitive workloads

The six P-cores in the 225F have a base frequency of 3.3GHz and can boost to a maximum of 4.9GHz.

What Are Efficient-Cores?

The four Efficient-cores, or E-cores, are designed to process background and parallel workloads efficiently.

They can assist with:

  • Background applications
  • System services
  • Multi-tasking
  • Parallel workloads
  • Supporting applications while gaming

The E-cores operate from a 2.7GHz base frequency and can boost up to 4.4GHz.

10 Cores and 10 Threads – Not 14 Threads

The Intel Core Ultra 5 225F provides:

  • 10 physical CPU cores
  • 10 CPU threads

This generation does not use Intel Hyper-Threading on the P-cores, so the thread count is the same as the physical core count.

No Intel Hyper-Threading

Intel officially lists Hyper-Threading Technology: No for the 225F.

This is different from many earlier Intel Core desktop processors where individual P-cores could process two software threads.

Up to 4.9GHz Turbo Frequency

The maximum processor turbo frequency is:

4.9GHz

The individual core specifications are:

  • P-core base: 3.3GHz
  • P-core maximum turbo: 4.9GHz
  • E-core base: 2.7GHz
  • E-core maximum turbo: 4.4GHz

Actual operating frequencies vary dynamically according to workload, temperatures, available power and motherboard configuration.

Intel Turbo Boost Technology 2.0

The Core Ultra 5 225F supports Intel Turbo Boost Technology 2.0.

Turbo Boost automatically raises CPU frequency above its base clock when workload, temperature and electrical conditions allow additional performance.

The advertised 4.9GHz speed is therefore a maximum turbo frequency, not the fixed frequency of every core at all times.

20MB Intel Smart Cache

The processor includes 20MB of Intel Smart Cache.

Cache is high-speed memory located close to the CPU cores and helps reduce the time required to retrieve frequently used data.

This can benefit workloads such as:

  • Gaming
  • Application loading
  • Code compilation
  • Content creation
  • General desktop computing

22MB Total L2 Cache

In addition to the 20MB Intel Smart Cache, Intel specifies 22MB of total L2 cache.

65W Processor Base Power

Intel specifies a 65W processor base power for the Core Ultra 5 225F.

This makes it easier to cool than many higher-power unlocked desktop processors while still allowing the processor to increase power consumption during demanding turbo workloads.

121W Maximum Turbo Power

Maximum turbo power is specified at:

121W

A suitable motherboard, power supply and CPU cooler should therefore be selected for the processor's turbo power behaviour rather than considering only the 65W base-power figure.

Intel Laminar RM2 CPU Cooler Included

The exact Memox product uses Intel boxed order code BX80768225F.

Intel confirms that boxed Core Ultra 5 225F processors are supplied with the Intel Laminar RM2 thermal solution.

This allows the processor to be installed and operated at standard settings without needing to purchase a separate CPU cooler immediately.

Intel Laminar RM2 Construction

Intel specifies the Laminar RM2 with:

  • Aluminium heatsink fins
  • Copper heatsink base/core
  • Intel-validated compatibility

Enthusiast users can still choose an aftermarket LGA1851-compatible cooler if they want lower temperatures, lower noise or a different appearance.

LGA1851 Socket – New Motherboard Required

The Core Ultra 5 225F uses the Intel FCLGA1851 socket.

This is a different socket from LGA1700 used by Intel's 12th, 13th and 14th Generation Core desktop processors.

Not Compatible with LGA1700 Motherboards

The Core Ultra 5 225F cannot be installed in an LGA1700 motherboard.

Although LGA1851 has similar physical dimensions to LGA1700, Intel confirms that the two sockets are electrically and mechanically incompatible for processor installation.

Intel 800-Series Motherboard Platform

Intel Core Ultra desktop processors Series 2 are designed for Intel 800-Series desktop chipsets.

Compatible chipset families include:

  • Intel H810
  • Intel B860
  • Intel Z890
  • Intel Q870
  • Intel W880

For most consumer gaming and home-PC builds, B860 and Z890 are among the most common motherboard choices.

Not Compatible with Intel 600- or 700-Series Motherboards

The Core Ultra 5 225F is not compatible with older platforms such as:

  • Z790
  • B760
  • H770
  • H610
  • Z690
  • B660

A motherboard with the correct LGA1851 socket and supported Intel 800-Series chipset is required.

DDR5 Memory Support

The Core Ultra 5 225F supports DDR5 system memory.

Intel's current ARK specification lists memory speeds of up to:

DDR5-6400 MT/s

Up to 256GB Memory

Intel's current processor specification lists support for up to 256GB of system memory, depending on the motherboard and memory configuration.

The processor provides:

  • 2 memory channels
  • DDR5 support
  • Up to DDR5-6400 official memory speed
  • Maximum memory capacity up to 256GB under the current Intel ARK specification

No DDR4 Support

The LGA1851 Core Ultra desktop platform is designed around DDR5 memory.

DDR4 memory from an older system cannot simply be reused with the Core Ultra 5 225F platform.

Memory Speed Also Depends on the Motherboard

The exact memory speed available depends on factors including:

  • Motherboard chipset
  • Motherboard BIOS
  • DIMM configuration
  • Memory modules
  • Memory overclocking support

DDR5 kits advertised above the processor's standard memory specification may rely on motherboard memory-overclocking features such as Intel XMP.

No ECC Memory Support

Intel lists ECC memory support: No for the Core Ultra 5 225F.

Users specifically building a system that requires validated ECC operation should choose a suitable processor and platform that explicitly supports their required ECC configuration.

PCI Express 5.0 and PCI Express 4.0 Support

The processor supports both:

  • PCI Express 5.0
  • PCI Express 4.0

Intel specifies up to 24 processor PCI Express lanes.

Useful for Modern Graphics Cards and NVMe Storage

The CPU's PCI Express connectivity can be used by compatible motherboards for high-bandwidth hardware including:

  • Discrete graphics cards
  • PCIe 5.0 NVMe SSDs
  • PCIe 4.0 NVMe SSDs
  • High-speed expansion devices

The exact lane allocation depends on the motherboard design.

Motherboard Layout Determines Available PCIe Configuration

Intel lists processor PCI Express configurations including:

  • Up to 1 × 16 + 2 × 4
  • Up to 2 × 8 + 2 × 4
  • Up to 1 × 8 + 4 × 4

Not every motherboard exposes every possible CPU lane configuration, so check the exact motherboard specification if multiple PCIe 5.0 devices are planned.

DMI 4.0 Platform Connection

The processor supports Direct Media Interface 4.0 with up to eight DMI lanes.

DMI connects the processor to the motherboard chipset, carrying data for chipset-connected storage, networking, USB and additional PCI Express devices.

Dedicated Intel AI Boost NPU

One of the major architectural additions in Core Ultra desktop processors is a dedicated Neural Processing Unit, or NPU.

Intel calls its NPU:

Intel AI Boost

The Core Ultra 5 225F provides up to 13 TOPS of NPU AI performance.

What Is an NPU?

An NPU is specialised hardware designed to accelerate compatible artificial-intelligence workloads without relying entirely on the CPU cores or discrete graphics card.

Supported applications can potentially use the NPU for tasks such as:

  • Background removal
  • Camera effects
  • Audio processing
  • Noise suppression
  • Image-processing workloads
  • Local AI inference
  • Other compatible AI features

19 Overall Peak AI TOPS

Intel's current specification lists the Core Ultra 5 225F at:

19 overall peak TOPS for INT8 AI workloads

The dedicated Intel AI Boost NPU contributes up to:

13 NPU TOPS

Important AI TOPS Clarification

The 225F should not be advertised as a 36-TOPS processor.

Intel's current official figures for this exact processor are:

  • NPU Peak: 13 TOPS
  • Overall Peak: 19 TOPS

AI Software Framework Support

Intel lists support for AI software frameworks including:

  • OpenVINO
  • WindowsML
  • DirectML
  • ONNX Runtime
  • WebNN

Actual acceleration depends on whether the application supports the relevant Intel AI hardware.

Intel Deep Learning Boost

The processor supports Intel Deep Learning Boost on the CPU.

This provides instructions designed to accelerate supported AI inference and machine-learning workloads directly on the processor cores.

Intel Gaussian & Neural Accelerator 3.5

Intel also lists Gaussian & Neural Accelerator 3.5, or Intel GNA 3.5.

This technology can assist with selected low-power AI and audio-processing tasks supported by compatible software.

Intel Thread Director

The Core Ultra 5 225F supports Intel Thread Director.

Thread Director provides the operating system with information about workload behaviour so supported operating systems can make better scheduling decisions between Performance-cores and Efficient-cores.

F-Series Processor – No Integrated Graphics

The letter F in Core Ultra 5 225F is particularly important.

Intel confirms that F-series boxed desktop processors such as the 225F do not contain Intel processor graphics.

A Dedicated Graphics Card Is Required

For a normal desktop PC that requires monitor output, the system must contain a compatible discrete graphics card.

Examples include graphics cards from:

  • NVIDIA GeForce
  • AMD Radeon
  • Intel Arc

Motherboard HDMI and DisplayPort Will Not Provide CPU Graphics

Even if an LGA1851 motherboard has HDMI or DisplayPort connectors, those motherboard outputs require a processor with compatible integrated graphics.

Because the 225F has no integrated GPU, connect the monitor to the installed discrete graphics card instead.

No Intel Quick Sync Video

The 225F also does not provide Intel Quick Sync Video.

Quick Sync relies on Intel's integrated graphics media engine, which is absent from this F-series CPU.

Users who specifically need Intel integrated graphics or Quick Sync should consider the Core Ultra 5 225 rather than the 225F.

Core Ultra 5 225F vs Core Ultra 5 225

The Core Ultra 5 225 and 225F have very similar CPU specifications, including the same:

  • 10-core design
  • 6 P-cores + 4 E-cores
  • 10 threads
  • 4.9GHz maximum turbo frequency
  • 20MB Smart Cache
  • 22MB L2 cache
  • 65W base power
  • 121W maximum turbo power
  • LGA1851 platform

The key difference is graphics:

  • Core Ultra 5 225: includes Intel Graphics
  • Core Ultra 5 225F: no integrated graphics

The 225F is therefore most appropriate for systems that will definitely use a discrete graphics card.

Core Ultra 5 225F vs Core Ultra 5 245

The 225F should not be confused with higher-tier Core Ultra 5 processors such as the 245.

The 225F has:

  • 10 cores
  • 6 P-cores
  • 4 E-cores
  • 10 threads
  • Up to 4.9GHz
  • 20MB Smart Cache

Higher Core Ultra 5 models can provide additional E-cores, cache and clock speed.

This distinction is important because specifications for a Core Ultra 5 245 or 245K should not be copied onto a 225F product page.

Locked Non-K Processor

The Core Ultra 5 225F is a non-K processor.

It is not designed as Intel's fully multiplier-unlocked overclocking model.

Users specifically seeking CPU core-ratio overclocking should choose a suitable unlocked K-series processor together with an appropriate motherboard and cooling configuration.

B860 Motherboard Compatibility

The Core Ultra 5 225F is officially listed as compatible with Intel's B860 chipset.

B860 can be a particularly suitable match for users building a mainstream Core Ultra gaming or general-purpose desktop because CPU multiplier overclocking is not a core requirement for this locked processor.

Exact motherboard features vary by model.

Z890 Motherboard Compatibility

The processor can also be used with compatible Z890 LGA1851 motherboards.

Z890 boards may provide additional connectivity, expansion, storage and memory-tuning capabilities, depending on the exact motherboard.

H810 Motherboard Compatibility

Intel's entry-level H810 chipset is also part of the Series 2 desktop platform.

H810 boards can suit simpler builds where fewer expansion and tuning features are required.

Wi-Fi Is Motherboard Dependent

The Core Ultra 5 225F itself should not be described as automatically including Wi-Fi 7 or Wi-Fi 6E.

Wireless networking capability depends on the motherboard and installed network hardware.

A compatible B860 or Z890 motherboard may include Wi-Fi 7, but another motherboard may provide no Wi-Fi at all.

Thunderbolt and USB Connectivity Are Platform Dependent

Intel's processor specification does not list integrated Thunderbolt 4 support on the Core Ultra 5 225F itself.

Available Thunderbolt, USB4 and high-speed USB connectivity depends on the motherboard, chipset and any additional controllers implemented by the motherboard manufacturer.

Always check the exact motherboard specification if Thunderbolt or USB4 is required.

Suitable for Mainstream Gaming PCs

The Core Ultra 5 225F can be used as the processor in a modern discrete-GPU gaming PC built around the LGA1851 platform.

Its six Performance-cores handle latency-sensitive workloads while four Efficient-cores provide additional capacity for background applications.

A gaming system based on the 225F will also require:

  • LGA1851 motherboard
  • DDR5 memory
  • Discrete graphics card
  • Compatible power supply
  • Storage
  • Suitable case

Gaming Performance Depends Heavily on the Graphics Card

The processor is only one component in gaming performance.

Actual frame rates also depend on:

  • Graphics card
  • Game engine
  • Resolution
  • Graphics settings
  • Memory speed
  • Cooling

The lack of integrated graphics does not reduce the performance of a compatible discrete GPU; it simply means a discrete GPU is mandatory for display output.

Suitable for Everyday Productivity

The 10-core hybrid design can also handle everyday workloads including:

  • Web browsing
  • Microsoft Office
  • Programming
  • Photo editing
  • Light content creation
  • Multi-tasking
  • General desktop applications

Suitable for AI-Enabled Desktop Applications

The dedicated Intel AI Boost NPU provides hardware specifically designed for supported AI workloads.

This can allow compatible applications to process certain AI features on dedicated hardware rather than placing every workload on the main CPU cores.

NPU Support Is Application Dependent

Simply having an NPU does not automatically accelerate every application.

The software must support Intel's AI hardware or a compatible framework such as OpenVINO, WindowsML, DirectML or ONNX Runtime.

Maximum Operating Temperature of 105°C

Intel specifies a maximum operating temperature of:

105°C

This figure is an operating limit rather than a recommended everyday target temperature.

Correct cooler installation, thermal interface contact and case airflow remain important for maintaining appropriate temperatures.

Processor Package Size

The LGA1851 processor package measures approximately:

45 × 37.5mm

Only use motherboards designed for FCLGA1851.

Intel Core Ultra 5 225F Technical Overview

  • Brand: Intel
  • Product Family: Intel Core Ultra 5
  • Processor Number: 225F
  • Series: Intel Core Ultra Processors Series 2
  • Codename: Arrow Lake
  • Segment: Desktop
  • Launch: Q1 2025
  • Boxed Order Code / MPN: BX80768225F
  • Memox SKU: PRINT-U5-225F
  • EAN / GTIN-13: 5032037282376
  • Socket: FCLGA1851
  • Total Cores: 10
  • Performance-Cores: 6
  • Efficient-Cores: 4
  • Total Threads: 10
  • Hyper-Threading: No
  • Maximum Turbo Frequency: 4.9GHz
  • P-Core Maximum Turbo: 4.9GHz
  • E-Core Maximum Turbo: 4.4GHz
  • P-Core Base Frequency: 3.3GHz
  • E-Core Base Frequency: 2.7GHz
  • Intel Smart Cache: 20MB
  • Total L2 Cache: 22MB
  • Processor Base Power: 65W
  • Maximum Turbo Power: 121W
  • Memory Type: DDR5
  • Maximum Official Memory Speed: DDR5-6400
  • Maximum Current Intel-Listed Memory Capacity: 256GB
  • Memory Channels: 2
  • ECC Memory: No
  • PCI Express Revision: PCIe 5.0 / PCIe 4.0
  • Maximum Processor PCIe Lanes: 24
  • DMI Revision: 4.0
  • Maximum DMI Lanes: 8
  • NPU: Intel AI Boost
  • NPU Peak AI Performance: 13 TOPS
  • Overall Peak AI Performance: 19 TOPS
  • Intel Deep Learning Boost: Yes
  • Intel Thread Director: Yes
  • Intel Turbo Boost Technology 2.0: Yes
  • Intel Speed Shift Technology: Yes
  • Intel GNA: Version 3.5
  • Integrated Graphics: No
  • Intel Quick Sync Video: No
  • Discrete GPU Required: Yes for normal display output
  • Unlocked Multiplier: No
  • Instruction Set: 64-bit
  • Instruction Extensions: SSE4.1 / SSE4.2 / AVX2
  • Maximum Operating Temperature: 105°C
  • Package Size: 45 × 37.5mm
  • Included Boxed Cooler: Intel Laminar RM2
  • Boxed Processor Warranty: 3-Year Intel Limited Warranty, subject to terms

What Is Included?

  • 1 × Intel Core Ultra 5 225F processor
  • 1 × Intel Laminar RM2 CPU thermal solution
  • Intel retail boxed packaging
  • Documentation / installation information as supplied by Intel

Important: A Graphics Card Is Required

The Core Ultra 5 225F has no integrated graphics processor.

A compatible discrete graphics card is required if the PC needs monitor output.

Do not purchase this F-series processor expecting to use the motherboard's HDMI or DisplayPort connectors without a discrete GPU.

Important: The 225F Has 10 Threads

The correct specification is:

  • 10 cores
  • 10 threads
  • 6 P-cores
  • 4 E-cores

The processor does not have 14 threads, and it does not have eight E-cores.

Important: The Maximum Frequency Is 4.9GHz

The correct maximum turbo frequency for the 225F is 4.9GHz.

Figures such as 5.2GHz relate to different Core Ultra models and should not be used for this processor.

Important: Correct AI Performance

Intel's official specification for the 225F is:

  • Intel AI Boost NPU: 13 TOPS
  • Overall Peak INT8 AI Performance: 19 TOPS

A 36-TOPS figure does not apply to the Core Ultra 5 225F.

Important: LGA1851 Only

The Core Ultra 5 225F requires an LGA1851 motherboard.

It is not compatible with older LGA1700 motherboards even though the two socket generations have similar physical dimensions.

Important: DDR5 Only

This platform uses DDR5 memory. DDR4 is not supported by the Core Ultra Series 2 LGA1851 desktop platform.

Important: 800-Series Chipset Platform

Core Ultra Series 2 desktop processors are paired with Intel 800-Series desktop chipsets such as H810, B860 and Z890.

They are not compatible with older Intel 600-Series and 700-Series desktop chipsets.

Important: Wi-Fi and Thunderbolt Are Motherboard Features

Wi-Fi 7, Wi-Fi 6E, Thunderbolt and USB4 should not be advertised as guaranteed processor features of the Core Ultra 5 225F.

Availability depends on the selected motherboard and its integrated controllers.

Important: Maximum Memory Specification

Intel's current ARK product page lists a maximum memory capacity of 256GB for the Core Ultra 5 225F.

Some earlier Intel Series 2 marketing material listed 192GB. For current product-page data, the latest processor-specific Intel ARK specification should take priority.

Who Is the Intel Core Ultra 5 225F Best For?

  • New LGA1851 desktop PC builds
  • Gaming PCs using a discrete graphics card
  • Mainstream B860 gaming systems
  • Z890 desktop builds
  • DDR5-based systems
  • Users wanting a 10-core hybrid Intel CPU
  • Users wanting a dedicated Intel AI Boost NPU
  • Home and office desktops
  • Programming PCs
  • General productivity systems
  • Users who do not need integrated Intel graphics
  • Builders wanting an included Intel boxed CPU cooler

Who Should Consider a Different Processor?

A different CPU may be more appropriate if you specifically need:

  • Integrated graphics without buying a separate GPU
  • Intel Quick Sync Video
  • More than 10 CPU cores
  • Higher multi-core performance
  • An unlocked multiplier for CPU overclocking
  • Compatibility with an existing LGA1700 motherboard
  • DDR4 memory support
  • ECC memory support

If integrated graphics are important, consider the Intel Core Ultra 5 225 rather than the 225F.

Why Choose the Intel Core Ultra 5 225F?

The Intel Core Ultra 5 225F provides an accessible entry point to Intel's LGA1851 Core Ultra desktop platform for builders who already intend to use a discrete graphics card.

Its hybrid configuration combines six Performance-cores and four Efficient-cores for a total of ten physical CPU cores, while maximum turbo frequency reaches 4.9GHz.

The processor includes 20MB Intel Smart Cache and 22MB L2 cache, supports DDR5 memory up to 6400MT/s and provides modern PCI Express 5.0/4.0 connectivity with up to 24 processor PCIe lanes.

A dedicated Intel AI Boost NPU rated at 13 TOPS adds hardware acceleration for supported AI workloads, while Intel Deep Learning Boost provides additional CPU-based AI acceleration.

The 65W processor base power and 121W maximum turbo power make it easier to cool than many higher-power enthusiast CPUs, and Intel supplies the boxed BX80768225F with the Laminar RM2 thermal solution.

The absence of integrated graphics can also make the 225F a logical choice for builds where a discrete NVIDIA, AMD or Intel graphics card will always be installed and integrated graphics would not be used.

Choose the Intel Core Ultra 5 225F if you want a 10-core LGA1851 desktop processor with DDR5-6400 support, PCIe 5.0 connectivity, dedicated NPU acceleration and an included Intel cooler for a modern discrete-GPU PC build.

Specification

Intel Core Ultra 5 225F 10-Core LGA1851 Processor Specifications

The Intel Core Ultra 5 225F is a 10-core / 10-thread desktop processor from Intel Core Ultra Processors Series 2. It combines six Performance-cores and four Efficient-cores, boosts up to 4.9GHz, supports DDR5 memory up to 6400MT/s, provides PCIe 5.0 and PCIe 4.0 connectivity, includes an Intel AI Boost NPU rated at 13 TOPS and uses the FCLGA1851 desktop socket. As an F-series processor, it has no integrated graphics and requires a discrete graphics card for display output.

General Information

Brand Intel
Product Family Intel Core Ultra 5
Processor Number 225F
Processor Series Intel Core Ultra Processors Series 2
Codename Arrow Lake
Market Segment Desktop
Launch Date Q1 2025
Boxed Ordering Code / MPN BX80768225F
Memox SKU PRINT-U5-225F
EAN / GTIN-13 5032037282376
Shipping Media Retail Box

CPU Core Configuration

Total CPU Cores 10
Performance-Cores / P-Cores 6
Efficient-Cores / E-Cores 4
Low-Power Efficient-Cores 0
Total Threads 10
Intel Hyper-Threading Technology No
Hybrid Architecture Yes – Performance-Cores + Efficient-Cores

Processor Clock Speeds

Maximum Turbo Frequency 4.9GHz
P-Core Maximum Turbo Frequency 4.9GHz
E-Core Maximum Turbo Frequency 4.4GHz
P-Core Base Frequency 3.3GHz
E-Core Base Frequency 2.7GHz
Intel Turbo Boost Technology 2.0

Processor Cache

Intel Smart Cache 20MB
Total L2 Cache 22MB

Processor Power

Processor Base Power 65W
Maximum Turbo Power 121W
Thermal Solution Specification PCG 2022C

CPU Manufacturing Technology

CPU Lithography TSMC N3B
Architecture Generation Intel Core Ultra Series 2 / Arrow Lake

Processor Socket

Socket FCLGA1851 / LGA1851
Package Size 45 × 37.5mm
Scalability 1S Only
LGA1700 Compatibility No

Memory Support

Supported Memory Type DDR5
Maximum Official Memory Speed DDR5-6400 MT/s
Maximum Memory Capacity 256GB
Maximum Memory Channels 2
DDR4 Support No
ECC Memory Support No

PCI Express Support

PCI Express Revisions PCIe 5.0 and PCIe 4.0
Maximum Processor PCIe Lanes 24
Supported CPU PCIe Configurations Up to 1×16 + 2×4; 2×8 + 2×4; or 1×8 + 4×4

DMI Connectivity

Direct Media Interface DMI 4.0
Maximum DMI Lanes 8

Integrated Graphics

Integrated Intel Graphics No
Intel Xe-Cores 0
Graphics Output Not Available
Supported Displays from Processor Graphics 0
Intel Quick Sync Video No
Discrete Graphics Card Required Yes – for normal monitor/display output

Intel AI Boost NPU

Dedicated NPU Yes
NPU Name Intel AI Boost
NPU Peak Performance 13 TOPS INT8
Overall Peak AI Performance 19 TOPS INT8
Sparsity Support Yes
Windows Studio Effects Support Yes

AI Software Framework Support

OpenVINO Supported
WindowsML Supported
DirectML Supported
ONNX Runtime Supported
WebNN Supported
Intel Deep Learning Boost on CPU Yes

Intel Processor Technologies

Intel Thread Director Yes
Intel Speed Shift Technology Yes
Intel Turbo Boost Technology 2.0
Intel Hyper-Threading Technology No
Intel Gaussian & Neural Accelerator 3.5
Intel Volume Management Device / VMD Yes
Enhanced Intel SpeedStep Technology Yes
Thermal Monitoring Technologies Yes
Idle States Yes

Instruction Set

Architecture 64-bit
Intel 64 Yes
SSE4.1 Supported
SSE4.2 Supported
AVX2 Supported

Virtualisation Technologies

Intel Virtualization Technology / VT-x Yes
Intel Virtualization Technology for Directed I/O / VT-d Yes
Intel VT-x with Extended Page Tables / EPT Yes
Intel Virtualization Technology with Redirect Protection / VT-rp No

Security Technologies

Intel Threat Detection Technology Yes
Intel Secure Key Yes
Intel Control-Flow Enforcement Technology Yes
Intel AES New Instructions / AES-NI Yes
Intel Trusted Execution Technology Yes
Execute Disable Bit Yes
Intel OS Guard Yes
Intel Boot Guard Yes
Mode-Based Execute Control / MBEC Yes
Intel Total Memory Encryption – Multi Key No

Manageability

Intel Standard Manageability / ISM Yes
Intel Active Management Technology / AMT No
Intel Remote Platform Erase No
Intel One-Click Recovery No
Intel Stable IT Platform Program / SIPP No

Thunderbolt Support

Intel Thunderbolt 4 Built Into Processor No
Motherboard Thunderbolt / USB4 Dependent on motherboard chipset, controllers and motherboard design

Motherboard Platform Compatibility

Required Processor Socket LGA1851
Intel 800-Series Platform Required
B860 Compatible with suitable LGA1851 motherboards
Z890 Compatible with suitable LGA1851 motherboards
H810 Compatible with suitable LGA1851 motherboards
Q870 / W880 Platform-dependent compatible options
Intel 600-Series Chipsets Not Compatible
Intel 700-Series Chipsets Not Compatible

Thermal Specifications

Maximum Operating Temperature 105°C
Processor Base Power 65W
Maximum Turbo Power 121W
Thermal Solution Specification PCG 2022C

Included Intel CPU Cooler

CPU Cooler Included Yes – Boxed BX80768225F SKU
Included Cooler Intel Laminar RM2
Cooler Type Air Cooler
Fan Type PWM Variable-Speed Fan
Fan Connector 4-Pin
Maximum Fan Speed Up to 3250 RPM
Minimum Fan Speed Approximately 600 RPM
Heatsink Fin Material Aluminium
Heatsink Base / Core Material Copper
Cooler Maximum Height Up to 47mm
Cooler Maximum Footprint Up to 100 × 100mm
Cooler Maximum Mass Up to 340g
Intel Listed Cooler TDP Support 65W

Boxed Processor Information

Ordering Code BX80768225F
Shipping Media BOX
Processor Number 225F
Cooler Included Intel Laminar RM2

Package Contents

Intel Core Ultra 5 225F Processor 1
Intel Laminar RM2 Thermal Solution 1
Retail Intel Box Packaging Included
Motherboard Not Included
DDR5 Memory Not Included
Discrete Graphics Card Not Included – required for display output

Product Identification

Manufacturer Intel
Processor Intel Core Ultra 5 225F
Processor Number 225F
Boxed Order Code / MPN BX80768225F
Memox SKU PRINT-U5-225F
EAN / GTIN-13 5032037282376

Warranty

Intel Boxed Processor Warranty 3-Year Limited Warranty for eligible boxed processors, subject to Intel terms
Included Intel Thermal Solution Warranty 3 Years
Product Registration Required for Warranty No

Important Thread Count Correction

The Intel Core Ultra 5 225F has 10 cores and 10 threads.

The correct configuration is:

  • 6 Performance-Cores
  • 4 Efficient-Cores
  • 10 total cores
  • 10 total threads

Intel officially lists Hyper-Threading Technology: No. A 14-thread figure does not apply to this processor.

Important Efficient-Core Correction

The 225F has 4 Efficient-Cores, not 8.

Specifications showing 6 P-Cores + 8 E-Cores belong to a different Intel Core Ultra processor and should not be used for the 225F.

Important Maximum Frequency Note

The maximum turbo frequency is 4.9GHz.

This is the maximum single-core turbo frequency available under suitable power, temperature and workload conditions. The processor does not run all cores continuously at 4.9GHz.

Important Memory Capacity Correction

Intel's current processor-specific ARK specification lists a maximum supported memory capacity of 256GB.

Older Intel platform documentation and distributor feeds may still list 192GB. For current product information, the newer Intel ARK figure of 256GB should be used.

Important ECC Memory Correction

Intel's current ARK specification lists:

ECC Memory Supported: No

The current Memox source data showing ECC support as Yes should therefore be corrected.

Important Graphics Card Requirement

The F suffix identifies this processor as a model without Intel processor graphics.

The Core Ultra 5 225F provides:

  • No integrated Intel GPU
  • 0 Xe-Cores
  • 0 processor-driven displays
  • No Intel Quick Sync Video

A compatible discrete graphics card is required for normal monitor output.

Important Motherboard Video Output Note

Connecting a monitor to the motherboard's HDMI or DisplayPort connector will not provide processor-generated video with the 225F.

The display should be connected to a compatible discrete graphics card installed in the system.

Important AI Performance Correction

The current Intel specification for the Core Ultra 5 225F is:

  • Intel AI Boost NPU: 13 TOPS INT8
  • Overall Peak AI Performance: 19 TOPS INT8

A 36-TOPS specification does not apply to the Core Ultra 5 225F.

Important LGA1851 Compatibility Note

The Core Ultra 5 225F requires an LGA1851 motherboard.

It is not compatible with LGA1700 motherboards used by many Intel 12th, 13th and 14th Generation desktop processors.

Important DDR5 Compatibility Note

The Core Ultra 5 225F supports DDR5 memory up to DDR5-6400 under Intel's official specification.

DDR4 is not supported on this processor platform.

Important Memory Speed Note

The advertised DDR5-6400 specification is Intel's official processor memory support.

Higher advertised memory-kit speeds may rely on motherboard memory overclocking, Intel XMP profiles, BIOS support and the characteristics of the installed memory configuration.

Important PCIe Lane Note

Intel specifies up to 24 processor PCI Express lanes with PCIe 5.0 and PCIe 4.0 support.

The exact way these lanes are assigned to graphics slots and M.2 SSD sockets depends on the motherboard design.

Important Thunderbolt Note

Intel ARK lists Intel Thunderbolt 4: No for the processor itself.

An LGA1851 motherboard may still provide Thunderbolt or USB4 through its chipset or additional controllers. Do not advertise Thunderbolt as an automatic feature of the 225F itself.

Important Wi-Fi Note

The Core Ultra 5 225F processor does not itself guarantee Wi-Fi 7, Wi-Fi 6E or Bluetooth connectivity.

Wireless networking depends on the selected motherboard and installed network hardware.

Important CPU Cooler Note

The exact BX80768225F retail-boxed SKU includes Intel's Laminar RM2 thermal solution.

Intel rates the Laminar RM2 cooler for 65W TDP support. The processor itself can reach a maximum turbo power of 121W, so users seeking lower temperatures, lower noise or sustained high-load turbo operation may choose a higher-performance LGA1851-compatible aftermarket cooler.

Important 65W vs 121W Power Note

The Core Ultra 5 225F has:

  • 65W Processor Base Power
  • 121W Maximum Turbo Power

The 65W figure should not be interpreted as an absolute maximum power-consumption limit during turbo operation.

Important Operating Temperature Note

Intel lists a maximum operating temperature of 105°C.

This is a processor operating limit, not a recommended normal target temperature. Correct cooler installation, thermal-interface contact and case airflow remain important.

Important Boxed vs Tray Processor Note

These specifications and package contents apply to the boxed BX80768225F SKU.

Intel also manufactures tray/OEM versions of the Core Ultra 5 225F with different ordering codes and warranty arrangements. Do not assume tray processor package contents or warranty terms are identical to the boxed version sold on this page.

Important Warranty Note

Intel generally provides a 3-year limited warranty for eligible authentic boxed Intel processors sold as standalone components.

The included Intel Laminar thermal solution also carries a three-year warranty. Warranty eligibility remains subject to Intel's current terms, serial/batch identification and proof-of-purchase requirements.

Important Barcode Note

The barcode 5032037282376 is a 13-digit EAN / GTIN-13.

It should not be described as a 12-digit UPC.

Model Identification Note

These specifications apply specifically to the Intel Core Ultra 5 Processor 225F, boxed order code BX80768225F, Memox SKU PRINT-U5-225F and EAN / GTIN-13 5032037282376.

Return

30 Days Return

FAQ: FRequenlty Asked Questions



Intel Core Ultra 5 225F LGA1851 Processor FAQ

The Intel Core Ultra 5 225F (BX80768225F) is a 10-core desktop processor from Intel Core Ultra Series 2, formerly known by the Arrow Lake codename. It combines six Performance-cores and four Efficient-cores, boosts up to 4.9GHz, supports DDR5 memory up to 6400MT/s, PCIe 5.0 and PCIe 4.0 connectivity, and includes a dedicated Intel AI Boost NPU for supported local AI workloads.

This boxed F-series processor uses the newer LGA1851 socket and requires a compatible Intel 800-series motherboard such as H810, B860 or Z890. It has no integrated graphics, so a discrete NVIDIA GeForce, AMD Radeon or Intel Arc graphics card is required for display output. The boxed BX80768225F version also includes an Intel Laminar RM2 CPU cooler.

Below are answers to the most common questions buyers ask about the Intel Core Ultra 5 225F, including LGA1851 motherboard compatibility, B860 vs H810 vs Z890, DDR5-6400 memory, RTX 5060/5070 gaming, stock-cooler temperatures, PCIe 5.0, AI/NPU performance, Windows 11, LGA1700 cooler compatibility and comparisons with the Core Ultra 5 225, 245K, Core i5-14400F and Ryzen 5 9600X.

1. What is the Intel Core Ultra 5 225F?

The Intel Core Ultra 5 225F is a 10-core desktop processor from Intel Core Ultra Processors Series 2. It uses Intel's hybrid desktop architecture with six Performance-cores and four Efficient-cores and is designed for modern gaming, productivity and general-purpose DDR5 PCs using the LGA1851 platform.

2. What is the exact boxed model number sold by Memox?

This product is the boxed Intel Core Ultra 5 225F BX80768225F. The Memox SKU is PRINT-U5-225F and the EAN / GTIN-13 is 5032037282376.

3. What are the main specifications of the Core Ultra 5 225F?

Key specifications include 10 cores, 10 threads, 6 Performance-cores, 4 Efficient-cores, up to 4.9GHz turbo, 20MB Intel Smart Cache, 22MB total L2 cache, 65W processor base power, 121W maximum turbo power, DDR5-6400 support, 24 processor PCIe lanes, PCIe 5.0/4.0 support and an Intel AI Boost NPU rated at up to 13 TOPS.

4. What architecture and generation is the Core Ultra 5 225F?

It belongs to Intel Core Ultra Processors Series 2 and is part of Intel's Arrow Lake desktop processor family. Intel launched the 225F in Q1 2025.

5. How many cores does the Intel Core Ultra 5 225F have?

The processor contains 10 physical CPU cores: six Performance-cores for latency-sensitive and demanding work, plus four Efficient-cores for background and parallel workloads.

6. Why does the 225F have 10 cores but only 10 threads?

The 225F does not support Intel Hyper-Threading. Each of its six P-cores and four E-cores therefore contributes one hardware thread, resulting in 10 cores and 10 threads.

7. Does the Core Ultra 5 225F have Hyper-Threading?

No. Intel officially lists Hyper-Threading as unsupported on this processor. Do not confuse its specifications with older Core i5 processors that used Hyper-Threading on their P-cores.

8. What clock speeds does the Core Ultra 5 225F use?

The six Performance-cores have a 3.3GHz base frequency and boost up to 4.9GHz. The Efficient-cores operate from a 2.7GHz base frequency and can boost up to approximately 4.4GHz.

9. How much cache does the Core Ultra 5 225F have?

Intel specifies 20MB Intel Smart Cache and 22MB of total L2 cache.

10. Is the Core Ultra 5 225F a 65W processor?

Its processor base power is 65W, but that is not its absolute maximum power consumption. Intel specifies a maximum turbo power of 121W, so cooling and motherboard power delivery should be able to handle short and sustained turbo workloads above 65W.

11. What is the maximum operating temperature of the 225F?

Intel specifies a maximum operating temperature of approximately 105°C. Normal gaming temperatures should generally remain lower, and temperatures depend strongly on CPU cooler, case airflow, motherboard power settings and room temperature.

12. What CPU socket does the Intel Core Ultra 5 225F use?

The processor requires Intel LGA1851 / FCLGA1851.

13. Will the Core Ultra 5 225F work in an LGA1700 motherboard?

No. LGA1851 and LGA1700 processors are electrically and mechanically incompatible even though the socket dimensions are similar. A new LGA1851 motherboard is required.

14. Can I use a Z790, B760, Z690, B660 or H610 motherboard?

No. Those Intel 600-series and 700-series motherboards use LGA1700. The Core Ultra 5 225F requires an LGA1851 motherboard based on a compatible Intel 800-series platform.

15. Which motherboard chipsets support the Core Ultra 5 225F?

Intel currently lists compatible 800-series options including H810, B860, Z890, Q870 and W880. For consumer gaming PCs, H810, B860 and Z890 are the most common choices.

16. Is B860 a good motherboard chipset for the Core Ultra 5 225F?

Yes. B860 is one of the strongest mainstream matches for the locked 225F. It offers more chipset connectivity than H810 and supports memory overclocking/XMP while avoiding the additional cost of enthusiast Z890 boards where full CPU overclocking capability is less relevant to a locked processor.

17. Will the Core Ultra 5 225F work with H810 motherboards?

Yes. H810 is officially compatible and can make sense for an affordable build. However, H810 provides fewer chipset I/O resources and does not officially support memory overclocking, so B860 may be the better choice when expansion and faster XMP memory matter.

18. Will the Core Ultra 5 225F work with a Z890 motherboard?

Yes. Z890 is compatible and offers the richest consumer 800-series feature set, including more chipset connectivity and overclocking capabilities. Because the 225F itself is locked, a Z890 board is normally chosen for its connectivity and premium features rather than CPU multiplier overclocking.

19. H810 vs B860 vs Z890 – which motherboard should I choose for a 225F?

Choose H810 for a basic budget build with modest expansion needs. Choose B860 for the best mainstream balance of memory tuning, storage, connectivity and price. Choose Z890 if you specifically want premium I/O, additional PCIe/storage options or plan to use a higher-end unlocked LGA1851 processor later.

20. Will I need to update my motherboard BIOS for the 225F?

Many current 800-series boards should support the 225F, but BIOS compatibility always depends on the exact motherboard model and firmware version. Check the manufacturer's CPU Support List before assembly and update the BIOS if the board vendor specifies a required version.

21. What type of RAM does the Core Ultra 5 225F use?

The processor uses DDR5 desktop memory.

22. Can I use DDR4 memory with the Core Ultra 5 225F?

No. Intel Core Ultra Series 2 LGA1851 desktop systems use DDR5. DDR4 memory and older DDR4 motherboards are not compatible with the platform.

23. What is the official maximum memory speed?

Intel specifies support for memory speeds up to DDR5-6400MT/s in supported configurations.

24. Can I use DDR5-6000 RAM with the Core Ultra 5 225F?

Yes. DDR5-6000 is well within the type of memory commonly used with the platform. Whether a particular kit runs at its advertised profile depends on the motherboard, memory modules, DIMM configuration and BIOS settings.

25. Can I use DDR5 faster than 6400MT/s?

Potentially through memory overclocking on a suitable motherboard such as B860 or Z890. DDR5-6400 is Intel's official processor specification; speeds above that are overclocked configurations and are not guaranteed on every CPU, motherboard or memory kit.

26. Does B860 support XMP and memory overclocking?

Intel officially lists memory overclocking support on B860. A compatible XMP memory kit can therefore be configured above standard JEDEC speeds where the motherboard and CPU memory controller support the profile.

27. Does H810 support memory overclocking?

No. Intel's current 800-series chipset specification does not list memory overclocking support for H810.

28. How much RAM can the Core Ultra 5 225F support?

Intel's current processor-specific ARK specification lists up to 256GB of DDR5 memory, subject to motherboard and DIMM support.

29. Why do some older specifications say the 225F supports only 192GB RAM?

Older Intel Series 2 marketing documents were published with a 192GB platform figure. Intel's current processor-specific ARK page now lists a maximum of 256GB. For current product specifications, the processor-specific ARK figure should take priority.

30. Should I use one DDR5 stick or two?

For a gaming or productivity build, a matched two-DIMM dual-channel configuration is normally preferable. For example, 2 × 16GB is generally better than 1 × 32GB when capacity is the same because both memory channels can be used.

31. Does the Core Ultra 5 225F support ECC RAM?

No. Intel's processor-specific specification lists ECC memory as unsupported on the 225F.

32. Does the Intel Core Ultra 5 225F have integrated graphics?

No. The “F” suffix identifies this version as having no usable integrated processor graphics.

33. Do I need a graphics card with the Core Ultra 5 225F?

Yes. A compatible discrete NVIDIA GeForce, AMD Radeon or Intel Arc graphics card is required if the PC needs display output.

34. Why does my monitor show no picture when connected to the motherboard HDMI or DisplayPort?

The motherboard display connectors depend on a CPU with integrated graphics. Because the 225F has no integrated GPU, connect the monitor directly to your discrete graphics card.

35. Does the Core Ultra 5 225F support Intel Quick Sync Video?

No. Intel officially lists Quick Sync Video as unavailable because the 225F does not contain active integrated graphics. Users relying heavily on Intel Quick Sync encoding should consider the non-F Core Ultra 5 225 instead.

36. Is the Core Ultra 5 225F good for an RTX 5060 or RTX 5060 Ti gaming PC?

Yes. The 225F is a sensible modern processor for mainstream discrete-GPU gaming builds using graphics cards such as the RTX 5060 or 5060 Ti. Exact performance depends on game, resolution, graphics settings and memory configuration.

37. Is the Core Ultra 5 225F a good match for an RTX 5070?

Yes, particularly for 1440p gaming. Current PC builders are actively using or considering this combination. In very CPU-heavy games or very high-refresh 1080p gaming, a faster CPU can deliver higher maximum frame rates, but the 225F remains a viable RTX 5070 platform.

38. Can I use the Core Ultra 5 225F with an Intel Arc B580?

Yes. A discrete Intel Arc GPU can be used with the 225F, and Intel's own community discussions include real systems combining a Core Ultra 5 225F, B860 motherboard and Arc B580.

39. Can I use AMD Radeon graphics with the 225F?

Yes. The processor can be paired with compatible PCI Express Radeon graphics cards. GPU compatibility is not restricted to Intel or NVIDIA products.

40. Will the Core Ultra 5 225F bottleneck my graphics card?

There is no universal bottleneck percentage. CPU limitations depend on the game, GPU, resolution, graphics settings and frame-rate target. CPU limits are more noticeable in competitive high-refresh 1080p gaming, while 1440p and 4K workloads are often more GPU-limited.

41. Is the Intel Core Ultra 5 225F good for 1080p gaming?

Yes for mainstream gaming. Independent benchmarks show it capable of strong 1080p performance, although faster gaming-focused processors can deliver higher frame rates in CPU-limited titles.

42. Is the Core Ultra 5 225F good for 1440p gaming?

Yes. At 1440p the graphics card generally carries more of the workload, making the 225F a reasonable partner for cards such as the RTX 5060 Ti and RTX 5070 in balanced gaming builds.

43. Is the Core Ultra 5 225F good for coding and productivity?

Yes. Its six Performance-cores and four Efficient-cores make it suitable for programming, office applications, multitasking, software development, web work and general productivity. Heavily threaded professional workloads may benefit from higher-tier Core Ultra processors with more E-cores.

44. Is the 225F good for streaming and video editing?

It can handle mainstream editing and streaming workloads, especially when paired with a modern GPU that provides hardware video encoding. However, because the 225F lacks integrated graphics, it does not provide Intel Quick Sync Video. The non-F 225 can be more useful where Quick Sync is specifically required.

45. Does the Core Ultra 5 225F have an NPU?

Yes. It includes a dedicated Intel AI Boost Neural Processing Unit for supported local AI workloads.

46. How powerful is the Intel AI Boost NPU in the 225F?

Intel specifies up to 13 TOPS of INT8 NPU performance.

47. What is the total AI performance of the Core Ultra 5 225F?

Intel currently specifies approximately 19 overall peak INT8 TOPS for this processor when its supported compute engines are considered. Do not confuse this with higher Core Ultra mobile processors or other desktop SKUs that have different AI figures.

48. Is the Core Ultra 5 225F a Microsoft Copilot+ PC processor?

The processor contains an NPU, but its 13-TOPS NPU does not by itself meet Microsoft's 40+ TOPS NPU requirement for Copilot+ PC-class AI features. It can still accelerate supported AI applications through its CPU and NPU.

49. Does the Core Ultra 5 225F support Windows Studio Effects?

Intel lists Windows Studio Effects support for the processor's NPU. Feature availability still depends on the Windows version, drivers and supported applications.

50. What AI software frameworks can use the NPU?

Intel lists support for frameworks and APIs including OpenVINO, WindowsML, DirectML, ONNX Runtime and WebNN, subject to application support.

51. Does the Core Ultra 5 225F support PCIe 5.0?

Yes. Intel lists both PCI Express 5.0 and PCI Express 4.0 support for the processor.

52. How many PCIe lanes does the Core Ultra 5 225F provide?

Intel specifies up to 24 processor PCI Express lanes. The exact allocation between graphics and NVMe/storage depends on the motherboard and chipset design.

53. Can I use a PCIe 5.0 graphics card or Gen5 NVMe SSD?

Yes where the selected motherboard routes suitable CPU PCIe 5.0 lanes to the required slot. Not every H810, B860 or Z890 motherboard provides identical slot wiring, so check the exact motherboard specification before assuming a particular M.2 or graphics slot operates at Gen5 speeds.

54. Does the boxed Core Ultra 5 225F include a CPU cooler?

Yes. The boxed BX80768225F version sold on this page includes Intel's Laminar RM2 thermal solution.

55. Is the Intel Laminar RM2 cooler good enough for the 225F?

It is Intel's supplied thermal solution and is suitable for standard operation in a case with reasonable airflow. The RM2 is rated as a 65W-class cooler, while the CPU can reach 121W maximum turbo power, so an aftermarket tower cooler can provide lower temperatures and quieter operation under prolonged heavy loads.

56. Why can the Core Ultra 5 225F reach around 80°C with the stock cooler?

The compact stock cooler may need to run at high fan speed during CPU-heavy gaming or productivity workloads. Current 225F owners report temperatures around the 80°C range under demanding loads with the stock cooler. Check cooler installation and case airflow first; a larger tower cooler can reduce temperature and noise if desired.

57. Can I reuse an LGA1700 CPU cooler on LGA1851?

Often yes. Intel confirms that LGA1700 and LGA1851 use mounting holes in the same locations, making LGA1700 thermal solutions mechanically compatible with LGA1851. You should still check the cooler manufacturer's thermal and contact compatibility for the exact cooler.

58. Is the Core Ultra 5 225F unlocked for CPU overclocking?

No. The 225F is a non-K processor and is not Intel's fully multiplier-unlocked model. Buyers who specifically want CPU ratio overclocking should choose an appropriate K-series processor and compatible motherboard.

59. Core Ultra 5 225F vs Core Ultra 5 225 – what is the difference?

The CPU specifications are essentially the same: both have 10 cores, 10 threads, up to 4.9GHz, 20MB Smart Cache, 65W base power and 121W maximum turbo power. The major difference is graphics: the Core Ultra 5 225 includes Intel Graphics and Quick Sync, while the 225F has no integrated graphics. Choose the 225F when you will always use a discrete GPU; choose the 225 when integrated display output or Quick Sync is useful.

60. Core Ultra 5 225F vs Core Ultra 5 245K – which should I choose?

The 225F is the lower-power, lower-cost option with 10 cores, 10 threads, up to 4.9GHz and an included cooler. The 245K is a higher-performance unlocked model with 14 cores / 14 threads, 6 P-cores + 8 E-cores, up to 5.2GHz, more cache and substantially higher power limits. Choose the 225F for value-focused mainstream builds; choose the 245K when stronger multi-core performance and CPU overclocking capability justify the additional cost and cooling requirements.

61. Core Ultra 5 225F vs Core i5-14400F – what is the difference?

Both have a 6P + 4E hybrid layout, but they belong to different platforms. The Core i5-14400F uses LGA1700, supports DDR4 or DDR5 and has 10 cores / 16 threads through Hyper-Threading. The 225F uses LGA1851, DDR5 only, 10 cores / 10 threads, up to 4.9GHz, a much larger 22MB L2 cache, 24 CPU PCIe lanes and a dedicated Intel AI Boost NPU. Choose based on platform cost, motherboard/RAM reuse and the features you need rather than core count alone.

62. Core Ultra 5 225F vs Ryzen 5 9600X – which should I choose?

The two CPUs target similar mainstream gaming builds but use very different platforms. The 225F offers 10 hybrid cores, LGA1851, an included Intel cooler and a dedicated 13-TOPS NPU. The Ryzen 5 9600X uses AM5, has 6 Zen 5 cores / 12 threads, integrated basic Radeon graphics, up to 5.4GHz and is multiplier unlocked. Independent gaming testing generally places the 9600X ahead in CPU-limited gaming, while the 225F can be attractive when its processor + motherboard bundle is competitively priced. Consider total platform cost and future upgrade priorities rather than CPU price alone.

63. Does the Core Ultra 5 225F support Windows 11?

Yes. Intel Core Ultra Series 2 desktop systems are designed for current Windows 11 platforms, and features such as Intel Thread Director benefit from operating-system scheduling support. Use current chipset, NPU and motherboard drivers for best compatibility.

64. Does the Core Ultra 5 225F support virtual machines?

Yes. Intel officially lists VT-x, VT-d and Extended Page Tables support, making the processor suitable for compatible virtualisation software, development environments and lab workloads when enabled in the motherboard BIOS.

65. Is Wi-Fi 6E or Wi-Fi 7 built into the Core Ultra 5 225F?

No. Wi-Fi capability depends on the motherboard and wireless adapter. Some B860 and Z890 motherboards include Wi-Fi 7, while others include Wi-Fi 6E or no wireless networking at all.

66. Does the Core Ultra 5 225F include Thunderbolt 4 or USB4?

Intel does not list integrated Thunderbolt 4 capability for the processor itself. Thunderbolt, USB4 and high-speed USB availability depends on the chosen motherboard, chipset and any additional controllers used by the motherboard manufacturer.

67. Is the LGA1851 platform a good choice for future upgrades?

LGA1851 gives access to Intel Core Ultra Series 2 desktop processors ranging from mainstream Core Ultra 5 models to substantially faster Core Ultra 7 and Core Ultra 9 options. However, buyers should not assume support for unannounced future CPU generations. Future compatibility depends on Intel's platform plans and the motherboard manufacturer's BIOS support.

68. What warranty does the boxed Core Ultra 5 225F have?

Eligible authentic Intel boxed processors generally carry a 3-year Intel limited warranty from the original purchase date. Intel's boxed-processor warranty also covers the included thermal solution under its applicable terms. Processor registration is not normally required.

69. Who is the Intel Core Ultra 5 225F best for?

The Core Ultra 5 225F is particularly suitable for new LGA1851 gaming PCs, B860-based systems, RTX 5060/5060 Ti/5070 builds, productivity PCs, programming systems and users who already intend to install a discrete graphics card. Its 65W base power, included cooler, DDR5-6400 support and dedicated NPU make it a practical entry point into Intel's Core Ultra desktop platform.

70. Who is the Intel Core Ultra 5 225F NOT for?

Choose another processor if you need integrated graphics without buying a separate GPU, rely on Intel Quick Sync Video, want to reuse an LGA1700 motherboard or DDR4 memory, require ECC RAM, want maximum high-refresh gaming performance, need substantially more multi-core performance or specifically want a fully unlocked CPU for overclocking.

The standard Core Ultra 5 225 is a better choice when integrated graphics or Quick Sync is important, while a higher-tier Core Ultra 5/7 processor may be more suitable for heavy rendering and productivity workloads.

View AllClose

Warranty Information

3 Year Warranty
View AllClose

Related Products

Related Products
