Description

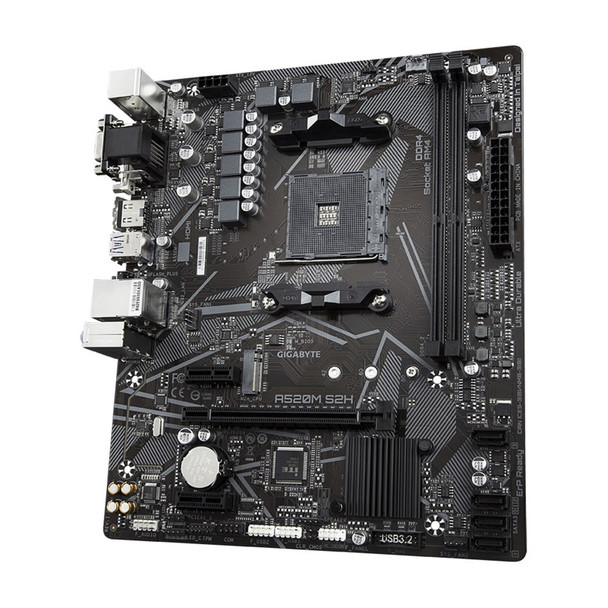

Gigabyte A520M S2H Micro ATX AM4 Motherboard – DDR4, M.2 NVMe, HDMI, DVI-D, D-Sub, GbE LAN

The Gigabyte A520M S2H is a practical and affordable Micro ATX AM4 motherboard designed for everyday desktop systems, budget gaming PCs, office computers, and value-focused AMD Ryzen builds. Built around the AMD A520 chipset, it combines support for a wide range of AMD Ryzen processors, fast DDR4 memory, PCIe 3.0 NVMe M.2 storage, and multiple display outputs in a compact motherboard format.

If you are looking for an AM4 motherboard, a Gigabyte A520 motherboard, or a budget Ryzen motherboard with HDMI, DVI and VGA, the A520M S2H is a strong option. It supports Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, Ryzen 3000, and Ryzen 3000 G-Series processors, making it a flexible choice for both upgrades and new PC builds.

Built for AMD Ryzen AM4 Systems

The Gigabyte A520M S2H uses the well-established AMD AM4 socket, giving builders access to a broad range of compatible Ryzen processors. This makes it a sensible motherboard for users upgrading an older AMD desktop or building a cost-effective new system using the AM4 platform.

Gigabyte lists support for Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, Ryzen 3000 Series, and Ryzen 3000 G-Series CPUs, giving buyers flexibility across gaming, office, and general home desktop use.

Dual DDR4 Memory Support

This motherboard features 2 DDR4 DIMM slots with dual-channel memory support, making it a straightforward platform for mainstream Ryzen builds. It supports both ECC and non-ECC unbuffered DDR4 memory, depending on CPU and configuration compatibility, which adds extra flexibility for builders choosing RAM for their system.

For buyers searching for a DDR4 Ryzen motherboard or a 2-slot Micro ATX motherboard, this board offers a practical balance of simplicity, cost, and modern memory support.

Fast PCIe 3.0 x4 M.2 NVMe Storage

The A520M S2H includes an ultra-fast NVMe PCIe 3.0 x4 M.2 connector, allowing support for high-speed solid-state storage. This helps improve boot times, application loading, and everyday system responsiveness compared with older SATA-only storage setups.

It is a useful feature for anyone looking for an AM4 motherboard with M.2 slot or a budget motherboard with NVMe SSD support for a faster everyday PC build.

Useful Display Outputs for Ryzen APUs

One of the practical strengths of this motherboard is its range of onboard display outputs. Gigabyte includes HDMI, DVI-D, and D-Sub ports, which can be especially useful when using a compatible Ryzen APU with integrated graphics.

This makes the board appealing for office systems, home desktops, educational PCs, and other setups where a dedicated graphics card may not be required. It is also a good fit for buyers specifically searching for a motherboard with HDMI, DVI and VGA.

Stable Networking and Everyday Connectivity

The board features Gigabyte 8118 Gaming GbE LAN with bandwidth management, helping provide stable wired network connectivity for downloads, browsing, business use, streaming, and everyday online gaming. For many mainstream users, Gigabit Ethernet remains a dependable and cost-effective connection choice.

This gives the motherboard a practical advantage for users who want a straightforward wired desktop setup without needing extra network expansion cards.

Ultra Durable Design with Practical Build Features

Gigabyte equips the A520M S2H with a 4+3 phase pure digital VRM solution with Low RDS(on) MOSFETs, designed to support compatible Ryzen CPUs with stable power delivery. The board also includes useful quality-of-life features such as Q-Flash Plus for easier BIOS updates, Smart Fan 5 for cooling control, and RGB Fusion 2.0 support for compatible lighting accessories.

These features make it a better-rounded choice than many very basic entry-level motherboards, especially for users who want good upgrade flexibility while keeping costs under control.

Good for Budget Gaming and Everyday Builds

The Gigabyte A520M S2H Micro ATX motherboard is well suited to users building a budget gaming PC, a home office system, a school computer, or a general-purpose desktop. Its combination of Ryzen compatibility, DDR4 support, M.2 NVMe storage, and multiple display outputs makes it a strong all-round option in the entry-level AM4 motherboard market.

For builders who want a compact board with the essential features needed for a modern AMD system, it offers solid value without adding unnecessary cost.

Why Buy the Gigabyte A520M S2H?

The Gigabyte A520M S2H is a smart choice for users who want a dependable and affordable AM4 Micro ATX motherboard with the key features needed for a modern Ryzen build.

Supports AMD Ryzen 5000, 4000 G-Series and 3000 Series processors
2 x DDR4 DIMM slots with dual-channel support
PCIe 3.0 x4 M.2 connector for NVMe SSDs
HDMI, DVI-D and D-Sub display outputs
Gigabyte 8118 Gaming GbE LAN
4+3 phase digital VRM design
Q-Flash Plus, Smart Fan 5 and RGB Fusion 2.0

For buyers searching for a Gigabyte A520 motherboard, a budget AM4 motherboard, or a Micro ATX motherboard for Ryzen, this model offers a practical mix of compatibility, modern storage support, and useful everyday connectivity.

Ideal Entry-Level AMD Motherboard for Value-Focused Builds

Whether you are refreshing an older AM4 desktop, building a budget gaming PC, or putting together a compact office system, the Gigabyte A520M S2H is a dependable and cost-effective motherboard choice. It gives you the essential features needed for a modern Ryzen build in a compact and accessible Micro ATX format.

Specification

Gigabyte A520M S2H Specifications

The Gigabyte A520M S2H is a Micro ATX AM4 motherboard built for AMD Ryzen desktop systems, offering practical everyday features for budget gaming PCs, home builds, and office systems. It combines DDR4 memory support, PCIe 3.0 NVMe storage, multiple display outputs, and reliable Gigabit LAN in a compact motherboard format.

Model Information

Brand: Gigabyte
Model: A520M S2H
Revision: Rev. 1.x
Form factor: Micro ATX
Chipset: AMD A520

CPU and Socket Support

CPU socket: AMD Socket AM4
Processor support: AMD Ryzen 5000 Series
Processor support: AMD Ryzen 5000 G-Series
Processor support: AMD Ryzen 4000 G-Series
Processor support: AMD Ryzen 3000 Series
Processor support: AMD Ryzen 3000 G-Series

Power Design

VRM design: 4+3 phases pure digital VRM solution
Power components: Low RDS(on) MOSFETs
Power connector feature: Solid pin ATX 12V 8-pin power connector

Memory Support

Memory type: DDR4
Memory slots: 2 x DIMM
Memory architecture: Dual Channel
Supported memory: ECC / non-ECC unbuffered DDR4

Expansion and Storage

Main graphics slot: 1 x PCIe 3.0 x16 slot
M.2 support: 1 x NVMe PCIe 3.0 x4 M.2 connector

Networking

LAN controller: GIGABYTE / Realtek 8118 Gaming GbE LAN
LAN feature: Bandwidth management
Network speed: Gigabit Ethernet

Display Outputs

1 x HDMI port
1 x DVI-D port
1 x D-Sub port
HDMI standard: HDMI 2.1
Display note: Video output requires a compatible AMD Ryzen processor with Radeon Graphics

Cooling and Fan Control

Cooling software: Smart Fan 5
Fan feature: FAN STOP support
Fan connectors: 3
Temperature sensors: 5

Lighting and Build Features

RGB lighting: RGB Fusion 2.0
Addressable LED headers: 1
RGB LED headers: 1
Audio design: Audio Noise Guard
Audio capacitors: High-end audio capacitors

BIOS and Utility Features

BIOS update feature: Q-Flash Plus
Q-Flash Plus benefit: Update BIOS without installing the CPU, memory, or graphics card

Durability Features

Anti-sulfur resistors design
ESD protection: LAN static-electricity and surge protection
Capacitor design: All solid capacitors

Important Compatibility Notes

Motherboard size: Micro ATX
Platform: AM4 only
Graphics note: Standard Ryzen CPUs without integrated graphics will require a dedicated graphics card for display output
BIOS note: CPU compatibility may depend on BIOS version

Return

30 Days Return

FAQ: Frequently Asked Questions

Gigabyte A520M S2H FAQ

The Gigabyte A520M S2H is a budget-friendly AMD AM4 micro-ATX motherboard designed for home PCs, office systems, and value-focused gaming builds. Below are the most common questions buyers ask before choosing this motherboard.

1. What CPUs are compatible with the Gigabyte A520M S2H?

The Gigabyte A520M S2H supports AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, Ryzen 3000, and Ryzen 3000 G-Series processors on the AM4 socket.

2. Does the Gigabyte A520M S2H support Ryzen 5000 processors?

Yes. Gigabyte officially lists Ryzen 5000 Series support, which is one of the main reasons buyers choose this board for a lower-cost AM4 build.

3. Does the Gigabyte A520M S2H support Ryzen 5000G APUs?

Yes. Gigabyte also lists Ryzen 5000 G-Series support, which is important for buyers planning to use the onboard HDMI, DVI-D, or D-Sub outputs with a processor that includes integrated graphics.

4. Do I need a BIOS update for some Ryzen 5000 CPUs on the Gigabyte A520M S2H?

Possibly. This is one of the most common buyer questions. CPU support can depend on the BIOS version already on the board, so it is a good idea to check the CPU support page or buy recent stock if you are pairing it with a newer AM4 processor.

5. Does the Gigabyte A520M S2H have BIOS Flashback or Q-Flash Plus?

Yes. Gigabyte lists Q-Flash Plus, which allows BIOS updating without installing the CPU, memory, or graphics card. That is especially useful if you need to prepare the board for a newer supported processor.

6. Is the Gigabyte A520M S2H a good budget AM4 motherboard?

Yes. It is a practical option for buyers who want an affordable AM4 motherboard with the basics covered, including M.2 storage, multiple display outputs for APUs, and Gigabit LAN.

7. Is the Gigabyte A520M S2H good for a budget gaming PC?

Yes. It is suitable for a budget or mainstream gaming PC with a sensible Ryzen processor and a dedicated graphics card. Community discussion often treats it as a workable low-cost alternative to higher-tier B550 boards.

8. How much RAM does the Gigabyte A520M S2H support?

The board has 2 DDR4 DIMM slots and supports dual-channel ECC and non-ECC unbuffered DDR4 memory. Buyers planning future upgrades should remember that this is a 2-slot board rather than a 4-slot design.

9. Does the Gigabyte A520M S2H have an M.2 slot?

Yes. Gigabyte lists 1 ultra-fast M.2 connector with PCIe 3.0 x4 NVMe support.

10. Does the Gigabyte A520M S2H support NVMe SSDs?

Yes. The M.2 socket supports PCIe 3.0 x4 NVMe SSDs, which makes the board more attractive than older entry-level designs that rely only on SATA storage.

11. How many SATA ports does the Gigabyte A520M S2H have?

The motherboard includes 4 SATA 6Gb/s ports for hard drives and 2.5-inch SATA SSDs.

12. Does the Gigabyte A520M S2H have built-in Wi-Fi?

No. Gigabyte lists GbE LAN, but there is no built-in Wi-Fi on this motherboard. Buyers who need wireless networking usually add a USB Wi-Fi adapter or PCIe Wi-Fi card.

13. Does the Gigabyte A520M S2H have onboard video outputs?

Yes. The board includes D-Sub, DVI-D, and HDMI outputs for use with supported AMD Ryzen G-Series processors that include integrated graphics.

14. Will the video ports work with a Ryzen CPU that has no integrated graphics?

No. This is one of the most common buyer misunderstandings. If you use a Ryzen processor without integrated graphics, you will need a dedicated graphics card for display output.

15. Can I use more than one display on the Gigabyte A520M S2H?

Yes, with a compatible Ryzen APU. Gigabyte specifically lists HDMI, DVI-D, and D-Sub for multiple display support.

16. Does the DVI-D port support a D-Sub adapter?

No. The manual specifically notes that the DVI-D port does not support D-Sub connection by adapter.

17. What expansion slots does the Gigabyte A520M S2H have?

The board includes a PCIe x16 slot for a graphics card and smaller expansion connectivity for basic add-in cards. Buyers often choose it for straightforward builds where only the graphics slot matters most.

18. Does the Gigabyte A520M S2H support RGB lighting?

Yes. Gigabyte lists RGB FUSION 2.0 support, including addressable LED and RGB LED strip headers.

19. Is the Gigabyte A520M S2H good for office, school, and home PCs?

Yes. Its micro-ATX size, display outputs for APUs, M.2 support, Gigabit LAN, and budget AM4 platform make it a strong fit for office, school, and general home desktop systems.

20. Who is the Gigabyte A520M S2H best for?

This motherboard is best for buyers who want an affordable AM4 micro-ATX board for a sensible Ryzen build, whether for home use, office work, or a budget gaming PC with essential features like M.2 storage, multiple display outputs, and Gigabit LAN.

View AllClose

Warranty Information

Warranty Length: 3 years
