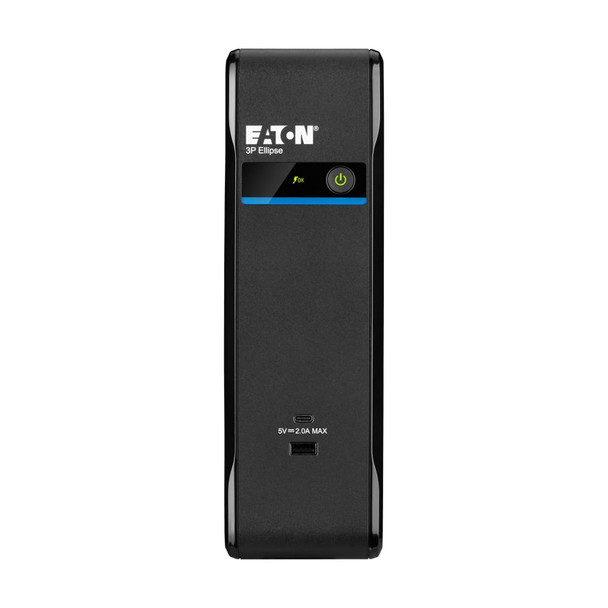

Eaton 3P Ellipse 700 USB IEC UPS – 700VA 420W, 4 C13 Outlets, USB Charging & Surge Protection

The Eaton 3P Ellipse 700 USB IEC, model 3P700UI, is a compact 700VA / 420W uninterruptible power supply designed to protect home-office, small-business and IT equipment against unexpected mains power loss and electrical surges.

Three of its four IEC C13 outputs provide both battery backup and surge protection, while the fourth C13 outlet provides dedicated surge protection for equipment that does not require battery runtime. The UPS also includes USB communication for automatic computer shutdown, two convenient USB charging ports, a replaceable sealed lead-acid battery and support for Eaton UPS Companion software.

The 3P Ellipse uses a quiet offline / standby UPS topology and operates at less than 25dB at one metre, making it suitable for desks, home offices, retail environments and other noise-sensitive locations. Its slim 81mm-wide design helps minimise the amount of workspace required while still delivering up to 420W of protected output power.

Quick answer: The Eaton 3P Ellipse 700 USB IEC is a 700VA / 420W standby UPS with four IEC C13 outputs. Three outlets provide battery backup plus surge protection and one provides surge protection only. It uses a replaceable 12V 7Ah sealed lead-acid battery, provides approximately 8.5 minutes runtime at half load and 1.5 minutes at full load, includes HID USB communication and two USB charging ports, and supports optional cloud monitoring.

Key Features of the Eaton 3P Ellipse 700 USB IEC

• 700VA apparent power rating
• 420W maximum active output power
• Output power factor: 0.6
• Offline / standby UPS topology
• Single-phase input and output
• 230V nominal voltage
• 220V / 230V / 240V selectable nominal setting
• IEC C14 mains input
• 4 × IEC C13 output sockets
• 3 × C13 outlets with battery backup and surge protection
• 1 × C13 outlet with surge protection only
• High-performance surge protection
• IEC 61643-11 surge-protection compliance
• 12V / 7Ah sealed lead-acid battery
• User-replaceable internal battery
• Automatic battery testing
• Deep-discharge protection
• Cold-start capability
• Approx. 8.5 minutes runtime at half load
• Approx. 1.5 minutes runtime at full 420W load
• HID-compliant USB communication
• USB communication cable included
• Automatic computer shutdown support
• Eaton UPS Companion software compatible
• Energy-use monitoring through supported software
• UPS settings configuration through supported software
• 2 USB charging ports
• USB-A and USB-C charging within the 3P Ellipse USB design
• Expansion slot for optional Eaton cloud connectivity
• Optional CLOUD-PS remote monitoring support
• No Ethernet network interface included as standard
• LED user interface
• Quiet operation below 25dB at 1 metre
• Fanless-style silent operating concept
• 97% efficiency at maximum load
• 13W listed internal power consumption
• Compact 235 × 81 × 263mm chassis
• Weight approximately 3.9kg
• Operating temperature 0°C to 40°C
• Operating altitude up to 3000m
• CE and UKCA conformity
• 3-year warranty on electronics
• 2-year warranty on the battery

700VA / 420W UPS Power Protection

The Eaton 3P Ellipse 700 USB IEC is rated at:

700VA / 420W

These two numbers describe different aspects of UPS capacity.

What Does 700VA Mean?

VA, or volt-amperes, measures apparent electrical power.

The 3P700UI has a maximum apparent power rating of:

700VA

What Does 420W Mean?

Watts describe the active power that connected equipment actually consumes.

The maximum active output capacity of this UPS is:

420W

Connected equipment should therefore remain within both the 700VA and 420W limits.

Do Not Size a UPS Using VA Alone

A device may have a 700VA rating but that does not mean it can continuously supply 700 watts.

For the Eaton 3P700UI, the critical maximum active-power figure is:

420W

When selecting a UPS, allow sensible capacity headroom rather than operating continuously at its maximum limit.

Designed for PCs, Networking and Office Equipment

The 3P Ellipse 700 USB is designed for residential and small-business power protection.

Typical suitable equipment can include:

• Desktop PCs
• Small workstations within the 420W load limit
• Computer monitors
• Broadband routers
• Wi-Fi equipment
• Network switches
• NAS devices
• Small office IT equipment
• Point-of-sale systems
• Home-office electronics
• Selected entertainment electronics

Three Battery-Backed IEC C13 Outlets

The 3P700UI provides:

3 × IEC C13 outputs with battery backup and surge protection.

Equipment connected to these three outputs can continue receiving power temporarily when the mains supply fails, subject to the connected load and available battery charge.

What Should Be Connected to the Battery-Backed Outlets?

Use the battery-supported outlets for the equipment that needs enough runtime to continue operating briefly or shut down safely, such as:

• Desktop computer
• NAS
• Router
• Network switch
• Essential communications equipment

One Surge-Only IEC C13 Outlet

The fourth IEC C13 outlet provides:

Surge protection without battery backup.

This is useful for peripheral equipment that benefits from surge protection but does not need to remain powered during a blackout.

Surge-Only Does Not Provide Runtime

If mains power fails, equipment connected to the surge-only C13 socket will switch off.

Only the three battery-backed C13 outputs provide temporary battery power during an outage.

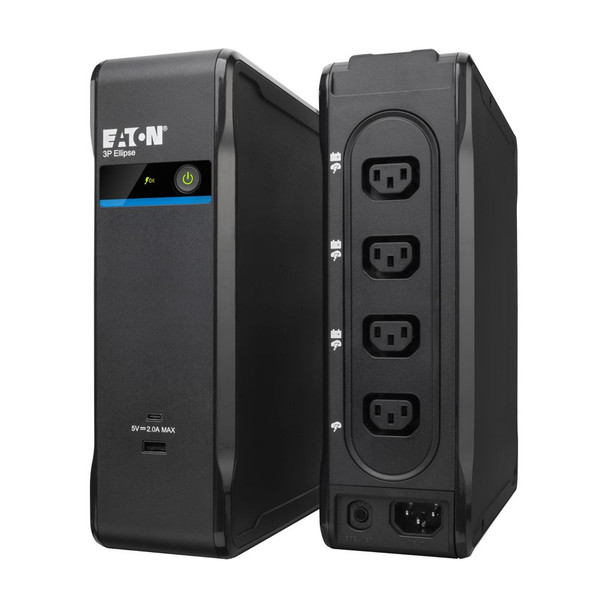

IEC C13 / C14 Connectivity

This exact 3P700UI model is the IEC version of the Eaton 3P Ellipse 700 USB.

It uses:

• Input: IEC C14
• Outputs: 4 × IEC C13

This makes it particularly suitable for conventional computer and IT equipment using IEC power connections.

Two IEC-to-IEC Cables Included

Eaton lists the package contents as including:

2 × IEC-to-IEC equipment cables

along with the USB communication cable, quick-start information and safety instructions.

Built-In Surge Protection

The Eaton 3P Ellipse incorporates dedicated surge protection designed to protect connected equipment from potentially damaging transient overvoltages.

Eaton states that the 3P Ellipse's surge-protection system complies with:

IEC 61643-11

Why Surge Protection Matters

Electrical surges can be caused by events including:

• Utility-grid switching
• Power restoration after an outage
• Large electrical loads switching
• Electrical disturbances within a building
• External power events

A UPS cannot guarantee protection against every possible electrical event, but integrated surge protection adds another layer of defence for connected electronics.

Offline / Standby UPS Topology

Eaton officially classifies the 3P700UI topology as:

Offline

This is also commonly described as a standby UPS.

How a Standby UPS Works

During normal operation, connected equipment receives mains power through the UPS.

If the incoming mains supply moves outside the UPS's acceptable operating conditions or fails completely, the UPS transfers the supported battery-backed outlets to battery power.

Not a Line-Interactive AVR UPS

The 3P Ellipse 700 USB should not be described as a line-interactive UPS.

Eaton specifically identifies the topology as Offline.

If your application specifically requires automatic voltage regulation / AVR without transferring to battery, choose an appropriate Eaton line-interactive UPS instead.

230V Output for UK and European IT Equipment

The UPS operates at a default nominal output of:

230V AC

Eaton lists configurable nominal voltage options of:

• 220V
• 230V
• 240V

Wide Input Voltage Acceptance

Eaton specifies a normal input voltage range of:

184V to 264V

with an adjustable operating range extending to approximately:

161V to 284V

This allows the UPS to accommodate a range of mains conditions according to its configured operating settings.

50 / 60Hz Operation

The 3P700UI supports nominal mains frequencies of:

• 50Hz
• 60Hz

Eaton currently specifies an input operating frequency range of approximately:

46Hz to 70Hz

Replaceable 12V 7Ah Battery

The Eaton 3P Ellipse 700 USB contains:

1 × 12V / 7Ah sealed lead-acid battery

User-Replaceable Battery Design

The internal battery is replaceable rather than permanently sealed into the UPS for its entire service life.

This can help extend the useful life of the UPS because a worn battery can be replaced without replacing the complete UPS electronics.

Sealed Lead-Acid Battery Technology

Eaton identifies the internal battery chemistry as:

Sealed lead-acid / SLA

This is a widely used rechargeable battery technology in UPS systems because it provides reliable standby energy storage and established replacement options.

Approximately 8.5 Minutes Runtime at Half Load

Eaton specifies approximately:

8.5 minutes runtime at half load.

Half load is approximately:

210W

because the UPS has a 420W maximum active-power rating.

Runtime Depends Strongly on Load

Battery runtime is not fixed.

A lightly loaded UPS can run substantially longer than one operating near its maximum power rating.

Approximately 1.5 Minutes at Full Load

At the full rated load of approximately 420W, Eaton lists battery runtime of around:

1.5 minutes

This illustrates why a UPS should be sized for the actual connected equipment rather than simply assuming a fixed number of backup minutes.

Why Full-Load Runtime Is Shorter

The faster connected equipment consumes stored battery energy, the less time the battery can maintain the load.

Typical runtime is affected by:

• Connected wattage
• Battery age
• Battery state of charge
• Ambient temperature
• Individual equipment behaviour
• UPS configuration

Cold-Start Capability

The 3P700UI supports cold start.

This allows supported battery-backed equipment to be powered from the UPS battery even when normal mains power is unavailable, subject to available battery charge and load limits.

Automatic Battery Testing

Eaton includes an automatic battery-test function to help monitor whether the internal battery can continue providing backup power.

Battery testing can help identify ageing or deteriorating batteries before an unexpected mains failure occurs.

Deep-Discharge Protection

The UPS includes deep-discharge protection.

This battery-management feature helps protect the internal battery from excessive discharge that could otherwise shorten its service life.

Constant Battery Recharge

During normal mains operation, the UPS maintains the internal battery so stored energy is available when an outage occurs.

Like all rechargeable batteries, the internal SLA pack naturally ages and will eventually require replacement.

USB Communication for PC Shutdown

The USB version of the 3P Ellipse includes a dedicated:

HID-compliant USB communication port

A USB cable is supplied with the UPS.

Why USB Communication Matters

Connecting the UPS to a supported computer allows the operating system or Eaton software to receive UPS status information.

This can enable automated actions when mains power fails, including:

• Monitoring UPS status
• Detecting a power outage
• Monitoring remaining battery condition
• Triggering automatic computer shutdown
• Reducing the risk of an uncontrolled system shutdown

Automatic Shutdown Support

Eaton specifically lists an:

Auto shutdown function

for the 3P700UI.

This can be particularly valuable when a computer is unattended during an extended power outage.

Eaton UPS Companion Software

The 3P700UI is compatible with Eaton UPS Companion.

Eaton states that the software can provide functionality including:

• Safe computer shutdown
• UPS configuration
• Energy-use monitoring
• UPS status information

HID-Compliant USB Integration

The UPS uses a standard HID-compliant USB connection.

Eaton highlights integration with major operating-system environments including:

• Windows
• macOS
• Linux

Exact software functionality can depend on the operating system and currently supported Eaton software version.

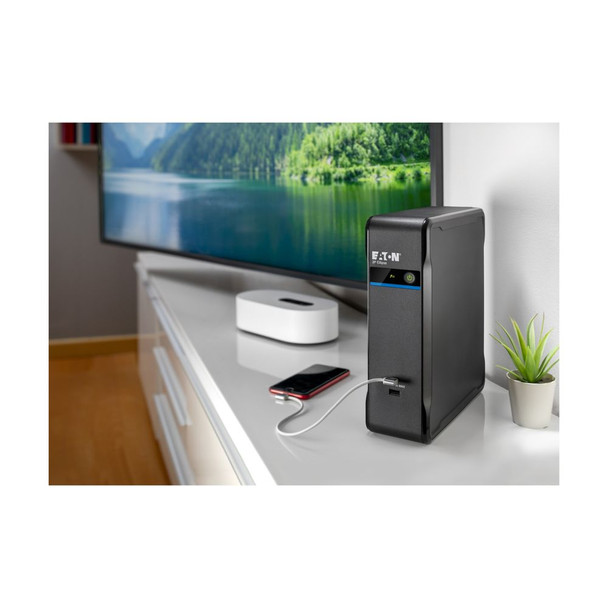

Two USB Charging Ports

In addition to its USB communication interface, the 3P Ellipse USB design includes:

2 USB charging ports

Eaton's current 3P Ellipse platform uses USB-A and USB-C charging connectivity, allowing compatible mobile devices and accessories to be charged conveniently from the UPS.

USB Charging vs USB Communication

These functions should not be confused.

• USB charging ports: designed to supply power to compatible mobile devices.
• HID USB communication port: connects the UPS to a computer for monitoring and shutdown control.

Optional Cloud Monitoring

The 3P700UI includes an expansion slot compatible with Eaton's optional cloud connectivity solution.

When equipped with the appropriate optional CLOUD-PS card, the 3P Ellipse platform can provide remote UPS monitoring.

Remote Status and Notifications

Eaton describes optional cloud connectivity as providing real-time access to:

• UPS status
• Power events
• Notifications
• Remote monitoring information

through compatible web-browser and mobile interfaces.

Cloud Card Not Included

The optional cloud/network card is not supplied as standard with the 3P700UI.

The UPS itself also does not contain a standard built-in Ethernet interface.

Quiet Operation Below 25dB

Eaton specifies an operating noise level of:

less than 25dB at one metre

This makes the 3P Ellipse particularly suitable for equipment located close to the user.

Suitable for Noise-Sensitive Environments

Typical installations can include:

• Home offices
• Bedrooms used as workspaces
• Small offices
• Reception areas
• Retail counters
• Quiet IT workspaces

97% Efficiency at Maximum Load

Eaton lists efficiency at maximum load as approximately:

97%

Higher normal-mode efficiency helps minimise energy lost inside the UPS during everyday operation.

Compact Extra-Flat Design

One of the distinguishing characteristics of the Eaton 3P Ellipse family is its slim chassis.

The exact 3P700UI dimensions are:

• Depth: 235mm
• Width: 81mm
• Height: 263mm

Overall:

235 × 81 × 263mm

Only 81mm Wide

The narrow profile helps the UPS fit beside a desk, PC, cabinet or other equipment without requiring the footprint of a conventional wide tower UPS.

3.9kg Product Weight

Eaton specifies the weight of the 3P700UI as approximately:

3.9kg

A large proportion of UPS weight comes from the internal sealed lead-acid battery.

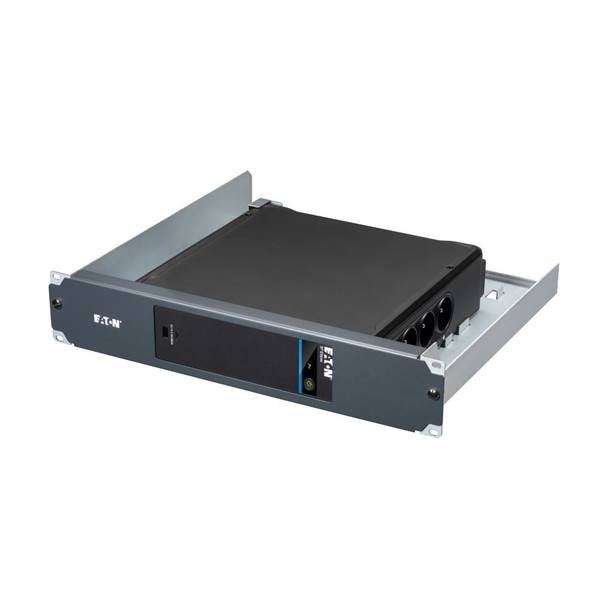

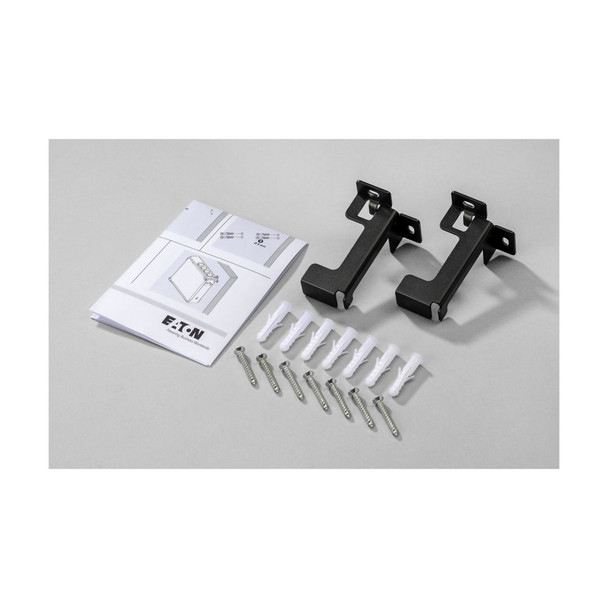

Flexible Placement

Eaton designs the 3P Ellipse family for flexible installation in office and residential environments.

The slim enclosure can be positioned to suit available space, while optional mounting accessories are available within the 3P Ellipse platform for specialised installations.

LED User Interface

The 3P700UI uses an LED user interface for local UPS status indication.

This provides straightforward visual information without requiring a large integrated LCD screen.

No Built-In Ethernet Interface

The standard 3P700UI does not contain an integrated Ethernet management interface.

Standard communications are provided through:

USB HID

while network/cloud monitoring requires the appropriate optional expansion solution.

Operating Temperature

Eaton specifies the UPS for an operating environment of:

0°C to 40°C

Keep UPS Batteries Away from Excessive Heat

Although the UPS is rated for operation up to 40°C, battery life can be affected by sustained high temperatures.

For best long-term reliability, position the UPS in a ventilated indoor environment away from excessive heat sources.

Operating Humidity

The specified relative-humidity range is:

0% to 95% non-condensing

The UPS should not be operated where condensation or liquid exposure can occur.

Operating Altitude

Eaton lists operating altitude up to:

3000 metres

Suitable for Home Office Power Protection

A home-office computer can lose unsaved work immediately when mains power fails.

The Eaton 3P Ellipse can provide temporary backup power for a compatible PC and associated networking equipment, allowing the user to save work and shut the system down safely.

Suitable for Broadband Routers and Networks

Low-power networking equipment can be particularly well suited to UPS backup because its electrical load is usually much lower than a desktop gaming PC.

Suitable devices can include:

• Broadband routers
• ONTs
• Wi-Fi access points
• Small Ethernet switches
• Selected NAS units

Actual runtime depends on the combined wattage of connected equipment.

Suitable for Point-of-Sale Systems

Eaton highlights the 3P Ellipse 700 USB for applications such as retail point-of-sale environments.

A short power interruption that shuts down a POS computer or supporting network hardware can interrupt transactions.

UPS backup can provide time for equipment to ride through a brief interruption or perform an orderly shutdown.

Suitable for Small Businesses

Potential small-business uses include:

• Office PCs
• Reception computers
• Retail terminals
• Network equipment
• Small NAS appliances
• Communications equipment
• Home-based business systems

Not a Generator or Long-Duration Power Source

The 3P700UI is designed primarily to provide short-term battery backup and allow connected equipment to continue operating briefly or shut down safely.

It should not be treated as a replacement for a generator or large-capacity energy-storage system when hours of backup are required.

Not Designed to Power More Than 420W

The connected battery-backed load must remain within the UPS's:

420W maximum active-power rating.

Always check the actual electrical demand of the equipment before connecting it.

Runtime Falls as Load Increases

Eaton's ratings illustrate the relationship clearly:

• Approximately 8.5 minutes: half load
• Approximately 1.5 minutes: full load

Runtime can vary due to battery age, battery charge, ambient temperature and the behaviour of the connected equipment.

Automatic Protection for Unattended Computers

One of the main advantages of choosing the USB version rather than the basic 700VA Ellipse model is communication capability.

A connected computer can receive UPS information through the HID USB interface and use supported software to initiate a controlled shutdown before the battery becomes depleted.

Battery Can Be Replaced Instead of the Whole UPS

UPS batteries are consumable components whose usable capacity declines with age and cycling.

The 3P Ellipse is specifically designed with a replaceable battery, helping extend the service life of the main UPS electronics.

Signs a UPS Battery May Need Replacement

Battery replacement may eventually be required if:

• Backup runtime becomes unusually short
• The battery fails a UPS self-test
• The UPS reports a battery condition warning
• The unit can no longer sustain a previously supported load
• The installed battery has reached the end of its recommended service life

Eaton 3P Ellipse 700 USB IEC Technical Overview

• Brand: Eaton
• Series: 3P Ellipse
• Model: 3P Ellipse 700 USB IEC
• Catalog Number / MPN: 3P700UI
• Memox SKU: 11765642
• EAN / GTIN-13: 3553340621321
• Device Type: Uninterruptible Power Supply / UPS
• Topology: Offline / Standby
• Configuration: Tower / Free-Standing
• Input Phase: Single Phase
• Output Phase: Single Phase
• Apparent Power: 700VA
• Active Power: 420W
• Output Power Factor: 0.6
• Nominal Voltage: 230V
• Selectable Nominal Voltage: 220 / 230 / 240V
• Input Voltage Range: 184–264V, adjustable to approximately 161–284V
• Input Frequency: 50 / 60Hz
• Input Frequency Range: 46–70Hz
• Input Connector: IEC C14
• Total IEC C13 Outputs: 4
• Battery + Surge Outputs: 3 × IEC C13
• Surge-Only Output: 1 × IEC C13
• Surge Protection: Yes
• Surge Standard: IEC 61643-11
• Battery Quantity: 1
• Battery Type: Sealed Lead-Acid / SLA
• Battery Rating: 12V / 7Ah
• Replaceable Battery: Yes
• Automatic Battery Test: Yes
• Deep-Discharge Protection: Yes
• Cold Start: Yes
• Runtime at Half Load: Approx. 8.5 minutes
• Runtime at Full Load: Approx. 1.5 minutes
• USB Communication: HID-Compliant USB
• USB Communication Cable: Included
• Automatic Shutdown: Supported
• Software: Eaton UPS Companion
• USB Charging Ports: 2
• Optional Cloud Monitoring: Supported with compatible optional card
• Built-In Ethernet: No
• User Interface: LED
• Efficiency at Maximum Load: 97%
• Listed Power Consumption: 13W
• Noise: <25dB at 1m
• Operating Temperature: 0°C to 40°C
• Relative Humidity: 0–95% non-condensing
• Maximum Altitude: 3000m
• Dimensions: 235 × 81 × 263mm
• Weight: 3.9kg
• Colour: Black
• Electronics Warranty: 3 Years
• Battery Warranty: 2 Years

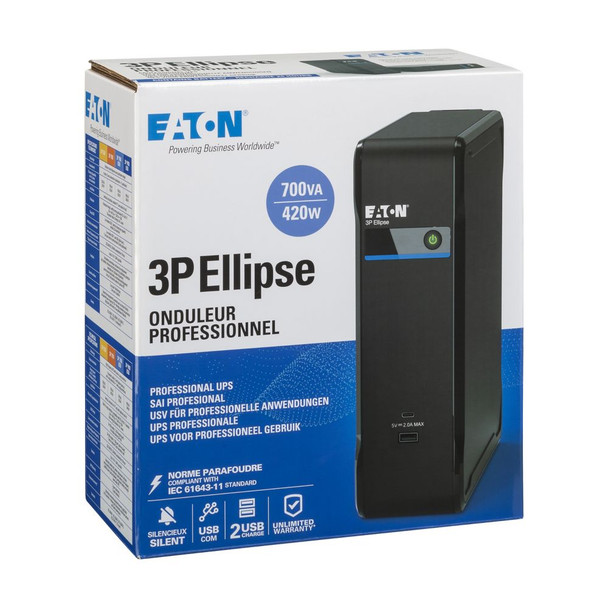

Package Contents

• 1 × Eaton 3P Ellipse 700 USB IEC UPS
• 2 × IEC-to-IEC power cables
• 1 × USB communication cable
• Quick-start documentation
• Safety instructions

Compliance and Certifications

Eaton currently lists standards and conformity including:

• IEC / EN 62040-1
• IEC / EN 62040-2
• IEC / EN 62040-3
• IEC 61643-11
• CE
• UKCA
• RoHS
• WEEE

Warranty

Eaton specifies:

• Electronics: 3-year warranty
• Battery: 2-year warranty

Warranty coverage is subject to Eaton's applicable terms and conditions.

Important 700VA vs 420W Note

The UPS is rated at 700VA but only 420W active output.

Do not connect equipment with a combined continuous requirement above 420W simply because its VA rating appears below 700VA.

Important Outlet Note

All four C13 sockets do not provide battery backup.

The configuration is:

• 3 × IEC C13: battery backup + surge protection
• 1 × IEC C13: surge protection only

Important Runtime Note

UPS runtime depends on connected load.

Eaton currently specifies approximately 8.5 minutes at half load and approximately 1.5 minutes at full rated load.

Real-world runtime can vary according to battery condition, temperature, equipment type and load.

Important Topology Note

The 3P700UI is an offline / standby UPS.

It should not be described as line-interactive and should not be advertised as providing AVR unless Eaton publishes that specification for this exact model.

Important USB Port Note

The UPS provides both USB charging functionality and USB computer communication.

These are separate functions:

• USB charging ports supply power to compatible devices.
• The HID-compliant communication port connects the UPS to a computer for UPS monitoring and automatic shutdown.

Important Cloud Monitoring Note

The UPS includes an expansion slot for optional cloud connectivity.

The compatible cloud/network option is not included with the standard 3P700UI and the base unit does not contain built-in Ethernet networking.

Important Battery Note

The internal battery is:

1 × 12V / 7Ah sealed lead-acid rechargeable battery.

The battery is designed to be replaceable, but replacement should use an appropriate battery compatible with the exact Eaton UPS model.

Important Power Protection Note

A UPS can reduce disruption caused by common power outages and electrical disturbances, but it should not be presented as guaranteeing protection against every possible mains, lightning or equipment-failure event.

Who Is the Eaton 3P Ellipse 700 USB IEC Best For?

• Home-office PCs
• Small-business computers
• Office workstations within the 420W limit
• Routers and broadband equipment
• Small NAS systems
• Network switches
• Retail point-of-sale equipment
• Users needing automatic PC shutdown
• Users wanting a quiet UPS
• Users wanting replaceable batteries
• Users requiring IEC C13 outputs
• Users wanting USB charging alongside UPS protection
• Businesses wanting optional future cloud monitoring

Who Should Consider a Different UPS?

A different UPS may be more appropriate if you specifically require:

• More than 420W output capacity
• More than three battery-backed outlets
• Long-duration battery backup
• Built-in Ethernet management
• Line-interactive AVR topology
• Online double-conversion topology
• An integrated LCD display
• A fixed requirement for a pure-sine-wave battery output
• High-power gaming PCs whose total load approaches or exceeds 420W
• Servers or equipment requiring a larger UPS platform

Why Choose the Eaton 3P Ellipse 700 USB IEC?

The Eaton 3P Ellipse 700 USB IEC provides a practical combination of short-term battery backup, high-standard surge protection, computer communication and mobile-device charging in a compact, quiet enclosure.

Its 700VA / 420W capacity is well suited to many home-office and small-business applications, while the three battery-backed IEC C13 outlets allow essential equipment to remain powered temporarily during an outage.

A fourth surge-only outlet lets users protect another peripheral without consuming battery capacity during a blackout.

The replaceable 12V / 7Ah sealed lead-acid battery, automatic battery testing, deep-discharge protection and cold-start capability provide the core battery-management features expected from a dedicated Eaton UPS.

USB communication adds an important layer of protection for computers because Eaton UPS Companion can monitor the UPS and help trigger a safe automatic shutdown if a mains outage lasts longer than the available battery runtime.

The two USB charging ports add convenience for mobile devices, while support for an optional cloud card gives businesses a potential path to remote UPS monitoring without requiring that capability to be purchased from the start.

Its slim 235 × 81 × 263mm enclosure, 3.9kg weight and noise level below 25dB make it practical for desks and office environments where a large or noisy UPS would be undesirable.

Choose the Eaton 3P Ellipse 700 USB IEC if you need a compact and quiet 700VA / 420W UPS with three battery-backed IEC C13 outlets, dedicated surge protection, replaceable battery, USB monitoring, automatic shutdown capability and convenient USB charging.
