DeepCool CH690 DIGITAL Black ATX Mid-Tower PC Case – System Display, 420mm Radiator & 450mm GPU Support

The DeepCool CH690 DIGITAL Black is a premium single-chamber ATX mid-tower PC case designed for modern gaming PCs, enthusiast systems and professional desktop builds. It combines a panoramic semi-glass design with an integrated digital system-monitoring display, extensive cooling support, rear-connector motherboard compatibility and generous clearance for high-performance graphics cards and CPU coolers.

Designed for both visual presentation and cooling flexibility, the CH690 DIGITAL supports ATX, Micro-ATX and Mini-ITX motherboards, including compatible rear-connector ATX and Micro-ATX designs. It can accommodate graphics cards up to 450mm long, CPU air coolers up to 182mm high and ATX PS2 power supplies up to 180mm long.

Cooling capacity is one of the case's strongest features. Builders can install up to ten 120mm or 140mm fans across the top, side, PSU-shroud and rear positions. Liquid-cooling support includes radiators up to 420mm at the top, 280mm at the side and 360mm in the lower PSU-shroud area.

Quick answer: The DeepCool CH690 DIGITAL is a black ATX mid-tower gaming case with an integrated CPU/GPU/PSU monitoring display, tempered-glass construction, support for graphics cards up to 450mm, CPU coolers up to 182mm, up to ten fans, a 420mm top radiator, USB Type-C Gen2, rear-connector motherboards and an adjustable anti-sag GPU holder. No case fans are pre-installed, allowing the cooling system to be customised from the start.

Key Features of the DeepCool CH690 DIGITAL

• Black ATX mid-tower PC case
• Model: CH690 DIGITAL
• Manufacturer part number: R-CH690-BKNNA0D-G-1
• Single-chamber panoramic-style design
• ABS, SPCC steel and tempered-glass construction
• Integrated digital system-monitoring display
• CPU monitoring mode
• GPU monitoring mode
• PSU monitoring mode
• Temperature display in Celsius or Fahrenheit
• Displays supported system usage, power and frequency information
• Mini-ITX motherboard support
• Micro-ATX motherboard support
• ATX motherboard support
• Compatible rear-connector Micro-ATX motherboard support
• Compatible rear-connector ATX motherboard support
• 450mm maximum GPU length
• 182mm maximum CPU cooler height
• ATX PS2 PSU support
• Maximum PSU length: 180mm
• 8 expansion slots
• Adjustable GPU support holder
• No pre-installed fans
• Up to 10 fan positions
• Top: up to 3 × 120mm / 3 × 140mm fans
• Side: up to 3 × 120mm / 3 × 140mm fans
• PSU-shroud area: up to 3 × 120mm / 3 × 140mm fans
• Rear: 1 × 120mm / 1 × 140mm fan
• Top radiator support up to 420mm
• Side radiator support up to 280mm
• Lower / PSU-shroud radiator support up to 360mm
• Mesh-designed PSU shroud for vertical airflow
• 2 × USB 3.0 front ports
• 1 × USB Type-C Gen2 front port
• Combined Audio/Mic connection
• 1 × 3.5-inch drive bay
• 2+1 × 2.5-inch drive positions listed by DeepCool
• 36.5mm cable-management space for rear-connector builds
• Magnetic bottom dust filter
• Integrated light-strip mounting slot
• Dimensions: 481 × 240 × 516mm
• Net weight: 9.8kg

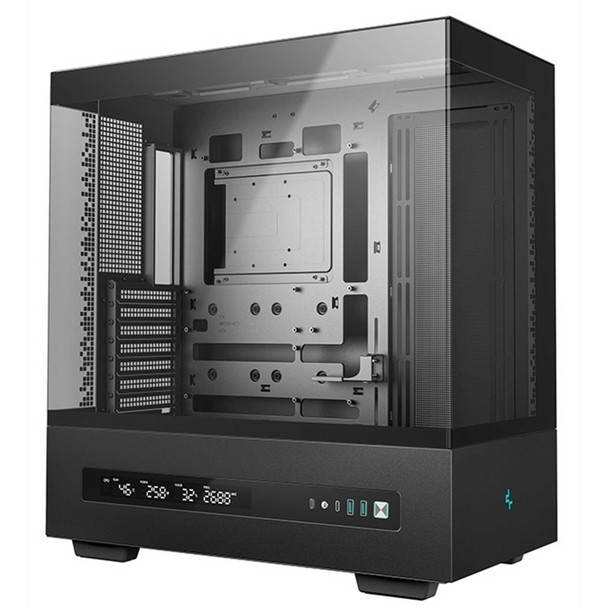

Integrated Digital System Monitoring Display

The defining feature of the CH690 DIGITAL is its integrated digital system-monitoring display.

Rather than requiring a separate desktop monitoring application to remain visible on your main monitor, the case can present selected system information directly on its exterior display.

CPU, GPU and PSU Monitoring Modes

DeepCool provides switchable display modes for:

• CPU
• GPU
• PSU

Depending on the selected mode and the monitoring data available from the system, the display can show information relating to:

• Temperature
• Power consumption
• Usage
• Operating frequency
• Fan-speed information in supported modes

Celsius or Fahrenheit Temperature Display

Temperature information can be displayed in either:

• Degrees Celsius – °C
• Degrees Fahrenheit – °F

This allows users to select the temperature format they prefer when monitoring their system.

CPU Temperature Measurement

DeepCool specifies the CPU temperature source as:

• Intel: CPU Package
• AMD: CPU Tdie

This provides a useful indication of CPU operating temperature while gaming, rendering, compiling or performing other demanding workloads.

Monitoring Information May Have a Small Delay

The digital display receives system information through software polling rather than measuring every component independently inside the chassis.

DeepCool notes that hardware configuration, polling intervals and system settings can result in a slight delay between a system change and the value shown on the display.

This is normal behaviour and does not indicate a fault with the case.

DeepCool Setup Software Support

The CH690 DIGITAL product page provides DeepCool's DeepCool Setup software for its digital monitoring functionality.

The software allows supported system information to be communicated to the case display.

System Monitoring Depends on Available Hardware Data

Not every motherboard, graphics card or power supply exposes exactly the same monitoring information.

The precise values available on the display can therefore depend on:

• Processor
• Graphics card
• Power supply
• Motherboard
• System drivers
• Operating system
• DeepCool monitoring software

This is particularly important for PSU monitoring because conventional power supplies may expose less telemetry than digitally monitored PSU models.

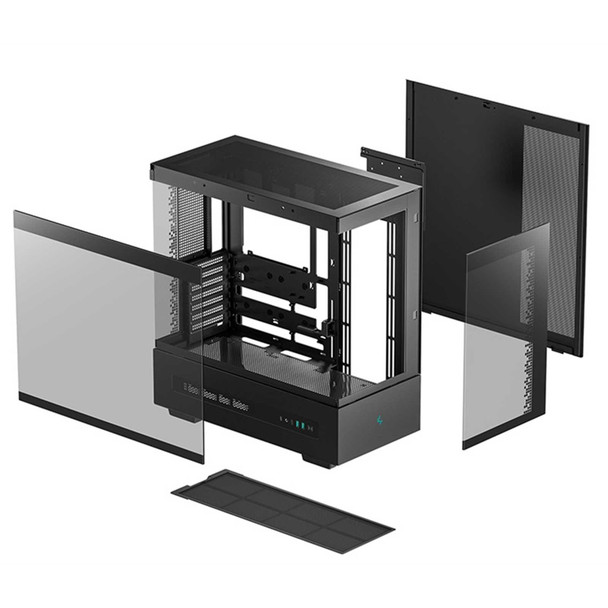

Panoramic Semi-Glass Gaming Case Design

The CH690 DIGITAL has been designed around a visually open, component-focused layout.

Its semi-glass construction gives users a broad view of the internal components, making it particularly suitable for builds featuring:

• RGB memory
• Illuminated graphics cards
• AIO liquid coolers
• ARGB case fans
• Custom cable extensions
• Decorative motherboard components

Single-Chamber Layout

Unlike dual-chamber cases that place the power supply and cable area in a separate rear compartment, the CH690 DIGITAL uses a single-chamber design.

DeepCool combines this layout with a mesh-designed PSU shroud and extensive side, top and lower cooling positions to create multiple possible airflow paths through the chassis.

Designed for Customisable Airflow

The CH690 DIGITAL is unusual because its rear-side configuration has been designed with additional modification flexibility.

DeepCool describes the rear of the chassis as supporting a DIY configuration where the semi-glass panel arrangement can be changed to a mesh and fan-bracket approach to increase horizontal airflow.

This allows advanced builders to prioritise either visual presentation or additional ventilation depending on their build requirements and available components.

Mesh PSU Shroud Creates a Vertical Airflow Channel

The power-supply shroud uses a mesh design instead of being completely sealed.

This allows fans positioned above or around the lower section to move cooling air vertically toward the graphics card and other heat-producing components.

This can be especially useful with modern high-performance GPUs that benefit from direct access to fresh intake air.

No Pre-Installed Fans – Build the Cooling System Your Way

The DeepCool CH690 DIGITAL Black does not include pre-installed case fans.

This is important because several similarly named DeepCool cases and newer CH690 variants do include fans, but the exact R-CH690-BKNNA0D-G-1 model does not.

The fan-free configuration gives builders complete control over:

• Fan brand
• Fan size
• ARGB style
• PWM control
• Noise level
• Airflow direction
• Radiator configuration

Remember to Purchase Cooling Fans Separately

A complete gaming PC normally requires suitable airflow through the case.

Because the CH690 DIGITAL contains no factory-installed fans, plan your cooling configuration before completing the build.

Support for Up to Ten Case Fans

The CH690 DIGITAL provides extensive fan-mounting flexibility.

The available positions are:

• Top: 3 × 120mm or 3 × 140mm
• Side: 3 × 120mm or 3 × 140mm
• PSU-shroud / lower area: 3 × 120mm or 3 × 140mm
• Rear: 1 × 120mm or 1 × 140mm

This provides up to ten total fan positions when the case is configured appropriately.

120mm and 140mm Fan Support

Support for both 120mm and 140mm fans gives builders flexibility when choosing between maximum compatibility and lower-speed high-airflow configurations.

Why Choose 120mm Fans?

120mm fans are widely available and offer extensive choice across:

• PWM models
• ARGB models
• High-static-pressure radiator fans
• High-airflow case fans
• Budget fan packs

Why Choose 140mm Fans?

140mm fans can move substantial airflow at relatively low rotational speeds, making them attractive for users aiming to balance airflow and acoustic performance.

The CH690 DIGITAL can use 140mm fans on the top, side, lower PSU-shroud area and rear.

420mm Top Radiator Support

For high-end liquid cooling, the CH690 DIGITAL supports radiators up to 420mm at the top.

Official top radiator compatibility includes:

• 120mm
• 140mm
• 240mm
• 280mm
• 360mm
• 420mm

This gives builders access to some of the largest mainstream all-in-one liquid CPU coolers available.

420mm AIO Compatibility

A case supporting a 420mm radiator can accommodate many high-performance triple-140mm liquid coolers, but actual compatibility can also depend on radiator thickness, fan thickness, motherboard heatsinks and cable routing.

Always compare the dimensions of your exact AIO cooler with the case and motherboard layout before installation.

Side Radiator Support Up to 280mm

The side mounting position supports:

• 120mm radiator
• 140mm radiator
• 240mm radiator
• 280mm radiator

This position provides another option for liquid cooling where the top is being used for additional case fans or another cooling configuration.

Lower Radiator Support Up to 360mm

The lower / PSU-shroud region supports radiators up to:

• 120mm
• 240mm
• 360mm

This adds further flexibility for custom cooling layouts.

No Front Radiator Mount

The CH690 DIGITAL does not provide a conventional front radiator mounting position.

Cooling hardware is instead concentrated around the:

• Top
• Side
• PSU-shroud / lower area
• Rear fan position

450mm Graphics Card Clearance

The case supports graphics cards up to an impressive 450mm long.

This provides substantial room for modern high-performance GPUs, including many large triple-fan graphics cards.

Suitable for Large Gaming GPUs

The generous GPU clearance makes the case attractive for powerful gaming and workstation builds using large graphics cards.

However, actual usable clearance can be affected by other installed hardware such as:

• Radiators
• Fans
• Cable routing
• Custom water-cooling hardware

Always compare the exact graphics-card dimensions with the final cooling configuration.

Adjustable Anti-Sag GPU Support

DeepCool includes an adjustable GPU support holder as part of the CH690 DIGITAL design.

Large modern graphics cards can place substantial downward force on the PCI Express slot and motherboard because of their length and weight.

The adjustable holder helps support the far end of the graphics card and reduce visible GPU sag.

Why GPU Support Matters

Supporting a heavy graphics card can help:

• Reduce stress on the PCIe slot
• Reduce stress on the motherboard
• Keep the graphics card visually level
• Improve the appearance of a panoramic PC build

Eight Expansion Slots

The rear of the case provides eight individual removable expansion slots.

This gives builders flexibility for systems containing:

• Large graphics cards
• Capture cards
• Sound cards
• Network adapters
• USB expansion cards
• Other PCI Express hardware

ATX Motherboard Support

The CH690 DIGITAL supports standard ATX motherboards, making it suitable for mainstream gaming and enthusiast PC builds.

ATX boards commonly offer:

• Multiple PCI Express slots
• Four DIMM memory sockets
• Several M.2 SSD positions
• Extensive rear I/O connectivity

Micro-ATX and Mini-ITX Support

The case is also compatible with smaller motherboard formats:

• Micro-ATX
• Mini-ITX

This means the CH690 DIGITAL can be used even when the motherboard is smaller than the maximum ATX format.

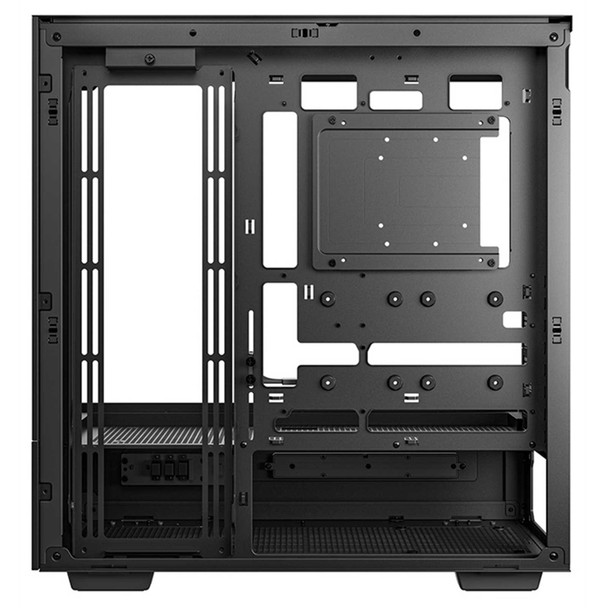

Rear-Connector Motherboard Support

The CH690 DIGITAL has been designed for the newer generation of rear-connector motherboards.

DeepCool officially lists compatibility with:

• ATX rear-connector motherboards
• Micro-ATX rear-connector motherboards

What Is a Rear-Connector Motherboard?

A rear-connector motherboard relocates many power, USB, fan and front-panel connectors to the rear side of the PCB.

This can reduce the number of visible cables inside the main component chamber and create a cleaner-looking build.

36.5mm Cable-Management Space

DeepCool provides approximately 36.5mm of cable-management width to help route cabling for both conventional and compatible rear-connector motherboard builds.

This is particularly useful for thick motherboard power cables, GPU power cables and groups of front-panel connectors.

182mm CPU Air Cooler Clearance

Builders who prefer air cooling can install CPU coolers up to 182mm high.

This allows the case to accommodate many large dual-tower and high-performance air coolers.

Always Check Exact CPU Cooler Height

Before purchasing a large tower cooler, compare its total installed height with the case's 182mm limit.

Remember that decorative covers, fan positioning and unusually tall motherboard components can affect the final installation.

ATX PS2 Power Supply Support

The CH690 DIGITAL uses standard ATX PS2 power supplies.

The official maximum PSU length is:

180mm

Check PSU Length with Cable Connectors

Power-supply compatibility should consider more than the metal PSU housing.

Modular PSUs also require room behind the connectors for cables to bend and route safely.

A shorter PSU can therefore make cable management easier, especially in builds using:

• High-wattage GPUs
• 12V-2x6 / high-current graphics cables
• Multiple SATA devices
• Custom cable extensions

Storage Support for SSDs and Hard Drives

The official DeepCool specification lists:

• 1 × 3.5-inch drive position
• 2+1 × 2.5-inch drive positions

This allows the chassis to support a combination of traditional hard drives and SATA SSDs alongside motherboard-mounted M.2 storage.

Three 2.5-Inch Positions Listed by DeepCool

DeepCool expresses the 2.5-inch capacity as 2+1 rather than simply three identical dedicated bays.

For that reason, the exact simultaneous drive arrangement should be checked against the final build layout when installing the maximum number of drives.

Fast Front I/O Connectivity

The accessible front/top I/O panel provides:

• 2 × USB 3.0 Type-A
• 1 × USB Type-C Gen2
• 1 × combined Audio/Microphone jack

This provides convenient connectivity for frequently used peripherals without reaching around to the motherboard rear I/O.

USB Type-C Gen2

The integrated Type-C port allows compatible cases and motherboards to provide modern reversible USB connectivity at the front of the PC.

To use the port, the motherboard must provide the appropriate internal USB Type-C header.

Two USB 3.0 Type-A Ports

The two conventional USB Type-A ports are useful for peripherals including:

• USB flash drives
• External SSDs
• Game controllers
• Headsets
• Keyboard and mouse receivers
• Other compatible USB devices

Combined Audio and Microphone Connection

A combined front audio/microphone jack provides convenient access for compatible headsets.

This can be especially useful with gaming headsets that use a single combined 3.5mm TRRS connection.

Magnetic Bottom Dust Filter

The bottom of the CH690 DIGITAL includes a magnetic air-filter pad.

The removable magnetic design helps reduce dust entering through the lower ventilation area and makes routine cleaning easier.

Why Dust Filters Matter

Reducing dust accumulation can help maintain:

• Cooling efficiency
• Fan performance
• Radiator airflow
• Internal appearance

Filters should still be cleaned periodically, particularly in rooms with carpets, pets or high dust levels.

Integrated Light-Strip Mounting Slot

DeepCool provides an integrated light-strip slot for users who want to customise the interior lighting of the case.

A suitable lighting strip can be added to complement:

• ARGB fans
• RGB memory
• Illuminated motherboards
• GPU lighting
• Liquid-cooling lighting

The light strip itself should not be assumed to be included unless specifically listed with the selected accessory or bundle.

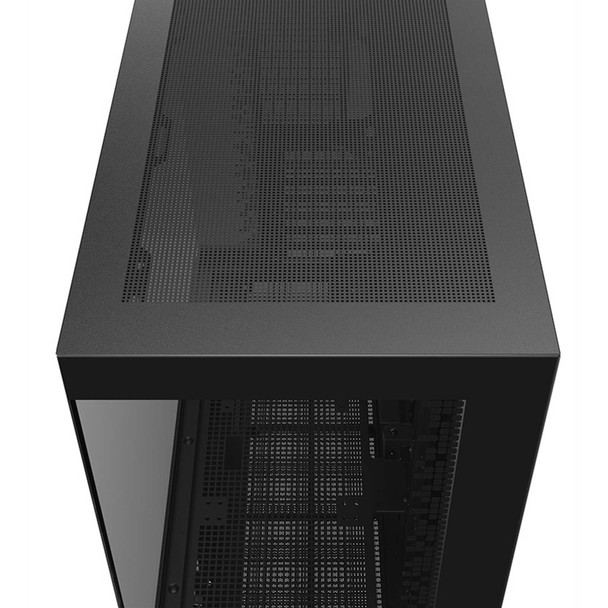

Tempered Glass, Steel and ABS Construction

DeepCool uses a combination of:

• SPCC steel
• Tempered glass
• ABS plastic

This combination provides structural rigidity while allowing the case to maintain its distinctive panoramic appearance.

Correct CH690 DIGITAL Dimensions

The official DeepCool dimensions are:

• Length: 481mm
• Width: 240mm
• Height: 516mm

Overall dimensions are therefore:

481 × 240 × 516mm (L × W × H)

Check Desk and Under-Desk Clearance

With a height of 516mm and length of 481mm, the case requires substantially more space than a compact Micro-ATX chassis.

Also leave clearance around ventilation areas so fans and radiators can move air effectively.

9.8kg Net Case Weight

The CH690 DIGITAL has an official net weight of approximately 9.8kg before installing:

• Motherboard
• Power supply
• Graphics card
• CPU cooler
• Fans
• Storage

A completed high-end gaming PC can therefore weigh considerably more than the bare chassis.

Ideal for High-End Gaming PCs

The combination of large GPU clearance, extensive cooling support and ATX motherboard compatibility makes the CH690 DIGITAL particularly suitable for high-performance gaming builds.

A typical gaming configuration could include:

• ATX gaming motherboard
• High-performance Intel Core or AMD Ryzen processor
• Large triple-fan graphics card
• 360mm or 420mm AIO CPU cooler
• Multiple 120mm or 140mm case fans
• High-capacity ATX power supply
• NVMe SSD storage

Suitable for Professional Workstations

The CH690 DIGITAL is not limited to gaming.

Its component clearance also makes it suitable for professional desktop systems used for:

• Video editing
• 3D rendering
• CAD
• Software development
• Content creation
• AI development workloads
• Photography
• Streaming

subject to motherboard, GPU and cooling compatibility.

Good Choice for Showcase PC Builds

The semi-glass design and integrated monitoring display make the CH690 DIGITAL particularly attractive for users who want the case itself to form part of the visual presentation of the system.

It can highlight components such as:

• Premium graphics cards
• RGB memory
• Digital AIO coolers
• Custom cable sets
• ARGB fans

Good Choice for Rear-Connector Builds

Support for rear-connector ATX and Micro-ATX motherboards makes the CH690 DIGITAL suitable for modern cable-hidden PC designs.

Moving compatible motherboard connectors behind the board can make the visible chamber appear cleaner and reduce cables crossing the front of the system.

DeepCool CH690 DIGITAL Technical Overview

• Brand: DeepCool
• Model: CH690 DIGITAL
• Colour: Black
• MPN: R-CH690-BKNNA0D-G-1
• Memox SKU: CADEE-CH690DIGI
• EAN / GTIN-13: 6933412774037
• Case Type: ATX Mid-Tower
• Design: Single-Chamber / Semi-Glass
• Materials: ABS + SPCC + Tempered Glass
• Mini-ITX: Supported
• Micro-ATX: Supported
• ATX: Supported
• Rear-Connector Micro-ATX: Supported
• Rear-Connector ATX: Supported
• E-ATX: Not listed as supported by DeepCool
• Expansion Slots: 8
• Maximum GPU Length: 450mm
• Maximum CPU Cooler Height: 182mm
• PSU Type: ATX PS2
• Maximum PSU Length: 180mm
• 3.5-Inch Drive Positions: 1
• 2.5-Inch Drive Positions: 2+1
• Pre-Installed Fans: None
• Maximum Fan Positions: Up to 10
• Top Fans: 3 × 120mm / 3 × 140mm
• Side Fans: 3 × 120mm / 3 × 140mm
• PSU-Shroud Fans: 3 × 120mm / 3 × 140mm
• Rear Fan: 1 × 120mm / 1 × 140mm
• Top Radiator: 120 / 140 / 240 / 280 / 360 / 420mm
• Side Radiator: 120 / 140 / 240 / 280mm
• Lower Radiator: 120 / 240 / 360mm
• Front Fan Mount: None listed
• Front Radiator Mount: None
• USB Type-A: 2 × USB 3.0
• USB Type-C: 1 × Gen2 Type-C
• Audio: 1 × combined Audio/Mic jack
• GPU Support Holder: Yes, adjustable
• Digital Monitoring Display: Yes
• Monitoring Modes: CPU / GPU / PSU
• Software: DeepCool Setup
• Cable-Management Clearance: Approximately 36.5mm
• Bottom Magnetic Dust Filter: Yes
• Light-Strip Slot: Yes
• Dimensions: 481 × 240 × 516mm
• Net Weight: 9.8kg

Important Fan Compatibility Note

No fans are supplied with the CH690 DIGITAL R-CH690-BKNNA0D-G-1.

Fans shown in promotional system photographs may be demonstration components and should not be interpreted as included accessories.

Important CH690 DIGITAL vs CH690 LCD Note

The CH690 DIGITAL and CH690 LCD are different products.

The CH690 DIGITAL covered on this page uses the integrated system-statistics digital display and is supplied with no pre-installed fans.

The newer CH690 LCD is a different model featuring a large 7-inch LCD screen and factory-installed ARGB fans.

Do not mix CH690 LCD specifications, fan configuration or product identifiers with this CH690 DIGITAL model.

Important GPU Clearance Note

The official maximum graphics-card length is 450mm.

Actual available space can be reduced by certain cooling or custom-loop configurations, so always check the dimensions of the graphics card together with any adjacent radiator and fan installation.

Important PSU Length Note

DeepCool officially specifies an 180mm maximum ATX PSU length.

Allow additional practical space for modular cable connectors and cable bending when planning the build.

Important Rear-Connector Motherboard Note

The case supports compatible rear-connector ATX and Micro-ATX motherboards, but rear-connector layouts differ between motherboard manufacturers and models.

Always confirm the exact motherboard's case-compatibility requirements before purchase.

Important E-ATX Note

DeepCool's official specification lists Mini-ITX, Micro-ATX and ATX.

E-ATX is not officially listed for this model and should therefore not be advertised as supported without confirmation for the specific motherboard dimensions.

Important Radiator Compatibility Note

Radiator size compatibility does not guarantee that every radiator, fan and motherboard combination will fit simultaneously.

Actual clearance can depend on:

• Radiator thickness
• Fan thickness
• Motherboard VRM heatsink height
• Memory height
• GPU dimensions
• Tube position

Important Digital Display Note

The display relies on system telemetry and DeepCool software rather than independent physical temperature probes for every component.

Displayed readings can vary slightly from other monitoring applications because of different polling intervals and data sources.

Important Front USB-C Note

The USB Type-C Gen2 port requires a compatible motherboard internal USB Type-C header to function.

Having a USB-C port built into the case does not create USB-C connectivity if the motherboard lacks the required internal connection.

Important Storage Note

DeepCool lists storage support as 1 × 3.5-inch and 2+1 × 2.5-inch.

Because the manufacturer describes the 2.5-inch positions as “2+1”, builders planning to use every drive position should check the final mounting arrangement alongside PSU cabling and other installed hardware.

Who Is the DeepCool CH690 DIGITAL Best For?

• High-performance gaming PCs
• Enthusiast ATX builds
• Showcase RGB systems
• Rear-connector motherboard builds
• Large graphics-card installations
• 420mm AIO liquid-cooling builds
• High-end air-cooling builds
• Content-creation workstations
• Streaming PCs
• Users wanting integrated system monitoring
• Builders who want to select their own case fans

Who Should Consider a Different PC Case?

A different chassis may be more suitable if you specifically require:

• Pre-installed cooling fans
• Official E-ATX motherboard support
• More than one 3.5-inch hard-drive position
• A PSU longer than 180mm
• A conventional front fan or radiator mount
• A compact Micro-ATX chassis
• A dual-chamber layout
• A large customisable LCD screen rather than a system-statistics display

Why Choose the DeepCool CH690 DIGITAL?

The DeepCool CH690 DIGITAL Black combines modern PC-case aesthetics with the component clearance and cooling capacity required for powerful contemporary gaming and workstation systems.

Its integrated CPU, GPU and PSU monitoring display gives users useful system information directly on the chassis, adding functionality to the visual design rather than relying solely on RGB lighting.

Support for graphics cards up to 450mm and CPU air coolers up to 182mm gives builders substantial freedom when selecting performance hardware.

Liquid-cooling support is equally strong, with room for a 420mm top radiator, 280mm side radiator and 360mm lower radiator, while up to ten 120mm or 140mm fan positions provide extensive airflow customisation.

Support for both conventional and rear-connector ATX and Micro-ATX motherboards helps make the CH690 DIGITAL suitable for clean modern builds with reduced visible cabling.

The adjustable GPU holder, 36.5mm cable-management space, magnetic bottom dust filter, USB Type-C Gen2 connectivity and integrated light-strip slot further improve the building experience.

Because the case includes no pre-installed fans, enthusiasts can select a complete cooling system based on their preferred performance, acoustic and lighting requirements rather than replacing factory fans they do not want.

Choose the DeepCool CH690 DIGITAL if you want a spacious black ATX showcase case with real-time system monitoring, support for large GPUs, 420mm liquid cooling, rear-connector motherboards and extensive custom fan configuration.
