DEEPCOOL
DeepCool CH170 DIGITAL WH Mini-ITX Case – Digital Display, High Airflow & 240mm AIO Support
- SKU:
- CADEE-CH170WH
- UPC:
- 6933412774211
- MPN:
- R-CH170-WHNPI0D-G-1
- Availability:
- Free Click & Collect in Peterborough. UK delivery also available
Description
DeepCool CH170 DIGITAL WH Mini-ITX Case – High-Airflow Vertical SFF Case with Digital Display
The DeepCool CH170 DIGITAL WH is a compact vertical Mini-ITX PC case designed for powerful small-form-factor gaming and productivity systems. Combining an airflow-focused mesh exterior with a built-in digital monitoring display, support for full-size CPU air coolers, 240mm liquid cooling and compatible 3-slot graphics cards, it offers unusually flexible component support for a compact ITX chassis.
With dimensions of just 250 x 200 x 380mm, the CH170 DIGITAL WH uses a vertical layout to minimise the amount of desk space occupied by the system while still providing room for serious PC hardware. It supports Mini-ITX motherboards, CPU air coolers up to 172mm tall, side-mounted 240mm AIO liquid coolers, and GPUs up to 305mm long when used with an SFX or SFX-L power supply.
The case also supports ATX, SFX and SFX-L power supplies, giving builders more flexibility than many compact ITX enclosures. Graphics cards install directly into the motherboard PCIe slot without requiring a riser cable, while extensive mesh ventilation, removable dust filters and multiple 120mm fan mounting positions help support effective airflow around high-performance components.
A distinctive digital monitoring display built into the base can present system information relating to the CPU, GPU or supported PSU telemetry, including values such as temperature, power consumption, utilisation, frequency and fan speed where the required system data is available.
Model: DeepCool CH170 DIGITAL WH | MPN: R-CH170-WHNPI0D-G-1 | EAN: 6933412774211 | Motherboard: Mini-ITX | Colour: White
Key Features of the DeepCool CH170 DIGITAL WH
- Vertical Mini-ITX PC case designed for compact gaming and performance builds
- Integrated digital system-monitoring display
- Displays multiple CPU, GPU or supported PSU data points
- High-airflow mesh panels around the chassis
- Supports Mini-ITX motherboards
- CPU air-cooler clearance up to 172mm
- Supports a 240mm side-mounted radiator / AIO liquid cooler
- GPU length up to 305mm with SFX/SFX-L PSU
- GPU length up to 230mm with ATX PSU
- Maximum GPU height approximately 138mm
- Maximum GPU thickness approximately 65mm / 3 slots
- Direct GPU installation into the motherboard – no PCIe riser cable required
- Supports ATX PS2, SFX and SFX-L power supplies
- Maximum supported PSU length approximately 140mm
- 3 expansion slots
- Multiple 120mm cooling-fan positions
- Three removable dust filters for easier maintenance
- Flexible removable fan / storage bracket
- Front I/O includes 2 x USB 3.0 Type-A
- 1 x USB Type-C Gen 2 connection
- 1 x hybrid audio port
- ABS and SPCC steel construction
- Compact dimensions of approximately 250 x 200 x 380mm
- Net weight approximately 3.4kg
- No fans pre-installed, allowing the cooling configuration to be customised

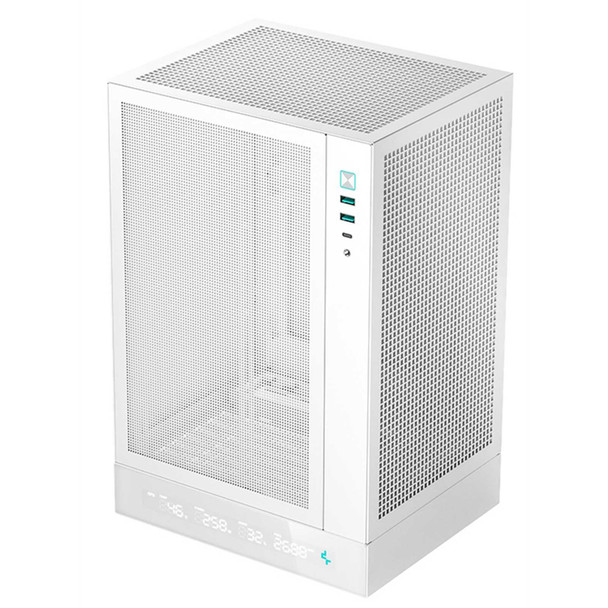

Built-In Digital System Monitoring Display
One of the defining features of the CH170 DIGITAL WH is the digital display integrated into the base of the case. Instead of relying solely on monitoring software displayed on the main monitor, the case itself can show key system information at a glance.
The display can focus on CPU, GPU or supported PSU information and can alternate between monitoring modes at timed intervals.
What Can the CH170 DIGITAL Display Show?
Depending on available system and hardware telemetry, the display can show information such as:
- CPU temperature
- CPU power consumption
- CPU utilisation
- CPU frequency or fan-speed information
- GPU temperature
- GPU power consumption
- GPU utilisation
- GPU frequency
- Supported PSU temperature information
- Supported PSU power information
- Supported PSU usage information
- Supported PSU fan-speed information
DeepCool notes that displayed information can experience minor delays depending on hardware configuration, system settings and software polling intervals.
Does the Digital Display Require Software?
DeepCool provides its DeepCool Setup software alongside the CH170 DIGITAL series for its digital monitoring functionality. Software and compatible system telemetry may be required for the full range of display information.
The exact information available can vary according to the CPU, graphics card, power supply and system configuration.
Compact Vertical Mini-ITX Design
The CH170 DIGITAL WH measures approximately 250mm long, 200mm wide and 380mm high. This gives it a compact vertical footprint of roughly 19 litres while retaining useful internal component clearance.
Rather than spreading components across a conventional horizontal tower layout, DeepCool positions the hardware vertically to reduce the amount of desktop surface occupied by the system.
Is the DeepCool CH170 DIGITAL a Small-Form-Factor Case?
Yes. The CH170 DIGITAL WH is designed as a compact Mini-ITX / small-form-factor PC case. Its vertical layout helps provide a relatively small desktop footprint while accommodating components that can be difficult to fit into more restrictive ITX enclosures.
Mini-ITX Motherboard Support
The CH170 DIGITAL WH is designed specifically for Mini-ITX motherboards.
This makes it suitable for compact Intel and AMD systems using compatible Mini-ITX motherboards while allowing builders to combine the smaller motherboard format with full-height CPU coolers and selected full-size graphics cards.
Does the CH170 DIGITAL Support Micro-ATX or ATX Motherboards?
No. DeepCool specifies motherboard support as Mini-ITX only.
Micro-ATX, ATX, E-ATX and other larger motherboard formats will not fit this chassis.

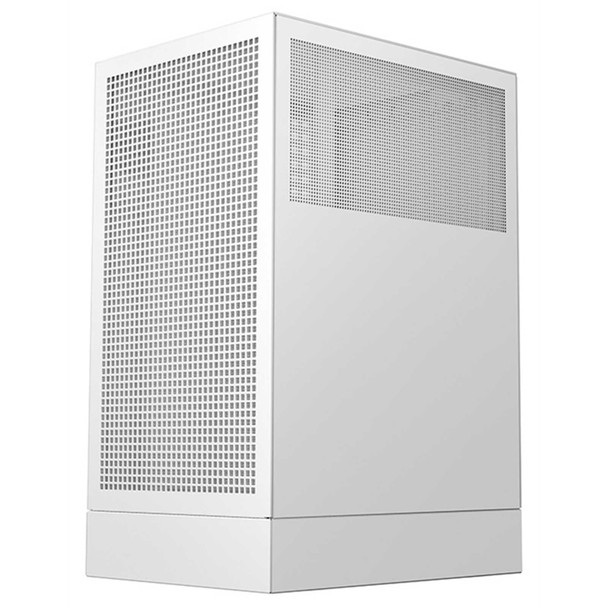

High-Airflow Mesh Panels
DeepCool surrounds the CH170 DIGITAL with mesh ventilation panels, helping provide direct access to fresh air around the internal components.
This airflow-focused design is particularly important in compact Mini-ITX systems where the CPU, GPU and power supply are positioned closer together than they would be in a conventional mid-tower case.
Why Is Airflow Important in a Mini-ITX PC?
High-performance processors and graphics cards can produce substantial heat. In a compact chassis, restricted ventilation can cause internal temperatures to increase more quickly.
The CH170 DIGITAL uses extensive mesh ventilation and configurable fan positions to help builders create an airflow path suited to their chosen CPU, GPU and cooling hardware.
Supports Large CPU Air Coolers Up to 172mm
Despite its compact Mini-ITX format, the CH170 DIGITAL WH supports CPU air coolers up to approximately 172mm in height.
This unusually generous clearance allows many full-size tower CPU coolers to be considered, giving builders an alternative to relying exclusively on low-profile coolers or liquid cooling.
Can I Use a Full-Size Tower CPU Cooler?
Yes, provided the cooler is no taller than 172mm and is otherwise compatible with your motherboard, RAM and surrounding components.
Always check the exact dimensions of the cooler before installation, particularly where tall memory modules or unusually large heatsinks are being used.

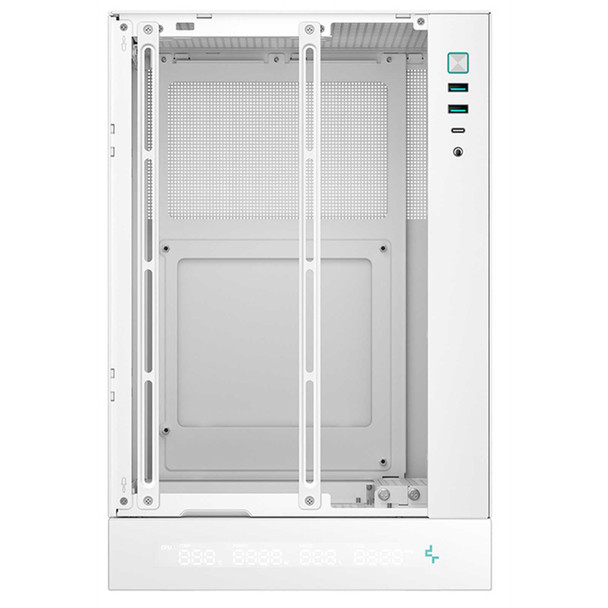

240mm AIO Liquid Cooling Support
Builders who prefer liquid cooling can install a 240mm radiator / AIO CPU cooler using the supported side radiator position.
DeepCool uses a dedicated radiator bracket alongside the case's mesh ventilation to make a standard 240mm AIO a practical cooling option within the compact chassis.
Where Does the 240mm Radiator Install?
The CH170 DIGITAL WH officially supports a 240mm radiator in the side mounting position.
Radiator, fan, GPU and PSU dimensions should always be considered together when planning an ITX build because large components can compete for the same internal space.
Up to 305mm Graphics Card Support
The CH170 DIGITAL WH can accommodate substantial discrete graphics cards, but the maximum GPU length depends on the type of power supply installed.
- SFX / SFX-L power supply: GPU length up to 305mm
- ATX power supply: GPU length up to 230mm
- Maximum GPU height: approximately 138mm
- Maximum GPU thickness: approximately 65mm / 3 slots
Why Does PSU Size Affect GPU Length?
The graphics card and power supply share limited internal space inside the compact chassis. A smaller SFX or SFX-L PSU leaves additional room for a longer graphics card, allowing GPU length up to approximately 305mm.
Installing a larger ATX power supply reduces the available graphics-card space, lowering maximum GPU length to approximately 230mm.
Will My Graphics Card Fit the CH170 DIGITAL?
Check all three GPU dimensions rather than length alone:
- Length
- Height
- Thickness / slot width
With an SFX or SFX-L PSU, the graphics card should generally remain within approximately 305mm long, 138mm high and 65mm thick.
With an ATX PSU, maximum GPU length reduces to approximately 230mm.
Direct GPU Installation – No Riser Cable Required
The CH170 DIGITAL is designed so that the graphics card can connect directly to the motherboard PCI Express slot.
This eliminates the need for a PCIe riser cable, simplifying the connection between the GPU and motherboard and avoiding an additional component in the graphics path.
Does the CH170 DIGITAL Need a PCIe Riser Cable?
No. Compatible graphics cards install directly into the Mini-ITX motherboard's PCIe slot.
This can simplify assembly and removes potential compatibility concerns associated with selecting the correct PCIe-generation riser cable.
ATX, SFX and SFX-L Power Supply Support
Many compact ITX cases require an SFX power supply, but the CH170 DIGITAL offers greater flexibility by supporting:
- ATX PS2 power supplies
- SFX power supplies
- SFX-L power supplies
DeepCool specifies a maximum PSU length of approximately 140mm.
Should I Choose ATX or SFX for the CH170 DIGITAL?
An SFX or SFX-L PSU is generally the more flexible choice when installing a longer high-performance graphics card because it allows GPU lengths up to approximately 305mm.
An ATX PSU can also be used, but available GPU length drops to approximately 230mm. Builders should therefore select the GPU and PSU together rather than treating their dimensions independently.
Flexible 120mm Fan Support
The CH170 DIGITAL provides multiple locations for optional 120mm case fans:
- Top: 1 x 120mm
- Rear: 2 x 120mm
- Bottom: 1 x 120mm
- Side: 2 x 120mm
The exact number of fans that can be installed simultaneously depends on the storage, radiator and component configuration.
Are Fans Included with the DeepCool CH170 DIGITAL WH?
No. DeepCool specifies that the CH170 DIGITAL WH has no pre-installed fans.
This allows builders to select their own airflow, noise and RGB configuration, but suitable case fans should be budgeted separately where required.
Flexible Storage or Fan Mounting
A removable upper bracket can be configured for different purposes depending on the build.
The shared mounting position can be used for:
- 1 x 2.5-inch SSD, or
- 1 x 3.5-inch HDD, or
- 1 x 120mm fan
Can I Install a 3.5-Inch HDD and the Top Fan at the Same Time?
Not in the shared mounting position. DeepCool specifies the bracket as a choice between a 2.5-inch SSD, 3.5-inch HDD or 120mm fan.
Builders should decide whether storage capacity or additional airflow is more important for their particular system configuration.
Three Removable Dust Filters
The CH170 DIGITAL WH includes three removable dust filters to help reduce the amount of dust entering the system through the case's high-airflow mesh design.
Removable filters also make routine cleaning easier because they can be removed and cleaned without dismantling the complete PC.
Why Are Dust Filters Important in a Mesh Case?
A highly ventilated PC case allows more air to move through the system, but airflow can also carry dust.
Regularly cleaning the CH170 DIGITAL's removable filters can help maintain unrestricted airflow and reduce dust accumulation on CPU coolers, graphics cards and other internal hardware.
Modern Front I/O with USB Type-C
The case provides convenient external connectivity for everyday peripherals:
- 2 x USB 3.0 Type-A ports
- 1 x USB Type-C Gen 2 port
- 1 x hybrid audio connection
The USB Type-C connection provides a modern front-panel port for compatible storage devices, smartphones, card readers and other USB-C accessories.
Does the CH170 DIGITAL Have Front USB-C?
Yes. The white CH170 DIGITAL includes a Gen 2 USB Type-C front I/O port alongside two USB 3.0 Type-A connections.
The motherboard must provide the appropriate internal header to enable the corresponding case connection.
Three Expansion Slots
The CH170 DIGITAL WH provides three expansion slots, allowing compatible graphics cards up to approximately 65mm thick to be installed directly into the motherboard.
This makes the case suitable for many modern dual-slot and 3-slot GPUs, provided all of the specified length, height and thickness limits are met.
Optional Tempered Glass Side Panel
The standard CH170 DIGITAL WH prioritises airflow with its mesh exterior. Builders who prefer to showcase the internal hardware can use DeepCool's compatible VIEW PANEL 100 WH tempered-glass side panel, available separately.
The optional panel replaces the compatible mesh side panel and uses approximately 3mm-thick tempered glass.
Does the CH170 DIGITAL WH Include a Tempered Glass Panel?
No. The standard case uses airflow-focused mesh panels. The compatible DeepCool VIEW PANEL 100 WH is an optional accessory sold separately.
Compatible with DeepCool PIXEL Customisation
The CH170 DIGITAL WH is also compatible with DeepCool's optional PIXEL decorative accessories, allowing users to customise the appearance of compatible mesh-panel areas.
PIXEL accessories are optional and are not required for operation of the case.
Ideal for Powerful Small-Form-Factor Gaming PCs
The combination of Mini-ITX motherboard support, 3-slot GPU clearance, full-height CPU air cooling and 240mm AIO support gives the CH170 DIGITAL WH considerable flexibility for a compact gaming build.
Potential configurations include:
- Compact gaming PCs
- High-performance Mini-ITX systems
- Small desktop workstations
- Streaming PCs
- Content-creation systems
- Minimalist white PC builds
- Desk-friendly systems where footprint is more important than overall case height
What Should You Check Before Building in the CH170 DIGITAL?
Small-form-factor systems require more careful component planning than conventional ATX towers. Before purchasing components, check:
- Motherboard is Mini-ITX
- CPU cooler is no taller than 172mm
- GPU length matches the chosen PSU configuration
- GPU height does not exceed approximately 138mm
- GPU thickness does not exceed approximately 65mm / 3 slots
- PSU format is ATX, SFX or SFX-L and within the supported dimensions
- ATX PSU length does not exceed approximately 140mm
- 240mm liquid cooler is suitable for the supported side radiator position
- Storage requirements do not conflict with the shared fan / drive bracket
- The motherboard has the required internal headers for the front USB ports
Who Is the DeepCool CH170 DIGITAL WH Best For?
- Mini-ITX gaming PC builders
- Users who want a compact vertical PC with a small desk footprint
- Builders wanting an integrated system-monitoring display
- Users who prefer high-airflow mesh instead of a sealed glass enclosure
- PC builders wanting support for a full-height tower CPU cooler
- Users wanting the option of a 240mm AIO
- Builders using an SFX PSU with a graphics card up to approximately 305mm
- Users who want a case that supports ATX, SFX or SFX-L power supplies
- White gaming PC and workstation builds
- Users who want direct GPU installation without a PCIe riser cable
Important Things to Know Before Buying
- The CH170 DIGITAL WH supports Mini-ITX motherboards only.
- Micro-ATX and full-size ATX motherboards are not supported.
- The case includes no pre-installed fans.
- Maximum CPU cooler height is 172mm.
- A 240mm radiator is supported in the side mounting position.
- Maximum GPU length is 305mm with SFX/SFX-L PSU.
- Maximum GPU length drops to approximately 230mm with an ATX PSU.
- Maximum GPU height is approximately 138mm.
- Maximum GPU thickness is approximately 65mm / 3 slots.
- Graphics cards mount directly to the motherboard; a PCIe riser is not required.
- Maximum PSU length is approximately 140mm.
- The shared upper bracket supports a 2.5-inch SSD, 3.5-inch HDD or 120mm fan – choose one.
- The digital display's available readings depend on hardware, software and system telemetry.
- The standard case uses mesh panels rather than an included tempered-glass side panel.
DeepCool CH170 DIGITAL WH Technical Highlights
- Brand: DeepCool
- Model: CH170 DIGITAL WH
- Manufacturer Part Number: R-CH170-WHNPI0D-G-1
- EAN: 6933412774211
- Case Type: Vertical Mini-ITX / Small Form Factor
- Colour: White
- Motherboard Support: Mini-ITX
- Materials: ABS + SPCC steel
- Dimensions: 250 x 200 x 380mm (L x W x H)
- Approximate Internal Volume: 19 litres based on external dimensions
- Net Weight: Approx. 3.4kg
- Expansion Slots: 3
- CPU Cooler Height: Up to 172mm
- GPU Length with SFX/SFX-L PSU: Up to 305mm
- GPU Length with ATX PSU: Up to 230mm
- Maximum GPU Height: Approx. 138mm
- Maximum GPU Thickness: Approx. 65mm / 3 slots
- PSU Support: ATX PS2 / SFX / SFX-L
- Maximum PSU Length: Approx. 140mm
- Radiator Support: Side 240mm
- Top Fan Support: 1 x 120mm
- Rear Fan Support: 2 x 120mm
- Bottom Fan Support: 1 x 120mm
- Side Fan Support: 2 x 120mm
- Pre-Installed Fans: None
- Storage: Shared mount for 1 x 2.5-inch SSD or 1 x 3.5-inch HDD or 1 x 120mm fan
- Front USB: 2 x USB 3.0 Type-A
- Front USB-C: 1 x Gen 2 Type-C
- Audio: 1 x hybrid audio port
- Dust Filters: 3 removable filters
- Digital Monitoring Display: Yes
- PCIe Riser Required: No
Why Choose the DeepCool CH170 DIGITAL WH?
The DeepCool CH170 DIGITAL WH combines the space-saving advantages of a vertical Mini-ITX case with component clearances that are more generous than many compact chassis.
Its ability to accommodate a 172mm tower CPU cooler or 240mm liquid cooler gives builders genuine cooling flexibility, while compatible 3-slot graphics cards up to 305mm long can be installed when the case is paired with an SFX or SFX-L power supply.
The high-airflow mesh design, multiple 120mm fan positions and removable dust filters help support effective cooling, while direct GPU mounting avoids the need for a PCIe riser cable. Support for ATX, SFX and SFX-L power supplies also gives builders greater freedom when selecting components.
The built-in digital monitoring display further distinguishes the CH170 DIGITAL from conventional Mini-ITX cases by providing visible CPU, GPU and supported PSU system information directly on the chassis.
For builders looking for a white Mini-ITX gaming case with high airflow, a digital hardware display, 240mm AIO support and room for substantial graphics hardware, the DeepCool CH170 DIGITAL WH offers a compelling combination of compact size, cooling flexibility and hardware compatibility.
Specification
DeepCool CH170 DIGITAL WH Mini-ITX Case Specifications
The DeepCool CH170 DIGITAL WH is a vertical small-form-factor PC case designed for Mini-ITX systems. It combines a high-airflow mesh design with a built-in digital monitoring display, support for 240mm liquid cooling, full-height CPU air coolers and compatible 3-slot graphics cards. These specifications apply specifically to DeepCool part number R-CH170-WHNPI0D-G-1.
General Information
| Brand | DeepCool |
| Model | CH170 DIGITAL WH |
| Manufacturer Part Number | R-CH170-WHNPI0D-G-1 |
| EAN / GTIN | 6933412774211 |
| Product Type | Vertical Mini-ITX / small-form-factor PC case |
| Colour | White |
| Materials | ABS + SPCC steel |
| Case Orientation | Vertical |
Dimensions & Weight
| Length | 250mm |
| Width | 200mm |
| Height | 380mm |
| Product Dimensions | 250 x 200 x 380mm (L x W x H) |
| Net Weight | Approx. 3.4kg |
Motherboard Compatibility
| Mini-ITX | Yes |
| Micro-ATX | No |
| ATX | No |
| E-ATX | No |
Graphics Card Compatibility
| Maximum GPU Length with SFX / SFX-L PSU | 305mm |
| Maximum GPU Length with ATX PSU | 230mm |
| Maximum GPU Height | 138mm |
| Maximum GPU Thickness | 65mm / 3 slots |
| Expansion Slots | 3 |
| PCIe Riser Cable Required | No – compatible GPU installs directly into the motherboard PCIe slot |
CPU Cooler Compatibility
| Maximum CPU Cooler Height | 172mm |
| Full-Height Tower Air Cooler Support | Yes, subject to 172mm height limit and component clearance |
Power Supply Compatibility
| ATX PS2 PSU Support | Yes |
| SFX PSU Support | Yes |
| SFX-L PSU Support | Yes |
| Maximum PSU Length | 140mm |
| Recommended PSU Type for Maximum GPU Clearance | SFX or SFX-L |
Liquid Cooling Support
| Side Radiator Support | Up to 240mm |
| 240mm AIO Support | Yes |
| Radiator Mounting Position | Side |
Fan Support
| Pre-Installed Fans | None |
| Top Fan Support | 1 x 120mm |
| Rear Fan Support | 2 x 120mm |
| Bottom Fan Support | 1 x 120mm |
| Side Fan Support | 2 x 120mm |
| Maximum Listed 120mm Fan Positions | Up to 6 positions, subject to radiator, drive and component configuration |
Storage Support
| Shared Drive / Fan Mount | 1 shared mounting position |
| 2.5-Inch SSD Support | 1 x 2.5-inch SSD using the shared mount |
| 3.5-Inch HDD Support | 1 x 3.5-inch HDD using the shared mount |
| Alternative Fan Use | The same shared mount can instead be used for 1 x 120mm fan |
| Simultaneous Shared-Mount Options | Choose one: 2.5-inch SSD, 3.5-inch HDD or 120mm fan |
Front I/O Connectivity
| USB 3.0 Type-A | 2 |
| USB Type-C | 1 x Gen 2 Type-C |
| Audio Port | 1 x hybrid audio port |
Digital Monitoring Display
| Built-In Digital Display | Yes |
| Display Location | Integrated into the case base |
| CPU Monitoring | Temperature, power consumption, utilisation and frequency / fan-speed information where supported |
| GPU Monitoring | Temperature, power consumption, utilisation and frequency |
| PSU Monitoring | Temperature, power consumption, utilisation and fan speed where supported PSU telemetry is available |
| Display Modes | CPU, GPU and PSU monitoring modes |
| Automatic Mode Cycling | Yes |
| DeepCool Setup Software | Supported / available from DeepCool |
Airflow & Dust Protection
| High-Airflow Mesh Panels | Yes |
| Removable Dust Filters | 3 |
| Tempered Glass Side Panel Included | No – standard case uses mesh panels |
Optional Accessories
| Optional Tempered Glass Panel | DeepCool VIEW PANEL 100 WH, sold separately |
| Tempered Glass Thickness | 3mm on compatible optional VIEW PANEL 100 WH |
| DeepCool PIXEL Compatibility | Yes, compatible optional DeepCool PIXEL decorative accessories |
Warranty
| DeepCool CH Series Warranty | 2 years in Europe, subject to DeepCool warranty terms and local retailer/statutory conditions |
Important GPU Compatibility Note
The maximum graphics-card length depends on the installed power supply. With an SFX or SFX-L PSU, DeepCool's current specification allows a GPU up to approximately 305mm long. With an ATX PSU, maximum GPU length is reduced to approximately 230mm.
GPU length is not the only compatibility measurement. The card should also remain within approximately 138mm height and 65mm thickness / 3 slots.
Important PSU Compatibility Note
The CH170 DIGITAL WH supports ATX PS2, SFX and SFX-L power supplies. DeepCool specifies a maximum PSU length of approximately 140mm.
For builds using a longer graphics card, an SFX or SFX-L power supply generally provides substantially more GPU clearance than an ATX unit.
Important Storage & Fan Mount Note
The removable shared bracket can be configured for one 2.5-inch SSD, one 3.5-inch HDD or one 120mm fan. These three options share the same mounting position and should not be treated as simultaneously available mounting locations.
Important Cooling Note
The case ships with no pre-installed fans. DeepCool lists optional 120mm fan positions at the top, rear, bottom and side, while a 240mm radiator / AIO can be installed in the side position.
Actual simultaneous fan, radiator, drive and component combinations depend on the internal hardware configuration and physical clearances.
Important Digital Display Note
The integrated display can show selected CPU, GPU and supported PSU information. Available readings depend on compatible hardware, software, polling intervals and system configuration. DeepCool notes that displayed information may experience minor delays compared with monitoring software running on the computer.
Important Motherboard Note
The DeepCool CH170 DIGITAL WH supports Mini-ITX motherboards only. Micro-ATX, ATX and E-ATX motherboards are not supported.
Important Dimensions Note
DeepCool's official dimensions are 250 x 200 x 380mm (L x W x H). The case uses a vertical layout, so 380mm is the height of the chassis.
Important Specification Revision Note
DeepCool's current product specification lists a 305mm maximum GPU length with SFX/SFX-L power supplies and a 240mm side radiator. Some older DeepCool documentation lists different figures. For this listing, the current manufacturer product-page specification should be treated as the primary reference.
Return
FAQ: Frequently Asked Questions
DeepCool CH170 DIGITAL WH Mini-ITX Case FAQ
The DeepCool CH170 DIGITAL WH (R-CH170-WHNPI0D-G-1) is a compact vertical Mini-ITX PC case designed for powerful small-form-factor gaming and productivity builds. It combines high-airflow mesh panels with a built-in digital system-monitoring display, support for full-size CPU air coolers up to 172mm, side-mounted 240mm liquid cooling and compatible three-slot graphics cards up to 305mm long when paired with an SFX or SFX-L power supply.
Below are answers to the most common questions buyers ask about the DeepCool CH170 DIGITAL WH, including GPU compatibility, ATX vs SFX power supplies, RTX and Radeon graphics cards, 240mm AIO installation, air cooling, fan layouts, Mini-ITX motherboard compatibility, the digital monitoring display, DeepCool Setup software, storage, USB-C connectivity, temperatures and the differences between the CH170 DIGITAL and CH170 PLUS.
1. What is the DeepCool CH170 DIGITAL WH?
The DeepCool CH170 DIGITAL WH is a vertical Mini-ITX small-form-factor PC case with extensive mesh ventilation and an integrated digital monitoring screen. It is designed for compact gaming and performance systems while still supporting relatively large CPU coolers, graphics cards and several PSU formats.
2. What is the exact model number, Memox SKU and EAN?
The exact white model is DeepCool CH170 DIGITAL WH, manufacturer part number R-CH170-WHNPI0D-G-1. The Memox SKU is CADEE-CH170WH and the EAN / GTIN-13 is 6933412774211.
3. What are the main specifications of the CH170 DIGITAL WH?
Key specifications include Mini-ITX motherboard support, 250 × 200 × 380mm dimensions, 172mm CPU-cooler clearance, side-mounted 240mm radiator support, up to 305mm GPU length with SFX/SFX-L PSU, 230mm GPU length with ATX PSU, 65mm GPU thickness, 138mm GPU height, ATX/SFX/SFX-L PSU support and an integrated digital system-monitoring display.
4. Is the DeepCool CH170 DIGITAL WH a Mini-ITX case?
Yes. DeepCool officially specifies Mini-ITX motherboard support for this model.
5. Can I install a Micro-ATX motherboard in the CH170 DIGITAL?
Not officially. DeepCool lists the CH170 DIGITAL WH as Mini-ITX only. Some enthusiasts experiment with non-standard smaller boards or modifications, but a normal Micro-ATX motherboard should not be considered compatible with this case.
6. Which DeepCool CH170 model supports Micro-ATX motherboards?
The separate DeepCool CH170 PLUS officially supports both Mini-ITX and Micro-ATX motherboards. Do not confuse the CH170 PLUS with the smaller CH170 DIGITAL sold on this page.
7. How large is the DeepCool CH170 DIGITAL WH?
The case measures approximately 250mm long × 200mm wide × 380mm high. Based on its external dimensions, it occupies roughly 19 litres of volume.
8. What is the advantage of the CH170's vertical design?
The vertical layout reduces the amount of horizontal desk space occupied by the PC. This can make the CH170 particularly attractive for small desks, gaming setups and workspaces where floor or desktop footprint matters more than overall height.
9. What is the maximum GPU length with an SFX or SFX-L power supply?
DeepCool officially supports graphics cards up to 305mm long when the CH170 DIGITAL is fitted with an SFX or SFX-L power supply.
10. What is the maximum GPU length with an ATX power supply?
GPU length drops substantially to a maximum of approximately 230mm when an ATX PSU is installed.
11. If I use a very short ATX PSU, can I fit a GPU longer than 230mm?
DeepCool's official specification still lists 230mm maximum GPU length when an ATX PSU is used. Some builders may experiment with unusually short PSUs and component positioning, but Memox recommends following the official 230mm limit rather than assuming additional clearance.
12. What is the maximum GPU thickness?
DeepCool specifies up to approximately 65mm thickness / three expansion slots.
13. What is the maximum GPU height?
The official GPU height limit is approximately 138mm.
14. Can the CH170 DIGITAL hold a triple-slot graphics card?
Yes. It provides three expansion slots and officially supports compatible GPUs up to approximately 65mm thick.
15. Does the CH170 DIGITAL need a PCIe riser cable?
No. The graphics card installs directly into the Mini-ITX motherboard's PCIe slot. This simplifies the build and avoids compatibility or signal-integrity issues associated with some PCIe riser cables.
16. Can I install a modern RTX or Radeon graphics card in the CH170 DIGITAL?
Yes, provided the exact card dimensions stay within the case limits. With SFX/SFX-L, check for a maximum of approximately 305mm length, 138mm height and 65mm thickness. Many modern GPUs vary considerably between manufacturers, even when they use the same graphics processor.
17. Why should I check the exact GPU model rather than only the GPU series?
An RTX 5070, RTX 5060 Ti, RX 9070 or similar GPU can be sold in multiple cooler designs with very different lengths and thicknesses. Always compare the exact manufacturer's card dimensions with the CH170's limits before purchasing.
18. Do I need to allow extra room for the GPU power connector?
Yes. Published GPU dimensions normally describe the card itself. You should also consider the space needed for PCIe or 12V-2x6/12VHPWR power cables and avoid excessively sharp cable bends against the case panel.
19. What types of power supply does the CH170 DIGITAL support?
The case supports ATX PS2, SFX and SFX-L power supplies.
20. What is the maximum PSU length?
DeepCool specifies a maximum PSU length of approximately 140mm.
21. Is an SFX power supply better for the CH170 DIGITAL?
For many gaming builds, yes. An SFX PSU preserves the full official 305mm GPU-length allowance and leaves more internal room for cabling than an ATX unit. The main disadvantage is that high-quality SFX models can cost more than equivalent ATX PSUs.
22. Can I use an SFX-L power supply?
Yes. DeepCool officially supports SFX-L PSUs as well as standard SFX units, with the same published 305mm GPU-length category.
23. What is the main disadvantage of using an ATX PSU in this case?
The main trade-off is graphics-card space. Using an ATX PSU reduces the official maximum GPU length from 305mm to 230mm, which excludes many current performance graphics cards.
24. What is the maximum CPU air-cooler height?
The CH170 DIGITAL supports CPU air coolers up to approximately 172mm tall, unusually generous clearance for a Mini-ITX chassis.
25. Can I use a large dual-tower CPU cooler?
Potentially yes if it is no taller than 172mm. However, also check RAM clearance, motherboard heatsinks, cooler width and PCIe/GPU clearance, because height alone does not guarantee compatibility with every large dual-tower cooler.
26. Is air cooling a good choice for the CH170 DIGITAL?
Yes. The 172mm clearance means the CH170 can accommodate many powerful tower coolers, while the extensive mesh ventilation allows the CPU cooler to draw and exhaust air efficiently when the overall fan layout is planned correctly.
27. Does the DeepCool CH170 DIGITAL support a 240mm AIO?
Yes. DeepCool provides a specialised side radiator bracket for a standard 240mm liquid cooler.
28. Where is the 240mm radiator mounted?
The supported 240mm radiator mounts on the side radiator/fan position.
29. Can I install a 280mm radiator?
No official 280mm radiator support is listed. The specified liquid-cooling configuration is a side-mounted 240mm radiator.
30. Can I install a 360mm radiator?
No. The CH170 DIGITAL is too compact for a 360mm radiator under its official mounting specification.
31. Can I use a 240mm AIO and full-size case fans at the same time?
Some combinations are possible, but clearance becomes tighter in a small-form-factor case. CH170 owners have reported that a side-mounted radiator and standard-thickness fans can interfere with or partially obstruct nearby top/bottom fan positions depending on the AIO, fan thickness and component layout. Plan the complete cooling configuration before buying every fan.
32. Would slim 120mm fans help when installing a 240mm AIO?
They can help in particularly tight configurations by reducing total fan thickness, but thermal performance and noise characteristics differ between models. Slim fans are not mandatory under DeepCool's specification; they are simply one possible solution when component clearances overlap.
33. How many 120mm fans can the CH170 DIGITAL support?
DeepCool lists mounting positions for one top 120mm fan, two rear 120mm fans, one bottom 120mm fan and two side 120mm fans. The side positions are also used for the 240mm radiator configuration.
34. Are any fans included with the CH170 DIGITAL WH?
No. DeepCool specifies no pre-installed case fans, allowing you to choose your preferred airflow, noise and RGB configuration.
35. What is a good starting airflow layout for the CH170 DIGITAL?
A common starting point in vertical cases is to encourage cooler air into the lower/side area and exhaust warmer air toward the upper part of the chassis. The ideal arrangement depends on whether you use a large air cooler, a side-mounted AIO and the airflow direction of your graphics card, so monitor temperatures and adjust accordingly.
36. Why might my GPU run hot in a CH170 build?
Check whether the graphics card has unobstructed access to mesh ventilation, whether nearby radiator fans are working against the GPU's airflow and whether top/bottom exhaust or intake fans are creating excessive positive or negative pressure. SFF temperatures are highly dependent on the complete airflow layout.
37. Is the CH170 DIGITAL a high-airflow case?
Yes. DeepCool surrounds the chassis with extensive mesh panels to maximise access to outside air despite the compact vertical layout.
38. Does the CH170 DIGITAL have dust filters?
Yes. DeepCool provides three removable dust filters to help reduce dust entering the chassis and simplify cleaning.
39. What front I/O connections does the case provide?
The front I/O includes 2 × USB 3.0 Type-A ports, 1 × Gen 2 USB Type-C port and 1 × combined/hybrid audio jack.
40. Will the front USB-C port work with every Mini-ITX motherboard?
The motherboard needs the appropriate internal front-panel USB Type-C header to enable the case's Type-C port. If your Mini-ITX board does not provide the required header, the physical port will not function unless a suitable compatible adapter/controller is added.
41. What does the built-in digital display show?
The integrated display can show groups of system data relating to the CPU, GPU and compatible PSU telemetry. DeepCool allows the display to focus on one category or rotate through categories automatically.
42. What CPU information can the CH170 DIGITAL display?
DeepCool lists CPU temperature, power consumption, utilisation and frequency or fan-speed information. CPU temperature is based on CPU Package for Intel processors and CPU Tdie for AMD processors.
43. What GPU information can the display show?
The display can show GPU temperature, power consumption, utilisation and operating frequency when the required data is available to the monitoring software.
44. Can the display show power-supply information?
Potentially. DeepCool lists PSU temperature, power consumption, usage and fan-speed information, but these readings depend on having compatible PSU telemetry and system support. A conventional PSU without readable monitoring data cannot automatically provide every PSU statistic.
45. Do I need DeepCool software for the digital display?
Yes, for the system-monitoring functionality. DeepCool provides its DeepCool Setup software from the CH170 DIGITAL product support/download page so the display can obtain and present supported hardware telemetry.
46. Why does the digital display not exactly match another monitoring program?
Small differences can be normal. DeepCool notes that hardware configuration, polling intervals and system settings can cause minor delays in the displayed readings. Different monitoring applications can also read different sensors or update them at different intervals.
47. What should I check if the digital screen is not showing system data?
Confirm that the display's internal connections are properly attached, install or update the current DeepCool Setup software and reboot the system. Also check whether security software has blocked the DeepCool monitoring service and whether the particular hardware sensor you are trying to display is actually supported.
48. Can I completely ignore the digital display and use the case normally?
Yes. The display is an additional monitoring feature and is not required for the motherboard, CPU, GPU or cooling system to operate normally.
49. How many 2.5-inch or 3.5-inch drives can I install?
The case provides a shared removable mounting position that can be used for either one 2.5-inch SSD, one 3.5-inch HDD or a 120mm fan. Those three options share the same mounting resource, so you cannot occupy it with all three simultaneously.
50. Can I still use M.2 NVMe SSDs?
Yes. M.2 NVMe SSDs attach directly to compatible motherboard M.2 slots and do not use the case's 2.5/3.5-inch drive bracket. The number of M.2 drives therefore depends on the Mini-ITX motherboard.
51. Does installing a hard drive remove one fan position?
The removable shared bracket can accommodate a 2.5-inch SSD, 3.5-inch HDD or 120mm fan. Choosing a drive on that shared position means that particular 120mm fan position cannot be used simultaneously.
52. Does the CH170 DIGITAL WH include tempered glass?
The standard CH170 DIGITAL WH configuration uses high-airflow mesh panels rather than an included tempered-glass side panel. This design prioritises airflow over displaying the internal components through glass.
53. Can I customise the outside of the case with DeepCool PIXEL accessories?
Yes. DeepCool lists the CH series among the cases compatible with its optional colourful rubber PIXEL decorative accessories, allowing patterns or accents to be added to suitable mesh openings.
54. How much does the white CH170 DIGITAL weigh?
The CH170 DIGITAL WH has a net weight of approximately 3.4kg before components are installed.
55. What is the difference between the white and black CH170 DIGITAL?
The core layout and compatibility are essentially the same. The white model is R-CH170-WHNPI0D-G-1 / EAN 6933412774211, while the black version uses a different part number and EAN. The white chassis is listed at approximately 3.4kg versus around 3.3kg for the black version.
56. DeepCool CH170 DIGITAL vs CH170 PLUS – what is the difference?
The CH170 DIGITAL is the smaller Mini-ITX-only model with an integrated digital display, up to 172mm air-cooler clearance and GPUs up to 305mm with SFX/SFX-L.
The newer CH170 PLUS is larger, officially supports both Mini-ITX and Micro-ATX motherboards and can accommodate GPUs up to around 342mm, but its design and feature set differ from the original CH170 DIGITAL. Choose the original DIGITAL when smaller footprint and the monitoring screen matter; choose the PLUS when motherboard and GPU flexibility are more important.
57. Is the CH170 DIGITAL easy to build in for a first Mini-ITX PC?
It is more forgiving than some extremely small ITX cases because it supports large air coolers and multiple PSU sizes, but component order and cable planning still matter. Owners commonly recommend checking GPU, PSU, radiator and fan dimensions together before assembly rather than treating each clearance figure independently.
58. What warranty does the CH170 DIGITAL have in the UK?
DeepCool's current European warranty table lists CH-series cases with a two-year warranty, subject to DeepCool's warranty terms, proof of purchase and applicable UK consumer rights.
59. Who is the DeepCool CH170 DIGITAL WH best for?
The CH170 DIGITAL WH is particularly suitable for Mini-ITX gaming PCs, compact workstation builds, users who want strong air-cooling support, people with limited desk space and builders who like visible CPU/GPU system monitoring without keeping monitoring software open on their main screen.
It is especially attractive when paired with an SFX or SFX-L PSU because that preserves the full official 305mm GPU-length allowance.
60. Who should NOT choose the DeepCool CH170 DIGITAL WH?
Choose another case if you need official Micro-ATX or ATX motherboard support, a GPU longer than 305mm, a GPU thicker than approximately 65mm, a 280mm or 360mm radiator, several 3.5-inch hard drives, an included set of case fans or a large tempered-glass showcase interior.
The CH170 PLUS or a larger mATX/ATX chassis may be more suitable if component flexibility is more important than compact footprint.
Related Products
Related Products
Deepcool CH170 Digital Mini-ITX Case - High Airflow, Supports Water Cooling, Ultra-Quiet Operation, Compact Design for Efficient Space Management
DEEPCOOL
