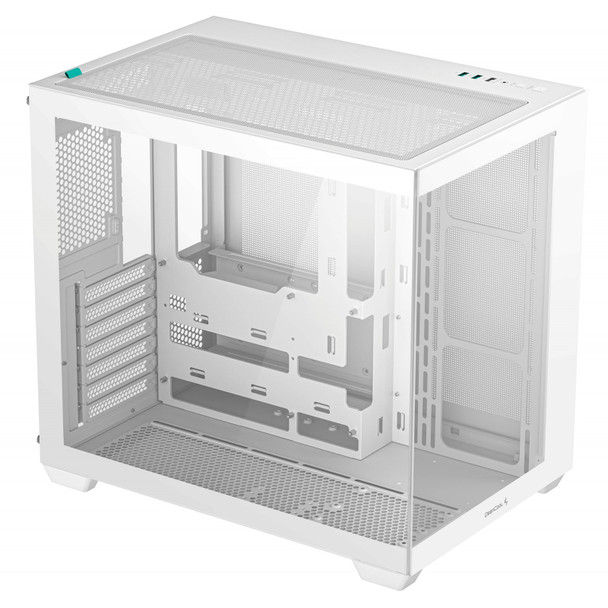

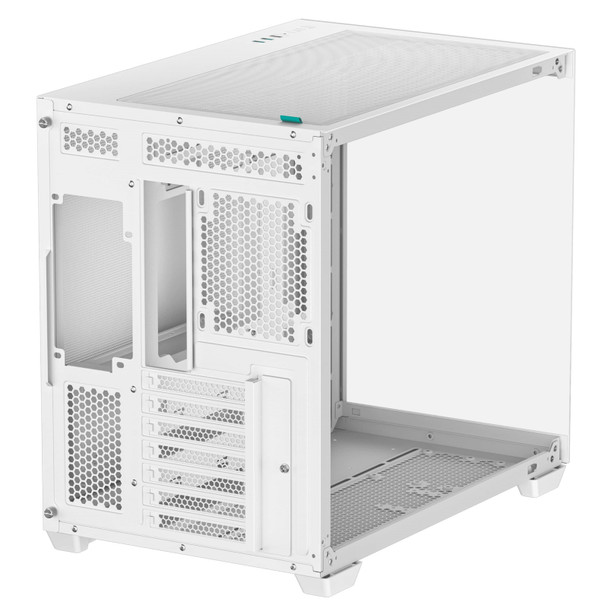

DeepCool CG530 WH Dual-Chamber ATX PC Case – White Panoramic Tempered Glass Gaming Case

The DeepCool CG530 WH (R-CG530-WHNDA0-G-1) is a white panoramic dual-chamber PC case designed for gaming PCs, showcase builds and clean cable-managed desktop systems. Its pillarless front-and-side tempered-glass design provides a wide, uninterrupted view of the motherboard, graphics card, cooling hardware and RGB components, creating the popular fishtank-style PC case appearance.

Despite its showcase-focused design, the CG530 WH offers substantial hardware compatibility. It supports ATX, Micro-ATX and Mini-ITX motherboards, including compatible rear-connector ATX and Micro-ATX motherboards, graphics cards up to 410mm long, CPU air coolers up to 160mm high and ATX PS2 power supplies up to 210mm long.

Cooling flexibility is another major strength, with mounting positions for up to three 120mm fans at the top, three at the side, three at the bottom and one 120mm rear fan. Radiator support extends up to 360mm at the top and bottom and up to 280mm at the side.

Quick answer: The DeepCool CG530 WH is a white dual-chamber panoramic ATX PC case with front and side tempered glass, support for 410mm graphics cards, 160mm CPU coolers, 360mm radiators, rear-connector motherboards, up to 45mm of cable-management space and seven expansion slots. This particular CG530 WH version is supplied without pre-installed case fans, allowing you to choose your own cooling and RGB setup.

Key Features of the DeepCool CG530 WH

• Panoramic pillarless tempered-glass design
• White gaming PC case with front and side tempered-glass panels
• Dual-chamber internal layout
• Supports ATX, Micro-ATX and Mini-ITX motherboards
• Supports compatible rear-connector ATX and Micro-ATX motherboards
• 410mm maximum GPU length
• 160mm maximum CPU air cooler height
• ATX PS2 PSU support up to 210mm long
• 7 horizontal expansion slots
• 2 × 3.5-inch drive bays
• 2+1 × 2.5-inch SSD mounting positions
• Up to 3 × 120mm or 2 × 140mm top fans
• Up to 3 × 120mm or 2 × 140mm side fans
• 1 × 120mm rear fan position
• Up to 3 × 120mm bottom fans depending on storage configuration
• Up to 360mm top radiator support
• Up to 280mm side radiator support
• Up to 360mm bottom radiator support
• 45mm rear cable-management space
• Magnetic top and bottom dust filters
• 2 × USB 3.0 front I/O ports
• 1 × USB 2.0 front I/O port
• 1 × combined Audio/Microphone connection
• ABS, SPCC steel and tempered-glass construction
• No pre-installed fans – choose your own cooling system
• Dimensions: 440 × 285 × 399mm (L × W × H)
• Net weight: 6.5kg
• Colour: White
• DeepCool P/N: R-CG530-WHNDA0-G-1

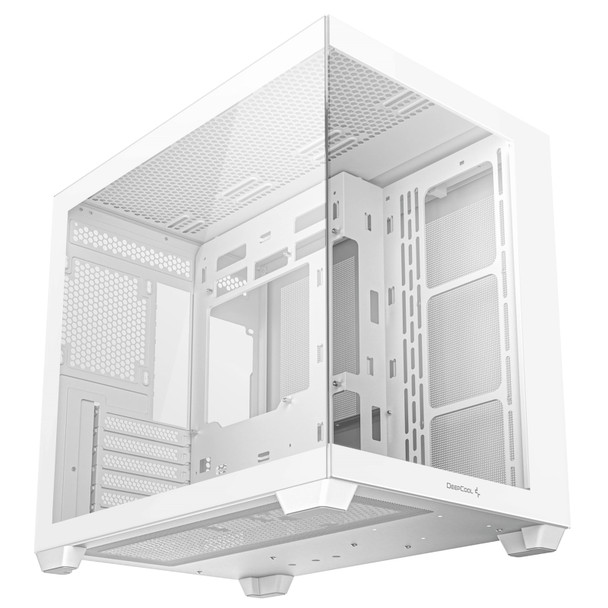

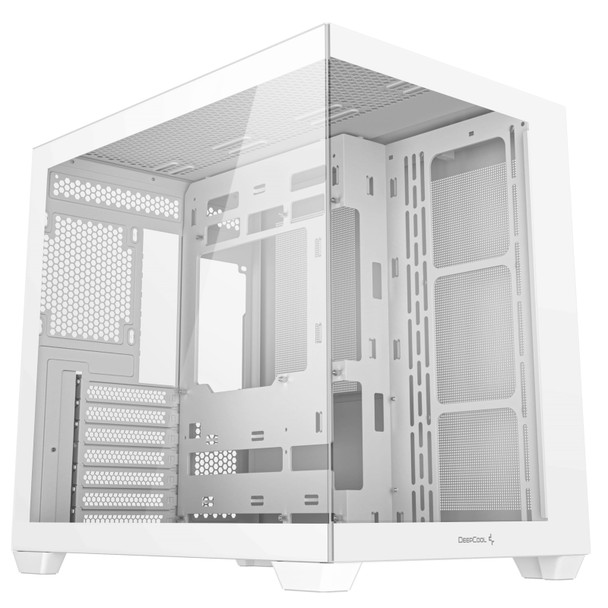

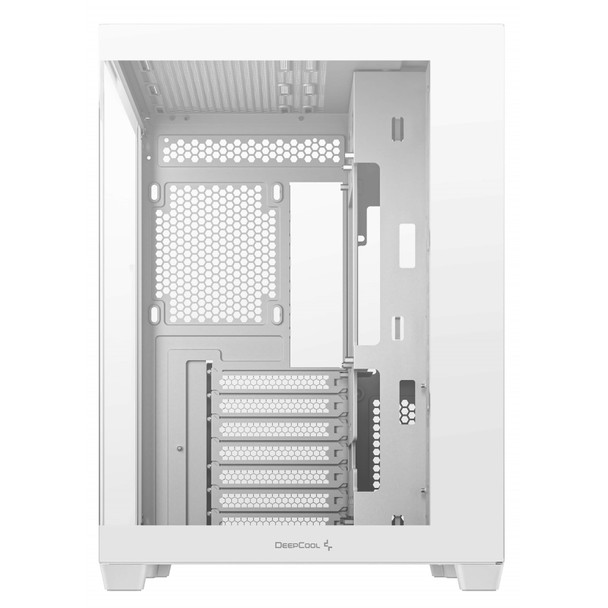

Panoramic Tempered-Glass Gaming PC Case

The DeepCool CG530 WH is designed around a pillarless panoramic layout. Instead of using a conventional solid front panel and visible structural pillar at the front corner, the case combines front and side tempered-glass panels to provide a much wider view of the internal hardware.

This creates a clean showcase appearance particularly suited to systems containing:

• RGB memory
• Illuminated graphics cards
• RGB or ARGB case fans
• AIO liquid CPU coolers
• Custom-coloured power cables
• White PC components
• Display-equipped CPU coolers

Pillarless Fishtank-Style Design

The absence of a conventional A-pillar between the front and side glass creates the continuous visual appearance commonly described as a fishtank PC case or panoramic gaming case.

This makes the CG530 WH particularly suitable for builders who want their graphics card, motherboard and cooling components to remain visible rather than hidden behind a conventional front chassis structure.

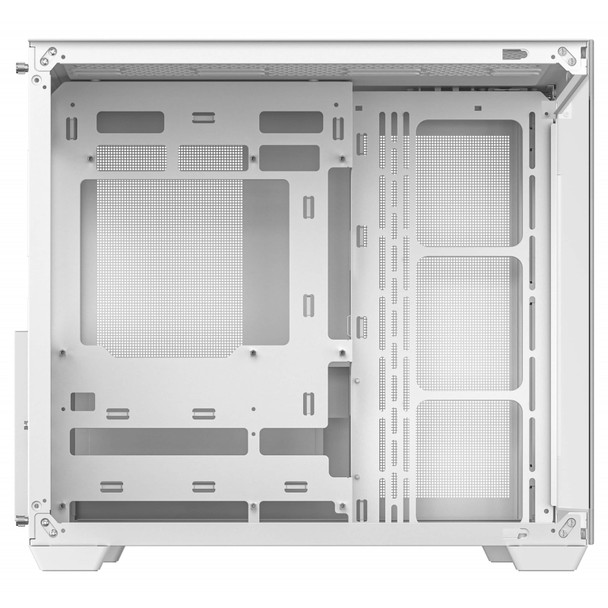

Advanced Dual-Chamber PC Case Design

The CG530 WH uses a dual-chamber layout that separates key components into different areas of the chassis. The motherboard, graphics card and main cooling hardware occupy the primary display chamber, while the PSU, storage and much of the cabling can be positioned away from the most visible components.

This separation helps create a cleaner-looking build while also allowing the power supply and storage devices to benefit from their own airflow path.

Why Use a Dual-Chamber PC Case?

A dual-chamber design can provide several practical advantages:

• Helps keep the visible motherboard chamber cleaner
• Moves the PSU away from the main showcase area
• Provides additional room for hidden cable routing
• Separates storage hardware from key display components
• Makes complex gaming PC builds easier to organise
• Creates more space around the graphics card and motherboard

Support for Rear-Connector Motherboards

The DeepCool CG530 WH supports conventional ATX, Micro-ATX and Mini-ITX motherboards as well as compatible rear-connector ATX and Micro-ATX motherboards.

Rear-connector motherboard designs move many motherboard power, fan, USB and front-panel connectors to the back of the PCB. When installed in a compatible case such as the CG530 WH, these cables can be routed behind the motherboard instead of remaining visible in the main system chamber.

Cleaner Builds with Back-Connect Motherboards

Using a compatible rear-connector motherboard can significantly reduce the number of cables visible through the panoramic glass. This can make the CG530 WH particularly attractive for showcase PC builds where clean cable presentation is important.

Always check the exact motherboard dimensions and rear-connector layout before purchase, as rear-connector motherboard standards and layouts can vary between manufacturers and models.

ATX, Micro-ATX and Mini-ITX Motherboard Compatibility

The CG530 WH supports three commonly used desktop motherboard sizes:

• ATX
• Micro-ATX / mATX
• Mini-ITX / ITX

This gives PC builders flexibility when creating anything from a compact Mini-ITX-based gaming system to a fully equipped ATX gaming PC.

Graphics Cards Up to 410mm Long

The DeepCool CG530 WH provides a generous maximum GPU length of 410mm. This gives it sufficient chassis space for many large modern graphics cards, including long triple-fan gaming GPU designs.

Suitable for Large Gaming Graphics Cards

A 410mm GPU clearance gives builders considerably more flexibility when choosing a graphics card than many compact PC cases.

However, graphics-card compatibility should still be checked using the exact dimensions of the GPU. Large graphics cards vary not only in length but also in:

• Card height
• Card thickness
• Number of expansion slots occupied
• Power-connector clearance
• Cable bend requirements

Installed fans, radiators or other hardware can also affect practical internal clearance, so always check the dimensions of the complete proposed build.

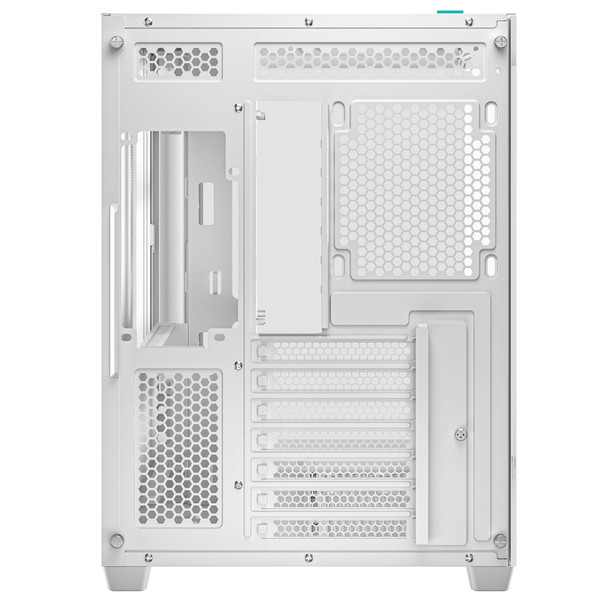

Seven Expansion Slots

The CG530 WH provides seven expansion slots for compatible PCI Express devices installed through the motherboard.

These can accommodate hardware such as:

• Dedicated graphics cards
• PCIe network adapters
• Wi-Fi cards
• Sound cards
• Capture cards
• USB expansion cards
• Storage controllers

Actual expansion-card availability depends on the motherboard configuration and the physical size of the graphics card and other components.

CPU Air Cooler Support Up to 160mm

For air-cooled systems, the CG530 WH supports CPU coolers up to 160mm in height.

This makes the chassis compatible with a broad range of tower-style CPU air coolers. Before purchasing a cooler, check its manufacturer's stated height and ensure it remains within the case's 160mm clearance limit.

Air Cooling or Liquid Cooling?

The CG530 WH can support either an air-cooled CPU configuration or an AIO liquid-cooling setup. Builders can therefore choose the cooling approach that best matches their processor, budget, noise requirements and visual preferences.

Extensive Case Fan Support

The CG530 WH offers multiple fan mounting locations around the case, allowing builders to create their own airflow configuration.

Top Fan Support

• Up to 3 × 120mm fans, or
• Up to 2 × 140mm fans

Side Fan Support

• Up to 3 × 120mm fans, or
• Up to 2 × 140mm fans

Rear Fan Support

• 1 × 120mm fan

Bottom Fan Support

The bottom area can support up to 3 × 120mm fans. The available configuration can change when the HDD or SSD mounting positions are being used.

DeepCool also lists configurations allowing:

• 3 × 120mm bottom fans, or
• 3.5-inch HDD mounting with 2 × 120mm fans, or
• 2.5-inch SSD mounting with 2 × 120mm fans

Important: No Fans Are Pre-Installed

This specific DeepCool CG530 WH model does not include pre-installed case fans. Fans need to be purchased separately if they are required for your build.

This can be an advantage for enthusiasts who want complete control over their cooling configuration, fan brand, fan speed, lighting style and RGB ecosystem.

It is especially useful for builders who already own suitable fans or want to install a matching set of PWM or ARGB fans rather than paying for factory-installed fans that may later be replaced.

Do Not Confuse the CG530 WH with the CG530 4F WH

The standard CG530 WH (R-CG530-WHNDA0-G-1) supplied here has no pre-installed fans.

The separately available CG530 4F WH is a different model supplied with four pre-installed PWM ARGB fans and has a different manufacturer part number and EAN.

Up to 360mm Radiator Support

The CG530 WH provides extensive radiator compatibility for AIO liquid CPU coolers and compatible custom cooling hardware.

Top Radiator Support

• 120mm
• 140mm
• 240mm
• 280mm
• 360mm

Side Radiator Support

• 120mm
• 140mm
• 240mm
• 280mm

Bottom Radiator Support

• 120mm
• 240mm
• 360mm

This gives builders several options when positioning compatible liquid-cooling radiators within the chassis.

No Front Radiator Mount

The CG530 WH does not provide a conventional front radiator or fan mounting location. Its front area is occupied by the panoramic tempered-glass design.

Cooling hardware should therefore be planned around the top, side, bottom and rear mounting positions.

Designed for Flexible Gaming PC Airflow

The combination of top, side, bottom and rear cooling positions allows the CG530 WH to support a wide range of airflow arrangements.

Rather than forcing builders to use a specific factory fan configuration, the fanless CG530 WH allows the cooling system to be selected according to the installed CPU, graphics card and liquid-cooling hardware.

When planning airflow, consider:

• CPU and GPU heat output
• Radiator position
• Intake and exhaust fan balance
• Graphics-card cooling requirements
• Storage mounting positions
• Dust filtration
• Desired system noise level

45mm Cable-Management Space

DeepCool provides an impressive 45mm of wiring space behind the backplane. This gives builders substantial room for motherboard power cables, PCIe/GPU power cables, SATA wiring, RGB cables, fan connections and front-panel wiring.

Why Cable-Management Space Matters

Good cable management can help:

• Keep cables away from the visible panoramic chamber
• Make side-panel installation easier
• Simplify future upgrades
• Reduce cable congestion around fans
• Improve the overall presentation of a gaming PC

The additional rear space is particularly useful when using a compatible rear-connector motherboard, where many normally visible connections are moved behind the motherboard tray.

Magnetic Top and Bottom Dust Filters

The CG530 WH incorporates magnetic dust filtration at the top and bottom of the chassis.

Dust filters can help reduce the amount of dust entering the computer through filtered ventilation areas. The magnetic design also makes the filters easier to remove for periodic cleaning.

Easy PC Case Maintenance

Cleaning filters regularly can help maintain unrestricted airflow through the case. The required cleaning frequency depends on the environment, floor position, pets and the amount of dust in the room.

Storage Support for HDDs and SSDs

The DeepCool CG530 WH provides mounting positions for both conventional 3.5-inch hard drives and 2.5-inch SSDs.

• 2 × 3.5-inch drive bays
• 2+1 × 2.5-inch drive positions

This allows builders to combine high-capacity hard drives with SATA SSDs alongside any M.2 NVMe storage installed directly on the motherboard.

Storage and Bottom Fan Configuration

Some bottom storage mounting positions share space with the bottom cooling area. Using a particular HDD or SSD mounting position can therefore change the number of bottom fans that can be installed.

Plan the storage and cooling configuration together when building a system that requires both multiple internal drives and extensive bottom-mounted cooling.

ATX PSU Support Up to 210mm

The CG530 WH accepts a standard ATX PS2 power supply up to 210mm long.

This provides compatibility with a wide selection of gaming PC power supplies, including many high-wattage and modular models.

Check PSU Length Before Buying

Power supplies vary considerably in physical length. Always check the manufacturer's dimensions of the chosen PSU and ensure that it does not exceed the case's 210mm maximum PSU length.

Also allow suitable space for attached or modular PSU power cables.

Front I/O Connectivity

The CG530 WH provides easily accessible front/top I/O connectivity for common peripherals and audio devices.

• 2 × USB 3.0 ports
• 1 × USB 2.0 port
• 1 × combined Audio/Microphone 3.5mm connection

Does the DeepCool CG530 WH Have USB-C?

No. This specific standard CG530 WH model does not have a front USB Type-C port. Its front I/O consists of two USB 3.0 ports, one USB 2.0 port and one combined audio/microphone connection.

This is another important difference between the standard CG530 WH and some other CG530-series variants. Check the exact model number if front USB-C connectivity is essential for your build.

White PC Case for Showcase Gaming Builds

The CG530 WH uses a white chassis finish designed to complement white PC components and RGB lighting.

It can be particularly suitable for builds using:

• White graphics cards
• White motherboards
• White AIO liquid coolers
• White CPU air coolers
• White or RGB memory
• White PSU extension cables
• White ARGB case fans

Black components can also create a contrasting black-and-white system when viewed through the panoramic glass.

ABS, SPCC Steel and Tempered-Glass Construction

DeepCool lists the CG530 WH chassis materials as:

• SPCC steel
• ABS
• Tempered glass

The steel chassis forms the structural body of the case, while the panoramic tempered-glass panels provide visibility into the primary system chamber.

DeepCool CG530 WH Dimensions

• Length: 440mm
• Width: 285mm
• Height: 399mm
• Overall dimensions: 440 × 285 × 399mm (L × W × H)
• Net weight: 6.5kg

The wide 285mm chassis is an important part of the dual-chamber design, providing additional internal depth for cable management and PSU/storage separation.

Who Is the DeepCool CG530 WH Best For?

• Gaming PC builders who want a panoramic tempered-glass case
• Users building a white gaming PC
• RGB and ARGB showcase PC builds
• Builders using ATX, Micro-ATX or Mini-ITX motherboards
• Users considering compatible rear-connector motherboards
• Systems using long graphics cards up to 410mm
• Builders installing a 360mm AIO liquid cooler
• Users who want to select their own case fans
• PC builders who value generous cable-management space
• Gaming systems requiring multiple SSD or HDD mounting positions

Who Should Consider a Different PC Case?

A different case may be preferable if you specifically require:

• Pre-installed case fans
• Pre-installed ARGB lighting
• A front USB Type-C port
• An E-ATX motherboard larger than the supported formats
• A CPU air cooler taller than 160mm
• A graphics card longer than 410mm
• An ATX power supply longer than 210mm
• A conventional front-mounted radiator

DeepCool CG530 WH Technical Overview

• Brand: DeepCool
• Model: CG530 WH
• Manufacturer Part Number: R-CG530-WHNDA0-G-1
• EAN / GTIN-13: 6933412765141
• Product Type: Dual-Chamber Panoramic PC Case
• Colour: White
• Materials: ABS + SPCC Steel + Tempered Glass
• Motherboard Support: Mini-ITX / Micro-ATX / ATX
• Rear-Connector Motherboard Support: Compatible Micro-ATX and ATX rear-connector boards
• Expansion Slots: 7
• Maximum GPU Length: 410mm
• Maximum CPU Cooler Height: 160mm
• PSU Type: ATX PS2
• Maximum PSU Length: 210mm
• 3.5-inch Drive Bays: 2
• 2.5-inch Drive Bays: 2+1
• Pre-Installed Fans: None
• Top Fan Support: 3 × 120mm / 2 × 140mm
• Side Fan Support: 3 × 120mm / 2 × 140mm
• Rear Fan Support: 1 × 120mm
• Bottom Fan Support: Up to 3 × 120mm depending on storage configuration
• Top Radiator Support: 120 / 140 / 240 / 280 / 360mm
• Side Radiator Support: 120 / 140 / 240 / 280mm
• Bottom Radiator Support: 120 / 240 / 360mm
• Front Fan/Radiator Support: None
• Cable-Management Space: 45mm
• Dust Filters: Magnetic top and bottom filters
• USB 3.0: 2
• USB 2.0: 1
• Front USB-C: No
• Audio: 1 × combined Audio/Mic port
• Dimensions: 440 × 285 × 399mm (L × W × H)
• Net Weight: 6.5kg

Important Compatibility Checks Before Buying

Before purchasing the DeepCool CG530 WH, check the following:

• Your motherboard is Mini-ITX, Micro-ATX or ATX.
• Your graphics card is no longer than 410mm.
• Your CPU air cooler is no taller than 160mm.
• Your ATX PSU is no longer than 210mm.
• Your chosen radiator matches one of the supported top, side or bottom sizes.
• You purchase suitable case fans because this model has no pre-installed fans.
• Your storage configuration does not conflict with the desired bottom fan configuration.
• You do not require front USB-C, as this particular version does not include it.

Important Fan Note

The CG530 WH R-CG530-WHNDA0-G-1 is supplied without pre-installed fans. Images showing systems populated with fans, liquid coolers, graphics cards or other PC components may illustrate possible build configurations; those components are not part of the standard case specification unless specifically stated as included.

Important USB-C Note

This standard CG530 WH has 2 × USB 3.0, 1 × USB 2.0 and 1 × Audio/Mic connection. It does not have the USB-C front connection found on certain other CG530-series variants.

Important Storage and Cooling Note

The bottom area can be used for different fan and storage configurations. Installing a bottom-mounted 3.5-inch HDD or 2.5-inch SSD can reduce the number of available bottom 120mm fan positions. Plan the storage and cooling layout together before installation.

Important Tempered-Glass Handling Note

Handle the tempered-glass panels carefully during assembly and maintenance. Place removed glass panels on a clean, soft and stable surface and avoid striking the edges or corners against hard materials.

Why Choose the DeepCool CG530 WH?

The DeepCool CG530 WH combines the visual appeal of a panoramic fishtank-style PC case with the practical benefits of a dual-chamber internal layout. Its pillarless front and side tempered glass provide an unobstructed view of gaming hardware, while the separate PSU and storage area helps maintain a cleaner main chamber.

Hardware compatibility is generous, with support for 410mm graphics cards, 160mm CPU coolers, ATX power supplies up to 210mm, ATX/Micro-ATX/Mini-ITX motherboards and compatible rear-connector motherboard designs.

Cooling flexibility is equally strong. Builders can configure multiple 120mm or 140mm fans and install radiators up to 360mm at both the top and bottom or up to 280mm at the side. Because the standard CG530 WH includes no fans, users can select the exact PWM, ARGB or performance cooling setup they want.

Choose the DeepCool CG530 WH if you want a white panoramic dual-chamber PC case with excellent GPU clearance, flexible 360mm liquid-cooling support, rear-connector motherboard compatibility and generous cable-management space for a clean modern gaming PC build.
