CORSAIR
Corsair RM650e 650W Fully Modular PSU – ATX 3.1, PCIe 5.1, Gold Efficiency
- SKU:
- CP-9020302-UK
- UPC:
- 0840440485797
- MPN:
- CP-9020302-UK
- Availability:
- Free Click & Collect in Peterborough. UK delivery also available
Description
Corsair RM650e 650W Fully Modular ATX 3.1 PSU – PCIe 5.1, 12V-2x6 & Gold Efficiency
The Corsair RM650e 650W Fully Modular Power Supply (CP-9020302-UK) is a compact, low-noise ATX PSU designed for modern gaming PCs, productivity systems and enthusiast desktop builds. It combines 650W continuous power, Intel ATX 3.1 certification, PCIe 5.1 compatibility, a dedicated 12V-2x6 GPU power connection and fully modular cabling in a compact 140mm-long housing.
Part of Corsair's RMe Series, the RM650e uses a modern resonant LLC topology with DC-DC conversion, industrial-grade 105°C-rated capacitors, a quiet 120mm rifle-bearing cooling fan and Zero RPM mode. It is officially rated Cybenetics Gold for efficiency and Cybenetics A++ for noise, making it well suited to users who want efficient, quiet and reliable PC power without unnecessary cable clutter.
Quick answer: The Corsair RM650e is a 650W fully modular ATX 3.1 power supply for modern desktop PCs. It supports PCIe 5.1 graphics-card power connections including 12V-2x6, provides up to 54.2A / 650W on the +12V rail, includes Zero RPM fan operation and is backed by a 7-year Corsair warranty.
Key Features of the Corsair RM650e 650W PSU
- 650W continuous power output
- Intel ATX 3.1 certified
- PCIe 5.1 compatible
- Dedicated 12V-2x6 GPU power cable
- Fully modular cable design
- Corsair Type 4 modular cabling
- Cybenetics Gold efficiency rating
- Cybenetics A++ noise rating
- Zero RPM fan mode for silent operation at suitable low loads
- Quiet 120mm rifle-bearing fan
- Compact 140mm PSU length for easier case installation
- Resonant LLC topology with DC-DC conversion
- 105°C-rated industrial-grade capacitors
- Supports Modern Standby
- 100,000-hour MTBF
- 7-year Corsair warranty
- Model / MPN: CP-9020302-UK
650W Power Supply for Modern Gaming and Desktop PCs
The RM650e provides 650 watts of continuous power and is designed for desktop systems that require an efficient modern power supply with current-generation CPU and GPU connectivity.
The PSU's primary +12V rail can deliver up to 54.2A and 650W, supplying the power required by major system components such as the processor and graphics card. The +3.3V and +5V rails are rated at up to 20A each, with a combined maximum output of 110W.
Is 650W Enough for a Gaming PC?
A quality 650W power supply can be suitable for many gaming PCs, but PSU requirements depend on the exact processor, graphics card, overclocking, cooling hardware, storage devices and other installed components.
When selecting the RM650e, always compare the complete system power requirement with the graphics-card manufacturer's recommended PSU wattage. The presence of a modern 12V-2x6 connector does not mean that every graphics card using that connector is suitable for a 650W power supply.
ATX 3.1 Certified Power Supply
The Corsair RM650e is formally Intel ATX 3.1 certified. ATX 3.1 is a newer desktop power-supply specification designed around the electrical and power-delivery requirements of modern computer hardware.
For users building or upgrading a current-generation gaming PC, an ATX 3.1 PSU provides a more up-to-date platform than older ATX power-supply designs.
Why ATX 3.1 Matters
Modern processors and graphics cards can produce rapid changes in power demand. A current ATX 3.1 power supply is designed around stricter power-delivery requirements intended for these modern system loads.
This makes the RM650e particularly relevant for new PC builds where users want a PSU designed around current hardware standards rather than relying on an older-generation power supply.
PCIe 5.1 and 12V-2x6 GPU Power Support
The RM650e is PCIe 5.1 compatible and includes dedicated 12V-2x6 graphics-card connectivity for compatible modern GPUs.
12V-2x6 is the newer 16-pin graphics-card power connector used by a growing range of modern GPUs. Having the appropriate cable supplied with the PSU can simplify installation and reduce the need for separate graphics-card power adapters where a compatible direct connection can be used.
Suitable for Modern NVIDIA and AMD Gaming Builds
The RM650e can be used in gaming PCs built around modern NVIDIA GeForce or AMD Radeon graphics cards, provided the graphics card's connector requirements and recommended total system PSU wattage are compatible with the RM650e's 650W output capacity.
Before buying a PSU for a specific graphics card, always check the GPU manufacturer's recommended power-supply wattage because requirements vary significantly between graphics-card models.
Fully Modular PSU for Cleaner Cable Management
The Corsair RM650e uses a fully modular cable design. Instead of having every cable permanently attached to the power supply, you connect only the cables required by your PC.
This can reduce unused cable clutter inside the computer case, improve cable-routing flexibility and make it easier to create a clean PC build.
Benefits of a Fully Modular Power Supply
- Install only the power cables your PC requires
- Reduce unnecessary cables inside the case
- Make cable management easier
- Improve access around the motherboard and components
- Create a cleaner-looking gaming PC build
- Make future upgrades and maintenance easier
Corsair Type 4 Modular Cabling
The RM650e uses Corsair Type 4 modular PSU cabling. Corsair modular cable types are designed around specific PSU connector standards, so cable compatibility should always be checked carefully before using replacement or custom PSU cables.
Important: Do not assume that modular PSU cables from another power supply are interchangeable simply because the component-side connector looks the same. Using an incompatible modular PSU cable can damage the power supply or connected hardware.
Gold-Rated Efficiency for Reduced Power Waste
The current Corsair RM650e is officially rated Cybenetics Gold for power efficiency. Higher PSU efficiency means a larger proportion of the electricity drawn from the wall is converted into usable DC power for the PC rather than being lost as waste heat.
Efficient power conversion can contribute to:
- Reduced wasted electrical energy
- Lower heat generation inside the PSU
- Reduced cooling requirements
- Quieter operation under suitable workloads
- Efficient everyday gaming and PC use
Low-Noise Operation with Cybenetics A++ Rating
In addition to its efficiency certification, the RM650e carries a Cybenetics A++ noise rating. Corsair uses a specially calculated fan curve together with a 120mm rifle-bearing fan to reduce unnecessary PSU noise during operation.
This makes the RM650e a strong option for users building a quiet gaming PC, office workstation, content-creation system or general-purpose desktop where low acoustic output is desirable.

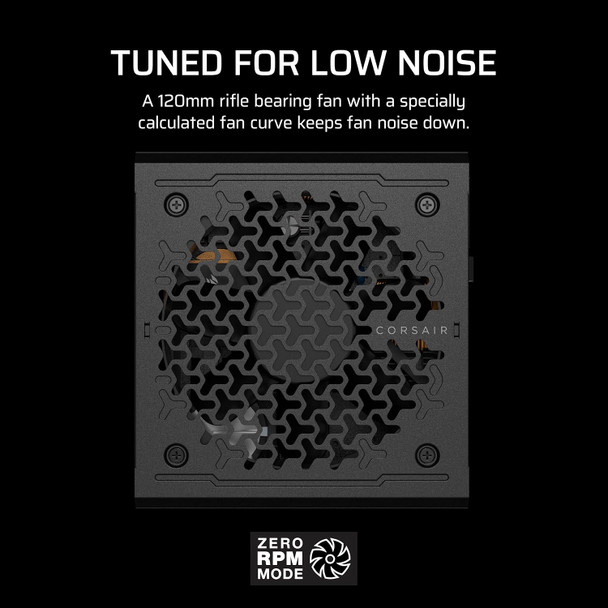

120mm Rifle-Bearing Cooling Fan
The integrated 120mm cooling fan uses a rifle-bearing design and automatically adjusts cooling according to operating conditions. Its fan curve is designed to keep noise low while still providing the airflow required to cool the internal power-supply components.
Zero RPM Mode for Silent Low-Load Operation
The RM650e supports Zero RPM mode. Under suitable low-load operating conditions, the PSU fan can stop completely, eliminating fan noise from the power supply.
When internal temperature or power demand increases, the fan automatically resumes operation to provide the required cooling.
This feature is particularly useful during light workloads such as web browsing, office applications, media playback or idle desktop operation.
Compact 140mm PSU for Easier PC Case Installation
Despite its modern power-delivery features, the RM650e has a compact body measuring approximately 140 × 150 × 86mm.
The 140mm length can provide extra cable-management space compared with longer ATX power supplies, particularly in cases with drive cages, PSU shrouds or limited clearance behind the power supply.
ATX Case Compatibility
The RM650e uses the standard ATX PSU form factor and is intended for compatible desktop PC cases. Always check your case's supported PSU dimensions before purchase, particularly in compact cases where clearance may be restricted by hard-drive cages or cable-management structures.
Modern LLC and DC-DC Power Conversion
The RMe Series uses a resonant LLC topology with DC-DC conversion to provide stable and efficient power delivery across different system loads.
Modern DC-DC regulation allows the PSU to generate the required lower-voltage rails efficiently from the main power stage while maintaining strong electrical performance for modern computer components.
105°C-Rated Industrial-Grade Capacitors
Corsair equips the RM650e with 105°C-rated industrial-grade capacitors. These components are selected to support reliability and stable operation under the thermal conditions experienced inside a PC power supply.
Modern Standby Support
The RM650e supports Modern Standby, allowing compatible Windows systems and hardware to provide faster wake-from-sleep behaviour and improved efficiency during low-power operating states.
Modern Standby support is another feature that makes the RM650e particularly suitable for current-generation desktop hardware and operating systems.
Power Output and Rail Information
- Total Continuous Power: 650W
- +12V Maximum Load: 54.2A
- +12V Maximum Output: 650W
- +5V Maximum Load: 20A
- +3.3V Maximum Load: 20A
- +3.3V + +5V Combined Output: 110W
- +5VSB Maximum Load: 3A
- +5VSB Maximum Output: 15W
Wide 100–240V AC Input
The RM650e supports an AC input range of 100–240V AC at 47–63Hz. The UK version, CP-9020302-UK, is supplied for the UK market with the appropriate UK PSU version and mains connection.
RM650e Power Connectors
The fully modular design provides connections for the motherboard, CPU, graphics card, SATA storage and compatible peripheral hardware.
- 1× ATX motherboard connector
- 2× EPS CPU connectors
- 3× PCIe connectors
- 1× dedicated 12V-2x6 GPU connection
- 6× SATA power connectors
- 2× PATA peripheral connectors
CPU and Motherboard Power
The RM650e provides the standard ATX motherboard power connection together with EPS CPU power connectivity for compatible Intel and AMD motherboards.
Always refer to your motherboard manual when connecting CPU/EPS power because PCIe GPU and EPS CPU connectors are designed for different applications and should not be interchanged.
Suitable Uses for the Corsair RM650e
The 650W RMe Series PSU is suitable for a wide range of compatible desktop systems, including:
- Gaming PCs
- Intel Core desktop builds
- AMD Ryzen desktop builds
- Mid-range graphics-card gaming systems
- Home desktop computers
- Office and business PCs
- Content-creation systems
- Photo and video editing PCs
- PC upgrades replacing an older PSU
- Quiet PC builds
- Fully modular cable-managed systems
Is the Corsair RM650e Suitable for a New PC Build?
Yes. The combination of ATX 3.1 certification, PCIe 5.1 compatibility, 12V-2x6 connectivity and fully modular cables makes the RM650e particularly suitable for modern PC builds where the total system power requirement remains within the PSU's 650W capacity.
Its modern connectivity also makes it a more future-oriented choice than many older 650W power supplies that rely entirely on legacy PCIe power connectors.
Is the RM650e Good for Upgrading an Older Power Supply?
The RM650e can be an excellent replacement when upgrading from an older ATX power supply, particularly if you are also installing newer PC hardware that benefits from ATX 3.1 or 12V-2x6 connectivity.
However, when replacing an existing modular PSU, remove the old PSU's modular cables and use the cables supplied or explicitly approved for the new Corsair RM650e. Modular PSU cable pinouts are not universally interchangeable.
Quiet PSU for Gaming and Everyday Use
A PSU fan can contribute noticeably to overall system noise. The combination of the RM650e's Cybenetics A++ acoustic rating, 120mm rifle-bearing fan and Zero RPM operation helps keep PSU noise low during both light and more demanding workloads.
This makes it well suited to gaming PCs where users want powerful components without excessive background fan noise, as well as quieter office and home systems.
Corsair RM650e Reliability and Warranty
Corsair specifies a 100,000-hour mean time between failures (MTBF) for the RM650e and supplies the power supply with a 7-year manufacturer's warranty.
The combination of long warranty coverage, 105°C-rated capacitors and modern power-conversion technology makes the RM650e a strong long-term PSU choice for compatible desktop systems.
Corsair RM650e 650W Technical Overview
- Brand: Corsair
- Series: RMe Series
- Model: RM650e
- Manufacturer Part Number: CP-9020302-UK
- Power Output: 650W continuous
- Form Factor: ATX
- ATX Specification: ATX 3.1
- PCIe Compatibility: PCIe 5.1
- Modular Design: Fully Modular
- Cable Type: Corsair Type 4
- GPU Power: 12V-2x6 supported
- Efficiency Rating: Cybenetics Gold
- Noise Rating: Cybenetics A++
- Cooling Fan: 120mm Rifle-Bearing Fan
- Zero RPM Mode: Yes
- Modern Standby: Yes
- Capacitors: 105°C-rated industrial-grade capacitors
- Topology: Resonant LLC with DC-DC conversion
- Dimensions: 140 × 150 × 86mm
- MTBF: 100,000 hours
- Manufacturer Warranty: 7 Years
- Colour: Black
Important PSU Compatibility Check Before Buying
Before ordering the Corsair RM650e, check the following:
- Your PC case supports a standard ATX PSU measuring approximately 140 × 150 × 86mm.
- Your complete PC power requirement is suitable for a 650W power supply.
- Your graphics card manufacturer's recommended PSU wattage does not exceed the intended system configuration.
- The supplied CPU, GPU and motherboard connectors meet your component requirements.
- You use the correct Corsair-compatible modular cables rather than cables from an unrelated PSU.
Do Not Select a PSU Based Only on the GPU Connector
A graphics card having a 12V-2x6 connector does not by itself determine whether a 650W PSU is sufficient. GPU power consumption, CPU power demand and the rest of the PC configuration must all be considered when calculating the appropriate PSU wattage.
Why Choose the Corsair RM650e 650W?
The Corsair RM650e 650W Fully Modular PSU combines the features many modern PC builders are looking for in one compact power supply: ATX 3.1, PCIe 5.1, 12V-2x6 graphics connectivity, fully modular cables, Gold-rated efficiency, quiet operation and a 7-year warranty.
Its compact 140mm chassis makes installation and cable management easier, while the 120mm rifle-bearing fan and Zero RPM mode help minimise unnecessary noise. Internally, resonant LLC topology, DC-DC conversion and 105°C-rated capacitors provide a modern foundation for reliable desktop power delivery.
For gaming PCs, productivity systems and modern desktop builds requiring up to 650W of continuous power, the RM650e CP-9020302-UK offers an excellent combination of efficiency, connectivity, low noise, modular cable management and current-generation PSU standards.
Specification
Corsair RM650e 650W Fully Modular ATX 3.1 PSU Specifications
The Corsair RM650e CP-9020302-UK is a 650W fully modular ATX power supply designed for modern gaming PCs, workstations and desktop systems. It supports Intel ATX 3.1, PCIe 5.1 and native 12V-2x6 GPU power, with Cybenetics Gold efficiency, low-noise cooling and Corsair Type 4 modular cabling.
General Specifications
| Brand | Corsair |
| Series | RMe Series |
| Model | RM650e |
| Manufacturer Part Number / SKU | CP-9020302-UK |
| Corsair Internal Model | RPS0223 |
| Corsair Part Number | 75-006581 |
| Product Type | Desktop PC Power Supply Unit / PSU |
| Form Factor | ATX |
| Continuous Power | 650W |
| Modular Design | Fully Modular |
| Modular Cable Type | Corsair Type 4 |
| Colour | Black |
Standards and Compatibility
| ATX Specification | Intel ATX 3.1 Certified |
| PCI Express Standard | PCIe 5.1 Compatible |
| 12V-2x6 Support | Yes – Native 12V-2x6 GPU Cable Included |
| Modern Standby | Yes |
| Efficiency Certification | Cybenetics Gold |
| Noise Certification | Cybenetics A++ |
AC Input Specifications
| AC Input Voltage | 100–240V AC |
| Input Current | 10A–5A |
| Input Frequency | 47–63Hz |
| UK AC Plug Rating | 10A / 250V |
DC Power Output
| Rail | Maximum Load | Maximum Output |
|---|---|---|
| +3.3V | 20A | 110W Combined |
| +5V | 20A | |
| +12V | 54.2A | 650W |
| +5VSB | 3A | 15W |
| Total Continuous Power | 650W | |
Motherboard, CPU and GPU Connectors
| 24-Pin ATX Motherboard Connector | 1 |
| EPS / ATX12V CPU Connectors | 2 × 8-Pin (4+4) |
| PCIe 6+2-Pin Connectors | 3 Total |
| Native 12V-2x6 Connector | 1 |
| SATA Power Connectors | 6 |
| PATA / Peripheral Power Connectors | 2 |

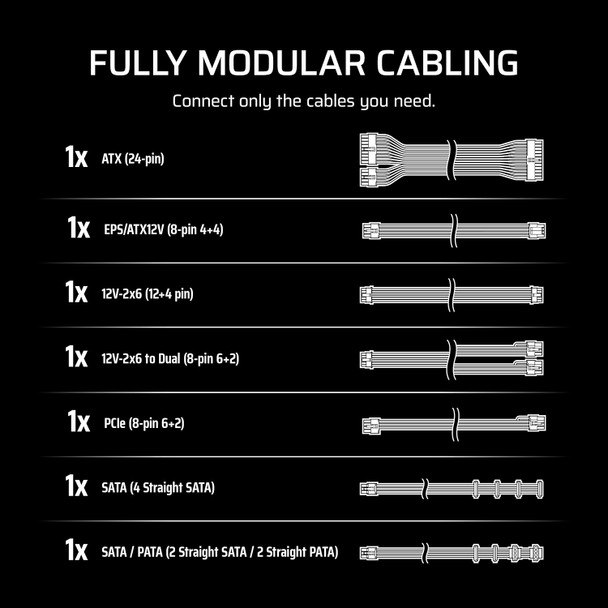

Included Modular Cable Configuration
| Cable | Quantity | Connectors | Approx. Length |
|---|---|---|---|
| Modular 24-Pin ATX Cable | 1 | 1 × 24-Pin ATX | 610mm ±10mm |
| EPS / ATX12V CPU Cable | 1 | 2 × 8-Pin (4+4) EPS | 850mm ±10mm total |
| Native 12V-2x6 GPU Cable | 1 | 1 × 12V-2x6 (12+4 Pin) | 650mm ±10mm |
| 12V-2x6 to Dual PCIe Cable | 1 | 2 × PCIe 8-Pin (6+2) | 650mm ±10mm |
| PCIe Cable | 1 | 1 × PCIe 8-Pin (6+2) | 650mm ±10mm |
| SATA Cable | 1 | 4 × SATA | Approx. 750mm |
| SATA / PATA Cable | 1 | 2 × SATA + 2 × PATA | Approx. 750mm |
GPU Power Connectivity
| PCIe 5.1 Support | Yes |
| Native GPU Connector | 12V-2x6 (12+4 Pin) |
| Native 12V-2x6 Cable Rating | Up to 600W Cable Capability |
| Traditional PCIe GPU Connectors | 3 × 6+2-Pin Total |
Cooling and Noise Specifications
| Cooling Fan | 120mm |
| Fan Bearing Type | Rifle Bearing |
| Zero RPM Mode | Yes |
| Noise Certification | Cybenetics A++ |
| Fan Control | Temperature / Load Controlled Fan Curve |
Efficiency and Internal Design
| Efficiency Rating | Cybenetics Gold |
| Power Conversion Topology | Resonant LLC with DC-DC Conversion |
| Capacitor Rating | 105°C-Rated Industrial-Grade Capacitors |
| Modern Standby Support | Yes |
Safety and Protection Features
| OVP | Over-Voltage Protection |
| UVP | Under-Voltage Protection |
| OCP | Over-Current Protection |
| OTP | Over-Temperature Protection |
| SCP | Short-Circuit Protection |
| OPP | Over-Power Protection |
Physical Specifications
| Length | 140mm |
| Width | 150mm |
| Height | 86mm |
| Dimensions | 140 (L) × 150 (W) × 86 (H) mm |
| Corsair Listed Weight | 2.728kg |
| PSU Form Factor | ATX |
| Product Colour | Black |
Reliability and Warranty
| MTBF | 100,000 Hours |
| Manufacturer Warranty | 7 Years |
Product Identification
| Manufacturer | Corsair |
| Model | RM650e |
| Manufacturer SKU / MPN | CP-9020302-UK |
| EAN / GTIN-13 | 0840440485797 |
| Internal PSU Model | RPS0223 |
| Internal Part Number | 75-006581 |
Package Contents
| Power Supply | 1 × Corsair RM650e 650W PSU |
| AC Power Cable | Included – UK Version |
| DC Modular Cables | Included |
| Cable Ties | Included |
| Mounting Screws | Included |
| Safety Documentation | Safety Leaflet Included |
Important GPU Compatibility Note
The presence of a 12V-2x6 connector does not mean that every graphics card using this connector is suitable for a 650W PSU. Always check the graphics card manufacturer's recommended PSU wattage together with the power requirements of the CPU and the rest of the system.
The RM650e can supply a maximum of 650W total continuous power, with up to 54.2A / 650W available from the +12V rail.
Important Modular Cable Compatibility Note
The RM650e uses Corsair Type 4 modular cabling. Do not reuse modular PSU cables from another power supply unless Corsair specifically confirms that the cable is compatible. Modular PSU connector pinouts are not universal and using an incompatible cable may damage connected PC components.
Important Connector Count Note
This specification follows Corsair's official documentation for the 2025 RM650e CP-9020302-UK. The correct official connector totals are 6 SATA, 2 PATA, 2 EPS, 3 PCIe 6+2 and 1 native 12V-2x6 connector. Some third-party product databases list different SATA or PCIe quantities; the Corsair figures should be used for this product page.
Important Efficiency Certification Note
Corsair's current official specification identifies this RM650e revision as Cybenetics Gold efficiency certified with a Cybenetics A++ noise rating. These are the certifications used in this specification tab.
Version Identification
This specification applies specifically to the Corsair RMe Series RM650e 2025 UK model, SKU CP-9020302-UK. Older RM650e revisions and other RMe wattages such as the RM750e, RM850e and RM1000e can use different internal models, cable configurations and electrical specifications.
Return
FAQ: Frequenlty Asked Questions
Corsair RM650e 650W ATX 3.1 Fully Modular PSU FAQ
The Corsair RM650e 650W Fully Modular Power Supply (CP-9020302-UK) is the 2025-generation RMe Series PSU designed for modern gaming PCs and desktop systems. It combines 650W continuous power, ATX 3.1 certification, PCIe 5.1 compatibility, a native 12V-2x6 GPU connection, fully modular Type 4 cabling, Cybenetics Gold efficiency, Zero RPM fan operation and a compact 140mm depth.
Below are answers to the most common questions buyers ask about the Corsair RM650e, including RTX 50 Series and Radeon RX 9000 compatibility, 12V-2x6 cabling, PCIe connectors, PSU wattage, fan behaviour, noise, coil whine, cable compatibility, ATX 3.1, RM650e vs RM750e and RM850e, and whether this 650W PSU is right for your PC build.
1. What is the Corsair RM650e 650W power supply?
The Corsair RM650e is a 650W fully modular ATX power supply from Corsair's RMe Series. This current version is designed for modern gaming and productivity PCs and supports ATX 3.1, PCIe 5.1 and native 12V-2x6 GPU power while also supporting conventional PCIe, CPU, motherboard, SATA and peripheral connections.
2. Which version of the Corsair RM650e is this?
This product is the 2025-generation Corsair RM650e CP-9020302-UK. It is the UK model of the current RMe design and should not be confused with older Corsair RM or RMe power supplies that may use different ATX standards, GPU connections or cable layouts.
3. What are the main specifications of the Corsair RM650e CP-9020302-UK?
Key specifications include 650W continuous output, ATX 3.1, PCIe 5.1 compatibility, fully modular Type 4 cabling, native 12V-2x6 GPU power, Cybenetics Gold efficiency, Cybenetics A++ noise rating, Zero RPM mode, a 120mm rifle-bearing fan, 140 x 150 x 86mm dimensions, Modern Standby support, 100,000-hour MTBF and a 7-year Corsair warranty.
4. Does the RM650e provide a genuine 650W of continuous power?
Yes. Corsair specifies the RM650e for 650W continuous power. However, PSU sizing should be based on the power requirements of the complete PC rather than simply comparing 650W against the graphics card's typical power figure.
5. Is the Corsair RM650e fully modular?
Yes. The RM650e is fully modular, so the motherboard, CPU, GPU, SATA and peripheral cables can be connected only when required. This can reduce unnecessary cable clutter and make cable management and airflow easier than with a non-modular PSU.
6. What does ATX 3.1 mean on the Corsair RM650e?
ATX 3.1 is a newer Intel power-supply specification designed for modern PC hardware and changing power demands. The current RM650e is formally ATX 3.1 certified and is designed to handle the requirements associated with current CPUs and GPUs more appropriately than many older ATX power supplies.
7. Is the Corsair RM650e PCIe 5.1 compatible?
Yes. The 2025 RM650e is PCIe 5.1 compatible and includes modern GPU connectivity, including a native 12V-2x6 cable. This makes it suitable for compatible current-generation graphics cards provided that 650W is sufficient for the complete system.
8. Does the RM650e have a native 12V-2x6 GPU connector?
Yes. A major feature of the 2025 RM650e is its native 12V-2x6 connection. This allows compatible modern graphics cards to connect directly to the PSU without relying on a traditional multi-8-pin GPU adapter.
9. What is the difference between 12V-2x6 and 12VHPWR?
12V-2x6 is the newer revision of the 16-pin high-power GPU connector originally introduced as 12VHPWR. The revised design uses shorter sense pins and other changes intended to improve connection reliability. The current RM650e uses the newer 12V-2x6 implementation.
10. Does the Corsair RM650e include a 12V-2x6 cable?
Yes. The RM650e includes a native 12V-2x6 cable for compatible graphics cards. Corsair also specifies conventional PCIe connectivity and a 12V-2x6-to-dual-8-pin cable arrangement, giving the PSU flexibility for both newer and traditional GPU power connections.
11. How do I know the RM650e 12V-2x6 cable is fully inserted?
Push the connector fully and evenly into both the PSU and graphics card until it is completely seated. Corsair's 2025 RMe design uses a light-grey section on the 12V-2x6 connector as a visual aid. If grey remains clearly visible at the connection, check that the plug has been fully inserted. Avoid putting a tight bend immediately next to the GPU connector.
12. The RM650e has a 600W-capable 12V-2x6 cable – does that mean I can use a 600W graphics card?
Not automatically. The 600W figure describes the maximum capability of the cable and connector design; the RM650e itself is still a 650W total continuous-output PSU. The CPU, GPU, motherboard, drives, fans and other devices all share the PSU's total capacity. Always follow the graphics-card manufacturer's recommended system PSU wattage.
13. Is the Corsair RM650e enough for an NVIDIA GeForce RTX 5070?
Yes, for an appropriate system. NVIDIA specifies a 650W required system power for its reference GeForce RTX 5070 configuration, so the RM650e meets that baseline and provides the required modern GPU connectivity. However, factory-overclocked graphics cards and high-power CPUs can have different requirements, so check the exact GPU manufacturer's recommendation and the complete system power demand.
14. Is the Corsair RM650e enough for an RTX 5070 Ti?
For a standard RTX 5070 Ti system, 650W is below NVIDIA's current 750W recommended system power. Although individual configurations can consume less, we would normally recommend a quality 750W or higher PSU such as an RM750e for an RTX 5070 Ti build unless the graphics-card manufacturer explicitly specifies otherwise.
15. Can I use the RM650e with an RTX 5080 or RTX 5090?
The RM650e is not the recommended choice for these GPUs. NVIDIA currently specifies approximately 850W required system power for the RTX 5080 and 1000W for the RTX 5090 reference configuration. A higher-wattage PSU should therefore be selected for these high-end graphics cards.
16. Is the Corsair RM650e enough for an AMD Radeon RX 9070?
Yes, provided the rest of the system is appropriate. AMD specifies a 650W minimum PSU recommendation for the reference Radeon RX 9070, making a quality 650W unit such as the RM650e a suitable starting point. Check the exact graphics-card manufacturer's recommendation because factory-overclocked versions may differ.
17. Is the Corsair RM650e enough for an AMD Radeon RX 9070 XT?
AMD specifies a 750W minimum PSU recommendation for the reference Radeon RX 9070 XT. For this GPU, we would therefore recommend choosing a 750W or higher PSU instead of the RM650e, particularly with a high-performance CPU or factory-overclocked graphics card.
18. Can the RM650e be used with RTX 40 Series or RTX 30 Series graphics cards?
Yes, provided the particular graphics card's wattage and connector requirements fall within the PSU's capabilities. The RM650e supports both modern 16-pin GPU connections and conventional PCIe power, making it suitable for many RTX 40 Series and RTX 30 Series configurations. High-power models may require a higher-wattage PSU.
19. Can the Corsair RM650e be used with older AMD Radeon graphics cards?
Yes. PCIe 5.1 support does not prevent the PSU from being used with older graphics cards. Conventional PCIe 6+2-pin power is available for compatible Radeon GPUs. Check the exact card's connector requirements and recommended PSU wattage before installation.
20. Can the RM650e power a graphics card that uses two 8-pin PCIe connectors?
Yes, where the GPU and overall system power requirements are suitable. The RM650e provides conventional PCIe connectivity and includes a cable solution capable of supplying dual 6+2-pin PCIe connectors. Follow the GPU manufacturer's cabling instructions and use only compatible Corsair PSU cables.
21. Do I need to use the graphics card's 12VHPWR adapter with the RM650e?
If your graphics card has a compatible 12V-2x6/16-pin power input, the RM650e's native 12V-2x6 cable normally allows a direct PSU-to-GPU connection, avoiding the need for a multi-8-pin adapter supplied with some graphics cards. Follow the GPU manufacturer's installation instructions.
22. What power connectors does the Corsair RM650e provide?
Corsair's specifications list 1 ATX motherboard connector, 2 EPS CPU connectors, 3 PCIe connectors, 6 SATA connectors and 2 PATA/Molex connectors, together with modern 12V-2x6 GPU connectivity. This supports a wide range of mainstream gaming and productivity PC configurations.
23. Does the RM650e have enough CPU/EPS connectors for modern motherboards?
Yes. Corsair specifies two EPS CPU power connectors. This supports motherboards that use the normal 8-pin CPU connection as well as boards that provide an additional CPU power input. Whether the secondary connector is required depends on the motherboard and processor configuration.
24. Does the Corsair RM650e include a 24-pin motherboard cable?
Yes. The RM650e includes the standard 24-pin ATX motherboard power connection required by normal ATX, Micro-ATX and Mini-ITX desktop motherboards.
25. How many SATA and Molex/PATA connectors does the RM650e have?
Corsair specifies 6 SATA power connectors and 2 PATA/Molex connectors. These can be used for compatible SSDs, hard drives, fan/RGB controllers and other peripherals that require SATA or legacy peripheral power.
26. What type of modular cables does the Corsair RM650e use?
The RM650e CP-9020302-UK is specified as using Corsair Type 4 modular cables. Always identify the PSU and cable type before adding or replacing modular cables, because modular PSU connectors are not universally wired the same way.
27. Can I reuse cables from an older Corsair PSU with the RM650e?
Only reuse a cable when Corsair's official cable compatibility information confirms that the exact cable is compatible with the RM650e. This model uses the Type 4 system, but Corsair has used several cable standards across different PSU generations. When in doubt, use the cables supplied with the new PSU.
28. Can I use modular PSU cables from another brand with the RM650e?
No, not unless the cable is specifically manufactured and verified for the exact Corsair PSU pinout. Modular connectors can physically look identical while using different electrical pinouts. Using an incompatible PSU cable can damage drives, graphics cards or other PC components.
29. What are the dimensions of the Corsair RM650e?
The RM650e measures approximately 140mm deep x 150mm wide x 86mm high. Its 140mm depth is relatively compact for an ATX PSU and can leave additional room for cable routing compared with longer power supplies.
30. Will the RM650e fit in my PC case?
The RM650e uses the standard ATX PSU format and has a compact 140mm depth, so it fits many ATX, Micro-ATX and larger Mini-ITX cases that support standard ATX power supplies. Always check the case's PSU clearance, particularly when a hard-drive cage or other hardware sits directly in front of the PSU.
31. What fan does the Corsair RM650e use?
The RM650e uses a 120mm rifle-bearing cooling fan. Corsair uses a temperature/load-based fan curve and Zero RPM functionality to reduce unnecessary fan noise during lighter system operation.
32. My RM650e fan is not spinning – is that normal?
Yes, it can be completely normal. The RM650e has Zero RPM mode, allowing the PSU fan to stop when active cooling is not required. The fan automatically starts when temperature or load reaches the level at which additional cooling is needed.
33. Can I control the RM650e fan or Zero RPM mode with Corsair iCUE?
No. The standard RMe Series is not an iCUE-enabled digital PSU series. Zero RPM operation is automatically controlled by the PSU rather than being manually configured through iCUE.
34. Is the Corsair RM650e a quiet PSU?
The RM650e is designed as a low-noise power supply and Corsair specifies a Cybenetics A++ noise rating. Zero RPM mode allows silent fan operation at suitably low loads, while the 120mm rifle-bearing fan handles cooling when airflow is required. Actual audible noise still varies with PSU load, case acoustics and individual hardware.
35. Why does my Corsair RM650e make one click when the PC turns on or off?
A single click when switching the PC on or off can be normal. Corsair explains that many of its PSUs use an inrush-current bypass relay that produces an audible click when the power supply starts or shuts down. This by itself does not indicate a fault.
36. What if my RM650e makes repeated clicking or ticking noises while running?
Loud or repetitive clicking while the system is running should be investigated rather than assumed to be normal. Corsair previously documented a clicking issue affecting some 2025 RMe units and states that the production issue was resolved. If a current RM650e produces persistent abnormal clicking, check that the sound really originates from the PSU and contact the retailer or Corsair support if necessary. Never open the PSU enclosure yourself.
37. Is coil whine from a Corsair RM650e normal?
Coil whine is a high-frequency electronic noise caused by vibration in electrical components and can occur in PSUs, graphics cards and motherboards. Corsair explains that coil whine does not necessarily indicate a fault or reduce performance or reliability. If the sound is unusually loud, suddenly changes or is accompanied by instability, check the system and contact support if concerned.
38. What efficiency rating does the Corsair RM650e have?
The current RM650e is officially specified with a Cybenetics Gold efficiency rating. Corsair states that the RMe design can achieve high efficiency while reducing unnecessary heat and power losses compared with less efficient PSU designs.
39. Why does PSU efficiency matter?
A more efficient PSU wastes less incoming electricity as heat while converting AC mains power into the DC power used by the PC. Lower waste heat can reduce cooling requirements and operating losses. Efficiency does not mean that a 650W PSU constantly consumes 650W—the PC draws only the power required for its current workload plus conversion losses.
40. Does the RM650e support Windows Modern Standby?
Yes. Corsair specifies Modern Standby support for the RM650e. This is designed to support modern PC sleep and wake behaviour with fast resume capability and efficient low-load operation when used with compatible hardware and operating-system settings.
41. What internal technology does the Corsair RM650e use?
Corsair describes the RMe design as using a resonant LLC topology with DC-to-DC conversion and 105°C-rated industrial-grade capacitors. These design features are intended to provide stable electrical performance and reliable operation across changing system loads.
42. What are the MTBF and warranty of the Corsair RM650e?
Corsair specifies a 100,000-hour MTBF for the RM650e and provides a 7-year manufacturer's warranty. MTBF is a statistical reliability measure and should not be interpreted as a guaranteed number of operating hours for an individual unit.
43. Corsair RM650e 2025 vs older RMe models – what changed?
The 2025 RMe generation moves from the previous RMe platform's ATX 3.0 and PCIe 5.0 support to ATX 3.1 and PCIe 5.1 and adds a native 12V-2x6 connection. Corsair also added a 650W model to the 2025 range. The newer native connector provides a more direct solution for modern graphics cards than the older dual-8-pin-to-16-pin arrangement.
44. Corsair RM650e vs RM750e – which should I choose?
Choose the RM650e when your complete PC comfortably fits within a quality 650W PSU and your graphics-card manufacturer recommends 650W or less. Choose the RM750e when the GPU specifies 750W, when using a higher-power CPU, when overclocking, or when you want extra upgrade headroom. For example, NVIDIA recommends 750W for the RTX 5070 Ti and AMD recommends 750W for the RX 9070 XT.
45. Corsair RM650e vs RM850e – is 850W worth buying instead?
The RM850e makes more sense for higher-end GPUs, high-power processors or users planning significant future upgrades. For a mainstream gaming PC that genuinely needs no more than 650W, an RM650e avoids paying for capacity that may never be used. For GPUs with an 850W recommendation, choose the RM850e or another suitable 850W+ PSU instead.
46. Corsair RMe vs RMx – what is the difference?
Both current RMe and RMx families provide modern fully modular Corsair power supplies with Gold-class efficiency, Zero RPM operation and 12V-2x6 support. Corsair positions the RMe Series as its value-focused fully modular modern PSU range, while RMx sits higher in the range. The current RMe family is available from 650W, whereas the current RMx range starts at 750W. Choose based on required wattage, budget, acoustic preferences and the features of the exact model.
47. Who is the Corsair RM650e 650W best for?
The RM650e is a strong choice for modern mainstream gaming PCs, productivity systems and PC upgrades that require up to around 650W, especially builds that benefit from ATX 3.1, PCIe 5.1, native 12V-2x6 GPU connectivity, fully modular cabling and compact dimensions. Examples can include suitable RTX 5070, RX 9070 and lower-power GPU configurations when the complete system meets the manufacturer's power requirements.
48. Who should NOT choose the Corsair RM650e?
The RM650e is not the ideal choice for a build whose CPU, GPU or complete-system recommendation exceeds 650W. Users planning an RTX 5070 Ti, RX 9070 XT, RTX 5080, RTX 5090, aggressive overclocking or substantial future GPU upgrades should consider a suitable 750W, 850W, 1000W or higher PSU according to the hardware manufacturer's recommendation. Buying appropriate power headroom from the start can avoid replacing the PSU during the next major upgrade.
Related Products
Related Products
Antec HCG1000 Pro Platinum 1000W ATX 3.1 PSU Fully Modular PCIe 5.1
ANTEC
Antec GSK850 V2 850W Fully Modular ATX 3.1 Power Supply, 80 PLUS Gold, PCIe 5.1 Ready with 12V-2x6 Cable, Silent 120mm Fan, High-Performance PSU for Gaming PCs
ANTEC
