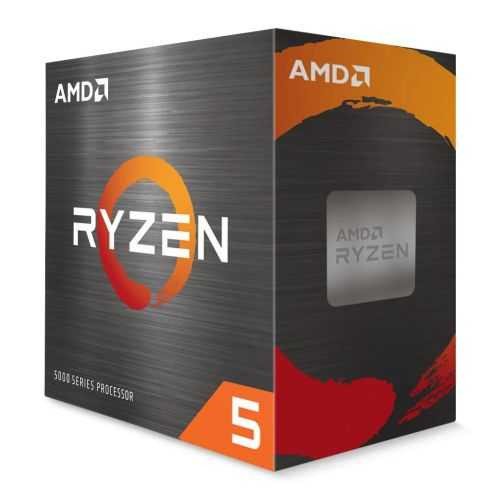

AMD Ryzen 5 5600X CPU with Wraith Stealth Cooler, AM4, 3.7GHz (4.6 Turbo), 6-Core, 65W, 35MB Cache, 7nm, 5th Gen, No Graphics

The Ryzen 5 5600X is a 6-core, 12-thread Zen 3 desktop processor designed for Socket AM4 motherboards. It provides strong single-threaded performance for gaming together with enough multi-threaded performance for everyday productivity, streaming and multitasking.

The AMD boxed-product part number is 100-100000065BOX, the Memox SKU is PRAMD-5600X and the UPC is 730143312042.

Key specifications include 6 Zen 3 cores, 12 threads, 3.7GHz base clock, up to 4.6GHz boost, 32MB L3 cache, 3MB L2 cache, 65W TDP, Socket AM4, PCIe 4.0, DDR4 memory support and a 95°C maximum operating temperature. The boxed version includes an AMD Wraith Stealth cooler.

The 5600X uses AMD's Zen 3 architecture and is part of the Ryzen 5000-series desktop processor family. Its codename is Vermeer and the CPU cores are manufactured using TSMC's 7nm process technology.

It has 6 physical CPU cores and 12 processing threads using AMD simultaneous multithreading technology.

The processor has a 3.7GHz base clock and a maximum boost clock of up to 4.6GHz. The maximum boost figure is not a guaranteed all-core clock; actual frequency varies with workload, temperature, power limits and motherboard configuration.

Yes, when L2 and L3 cache are combined. The processor contains 32MB of L3 cache plus 3MB of L2 cache, giving 35MB of combined L2 + L3 cache.

Yes. AMD specifies a default TDP of 65W. Actual CPU package power can vary with workload, boost behaviour, motherboard settings and any PBO or manual tuning.

AMD specifies a maximum operating temperature / Tjmax of 95°C. The CPU automatically manages clocks and voltage as it approaches its thermal limits, but regularly reaching 95°C during ordinary gaming should still prompt a check of cooler mounting, thermal paste and case airflow.

No. AMD states that a discrete graphics card is required. The processor itself cannot generate a monitor display output.

Motherboard video outputs work only when the installed processor provides integrated graphics. The Ryzen 5 5600X does not have an iGPU, so connect the monitor directly to the HDMI or DisplayPort output on your discrete graphics card.

Yes. The boxed 100-100000065BOX version includes AMD's Wraith Stealth air cooler.

The Wraith Stealth is suitable for running the 65W 5600X at normal stock settings when installed correctly and used in a case with reasonable airflow. An aftermarket tower cooler can provide lower temperatures and less fan noise, particularly during sustained gaming or heavily threaded workloads.

New retail Wraith Stealth coolers supplied with boxed Ryzen processors normally have thermal interface material pre-applied to the cooler base. Do not add another layer of thermal paste on top of unused factory-applied material.

The compact Wraith Stealth prioritises low profile and affordability rather than maximum cooling capacity. Temperatures can therefore be higher than with a larger tower cooler. Also check cooler mounting pressure, thermal paste, CPU fan operation, dust buildup and case airflow.

The processor's official Tjmax is 95°C, so short periods in the 80°C range under demanding workloads can occur. However, gaming temperatures that immediately remain around 90–95°C are a good reason to check cooling, particularly if the system becomes noisy, throttles or shuts down.

Check that the cooler is firmly mounted, its fan is connected to the CPU_FAN header and spinning correctly, the thermal interface is making proper contact and the case has adequate airflow. If the cooler has been removed, clean the old thermal paste and apply fresh thermal compound before reinstalling it.

It is optional but can be beneficial. A larger compatible AM4 tower cooler can reduce CPU temperature and noise while giving Precision Boost more thermal headroom, particularly in warm rooms or cases with restricted airflow.

The processor uses AMD Socket AM4. It is not compatible with Socket AM5 motherboards.

Ryzen 5000 processors are supported across mainstream AM4 chipsets including X570, B550, A520, X470 and B450. Selected X370, B350 and A320 motherboards may also support Ryzen 5000 through manufacturer-specific BIOS updates. Always check the exact motherboard CPU-support list.

Yes on compatible B450 motherboards with the required BIOS. This remains one of the most common upgrade paths from Ryzen 1000, 2000 and 3000 processors because the motherboard and DDR4 memory can often be retained.

Yes. B550 is fully suited to Ryzen 5000 processors and can provide PCIe 4.0 connectivity for the primary graphics and NVMe interfaces where implemented by the motherboard.

Yes. X570 supports Ryzen 5000 and provides extensive PCIe 4.0 connectivity, subject to the exact motherboard design.

Yes on compatible A520 boards. A520 can be a suitable budget platform, although features such as expansion connectivity and overclocking options vary compared with B550 or X570 boards.

Yes when the motherboard manufacturer provides a compatible Ryzen 5000 BIOS. Check the exact board model and required BIOS version before replacing your old CPU.

Some 300-series boards can support Ryzen 5000 processors through selective manufacturer BIOS updates. Support is not universal, so verify the exact CPU compatibility list for your motherboard rather than assuming every X370, B350 or A320 board will work.

Possibly. Older AM4 motherboards frequently need a BIOS version containing Ryzen 5000 support. Check the motherboard manufacturer's support page and, where necessary, perform the update before removing your currently supported processor.

Only if your motherboard provides a feature such as BIOS Flashback, Q-Flash Plus, Flash BIOS Button or an equivalent CPU-less update method. This varies by motherboard model, so check its manual before upgrading.

A missing Ryzen 5000-compatible BIOS is one of the first things to check. Also verify CPU seating, CPU power cables, RAM installation and the graphics card. Remember that the monitor must connect to the discrete GPU because the 5600X has no integrated graphics.

Yes. AMD currently provides Ryzen 5 5600X support and Ryzen Master software for Windows 11 64-bit systems. Windows 11 requirements such as TPM/Secure Boot also depend on the motherboard configuration.

Yes. AMD continues to list Windows 10 64-bit support for the Ryzen 5 5600X. Operating-system lifecycle and security support are separate from CPU compatibility.

The Ryzen 5 5600X uses DDR4 memory only. It does not support DDR5.

AMD officially specifies system memory support up to DDR4-3200. Memory compatibility also depends on the motherboard, DIMM configuration and memory controller.

Yes in many systems, but DDR4-3600 is above AMD's official DDR4-3200 specification and is therefore a memory-overclocked configuration. DDR4-3600 is widely used with Ryzen 5000, but stable operation is not guaranteed for every CPU, motherboard and memory kit.

DDR4-3600 can provide a small performance advantage in some CPU-sensitive applications when the memory controller and Infinity Fabric run stably at the desired settings. However, a good DDR4-3200 kit remains fully within AMD's official specification and the real-world difference can be small in GPU-limited games.

Usually yes. Many DDR4 kits initially boot at a lower JEDEC speed. Enable the memory profile in BIOS—often called XMP, A-XMP or DOCP depending on motherboard manufacturer—to use the kit's rated profile where supported.

Using a matched pair of DIMMs allows the system to operate in dual-channel memory mode, providing more memory bandwidth than a comparable single-DIMM configuration. For gaming PCs, a matched 2×8GB, 2×16GB or similar kit is generally preferable to one module of the same total capacity.

Yes on a compatible four-DIMM motherboard, but four-module configurations place more electrical load on the memory controller and can make very high memory-overclock speeds harder to achieve. Check the motherboard memory QVL and be prepared to reduce memory frequency if necessary for stability.

Yes. AMD officially specifies PCI Express 4.0 support. Whether your graphics card or NVMe SSD actually operates at PCIe 4.0 depends on the motherboard and slot implementation.

Yes. A compatible B450, X470 or other PCIe 3.0 platform can still use the 5600X. PCIe devices simply operate according to the generation and lane configuration provided by the motherboard.

Yes. Compatible AM4 motherboards can use NVMe M.2 SSDs with the Ryzen 5 5600X. The available PCIe generation, number of M.2 slots and lane-sharing behaviour depend on the motherboard.

Yes. AMD officially lists the Ryzen 5 5600X as unlocked for overclocking. The motherboard chipset and BIOS must also support the type of tuning you want to perform.

Yes on compatible motherboards. Precision Boost Overdrive (PBO) allows supported Ryzen processors to operate beyond default infrastructure power/current limits up to limits provided by the motherboard and cooling system.

Curve Optimizer is available through supported AMD Ryzen Master and motherboard BIOS configurations. Negative Curve Optimizer values are commonly used to reduce voltage demand and improve efficiency, but every processor is different and stability testing is essential.

A stable negative Curve Optimizer setting can sometimes reduce required voltage and temperature while maintaining good boost behaviour. Results depend on the individual CPU and motherboard; settings that are too aggressive can cause crashes, reboots or silent calculation errors.

AMD states that damage caused by overclocking is not covered by its processor warranty. AMD also classifies Precision Boost Overdrive operation as outside standard processor specifications, so use manual tuning, PBO and related overclocking features with appropriate care.

It remains a capable gaming processor, particularly for users who already own a compatible AM4 motherboard and DDR4 memory. Its 6 Zen 3 cores and 12 threads can still deliver smooth performance in many modern games, although newer X3D and AM5 processors are faster in heavily CPU-limited titles.

Yes. It remains suitable for mainstream 1080p gaming. At very high competitive frame-rate targets, however, the CPU has a greater influence on performance and newer processors can deliver higher maximum and minimum frame rates.

Yes. At 1440p, more of the workload commonly shifts toward the graphics card, so the 5600X can still form a balanced system with a wide range of modern GPUs. CPU-heavy games and extremely high-refresh targets can still expose CPU limitations.

Yes. These combinations can make effective 1080p or 1440p gaming systems. Exact performance depends on game engine, resolution, graphics settings and the specific graphics card.

Yes. A Ryzen 5 5600X can be used with an RTX 5070, particularly for 1440p gaming. In very CPU-heavy games or high-refresh 1080p scenarios, the 5600X may limit the GPU before the RTX 5070 reaches full utilisation, while GPU-heavy 1440p games can remain much more balanced.

Yes. High-performance Radeon cards can be used with the 5600X as long as the motherboard, power supply and case are suitable. At higher resolutions the GPU increasingly determines performance, while CPU-intensive games can still benefit from a faster processor.

There is no meaningful universal bottleneck percentage. The answer depends on the specific game, resolution, graphics settings, frame-rate target, GPU and memory configuration. A system can be CPU-limited in one game and GPU-limited in another.

Yes. Six cores and twelve threads provide useful capacity for gaming, streaming software, Discord and normal background applications. Modern NVIDIA, AMD and Intel graphics cards can also offload video encoding to dedicated hardware encoders.

It is capable of everyday video editing, photo work, programming and general productivity, but demanding rendering, encoding and professional workloads can benefit substantially from processors with 8, 12 or more cores.

Yes. Ryzen processors support AMD hardware virtualisation, with the relevant SVM/virtualisation option normally enabled through the motherboard BIOS. Exact virtualisation and IOMMU functionality also depends on the motherboard and operating system.

The CPU itself has a relatively modest 65W TDP, so the required PSU wattage is normally determined mainly by the graphics card and the complete system. Follow the GPU manufacturer's PSU recommendation and choose a good-quality unit with sufficient connectors and capacity.

Both are 6-core, 12-thread Zen 3 AM4 processors with 32MB L3 cache, 65W TDP, PCIe 4.0 and an included Wraith Stealth cooler. The main difference is clock speed: the Ryzen 5 5600X runs at 3.7GHz base / up to 4.6GHz boost, while the Ryzen 5 5600 runs at 3.5GHz / up to 4.4GHz.

The 5600X therefore has the higher factory clock speeds, while the standard 5600 can offer better value when priced significantly lower.

The 5600X has 6 cores / 12 threads, 32MB L3 cache and 65W TDP. The Ryzen 7 5700X3D has 8 cores / 16 threads, 96MB L3 cache with AMD 3D V-Cache and a 105W TDP.

The 5700X3D is the more powerful AM4 gaming CPU in many CPU-sensitive games because of its additional cores and much larger cache. The 5600X remains substantially easier to cool, includes a cooler and can make more sense when the lower total upgrade cost matters.

The 5600X provides 6 cores / 12 threads, 3.7–4.6GHz clocks and 65W TDP. The Ryzen 7 5800X provides 8 cores / 16 threads, 3.8GHz base, up to 4.7GHz boost and a 105W TDP.

The 5800X can provide stronger heavily threaded productivity performance, while the lower-power 5600X is easier to cool and includes a Wraith Stealth cooler.

For gaming, a supported motherboard upgrade from Zen+ to Zen 3 can provide a substantial improvement in single-threaded performance and frame-rate consistency. Check the exact motherboard BIOS before replacing the older processor.

It can provide better gaming performance and stronger single-threaded speed while allowing you to retain a compatible AM4 motherboard and DDR4 memory. Whether the improvement justifies the cost depends on your GPU, games and current CPU pricing; recent 2026 buyers continue to compare this upgrade specifically because it avoids a full platform replacement.

For gaming, Ryzen 5000 X3D processors such as the Ryzen 7 5700X3D or 5800X3D can provide a more meaningful AM4 gaming upgrade where available and appropriately priced. For heavily threaded productivity, higher-core Ryzen 7 or Ryzen 9 AM4 processors can also be considered.

It can still be a cost-effective upgrade when you already own a compatible motherboard and DDR4 memory, particularly when replacing a Ryzen 1000, 2000 or older Ryzen 3000 processor. Reusing the motherboard and RAM can significantly reduce the total upgrade cost.

If you already own AM4 hardware, the 5600X can offer excellent value. For a completely new system where you must also buy a motherboard and memory, compare the total cost with current AM5 alternatives because AM5 offers newer processors, DDR5 and a more modern upgrade path.

Qualifying genuine AMD Processor in a Box products are covered by AMD's 3-year limited processor warranty from the original purchase date, subject to AMD's warranty terms, qualifying serial number and proof of purchase.

AMD retail packaging uses a tamper-evident authentication label, colour-shifting security features, holographic strip and QR code. AMD also recommends checking that the processor serial information visible through the package matches the secured label.

The Ryzen 5 5600X is particularly suitable for AM4 owners upgrading an older Ryzen processor, mainstream 1080p and 1440p gamers, budget-conscious gaming builds, home PCs and users who want strong Zen 3 performance without replacing compatible DDR4 memory and motherboard hardware.

Choose another processor if you specifically need integrated graphics, DDR5 memory, an AM5 upgrade path, more than six CPU cores for demanding professional workloads, maximum high-refresh gaming performance from a powerful modern GPU, or you are buying an entirely new platform where a newer CPU/motherboard combination offers better overall value.
