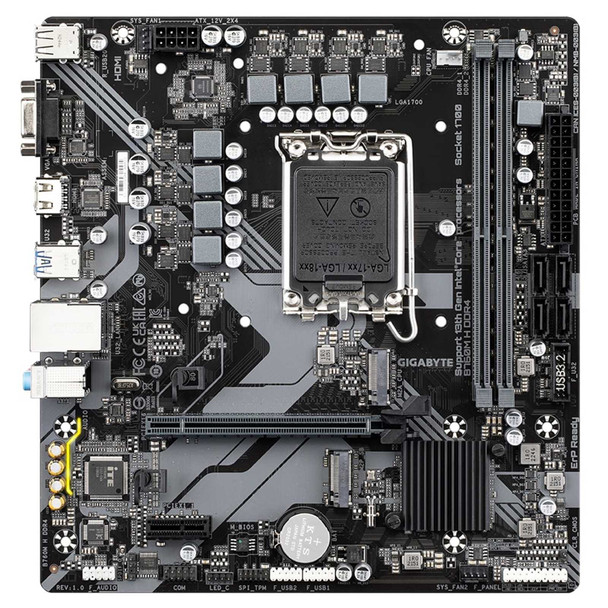

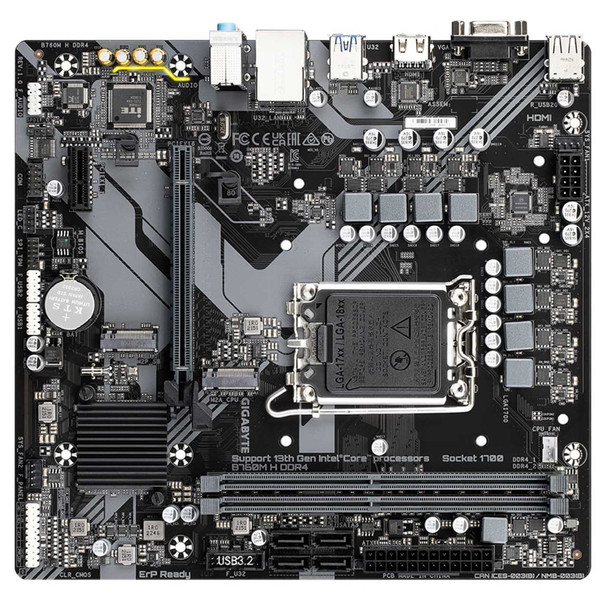

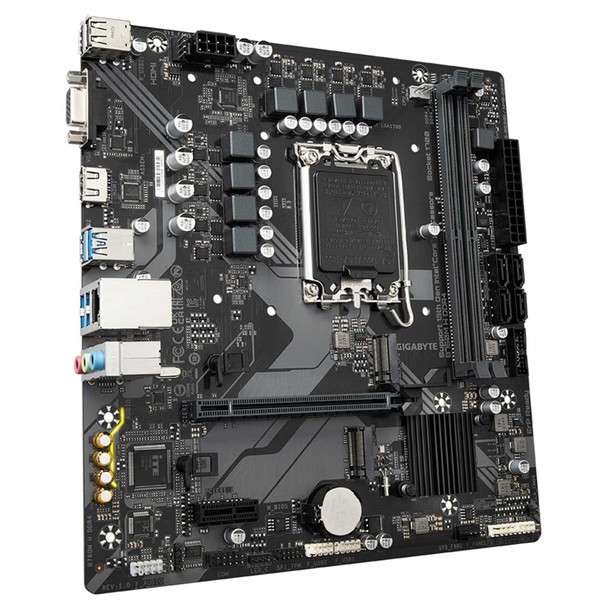

Gigabyte B760M H DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 2x M.2 Sockets, GbE LAN, 1x D-Sub / 1x HDMI Port

SKU:
MBGIG-B760MHD4
UPC:
4719331854645
MPN:
B760M H DDR4
  • Gigabyte B760M H DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 2x M.2 Sockets, GbE LAN, 1x D-Sub / 1x HDMI Port physical GIGABYTE New B760M H DDR4 MemoX
  • Gigabyte B760M H DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 2x M.2 Sockets, GbE LAN, 1x D-Sub / 1x HDMI Port physical GIGABYTE New B760M H DDR4 MemoX
  • Gigabyte B760M H DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 2x M.2 Sockets, GbE LAN, 1x D-Sub / 1x HDMI Port physical GIGABYTE New B760M H DDR4 MemoX
  • Gigabyte B760M H DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 2x M.2 Sockets, GbE LAN, 1x D-Sub / 1x HDMI Port physical GIGABYTE New B760M H DDR4 MemoX
  • Gigabyte B760M H DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 2x M.2 Sockets, GbE LAN, 1x D-Sub / 1x HDMI Port physical GIGABYTE New B760M H DDR4 MemoX
  • Gigabyte B760M H DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 2x M.2 Sockets, GbE LAN, 1x D-Sub / 1x HDMI Port physical GIGABYTE New B760M H DDR4 MemoX
£74.83
Frequently bought together:

Description

GIGABYTE B760M H DDR4 Motherboard (LGA1700) – Micro-ATX, 2× DDR4, Dual M.2 PCIe 4.0, HDMI + D-Sub, GbE LAN

Build a fast, reliable Intel desktop with the GIGABYTE B760M H DDR4 — a compact Micro-ATX LGA1700 motherboard designed for 14th/13th/12th Gen Intel® Core™ processors. It’s a smart choice for gaming and everyday performance builds thanks to dual PCIe 4.0 M.2 slots, a full-length PCIe 4.0 x16 slot for graphics, and stable power delivery in a clean, upgrade-friendly layout.

Summary

The GIGABYTE B760M H DDR4 (rev. 1.0) is an Intel B760 Micro-ATX motherboard for LGA1700 CPUs (14th/13th/12th Gen Intel® Core™). It supports up to 64GB DDR4 across 2 DIMM slots, includes 2× PCIe 4.0 x4 M.2 connectors for NVMe SSDs, a PCIe 4.0 x16 slot for GPUs, Realtek GbE LAN, and display outputs including HDMI (up to 4K@60) and D-Sub (dependent on CPU iGPU support).

Key Features & Benefits

  • LGA1700 support: compatible with 14th/13th/12th Gen Intel® Core™ processors
  • DDR4 ready: 2× DDR4 DIMM slots, dual-channel, up to 64GB, XMP support
  • Fast storage: 2× PCIe 4.0 x4 M.2 connectors for NVMe SSDs
  • GPU slot: 1× PCIe 4.0 x16 slot for modern graphics cards
  • Wired networking: Realtek Gigabit Ethernet (GbE LAN)
  • Display options: HDMI (4K@60) + D-Sub for iGPU-enabled Intel CPUs
  • Cooling control: Smart Fan 6 fan management for quieter, cooler builds
  • Ultra Durable design: quality components and reinforced layout for long-term stability

Performance & Expansion

Stable Power Delivery for Everyday & Gaming Builds

Built with a 6+1+1 phase hybrid digital VRM design and solid CPU power input, the B760M H DDR4 is designed to keep your system stable under load—ideal for productivity, home office PCs, and mid-range gaming rigs.

PCIe 4.0 Graphics Slot

The primary expansion slot is a PCIe 4.0 x16 slot for GPUs. This makes it a great pairing for popular graphics cards while keeping the build compact in a Micro-ATX case.

Storage & Connectivity

Dual PCIe 4.0 M.2 for NVMe SSDs

Enjoy fast boot and load times with two PCIe 4.0 x4 M.2 slots for NVMe SSDs, plus additional storage via 4× SATA 6Gb/s ports for HDDs and SATA SSDs.

Networking & Audio

  • LAN: Realtek Gigabit Ethernet
  • Audio: Realtek HD Audio with support up to 7.1-channel (configuration via audio software)

Rear I/O Highlights

  • Display outputs: 1× HDMI (up to 4096×2160@60Hz) + 1× D-Sub (up to 1920×1200@60Hz) (CPU iGPU required)
  • USB: USB 3.2 Gen 1 connectivity (plus additional USB via headers)
  • LAN: 1× RJ-45 GbE

Compatibility Notes

1) DDR4 Only

This model uses DDR4 memory (not DDR5). Make sure you order DDR4 UDIMM RAM for desktop PCs.

2) HDMI/D-Sub Require an Intel CPU with Integrated Graphics

The motherboard’s HDMI and D-Sub ports work only if your installed Intel CPU includes an iGPU. “F” series CPUs typically require a dedicated graphics card.

3) NVMe & GPU Slot Sharing Reminder

The PCIe x16 slot is intended for a graphics card; always check your build plan if using multiple PCIe devices and M.2 SSDs to ensure ideal lane usage and fitment.

Perfect For

  • Budget-friendly Intel gaming builds (paired with a GPU)
  • Home/office PCs needing fast NVMe storage
  • Compact Micro-ATX builds with upgrade potential
  • System integrators and reliable everyday desktops






Specification

CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU

Chipset
Intel B760 Express Chipset

Memory
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN
Realtek GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB
Chipset:
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash

Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software

Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor
Micro ATX Form Factor; 23.0cm x 21.5cm

Return

30 Days Return

FAQ: Frequently Asked Questions



GIGABYTE B760M H DDR4 — FAQ

What is the GIGABYTE B760M H DDR4?
The B760M H DDR4 is a Micro-ATX motherboard for Intel LGA1700 CPUs, built around the B760 chipset with DDR4 memory, 2× PCIe 4.0 M.2 slots, GbE LAN, and display outputs (HDMI + D-Sub) for CPUs with integrated graphics.
Which CPUs are supported (12th/13th/14th Gen)?
GIGABYTE lists support for Intel Core 12th / 13th / 14th Gen processors on this board.
Do I need a BIOS update for 14th Gen?
Many 700-series boards work with 14th Gen out of the box, but it can depend on when the board was manufactured. If you want maximum compatibility and stability, update to the latest stable BIOS using GIGABYTE Q-Flash.
Does it use DDR4 or DDR5, and what’s the max RAM?
This model is DDR4. It has 2× DDR4 DIMM slots and supports up to 64GB total memory (2×32GB).
Does it support XMP?
Yes—GIGABYTE lists DDR4 XMP support.
Question: “XMP makes my PC unstable” — what should I try?
This is a common GIGABYTE topic. Try these in order:
  • Update to the latest stable BIOS (avoid beta BIOS builds unless needed).
  • Ensure DRAM voltage matches the kit rating (many DDR4 XMP kits require 1.35V).
  • If still unstable, reduce RAM speed one step (e.g., 3600 → 3200) or manually set timings/voltage.
How many M.2 slots does it have and what type?
GIGABYTE lists 2× PCIe 4.0 x4 M.2 connectors (for NVMe SSDs).
Forum question: “My second M.2 shows N/A / not detected” — why?
One common reason discussed online is installing an M.2 SATA drive into a slot that only supports NVMe (PCIe). If your SSD model is “M.2 SATA”, it may not be compatible with that slot. Users report this exact symptom (“N/A”) on B760M boards.
What graphics outputs does it have (HDMI / D-Sub)?
It includes HDMI and D-Sub (VGA) outputs. These only work if your CPU has an integrated GPU (non-F Intel CPUs).
Does it have Wi-Fi built in?
No—this model is typically wired LAN only with GbE. Add Wi-Fi via a PCIe card or USB adapter if needed.
What LAN and audio does it use?
It’s listed with Gigabit Ethernet and standard onboard audio (Realtek HD audio on most retailer spec tables for this model family).
What form factor is it and will it fit my case?
It’s a Micro-ATX motherboard—fits in most mATX cases and many ATX cases.
Troubleshooting: PC turns on but no display
  • If you have an Intel CPU ending in F (e.g., i5-13400F), it has no iGPU—you must install a graphics card (motherboard HDMI/VGA won’t work).
  • Clear CMOS, reseat RAM (try one stick), and update BIOS if needed for your CPU generation.
