TP-LINK

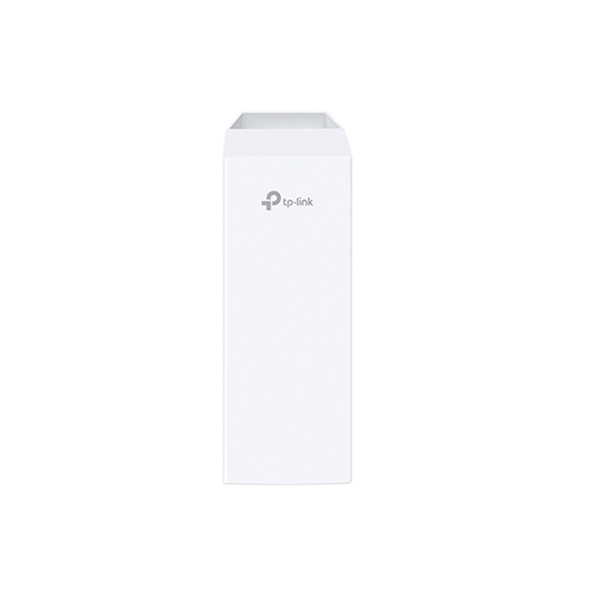

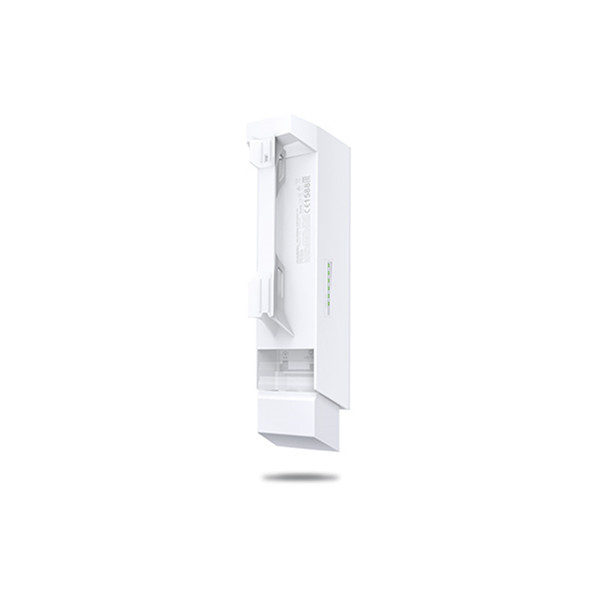

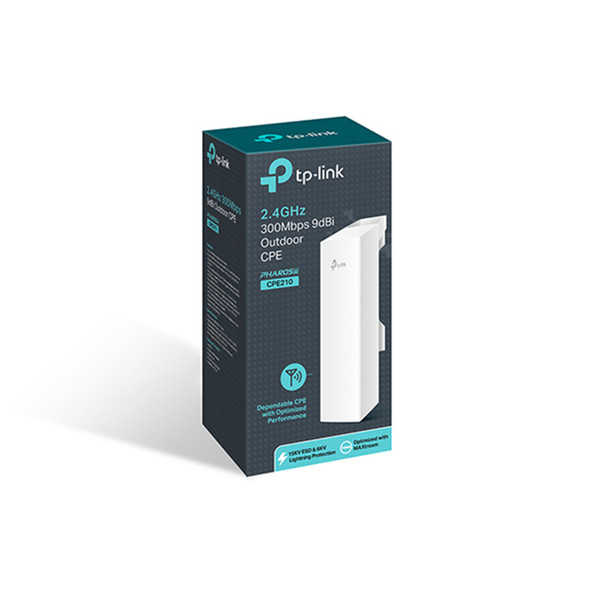

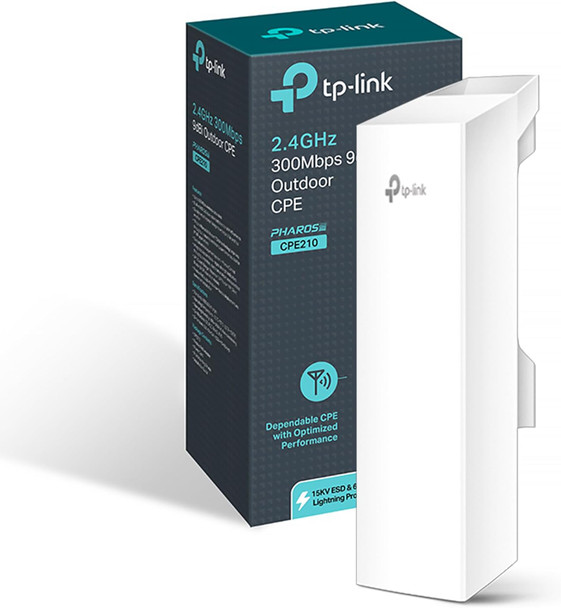

TP-Link Pharos CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE

SKU:
NPTPL-CPE210
UPC:
0731215288029
MPN:
CPE210
  • TP-Link Pharos CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE
  • TP-Link Pharos CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE
  • TP-Link Pharos CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE
  • TP-Link Pharos CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE
  • TP-Link Pharos CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE
£38.56
Frequently bought together:

Description

TP-Link Pharos CPE210 2.4GHz 300Mbps Outdoor CPE – 9dBi Directional Antenna, Long-Range Wi-Fi, Passive PoE

The TP-Link Pharos CPE210 is a professional-grade 2.4GHz outdoor wireless CPE (Customer Premises Equipment) designed for long-range point-to-point and point-to-multipoint connections. With a built-in 9dBi directional antenna, up to 300Mbps wireless speed and weather-resistant housing, it’s ideal for farms, warehouses, CCTV systems, remote buildings and WISP deployments.

Summary

The TP-Link CPE210 is a 2.4GHz 802.11n outdoor wireless CPE delivering up to 300Mbps speeds. It features a 9dBi high-gain directional antenna, supports point-to-point (PtP) and point-to-multipoint (PtMP) links, includes passive PoE up to 60m, and is managed via TP-Link’s Pharos Control system. Designed for stable long-distance outdoor connectivity.

Key Features & Benefits

  • 2.4GHz 300Mbps Wireless – Stable connectivity for outdoor links
  • 9dBi Directional Antenna – Focused signal for extended range
  • Up to 5km+ Transmission Range* – Ideal for remote building connections
  • Passive PoE Included – Power & data via single Ethernet cable (up to 60m)
  • Weatherproof Design – Built for outdoor environments
  • Pharos Control Software – Centralised management for multiple units
  • Multiple Operating Modes – AP / Client / AP Router / WISP

Long-Range Wireless Performance

Integrated 9dBi High-Gain Antenna

The built-in 9dBi dual-polarised directional antenna concentrates signal strength for improved long-distance transmission, making it suitable for inter-building links, CCTV backhaul and rural networking.

Advanced Outdoor Design

Designed for harsh weather conditions, the CPE210 features a durable outdoor casing and integrated lightning protection for stable year-round performance.

Flexible Deployment

Multiple Operation Modes

  • Access Point (AP)
  • Client
  • AP Router
  • WISP Mode

Passive PoE for Easy Installation

The included 24V passive PoE adapter allows both power and data transmission through a single Ethernet cable, simplifying outdoor mounting and reducing cable clutter.

Technical Specifications

  • Wireless Standard: IEEE 802.11b/g/n
  • Frequency: 2.4 – 2.483 GHz
  • Max Speed: Up to 300Mbps
  • Antenna: 9dBi Directional
  • Ethernet Port: 1× 10/100Mbps
  • PoE: 24V Passive PoE (Included)
  • Management: Pharos Control
  • Operating Modes: AP / Client / AP Router / WISP

Ideal Use Cases

  • Connecting two buildings wirelessly
  • Extending Wi-Fi to outbuildings or farms
  • CCTV camera network backhaul
  • Rural internet distribution (WISP setups)

Compatibility Notes

  • Requires proper alignment for long-range performance.
  • Works on 2.4GHz band (not 5GHz).
  • For maximum distance, ensure clear line of sight between devices.
  • Ethernet port is 10/100Mbps (not Gigabit).



TP-Link Pharos CPE210 – 2.4GHz 300Mbps outdoor CPE with 9dBi directional antenna, passive PoE and long-range wireless performance for building-to-building connections.


Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40C (-40C) to +70F (158F).

Advanced Antenna Syste
Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain
and lower noise interference

5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field

TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.

Pharos Control – Centralized Management System
CPE210 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

PharOS
User-friendly web-based management system allows professionals to do more specific configurations.

2.4GHz 300Mbps 9dBi Outdoor CPE CPE210
Built-in 9dBi Dual-polarized Directional Antenna
6KV Lightning Protection
15KV ESD Protection
AP / Client / AP Router / AP Client Router (WISP) operation modes
Weather Proof Enclosure
Passive PoE Adapter

Key Features

Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
Adjustable transmission power from 0 to 27dBm/500mw
System-level optimizations for more than 5km long range wireless transmission
TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
Centralized Management System – Pharos Control
AP / Client / AP Router / AP Client Router (WISP) operation modes
Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

Specification

Processor
Qualcomm Atheros 560MHz CPU, MIPS 74Kc

Memory
64MB DDR2 RAM, 8MB Flash

Interface
1 10/100Mbps Shielded Ethernet Port (Passive PoE in)
1 Grounding Terminal
1 Reset Button

Power Supply
Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC

Power Consumption
10.5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

Dimensions ( W x D x H )
8.8 x 3.1 x 2.4 in.

Antenna Type
Built-in 9dBi 2x2 Dual-polarized Directional Antenna

Beam Width:
65° (H-Plane) / 35° (E-Plane)

Protection
15KV ESD Protection
6KV Lightning Protection

Enclosure
Outdoor ASA stabilized plastic material
IPX5 waterproof Certification

Wireless Standards
IEEE 802.11b/g/n (with Pharos MAXtream disabled)

Proprietary Protocol
TDMA Mode (with Pharos MAXtream enabled)

Wireless Speeds
Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)

Frequency
2.4~2.483GHz

Transmission Power
27dBm/500mw (1dBm step adjustable)

Wireless Configurations
Pharos MAXtream TDMA Technology
802.11b/g/n modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
> Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia

Management
Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server

System Tools
Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute

System-level Optimizations
Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog

Dimensions(W x D x H)
4.3 x 2.2 x 1.3 in

Interfaces
1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data)

Button
Remote Reset Button

Power Status LEDs
Green

Input
100-240VAC, 50/60Hz

Output
24VDC, 0.6A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

Efficiency
> 80%

Certifications
FCC

OTHERS

Certification
FCC, RoHS, IPX5

Package Contents
Outdoor Wireless CPE
24VDC Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide

Environment
Operating Temperature: -40 - 70
Storage Temperature: -40 - 70
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 95% non-condensing

Return

30 Days Return

FAQ: Frequently Asked Questions



TP-Link Pharos CPE210 — FAQ

What is the TP-Link Pharos CPE210?
The TP-Link CPE210 is a 2.4GHz 300Mbps outdoor wireless CPE with a built-in 9dBi 2×2 dual-polarized directional MIMO antenna, designed for point-to-point, point-to-multipoint, and outdoor Wi-Fi coverage/bridging.
How far can it reach (is “5km+” real)?
TP-Link markets the CPE210 for 5km+ long-range transmission, but real range depends heavily on clear line-of-sight, mounting height, interference (2.4GHz is busy), and correct alignment. For short links (100–400ft), most issues are configuration/alignment rather than distance.
Is it 2.4GHz only?
Yes — CPE210 is 2.4GHz (802.11b/g/n). If you want 5GHz for cleaner spectrum and higher throughput, look at models like the CPE510/CPE710 family.
What modes does the CPE210 support?
It supports common outdoor link modes such as AP, Client, AP Router, and AP Client Router (WISP).
What does WISP mode mean?
AP Client Router (WISP) means the CPE210 connects to an upstream Wi-Fi network as a client and then shares that internet to your local network (NAT/router mode). For a simple “wireless cable” bridge between two buildings, most people use AP + Client (bridge) instead of WISP routing.
Can I make a point-to-point wireless bridge with two CPE210 units?
Yes — this is one of the most common use cases. Typical setup is: one unit as Access Point (AP), the other as Client (or AP Client). Memox users often troubleshoot this exact scenario when the link won’t lock, even at short distances.
Why won’t my two CPE210s connect (common fixes)?
Common “gotchas” people hit:
  • Wrong mode: one must be AP, the other Client (or both in compatible bridge roles).
  • Channel width mismatch (try 20MHz for stability on noisy 2.4GHz).
  • Security mismatch (WPA2-PSK settings must match).
  • Alignment: directional antenna needs correct aiming, even at 100–400ft.
  • Distance vs obstruction: glass, metal, trees, and walls kill 2.4GHz links.
Real-world threads show people struggling at short distances due to configuration choices (WISP vs bridge, etc.).
Does it support “MAXtream TDMA” and what does that do?
Yes — TP-Link highlights MAXtream TDMA to improve throughput/capacity/latency in PtMP scenarios (especially when multiple clients are connected). Best used when you’re running a Pharos network end-to-end.
How is it powered (PoE)? Is it standard 802.3af/at?
The CPE210 commonly uses Passive PoE (not the same as 802.3af/at). Always use the included PoE injector and follow TP-Link’s guidance for cable length and grounding. (Retail listings commonly quote PoE runs around 60m / 200ft depending on setup.)
Can I manage it without Pharos Control software?
Yes — you can configure each CPE210 via its standalone web interface. Pharos Control is optional and mainly helps when you want centralized management across many Pharos devices.
Is Pharos Control the same as Omada?
No — Pharos devices use Pharos Control for centralized management; they’re not the same ecosystem as Omada SDN.
Is it weatherproof for outdoor mounting?
Yes — the CPE210 is designed with a weatherproof enclosure for outdoor installation. Proper mounting, drip loop, and grounding are recommended for reliability.
What’s the best use case: outdoor Wi-Fi coverage or building-to-building link?
It can do both, but it’s most popular for:
  • Building-to-building bridge (PtP) where you want a “wireless cable”.
  • Outdoor coverage in one direction (yard, car park, farm buildings).
  • PtMP (one AP to multiple clients) when you have clear line-of-sight.
