TP-LINK

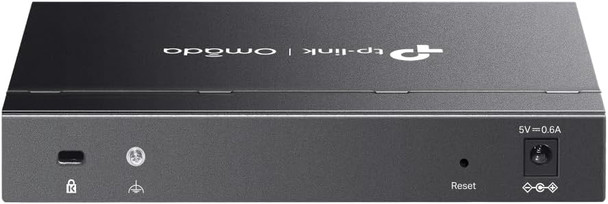

TP-LINK ES208G Omada 8-Port Gigabit Easy Managed Switch, 8x GB Ports, Metal Casing

SKU:
SWI-8TPOMAGBEASY
UPC:
1210002600675
MPN:
ES208G
  • TP-LINK ES208G Omada 8-Port Gigabit Easy Managed Switch, 8x GB Ports, Metal Casing
  • TP-LINK ES208G Omada 8-Port Gigabit Easy Managed Switch, 8x GB Ports, Metal Casing
  • TP-LINK ES208G Omada 8-Port Gigabit Easy Managed Switch, 8x GB Ports, Metal Casing
  • TP-LINK ES208G Omada 8-Port Gigabit Easy Managed Switch, 8x GB Ports, Metal Casing
  • TP-LINK ES208G Omada 8-Port Gigabit Easy Managed Switch, 8x GB Ports, Metal Casing
  • TP-LINK ES208G Omada 8-Port Gigabit Easy Managed Switch, 8x GB Ports, Metal Casing
£29.33
Frequently bought together:

Description

Omada 8-Port Gigabit Easy Managed Switch

  • 8 x 10/100/1000Mbps RJ45 ports
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app
  • VLAN, Port Isolation, Cable Test, QoS for reliable surveillance networking
  • Automatic Loop Prevention and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design

Specification

Rackmountable: No
Managed: Yes
Number of Ports: 8
Max RJ45 Transfer Rate: 10/100/1000 Mbps
Interface(s):
8 x 10/100/1000 Mbps RJ45 Ports
Auto-Negotiation/Auto MDI/MDIX

PoE Ports (RJ45): -
Switching Capacity: 16 Gbps
Power Supply: DC Power Adapter (Output: 5VDC / 0.6A)
Dimensions: 158 x 101 x 25 mm
Transfer Method: Store-And-Forward
Mac Address Table: 8K

Packet Forwarding Rate:
11.9 Mpps
Packet Buffer Memory: 4 Mbit

Jumbo Frame: 15 KB

Additional Features:
Durable Metal Casing
Desktop/Wall Mount
Physical Security Lock
Surge Protection: 6kV
Supports plug-and-play

Quality of Service:
Port-based/802.1p/DSCP QoS
8 Priority Queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Storm Control

Layer Features

L2 Features:
Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
Mirroring
Port Statistics
802.1ab LLDP

L2 Multicast:
IGMP Snooping

VLAN
MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN

Management
Omada App:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management:
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller

Cloud Access:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning:
Requires the use of Omada Cloud-Based Controller


Management Features:
Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Unified Configuration

Environment:
Operating Temperature: -5°C ~45°C
Storage Temperature: -40°C ~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package Contents:
ES208G
Power Adapter
Rubber Feet
Installation Guide

Package Type: Retail
Package Weight: 0.6500 kg
Warranty: Limited Lifetime

Return

30 Days Return

FAQ: Frequently Asked Questions

TP-Link ES208G — FAQ
Is ES208G managed or unmanaged?
It’s an Omada Easy Managed (L2-lite) switch: plug-and-play by default, with simple configuration for extra features via web UI/Omada app or controller.
How many ports and what speeds?
8 × 10/100/1000 Mbps RJ45 ports (Gigabit). Switching capacity: 16 Gbps.
Does it support VLANs?
Yes — IEEE 802.1Q VLAN plus Port Isolation for segmenting devices (e.g., separating CCTV from office PCs).
QoS and IGMP for video/IPTV/CCTV?
Yes — Port/Traffic QoS and IGMP Snooping help prioritise streams and reduce multicast flooding in surveillance or IPTV setups.
Loop prevention / storm control?
Yes — Automatic Loop Prevention helps avoid broadcast storms if a cable is accidentally looped.
Do I need an Omada Controller?
No for basic use. It works standalone. Adding an Omada Controller enables centralised cloud management and zero-touch provisioning.
Is this switch PoE?
No — ES208G is non-PoE. If you need PoE power, look at the ES208GP variant.
Fan noise & build quality?
Fanless for silent operation, with a durable metal casing.
Mounting options?
Desktop by default; includes feet. Also supports wall-mounting (see installation guide).
Power & energy use?
DC-powered external adapter; low typical consumption (fanless design). Check your unit’s rating label/PSU for exact figures.
Can it do link aggregation (LACP)?
Not listed for ES208G. If you require LACP, consider a higher-tier Omada switch.
Good for NVR/CCTV networks?
Yes — VLAN/Port Isolation, IGMP Snooping and QoS make it a solid fit for small CCTV, VoIP or IPTV segments.
What tools help with troubleshooting?
Cable Test and Port QoS are available in Standalone mode to quickly diagnose wiring/performance issues.
