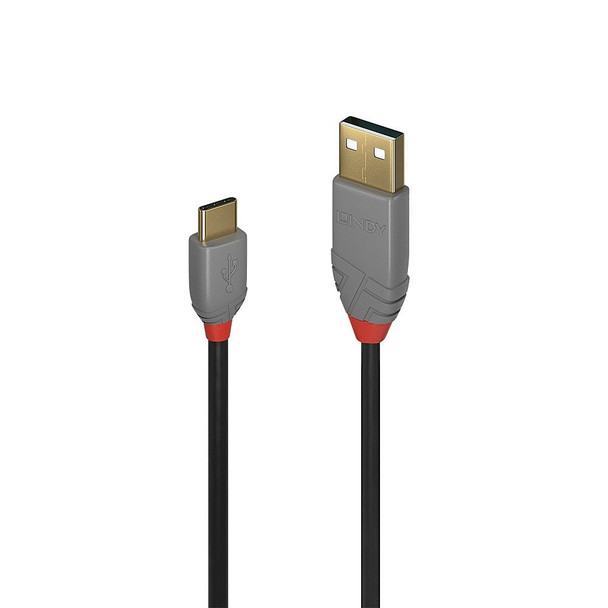

Lindy 36886 1m USB-A (M) 2.0 To USB-C (M) 2.0 Anthra Line 480Mbps Cable - Black

SKU:
CLLIN-36886
UPC:
4002888368865
MPN:
36886
Availability:
In Stock
  • Lindy 36886 1m USB-A (M) 2.0 To USB-C (M) 2.0 Anthra Line 480Mbps Cable - Black physical LINDY New 36886 MemoX
  • Lindy 36886 1m USB-A (M) 2.0 To USB-C (M) 2.0 Anthra Line 480Mbps Cable - Black physical LINDY New 36886 MemoX
£4.11
Frequently bought together:

Description

- Professional choice USB 2.0 Type A to C cable for commercial and high performance AV and IT installations
- Supports data transfer speeds up to 480Mbps
- Robust PVC housing, gold plated connectors and contacts
- Double shielded cable, corrosion resistant tinned copper conductors
- USB 2.0, 480Mbps; 10 year warranty

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to C cables are the professional choice for high performance connections in commercial AV and IT installations.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain signal integrity and reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

Anthra Line USB 2.0 Type A to C cables are available in lengths from 0.5m to 3m.

Connectors
Connector A: USB 2.0 Type A Male
Connector B: USB 2.0 Type C Male
Housing Material: PVC
Connector Plating: 24K Gold Plated
Pin Construction: Phosphor Bronze
Pin Plating: 24K Gold Plated
Dimensions, USB Type A (approx.) WxDxH: 15.5x35.1x7.8mm (0.61x1.38x0.31in)
Dimensions, USB Type C (approx.) WxDxH: 11.0x25.5x7.3mm (0.43x1.00x0.29in)

Cable Construction
Length: 1m (3.28ft)
Standard: USB 2.0
Colour: Black
Type: Round
Jacket Diameter: 3.5mm (0.14in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 28AWG
Shielding: Copper Braid 60%

Specifications
Supported Bandwidth: 480Mbps
Maximum Resolution: -
Nominal Attenuation: 0.5-3m: 0.5Mhz – 400Mhz < 5.8db
Minimum Bend Radius: 35mm (1.38in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL

Specification

CERTIFICATION
Certification RoHS, REACH, UL
FEATURES
Certification RoHS, REACH, UL
Plug and Play Yes
Maximum data transfer rate 480 Mbit/s
Cable length 1 m
Cable type Round cable
Product colour Black, Grey
Connector material Gold
Maximum data transfer rate 0.48 Gbit/s
Connector 1 USB A
Connector 2 USB C
Connector contacts plating Gold
USB version USB 2.0
Connector 1 form factor Straight
Connector 2 form factor Straight
AWG wire size 28
Connector 1 gender Male
Connector 2 gender Male
Conductor material Tinned copper
Cable jacket material Polyvinyl chloride (PVC)
Connector shielding Yes
Connector shield material Copper
Contact material Phosphor bronze
Nominal attenuation 0.5-3m: 0.5Mhz ?" 400Mhz 5.8db
Connector housing material Polyvinyl chloride (PVC)
LOGISTICS DATA
Harmonized System (HS) code 84733080
OPERATIONAL CONDITIONS
Storage temperature (T-T) -25 - 85 °C
Operating temperature (T-T) -20 - 80 °C
OTHER FEATURES
Storage temperature (T-T) -25 - 85 °C
Operating temperature (T-T) -20 - 80 °C
PACKAGING CONTENT
Quantity per pack 1 pc(s)
PACKAGING DATA
Package type Polybag
Quantity per pack 1 pc(s)
TECHNICAL DETAILS
Harmonized System (HS) code 84733080
WEIGHT & DIMENSIONS
Cable length 1 m
Cable diameter 3.5 mm
Connector 1 dimensions (WxDxH) 11 x 25.5 x 7.3 mm
Connector 2 dimensions (WxDxH) 15.5 x 35.1 x 7.8 mm
Bend radius (min) 3.5 cm

Return

30 Days Return

FAQ: Frequently Asked Questions



Lindy 36886 — 1m USB-A to USB-C Cable (Anthra Line) — FAQ

What data speed does this cable support?
USB 2.0 up to 480 Mb/s (Hi-Speed).
Does it support fast charging / USB-C Power Delivery?
It supports standard USB-A charging (host/device dependent). It doesn’t do USB-C Power Delivery fast-charge profiles used by many laptops/high-watt phones.
Will it charge & sync iPhone 15 (USB-C) from a USB-A port?
Yes — charge & data work from USB-A, limited to USB-A power levels (no USB-C PD fast charge).
Is it good for Android Auto / wired CarPlay?
Yes — both run over USB 2.0. Keep the cable short (≈1 m or less) for reliability in cars.
Does it carry video (DP Alt Mode) or work with USB-C monitors/docks?
No — this is a USB 2.0 data/charge cable, not for video/DP-Alt-Mode or docking/monitor output.
What’s special about Anthra Line build quality?
Double-shielded cable with corrosion-resistant tinned-copper conductors, robust PVC housing, and gold-plated connectors/contacts. Jacket Ø ~3.5 mm.
Connector types & length?
USB-A male ⇄ USB-C male, length 1 m, Black (Anthra Line).
Warranty
10-year Lindy warranty.
