DEEPCOOL

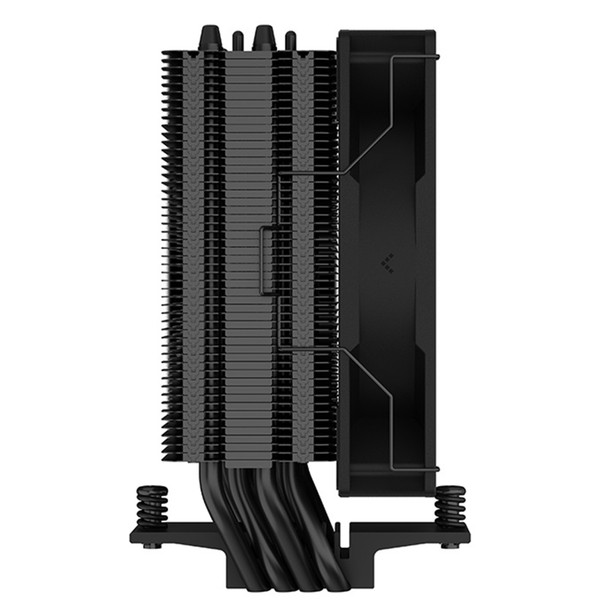

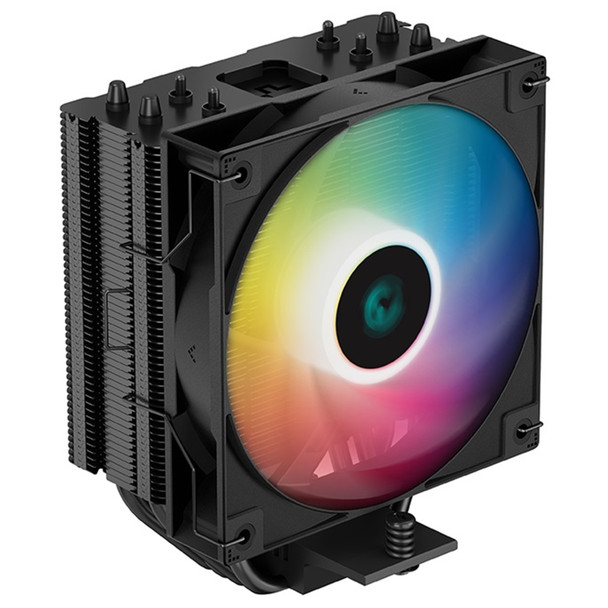

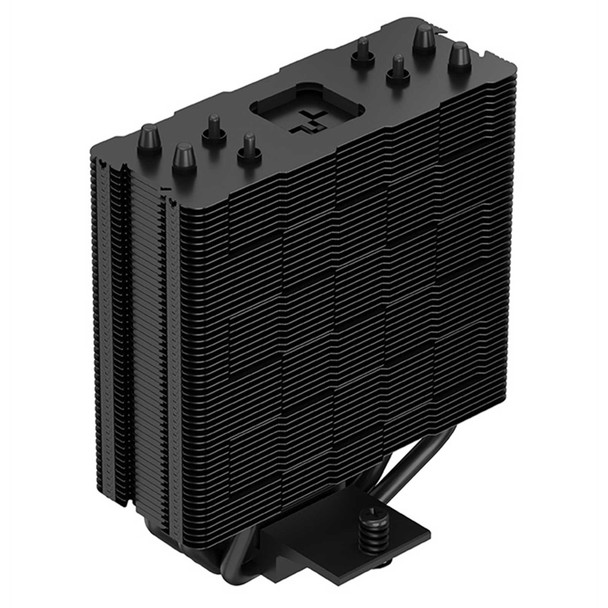

DeepCool AG400 Black ARGB V2 CPU Air Cooler, 120mm PWM Fan, 4 Direct Touch Heat Pipes, Addressable RGB, LGA1851/1700/1200, AM5/AM4 Compatible, High-Performance Single Tower Cooler
- SKU:
- FADEE-AG400BKARG
- UPC:
- 6933412729310
- MPN:
- R-AG400-BKAMMN-GJD
- Availability:
- In Stock
Frequently bought together:
Description
DeepCool AG400 Black ARGB V2 CPU Air Cooler – Single Tower, 120mm ARGB PWM Fan, 4× Direct-Touch Heatpipes (Intel LGA1851/1700, AMD AM5/AM4)
The DeepCool AG400 Black ARGB V2 is a high-performance single-tower CPU air cooler built for modern Intel and AMD systems, combining efficient heat dissipation with clean, customisable lighting. Its dense aluminium fin stack and 4× Ø6mm direct-touch copper heatpipes are designed to pull heat away from the CPU quickly, helping maintain stable performance in gaming and productivity workloads.

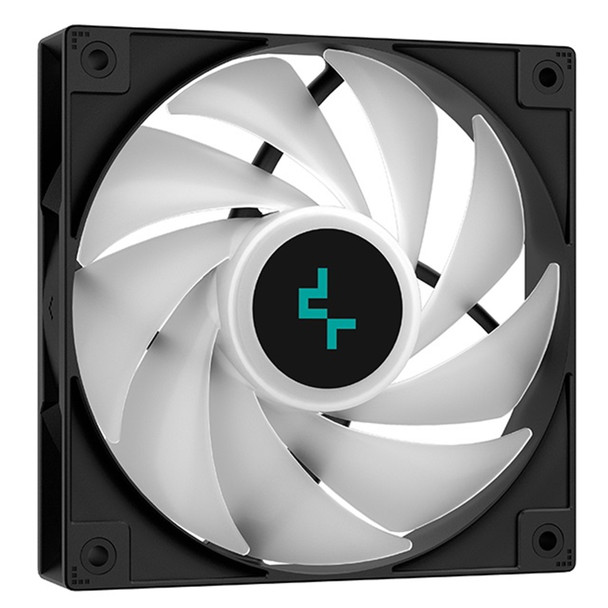

A fine-tuned 120mm ARGB PWM fan delivers strong cooling when your CPU is under load and can slow down for quieter operation at idle. Lighting connects via a standard 3-pin 5V ARGB (D-G) header for motherboard sync, while the fan uses a 4-pin PWM connector for automatic speed control.
Key features
- All-black design + ARGB top cover with DeepCool’s signature matrix fin stack look
- 120mm ARGB PWM fan: 500–2100 RPM, up to 75.89 CFM, ≤31.6 dB(A)
- High static pressure: up to 2.53 mmAq for effective airflow through the fin stack
- Hydro bearing fan for smooth, reliable operation
- All-metal mounting bracket for secure, even contact pressure across Intel/AMD sockets
- Offset layout is designed to help with RAM clearance and easier installation in many builds
Socket compatibility
- Intel: LGA1851 / 1700 / 1200 / 115X
- AMD: AM5 / AM4
Technical specifications
- Product size: 125 × 92 × 154 mm
- Heatsink size: 120 × 92 × 150 mm
- Weight: 643 g
- ARGB: 3-pin (+5V-D-G), 5V
- EAN: 6933412729310 | P/N: R-AG400-BKAMMN-GJD
Specification
| DESIGN | |
|---|---|
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Illumination colour | Blue, Green, Red |
| Fan connector | 4-pin |
| Number of heat pipes | 4 |
| Illumination LED | Yes |
| LED connector type | 3-pin |
| ENERGY MANAGEMENT | |
| Fan voltage | 12 V |
| Fan current | 0.17 A |
| Fan power consumption | 2.04 W |
| LED voltage | 5 V |
| LED power consumption (fan) | 3.2 W |
| PERFORMANCE | |
| Type | Fan |
| Fan diameter | 12 cm |
| Supported processor sockets | Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Suitable location | Chipset |
| Maximum airflow | 75.89 cfm |
| Maximum air pressure | 2.53 mmH2O |
| Fan speed (max) | 2200 RPM |
| Fan speed (min) | 450 RPM |
| Bearing type | Hydraulic |
| Quantity per pack | 1 pc(s) |
| Fan noise level (max) | 31.6 dB |
| Pulse-width modulation (PWM) support | Yes |
| WEIGHT & DIMENSIONS | |
| Height | 154 mm |
| Width | 92 mm |
| Depth | 125 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Return
30 Days Return
FAQ: Frequently Asked Questions
DeepCool AG400 Black ARGB V2 — FAQ
Which CPU sockets are supported?
Intel LGA1851 / 1700 / 1200 / 115x and AMD AM5 / AM4 (mounting kit included).
What are the cooler dimensions and case-fit?
Approx. 125 × 92 × 150 mm (L × W × H). Ensure your case supports at least 150 mm CPU cooler height.
How loud is it and what’s the airflow?
120 mm PWM fan up to 500–2000 RPM, delivering up to 75.89 CFM at ≤31.6 dB(A); static pressure up to 2.53 mmH₂O.
Does it have good RAM clearance?
Yes — single-tower design with a slim 120 mm fan gives full RAM clearance on most motherboards.
ARGB details — how do I connect lighting?
Uses 5 V 3-pin ARGB (addressable) connector; syncs with motherboard software (ASUS Aura, MSI Mystic Light, Gigabyte RGB Fusion, ASRock Polychrome) when available.
What comes in the box?
AG400 heatsink, pre-installed 120 mm PWM ARGB fan, Intel & AMD brackets, thermal compound, and documentation.
How many heatpipes and what’s the build?

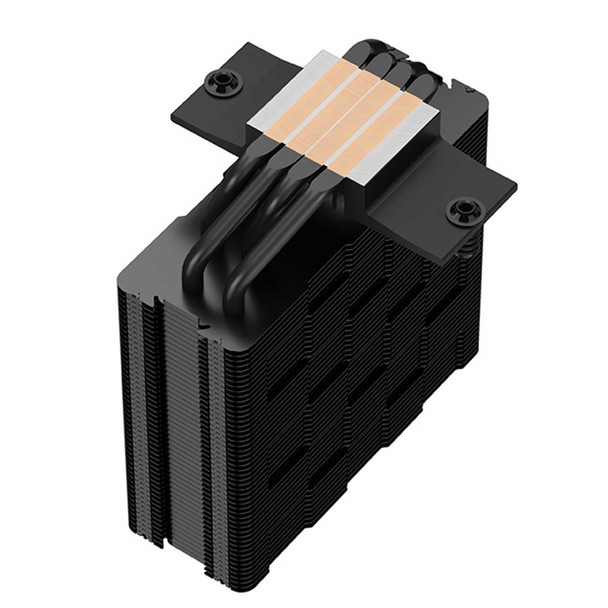

Four 6 mm direct-touch copper heatpipes with a dense aluminum fin stack.
Is installation easy?
Yes — straightforward bracket system; you can install with the fan already attached and then plug in PWM/ARGB leads.
Is 220 W class cooling realistic for this cooler?
DeepCool rates AG400-series coolers up to ~220 W class in marketing literature; real results depend on your CPU load, case airflow and ambient temps.
Fan/power connectors?
4-pin PWM fan (12 V) for speed control + separate 5 V 3-pin ARGB for lighting.
