ASUS
Asus ROG STRIX B650E-I GAMING WIFI, AMD B650, AM5, Mini ITX, 2 DDR5, HDMI, DP Alt Mode, Wi-Fi 6E, 2.5G LAN, PCIe5, 2x M.2
- SKU:
- 90MB1BI0-M0EAY0
- UPC:
- 4711081957881
- MPN:
- 90MB1BI0-M0EAY0
Frequently bought together:
Description
ASUS ROG Strix B650E-I Gaming WiFi AM5 Mini-ITX Motherboard – DDR5, PCIe 5.0 x16, Dual M.2, Wi-Fi 6E, 2.5G LAN
Build a high-end small-form-factor PC with the ASUS ROG Strix B650E-I Gaming WiFi — a premium Mini-ITX AM5 motherboard made for powerful gaming and creator rigs. It combines DDR5 memory support, a full-speed PCIe 5.0 x16 slot for modern GPUs, and next-gen storage with a PCIe 5.0 M.2 slot plus a second PCIe 4.0 M.2 slot. For connectivity, you get Wi-Fi 6E, Bluetooth 5.2 and Intel 2.5Gb Ethernet, making it ideal for fast downloads, low-latency gaming and tidy SFF builds.
Summary
The ROG Strix B650E-I Gaming WiFi is an AMD B650 Mini-ITX motherboard for AM5 Ryzen 9000/8000/7000 CPUs, featuring 2× DDR5 DIMM slots (up to 96GB), 1× PCIe 5.0 x16, and 2× M.2 (one PCIe 5.0 x4 + one PCIe 4.0 x4), plus Wi-Fi 6E, Bluetooth 5.2 and Intel 2.5G LAN. Display outputs include HDMI 2.1 and a USB-C port with DisplayPort (Alt Mode) (dependent on CPU graphics support).
Key Features & Benefits
- Mini-ITX AM5 platform: premium features in a compact SFF footprint
- PCIe 5.0 for GPU + SSD: PCIe 5.0 x16 SafeSlot and a PCIe 5.0 M.2 slot for next-gen bandwidth
- Dual M.2 storage: 1× PCIe 5.0 x4 + 1× PCIe 4.0 x4, plus 2× SATA for extra drives
- Fast networking: Wi-Fi 6E + Bluetooth 5.2 + Intel 2.5Gb Ethernet
- High-speed USB: includes USB 3.2 Gen 2x2 Type-C (20Gbps) for fast external storage
- DIY-friendly build: features like BIOS FlashBack and tool-free M.2 latching help make SFF building easier
Performance, Expansion & Storage
PCIe 5.0 Graphics Slot
The primary expansion slot is PCIe 5.0 x16, designed for modern GPUs and protected with ASUS SafeSlot reinforcement.
Next-Gen M.2 Storage
- M.2_1: PCIe 5.0 x4 (2242/2260/2280)
- M.2_2: PCIe 4.0 x4 (2242/2260/2280)
- SATA: 2× SATA 6Gb/s
Memory Support
DDR5 Ready (2 DIMM Slots)
Supports DDR5 in dual-channel with 2× DIMM slots and a listed maximum of 96GB, including support for AMD EXPO™ profiles (depending on CPU and memory configuration).
Connectivity & I/O
Wi-Fi 6E, Bluetooth & 2.5Gb Ethernet
- Wi-Fi 6E (6GHz band support where available)
- Bluetooth 5.2
- Intel 2.5Gb Ethernet
Display Outputs (CPU iGPU Required)
- HDMI 2.1
- USB-C DisplayPort (Alt Mode)
Display output availability depends on the CPU (Ryzen models without integrated graphics will require a dedicated GPU).
Specifications at a Glance
- Form factor: Mini-ITX
- Chipset: AMD B650
- Socket / CPU support: AM5 (Ryzen 9000 / 8000 / 7000 Series)
- Memory: 2× DDR5 DIMM, up to 96GB (OC support listed)
- Expansion: 1× PCIe 5.0 x16
- Storage: 2× M.2 (PCIe 5.0 x4 + PCIe 4.0 x4) + 2× SATA 6Gb/s
- Networking: Wi-Fi 6E, Bluetooth 5.2, Intel 2.5Gb LAN
- Key high-speed USB: USB 3.2 Gen 2x2 Type-C (20Gbps)
Compatibility Notes
1) AM5 + DDR5 only
This motherboard is AM5 and requires DDR5 memory (not compatible with AM4 or DDR4). Always check CPU and memory support lists for best compatibility.
2) Display output depends on your CPU
HDMI/USB-C display outputs work only if your installed Ryzen CPU includes integrated graphics. If your CPU has no iGPU, use a dedicated GPU.
3) BIOS updates may be needed
For best stability and newest CPU support, update to the latest BIOS when building—BIOS FlashBack helps with updates.
- Power Stages - Robust 10-stage power solution rated to 70A each
- Overclocking - Dynamic clocking to simultaneously maximize Ryzen gaming and compute performance
- PCIe 5.0 - Both the x16 slot and an on-board M.2 slot are PCIe Gen 5-ready
- DDR5 Memory - 6400 MT/s+, AMD EXPO, DRAM IC profiles, and AEMP
- WiFi 6E - Faster-than-Gigabit WiFi that unlocks access to the low-interference 6 GHz band
- DIY Friendly - Easy installation for GPUs and SSDs, plus simple BIOS resets and updates
DIY-Friendly
M.2 Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
BIOS Flashback Button
BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.
FlexKey Button
At its default, FlexKey functions as a system reset button, but it can also be easily reassigned to quickly activate Safe Boot or enter the BIOS.
Q-LED
Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.
All-Round Performance
To keep up with the big boys, the ROG Strix B650E-I comes stacked with a beefy power solution and a quiet thermal array, giving it a nice share of headroom to push for faster frequencies. But the speed doesn’t stop there: memory, graphics cards, and storage can all be cranked to the max thanks to DDR5 and PCIe 5.0 support.
PCIe 5.0
Fully embracing the new standard, the Strix B650E-I offers end-to-end PCIe 5.0 support to give unfettered bandwidth for the fastest SSDs and graphics cards available. The x16 expansion slot is Gen 5-ready, and is protected with a SafeSlot retention bracket. The onboard M.2 slot is also geared for PCIe 5.0, allowing for blistering 16 GB/s read and write speeds, while the other slot delivers still-impressive 8 GB/s transfers over its PCIe 4.0 interface.
Dynamic OC Switcher
Lightly-threaded tasks get fantastic uplift using AMD Precision Boost Overdrive (PBO), but all-core frequencies can be pushed higher via traditional overclocking. The Dynamic OC Switcher automatically engages PBO or your preferred settings based on the CPU current or temperature, giving you the best of both worlds. Core Flex and PBO Enhancement can also be deployed to work in tandem with the Dynamic OC Switcher and further bolster performance.
Core Flex
Core Flex empowers you to smash limits farther than ever before by letting you control current, power, and thermals in creative new ways. In its simplest form, you can let your system run unrestricted during lighter loads and set breakpoints to gradually reduce power consumption as temperature increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate parameters independently so that you can bend CPU performance to your will.
PBO Enhancement
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD’s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
Power Architecture
10 + 2 power stages rated to 70A each deliver ample current in order to drive Ryzen 7000 through any workload with ease.
Alloy Chokes And Durable Capacitors
Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
Eight-Layer PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
Memory
For those who want to fly past stock DDR5 speeds, the ROG Strix B650E-I is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.
AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized profiles with higher frequency and tighter timings that you can effortlessly apply to unleash performance.
VRM Cooling Array
Substantial heatsinks cover the power solution, bolstered by a quiet thermal system that intakes from the core and outputs heat upwards through a ventilated top, so the VRM stays cool even in air-restricted systems.
High-Conductivity Thermal Pads
High-quality thermal pads are utilized between power stages and heatsinks, helping to improve heat transfer and reduce VRM operating temperatures.
M.2 Heatsinks
Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.
CPU Fan Headers
A dedicated pair of PWM/DC fan headers provides easy access to CPU coolers.
AIO Pump Fan Header
A dedicated PWM/DC header connects self-contained water-cooling setups
4-pin Fan Header
The chassis fan header supports auto-detection of PWM or DC fans.
Leading Connectivity
Despite its tiny desktop footprint, the Strix B650E-I stands tall in the connectivity department, with beyond-Gigabit tethered and wireless networking options, and gigantic audio quality via the enhanced SupremeFX solution.
WiFi 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
Intel 2.5G Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.

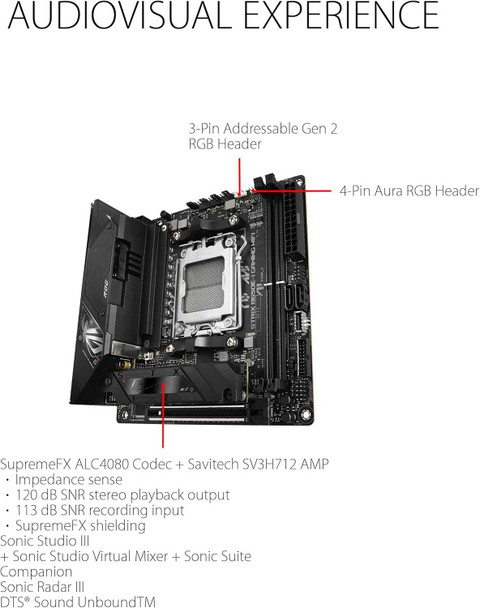

SupremeFX
ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B650E-I implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.
Play In Style
The understated black shrouds and PCB of the Strix B650-I make it a solid foundation for nearly any rig, especially when coordinated with the vast range of offerings in the ROG ecosystem.
Undeniably ROG Strix
The mesh-like texture on the VRM cooling array and the unidirectional brush lines may seem minimalist by Strix standards, but the B650E-I is far from modest, proudly displaying a metallic ROG eye on the I/O shroud and subtle pink accents for a simple, unique flavor.
Cooler Compatibility
The ROG Strix B650E-I bears the same mounting hole alignment as AM4 platforms, so it is backward compatible with many existing coolers, including all AIO offerings from ASUS and ROG.
The ROG Strix Ecosystem Awaits
Level up your game with ROG Strix. Enjoy complementary aesthetics, control, and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand.
Software Utilities
Customize your rig through a suite of intuitive software and firmware utilities that let you maximize performance and tweak your experience to your liking.
Two-Way AI Noise Cancelation
This utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.
AI Networking
GAMEFIRST VI optimizes networking performance by allocating bandwidth in real time based on application usage scenarios and corresponding learning algorithms.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
AI Suite 3
The dashboard-style control panel of AI Suite 3 lets you fine-tune your system with ease. Get the best balance between performance, cooling, stability, and efficiency via simple and intuitive interfaces.
Sonic Studio III
Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
Sonic Studio Virtual Mixer
Combine audio output from selected apps with audio from the microphone input and stream the compiled mix.
DTS Sound Unbound
ROG Strix B650E motherboards are pre-loaded with the DTS® Sound Unbound™ app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By leveraging Windows Sonic spatial technology, DTS Sound Unbound delivers audio in a virtual 3D space — putting you right in the middle of the soundscape, where you can sense the location of every gunshot, footstep, and other sounds.
AIDA64
The ROG Strix B650E-I includes a sixty-day AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*.
Armoury Crate
Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers.
Specification
| CPU | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Memory | 2 x DIMM, Max. 64GB, DDR5 5200MHz upto 6400MHz (OC) Supports AMD EXTended Profiles for Overclocking (EXPO) |
| Onboard Graphics Outputs | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x USB3 Gen2 port supports USB Type-C® display outputs |
| PCI Slots | AMD Ryzen™ 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot |
| Storage | Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen™ 7000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Networking | 1 x 2.5Gb Ethernet WIFI 6E Bluetooth |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| Connectivity | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 5 x USB 3.2 Gen 2 ports (4 x Type-A + 1 x USB Type-C® with DP Alt mode) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI® port 1 x Intel® 2.5Gb Ethernet port 3 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x FlexKey button |
| Internal Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 headers supports additional 2 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 header 1 x AURA RGB header 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x 12-1 pin Front Panel Audio header (AAFP) 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
| Form Factor | Mini-ITX Form Factor - 6.7 inch x 6.7 inch (17 cm x 17 cm) |
| Warranty | Three Year Manufacturer Warranty |
| Motherboard | |
| Motherboard Chipset | AMD B650E |
| Form Factor | |
| Motherboard formfactor | Mini-ITX |
| CPU | |
| CPU Manufacturer | AMD |
| CPU Socket | AM5 |
| Lighting | |
| Lighting / RGB | No |
| Colour | |
| Primary Colour | Black |
| Secondary Colour | Silver |
| Wi-Fi & LAN | |
| LAN | Yes |
| LAN Ports | 1x 2.5 Gbit/s |
| Wi-Fi / Bluetooth | Yes |
| Memory | |
| Max. Memory | 64 GB |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Memory slots | 2x |
| External Ports | |
| USB 3.2 (external) Type C | 1 |
| USB 3.1 (external) Type C | 1 |
| USB 3.1 (external) Type A | 5 |
| Display Connectors | HDMI (1x), USB Type C (Display Port shared) (1x) |
| Fan Header | |
| 4 Pin Fan Connectors | 3 |
| Internal Ports | |
| CPU Power Supply | 1x 8-Pin |
| USB 3.0 (internal) Possible Ports | 4 |
| RGB / LED connectors | 1x RGB (4-Pin 5050 12VGRB), 1x Digital RGB (3-Pin 5VDG) |
| Expansion Slots | |
| PCIe x16 slots (total) | 1 |
| PCIe 5.0 x16 mechanical slot | 1 |
| PCI slot | 1 |
| Storage Ports | |
| M.2 PCIe 4.0 x4 | 1 |
| SATA 6G (internal) | 2 |
Return
30 Days Return
FAQ: Frequently Asked Questions
ASUS ROG Strix B650E-I Gaming WiFi — FAQ
What is the ASUS ROG Strix B650E-I Gaming WiFi?
The ROG Strix B650E-I Gaming WiFi is a Mini-ITX AM5 motherboard built for compact high-performance PCs, featuring PCIe 5.0 support, DDR5, Wi-Fi 6E, and 2.5Gb Ethernet.
Which CPUs are compatible (AM5)?
It uses the AMD AM5 socket and is listed as supporting Ryzen 7000 and Ryzen 9000 series desktop processors (check BIOS version/CPU support list if you’re upgrading).
Do I need to update the BIOS before installing a new Ryzen CPU?
Sometimes, yes—especially if your board shipped with an older BIOS and you’re installing a newer Ryzen generation. This board includes BIOS FlashBack, which can update BIOS from a USB stick even without CPU/RAM installed.
Does it have PCIe 5.0 for the graphics card?
Yes—specs list 1× PCIe 5.0 x16 slot (from the CPU) for modern GPUs.
How many M.2 slots does it have—and are any Gen5?
It supports 2× M.2 slots: one supports PCIe 5.0 x4 (Gen5 SSD) and the other supports PCIe 4.0 x4 (Gen4 SSD).
Does it also support SATA drives?
Yes—specs list 2× SATA 6Gb/s ports (handy if you want a 2.5" SSD alongside M.2 storage).
What RAM does it use (DDR5) and how many slots?
It has 2× DDR5 DIMM slots (dual-channel) and is listed with DDR5 overclock support (e.g., DDR5 6400+ (OC) on the product page).
Does it support AMD EXPO and Intel XMP memory profiles?
Memory compatibility depends on your exact kit, but vendor resources show this board supports memory kits with AMD EXPO and can also work with Intel XMP kits when supported by BIOS/board validation. Always check the RAM QVL for best plug-and-play results.
Does it have Wi-Fi 6E and 2.5G LAN?
Yes—this model is marketed with Wi-Fi 6E and specs list Intel 2.5Gb Ethernet for fast wired networking.
What display outputs does it have (HDMI / DP Alt Mode)?
Listings and ASUS materials highlight HDMI and DP Alt Mode support (useful if you’re using an AM5 CPU/APU that provides integrated graphics output). Note: CPUs without an iGPU will still require a dedicated graphics card for display.
Is this motherboard good for a small form factor (SFF) gaming PC?
Yes—Mini-ITX is ideal for SFF builds, and this board gives you modern essentials (PCIe 5.0 GPU slot, Gen5 M.2, Wi-Fi 6E, 2.5GbE). Just plan around ITX limits: typically one PCIe slot and fewer storage/headers than ATX boards.
How do I avoid “no boot” issues on first build?
Most common fixes:
- Update BIOS using BIOS FlashBack if pairing a new Ryzen CPU with an older BIOS.
- Use 2 sticks of DDR5 from the memory QVL where possible and enable EXPO/XMP after first stable boot.
- Remember: CPUs without integrated graphics need a dedicated GPU for display output.
Can it run a PCIe Gen5 SSD without overheating?
Gen5 SSDs can run hot under sustained loads. For best results in an ITX case, ensure strong airflow and consider an SSD with a good heatsink (or use the board’s M.2 cooling solution if included with your variant).
