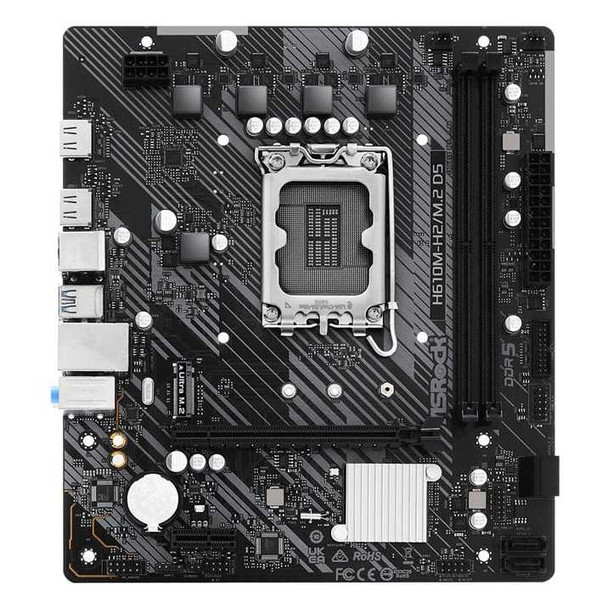

Asrock H610M-H2/M.2 D5, Intel H610, 1700, Micro ATX, 2 DDR5

Q: Which CPUs are supported?

Supports 14th/13th/12th-Gen Intel Core processors on LGA1700. Update to the latest BIOS for newer CPUs.

Q: Does it use DDR4 or DDR5? What speed and max capacity?

DDR5 only—2 DIMMs, dual-channel. Up to DDR5-5600 with 13th-Gen CPUs (12th-Gen up to 4800). Maximum system memory 96GB with 48GB modules.

Q: How many M.2 and SATA storage ports?

1× Ultra M.2 (NVMe PCIe Gen3 x4, 2242/2260/2280) and 4× SATA 6Gb/s. No Gen4 M.2 on H610.

Q: What PCIe slots are available for the GPU and add-in cards?

1× PCIe 4.0 x16 for graphics and 1× PCIe 3.0 x1 for expansion.

Q: Video outputs—can I run dual displays and 4K?

Yes—2× HDMI on the rear I/O with support up to 4K60 (requires a CPU with integrated graphics).

Q: How many USB ports does it have?

Rear: 2× USB 3.2 Gen1 Type-A + 4× USB 2.0. Front headers: 2× USB 3.2 Gen1 + 2× USB 2.0 (via case connectors).

Q: Any USB-C or RGB headers?

No internal USB-C or RGB/ARGB headers are listed for this model.

Q: Audio and networking?

Realtek ALC897 7.1-channel audio and Realtek Gigabit LAN (RTL8111H).

Q: Fan headers and power connectors?

1× CPU_FAN (4-pin) and 1× CHA_FAN/WP (4-pin). Power: 24-pin ATX + 8-pin CPU.

Q: Form factor and OS support?

Micro-ATX (22.0 × 19.3 cm). Supports Windows 10/11 64-bit.

Asrock H610M-H2/M.2 D5, Intel H610, 1700, Micro ATX, 2 DDR5, 2 HDMI, GB LAN, PCIe4, 1x M.2

SKU:

H610M-H2M2D5

UPC:

4710483943775

MPN:

H610M-H2/M.2 D5

Availability:

In Stock

Description

Description

ASRock H610M-H2/M.2 D5 Micro-ATX Motherboard – LGA1700, DDR5, Dual HDMI 4K@60, PCIe 4.0 x16, Ultra M.2

Summary: The ASRock H610M-H2/M.2 D5 is a compact micro-ATX motherboard for Intel® 12th/13th/14th Gen LGA1700 CPUs, featuring 2× DDR5 (up to 96GB), dual HDMI outputs (up to 4K@60Hz), a full-length PCIe 4.0 x16 slot for a graphics card, plus 4× SATA and an Ultra M.2 (PCIe Gen3 x4) slot for fast NVMe storage.

Built for value-focused DDR5 systems, the H610M-H2/M.2 D5 is ideal for office PCs, home desktops, and budget gaming builds. You get a reliable 3+1+1 phase power design, Realtek Gigabit LAN, and 7.1-channel audio, with a clean rear I/O including 2× HDMI for easy dual-monitor setups.

Highlights

CPU support: Intel® Core™ 14th / 13th / 12th Gen (LGA1700)
Memory: 2× DDR5 DIMM, dual channel, up to 96GB; up to DDR5-5600 (13th/14th Gen)*
Graphics outputs: 2× HDMI (up to 4K@60Hz with supported CPU iGPU)
Expansion: 1× PCIe 4.0 x16 + 1× PCIe 3.0 x1
Storage: 1× Ultra M.2 (Key M, PCIe Gen3 x4, supports 2242/2260/2280) + 4× SATA3
Networking: Realtek 1GbE LAN
Audio: Realtek ALC897 7.1 CH HD Audio
USB: 4× USB 3.2 Gen1 (2 rear, 2 front) + 6× USB 2.0 (4 rear, 2 front)
Convenience: ASRock Auto Driver Installer

*Memory speed support varies by CPU: ASRock lists up to DDR5-5600 with 13th/14th Gen and up to DDR5-4800 with 12th Gen (actual support depends on the processor).

Rear I/O (great for simple builds)

1× PS/2 keyboard/mouse
2× HDMI
2× USB 3.2 Gen1 Type-A
4× USB 2.0
1× RJ-45 LAN
HD Audio jacks (Line in / Line out / Mic)

Product identifiers: MPN H610M-H2/M.2 D5 | UPC 4710483943775 | SKU H610M-H2M2D5

Specification

Unique Feature

Superb Productivity
- Dual Channel DDR5
Rock-Solid Durability
- 3+1+1 Power Phase
EZ Update
- ASRock Auto Driver Installer

- Supports 14^th, 13^th & 12^th Gen Intel^® Core™ Processors (LGA1700)
- Supports Intel^® Hybrid Technology
- Supports Intel^® Turbo Boost Max 3.0 Technology

Chipset

- Intel^® H610

Memory

- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- 13^th Gen Intel^® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600*
- 12^th Gen Intel^® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800*
- Max. capacity of system memory: 96GB
- Supports Intel^® Extreme Memory Profile (XMP) 3.0

*Actual support may vary by CPU

BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support

Graphics

- Intel^® Xe Graphics Architecture (Gen 12)
- 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz

*Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H

Slots

CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE2)*

*Supports NVMe SSD as boot disks

Storage

Chipset:
- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors

*Supports NVMe SSD as boot disks

- 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
- 6 x USB 2.0 (4 Rear, 2 Front)

*All USB ports support ESD Protection

Connector

- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports).

*CPU_FAN1 supports the fan power up to 1A (12W).

**CHA_FAN1/WP supports the fan power up to 2A (24W).
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O

- 1 x PS/2 Mouse/Keyboard Port
- 2 x HDMI Ports
- 2 x USB 3.2 Gen1 Type-A Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software
- ASRock Motherboard Utility (A-Tuning)
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories

- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket

Form Factor

- Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm

- Microsoft Windows^® 10 64-bit / 11 64-bit

Certifications

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

Return

30 Days Return

FAQ: Frequently Asked Questions

ASRock H610M-H2/M.2 D5 — FAQ

Which CPUs are supported?

Supports 14th/13th/12th-Gen Intel® Core™ processors on LGA1700. For newer CPUs, update to the latest BIOS first.

Does it use DDR4 or DDR5? What speed and max capacity?

DDR5 only — 2× DIMM, dual-channel. Up to DDR5-5600 with 13th-Gen CPUs (12th-Gen up to 4800). Max system memory 96GB with 48GB modules.

How many M.2 and SATA storage ports?

1× Ultra M.2 (NVMe PCIe Gen3 x4, 2242/2260/2280) + 4× SATA 6Gb/s. (No PCIe Gen4 M.2 on H610.)

What PCIe slots are available for the GPU and add-in cards?

1× PCIe 4.0 x16 (from CPU) for graphics and 1× PCIe 3.0 x1 (from chipset) for expansion.

Video outputs — can I run dual displays and 4K?

2× HDMI on the rear I/O, supporting up to 4K60 (requires a CPU with integrated graphics).

How many USB ports does it have?

Rear: 2× USB 3.2 Gen1 Type-A + 4× USB 2.0. Front headers: 2× USB 3.2 Gen1 + 2× USB 2.0 (via case connectors).

Any USB-C or RGB headers?

No internal USB-C or RGB/ARGB headers listed for this model — keep in mind if your case expects them.

Audio and networking?

Realtek ALC897 7.1-channel audio and Realtek Gigabit LAN (RTL8111H).

Fan headers and power connectors?

1× CPU_FAN (4-pin, up to 1A) + 1× CHA_FAN/WP (4-pin, up to 2A). Power: 24-pin ATX + 8-pin 12V CPU.

Form factor and OS support?

Micro-ATX (22.0 × 19.3 cm). Supports Windows 10/11 64-bit.

Does it support XMP for DDR5?

Yes — supports Intel XMP 3.0. (Note H610 doesn’t allow memory overclocking beyond official CPU limits; speeds depend on the CPU generation and memory used.)

Any tips before building?

Update the BIOS (for 13th/14th-Gen CPUs), use matched DDR5 kits, and remember the M.2 slot is Gen3 x4 — use the PCIe 4.0 x16 slot for your GPU to get Gen4 bandwidth.
