TP-LINK (TL-WA1201) AC1200 (867+300) Dual Band Wireless Access Point, MU-MIMO, Multi-mode - Range Extender, Multi-SSID, Client
- SKU:
- AP-1200TPWA1201
- UPC:
- 6935364052836
- MPN:
- TL-WA1201
Description
AC1200 Wireless Access Point
- AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.
- Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously.
- Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.
- MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance.
- Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
- Captive Portal – Offers a designed portal page for heightened security and marketing.

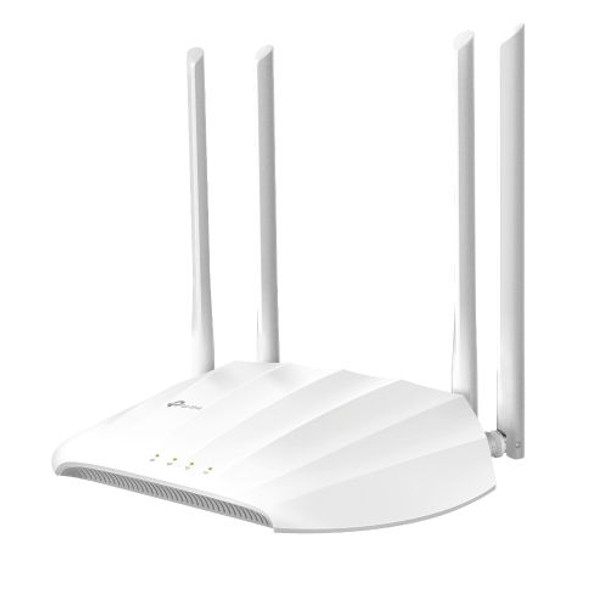

The TP-LINK (TL-WA1201) AC1200 Dual Band Wireless Access Point is a high-performance networking device designed by TP-LINK. It delivers fast and reliable Wi-Fi connectivity with MU-MIMO technology for improved efficiency. This multi-mode access point can function as a range extender, supporting multiple SSIDs for flexible network management.
Primary Function: Access Point
Bands: Dual Band
Max Wireless Transfer Rate: 867 Mbps
Max Wired Transfer Rate: 10/100/1000 Mbps
Interface(s)
1 x 10/100/1000 Mbps Ethernet Port
(Supports Passive PoE)
(Supports Passive PoE)
Wireless Standards: IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
Antenna(s): 4 x Fixed High Performance Antennas

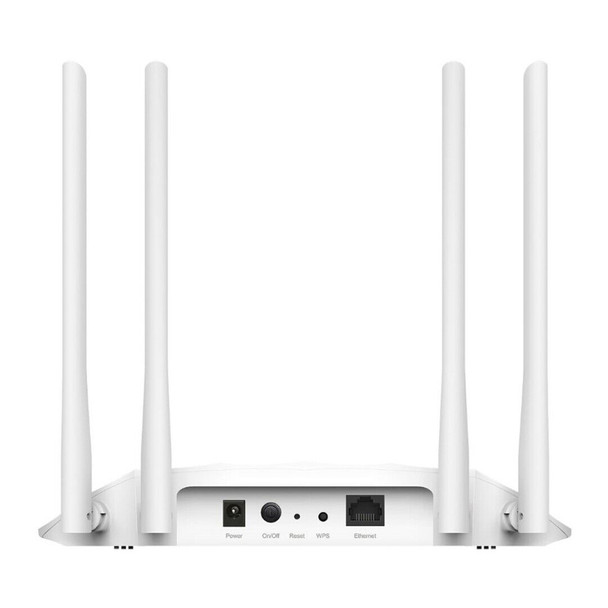

Button(s): Power On/Off Button, WPS Button, Reset Button
Power Supply: 12V/1.5A
Dimensions: 400 x 255 x 72 mm
Weatherproof: No
Frequency: 2.4 GHz and 5 GHz
Reception Sensitivity
5 GHz:
11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm
11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm
11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm
11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm
2.4 GHz:
11g 54Mbps: -78 dBm
11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm
11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm
11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm
11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm
11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm
11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm
2.4 GHz:
11g 54Mbps: -78 dBm
11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm
11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm
Wireless Modes: Access Point, Range Extender, Client, Multi-SSID
Wireless Functions
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control
Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
DHCP: Yes
Quality of Service: WMM
Advanced Functions: Captive Portal
Environment (°C)
Operating Temperature: 0°C~40°C (32°F~122°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package Contents
Wireless Access Point TL-WA1201
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
PoE Power Injector
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
PoE Power Injector
Package Type:Retail
Package Weight:0.8620 kg
Warranty:3 Years
