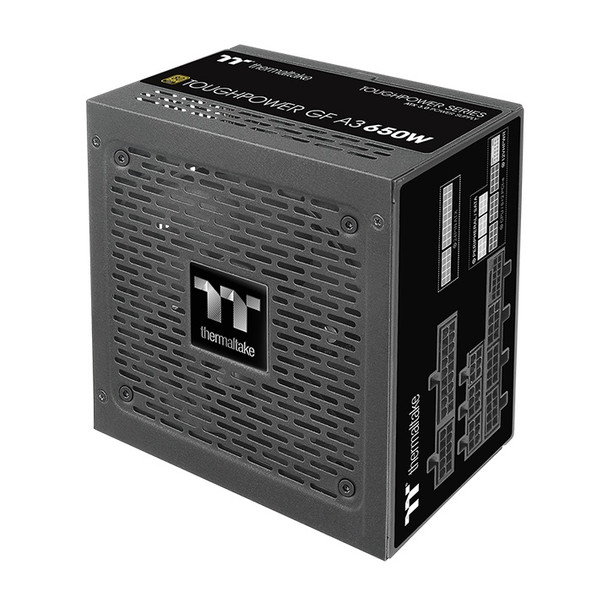

Thermaltake Toughpower GF A3 650 Watt Fully Modular PCIe Gen 5 ATX3.0 80+ Gold PSU/Power Supply

(No reviews yet) Write a Review
SKU:
PS-TPD-0650FNFAGE-H
UPC:
4713227538077
MPN:
PS-TPD-0650FNFAGE-H
  • Thermaltake Toughpower GF A3 650 Watt Fully Modular PCIe Gen 5 ATX3.0 80+ Gold PSU/Power Supply
  • Thermaltake Toughpower GF A3 650 Watt Fully Modular PCIe Gen 5 ATX3.0 80+ Gold PSU/Power Supply
  • Thermaltake Toughpower GF A3 650 Watt Fully Modular PCIe Gen 5 ATX3.0 80+ Gold PSU/Power Supply
  • Thermaltake Toughpower GF A3 650 Watt Fully Modular PCIe Gen 5 ATX3.0 80+ Gold PSU/Power Supply
  • Thermaltake Toughpower GF A3 650 Watt Fully Modular PCIe Gen 5 ATX3.0 80+ Gold PSU/Power Supply
  • Thermaltake Toughpower GF A3 650 Watt Fully Modular PCIe Gen 5 ATX3.0 80+ Gold PSU/Power Supply
£97.75

Description

650W TOUGHPOWER GF A3 Gold Fully Modular PSU from Thermaltake

POWER UP THE NEXT GENERATION HARDWAREToughpower GF A3 series is an 80 PLUS Gold certified fully modular power supply, compatible with Intel's ATX 3.0 specifications. Designed with a native PCIe Gen 5.0 connector, it can power up next-gen technology with one new 12VHPWR cable. The native 16 PIN (12VHPWR) PCIe connector on the GF A3 650W can deliver up to 300W for PCIe 5.0 graphics cards.

Fully Compatible with Intel ATX 3.0 Standards

EFFICIENT POWERToughpower GF A3 Gold series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.

PCIe Gen 5.0 Ready

POWERFUL & STABLEToughpower GF A3 Gold series comes with a 16-pin connector to offer reliable and powerful performance, allowing the PSU to natively run next-generation GPUs.

The wattage marked on the 12VHPWR's connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the GF A3 650W can deliver up to 300W for PCIe 5.0 graphics cards.

Made to Comply with the Latest Graphics Cards

GPU COMPATIBILITYAs the power consumption of graphics cards increase, so has their demand for power. The GF A3 series is designed to support NVIDIA and AMD graphics cards, and are ready to supply the graphics cards according to their different connections.

Be Smart, Stay Quiet

SILENT AND COOLFeaturing a 120mm fluid bearing fan to deliver excellent airflow. Furthermore, the Smart Zero Fan will not spin until the load exceeds 40% of the power supply, minimising undesired noise.

High Quality Japanese Main Electrolytic Capacitors

DURABLEHigh quality Japanese main electrolytic capacitor greatly improves the power supplies durability and ensures the Toughpower GF A3 series is stable and reliable.

High Amperage Single +12V Rail & High-Class Technologies

ENHANCED STABILITYPowerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

BUILT-IN INDUSTRIAL GRADE PROTECTIONTo protect the hardware, GF A3 is built with industry grade protections:

OCP (Over Current Protection)
OVP (Over Voltage Protection)
UVP (Under Voltage Protection)
OPP (Over Power Protection)
SCP (Short Circuit Protection)
OTP (Over Temperature Protection)

Fully Modular Low-Profile Flat Cables

CLUTTER FREEOffers cable selection for users while powering the system at an advantageous voltage. Low-profile black cables make cable management easier, reduces clutter and increases airflow inside the chassis.

x1 Main Power (24-Pin)
x2 ATX 12V (4+4Pin)
x4 PCIe (6+2Pin)
x1 PCIe (12+4Pin) 450W
x8 SATA (5-Pin)
x4 Peripheral
x1 FDD Adapter



Specification
Power
Total power
The total power that is needed by the device, or the total power produced by the device.
650 W
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
AC input frequency
50/60 Hz
Input current
10 A
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
100 W
Combined power (+12V)
649.2 W
Combined power (+5V)
100 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Max output current (+12V)
62.5 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Hold time
17 ms
Power protection features
Features that protect the device against power problems e.g. overload.
Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector
The way in which the motherboard is connected to the power supply.
24-pin ATX
Motherboard power cable length
60 cm
Number of SATA power connectors
8
SATA power cable length
150, 500 mm
Peripheral (Molex) power cable length
150, 500 mm
PCI Express power connectors (6+2 pin)
4
PCI Express power connectors (12+4 pin)
1
PCI Express power connectors (12+4 pin) cable length
600 mm
Ports & interfaces
Floppy disk drive connector

Floppy disk drive cable length
15 cm
Cabling type
Fully-Modular
Performance
80 PLUS certification
80 PLUS Gold
Purpose
What the product is used for.
PC
Power supply unit (PSU) form factor
ATX
Bearing technology
FDB
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
100000 h
Design
Product colour
The colour e.g. red, blue, green, black, white.
Black
Cooling type
The method used to cool the device or to cool the air around the device.
Active
Fan diameter
The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.
12 cm
Number of fans
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
1 fan(s)
On/off switch
The button which is pressed to switch the device on or off.

Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 45 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Operating relative humidity (H-H)
5 - 85%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
The measurement or extent of something from side to side.
150 mm
Depth
The distance from the front to the back of something.
140 mm
Height
The measurement of the product from head to foot or from base to top.
86 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1.23 kg
Technical details
Sustainability compliance

Compliance certificates
BSMI, CB, CCC, CE, Federal Communications Commission (FCC), ICES, Low Voltage Directive (LVD), RoHS, cTUVus, UKCA, WEEE
