Approx. 344 × 307 × 389 mm (W×H×D); net weight ~6 kg. Windowed side panel included.

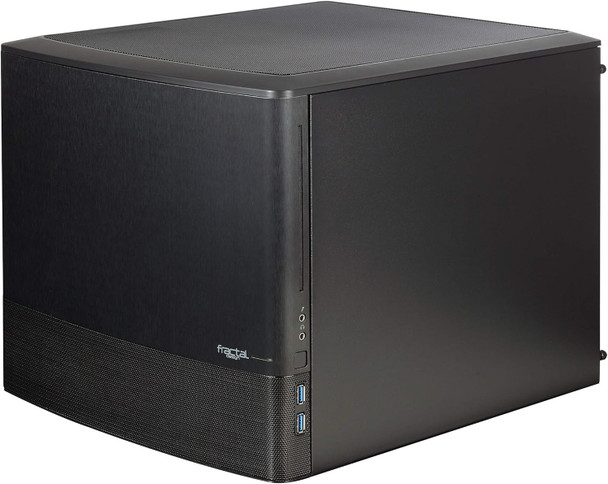

Fractal Design Node 804 (Black) Cube Case w/ Clear Window

Q: How many fans are included and what’s the max?

Three 120 mm fans are pre-installed. Up to 10 fan positions total (front/top/rear).

Q: Is there a fan controller?

Yes — integrated controller for up to 3 fans (rear side).

Q: Radiator support (how many and where)?

Up to four radiators simultaneously — 1×240 mm (front), 1×280 mm (top), and 2×120 mm (rear), per Fractal’s maximum configuration.

Q: GPU, CPU-cooler & PSU clearance?

GPUs up to 320 mm (or 290 mm with a lower front fan installed). CPU coolers up to 160 mm. ATX PSUs up to 260 mm deep.

Q: How many drive bays can I install?

Either up to 10× 3.5″ + 2× 2.5″ or 8× 3.5″ + 4× 2.5″ using the dual-chamber mounting system.

Q: Does it support an optical drive?

Yes — space for a 12.7 mm slim/slimline slot-in optical drive at the front.

Q: Front I/O and dust-filters?

2× USB 3.0, audio in/out, power & HDD LEDs. Front, top and bottom intakes are filtered.

Q: What’s special about the layout?

Dual-chamber layout separates motherboard/GPU from PSU/storage for better airflow and cable management.

Fractal Design Node 804 Black Cube Case w/ Clear Window, Micro ATX, Brushed Al. Front, Optical Drive, 280mm Watercooling, 3 Fans, Fan Controller

SKU:

FDCANODE804BLW

UPC:

7350041082019

MPN:

FD-CA-NODE-804-BL-W

Availability:

In Stock

Description
Videos
Warranty Information

Description

Fractal Design Node 804 Black (Window) – Micro-ATX Cube Case with Dual-Chamber Layout

The Fractal Design Node 804 is a compact Micro-ATX cube PC case built for airflow, storage flexibility, and clean builds. Its smart dual-chamber layout separates the main heat zone (CPU/GPU) from the PSU and drive area, helping keep temperatures under control and cable routing tidy.

At a glance: Micro-ATX/Mini-ITX cube case with brushed aluminium front, window side panel, 3 included Silent Series R2 fans, integrated fan controller, 10 fan positions, and excellent water-cooling support (up to four radiators depending on configuration).

Why builders love the Node 804

Dual-chamber design for organised airflow and cleaner cable management
Window side panel to showcase your hardware
3 pre-installed Fractal Silent Series R2 fans + space for up to 10 total fan mounts
Fan controller included for simple noise/performance tuning
High storage capacity with Fractal’s flexible drive mounting system
Dust filters on key intakes to help keep the build clean

Cooling & radiator support

Designed with water-cooling in mind, the Node 804 supports multiple radiator positions (configuration dependent):

Front (left chamber): up to 240mm
Front (right chamber): up to 240mm
Top (left chamber): up to 240mm
Top (right chamber): up to 240/280mm (may require moving/removing drive cages)

Hardware compatibility

Motherboards: Micro-ATX / Mini-ITX
GPU clearance: up to 320mm (or 290mm with an extra front-lower fan installed)
CPU cooler height: up to 160mm
PSU support: ATX, up to 260mm
Expansion slots: 5

Storage & front I/O

Drive support: up to 8× 3.5" + 4× 2.5" OR up to 10× 3.5" + 2× 2.5" (depending on configuration)
Extra front space: slim slot-in ODD mount + additional 2.5" positions (configuration dependent)
Front ports: 2× USB 3.0, audio in/out, power button LED + HDD activity LED

Dimensions (W×H×D): 344 × 307 × 389 mm | Weight: 6.0 kg | Warranty: 2 years

Product code: FD-CA-NODE-804-BL-W | EAN: 7350041082019

Specification

Power Supply Wattage: No PSU

Motherboard Support: Micro ATX, Mini ITX

Connectors / Controls:

2 x USB 3.0
Audio in/out
Power button with LED (blue)
HDD activity LED (white)

Drive Bays:

2 x 3.5" HDD positions
2 x 2.5" SSD positions
2 x extra positions for 3.5" or 2.5"

Expansion Slots: 5 x Expansion slots

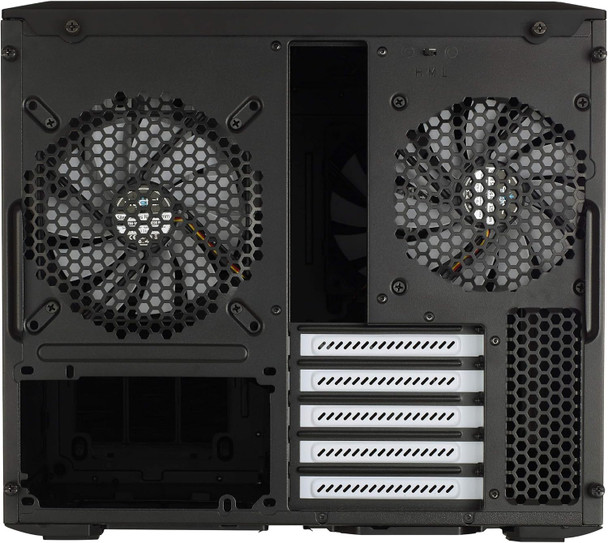

Cooling System:

Included
Rear: 2 x 120 mm Silent Series R2 fans

Fan Mounts
Front: 4 x 120 mm
Top: 4 x 120 / 140 mm
Rear: 2 x 120 / 140 mm

Radiator Support:
Front (left chamber): 240 mm
Front (right chamber): 240 mm
Top (left chamber): 240 mm
Top (right chamber): 240/280 mm

Please refer to the manufacturers website for compatibility limitations

Colour: Black

Compatibility:

GFX Card:
320 mm, 290 mm (if a fan is installed in the lower position in the front)

Max CPU Cooler:
160 mm

PSU:
260 mm

Weight/Dimensions:

6 kg
(WxHxD) 344 x 307 x 389 mm

Additional Features: See Overview / Video

Accessories:

Accessory box
User manual

Package Weight: 7.6000 kg

Warranty: 2 Years

Return

30 Days Return

Reviews

FAQ:

Fractal Design Node 804 — FAQ

Which motherboards fit?

Micro-ATX and Mini-ITX.

How many fans are included and what’s the max?

3 × 120 mm Silent Series R2 fans are pre-installed. Up to 10 fan positions in total (front/top/rear).

Is there a fan controller?

Yes — an integrated controller for up to 3 fans (mounted on the back side).

Radiator support (how many and where)?

Supports up to 4 radiators simultaneously: 1×240 mm (front) + 1×280 mm (top) + 2×120 mm (rear), per Fractal’s max configuration. Detailed thickness notes are in the product sheet.

GPU, CPU-cooler & PSU clearance?

GPUs up to 320 mm (or 290 mm if a front-lower fan is installed). CPU coolers up to 160 mm tall. ATX PSUs up to 260 mm deep.

How many drive bays can I install?

Up to 10× 3.5″ + 2× 2.5″ or 8× 3.5″ + 4× 2.5″ (dual-chamber mounting system).

Does it support an optical drive?

Yes — front space for a 12.7 mm slim/slimline slot-in ODD (plus mounts for 2× 2.5″ behind the front).

Front I/O and dust-filters?

2× USB 3.0, audio in/out, power & HDD LEDs. Front, top and bottom intakes are filtered.

Dimensions & weight?

Approx. 344 × 307 × 389 mm (W×H×D); net weight around 6 kg. Windowed side panel included.

What’s special about the layout?

Dual-chamber design separates motherboard/GPU from PSU/storage to improve airflow and cable management — ideal for air or water-cooled mATX builds.
