Fractal Design Define C (Black Solid) Quiet Gaming Case, ATX, 2 Fans, ModuVent Technology, PSU Shroud, Optional Top Filter
- SKU:
- CAA-FRDEC
- UPC:
- 7350041084303
- MPN:
- FD-CA-DEF-C-BK
- Availability:
- In Stock
Description
A flexible platform for a powerful ATX build that wastes no space
- Define Series sound dampening with ModuVent™ technology for silent operation in a compact full ATX form factor.
- Optimized for high airflow and silent computing.
- Side and front panels are lined with industrial-grade sound dampening material.
- Flexible storage options with room for up to 5 drives.

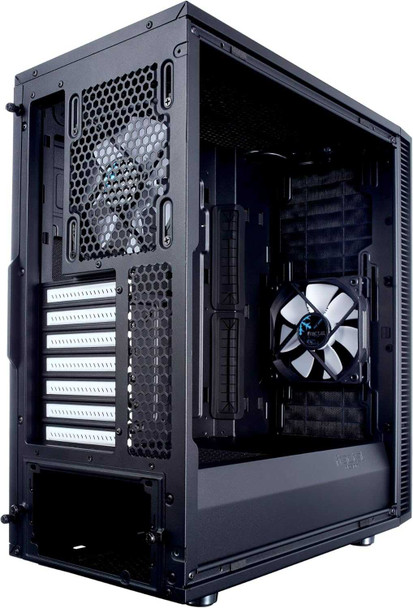

- Comes with two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans optimized to deliver maximum airflow while still maintaining a low noise level.

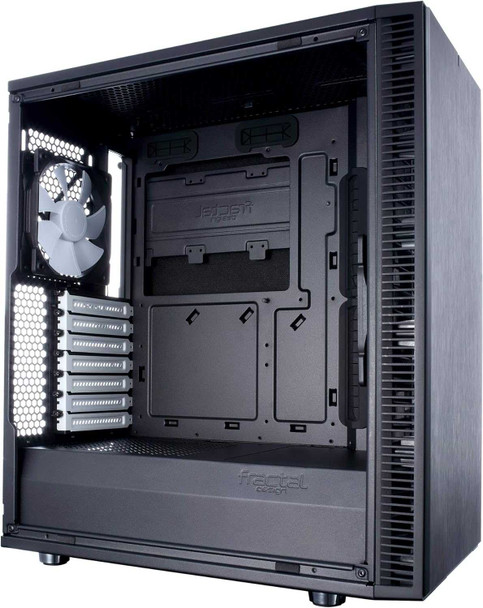

- Open air designed interior creates an unobstructed airflow path from the front intake to the rear exhaust.

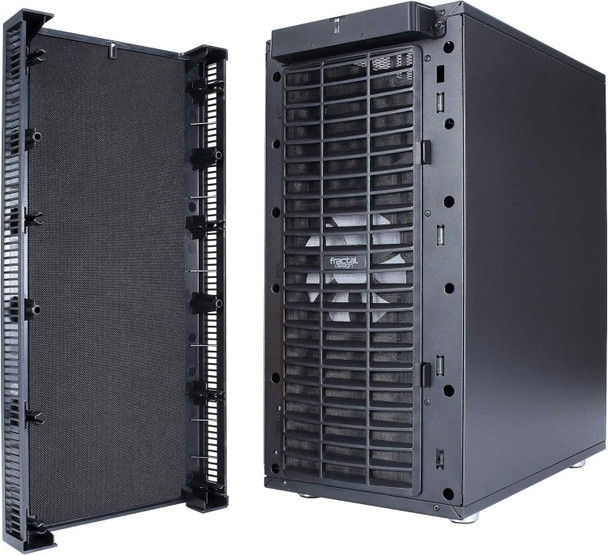

- Easy-to-clean high airflow nylon filters on the front and base with full PSU coverage and front access for convenience.
- Includes optional top filter to prevent dust buildup when ModuVent is removed for additional fan slots.

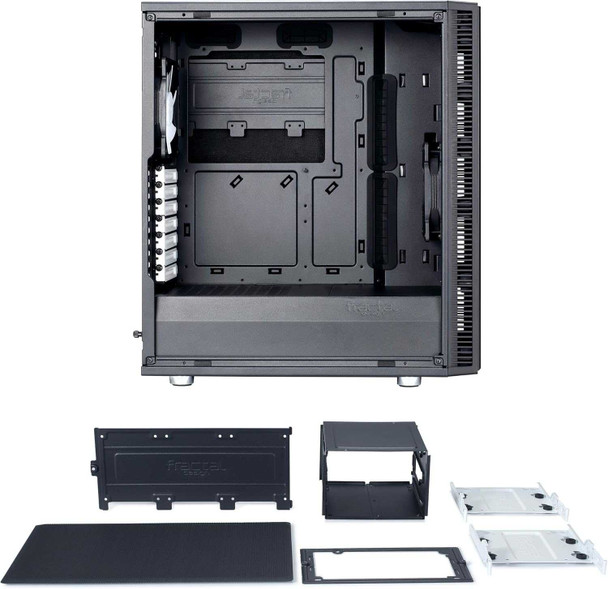

- Power supply shroud conceals drive cage and excess cabling for an even quieter and cleaner looking interior free of airflow obstructions

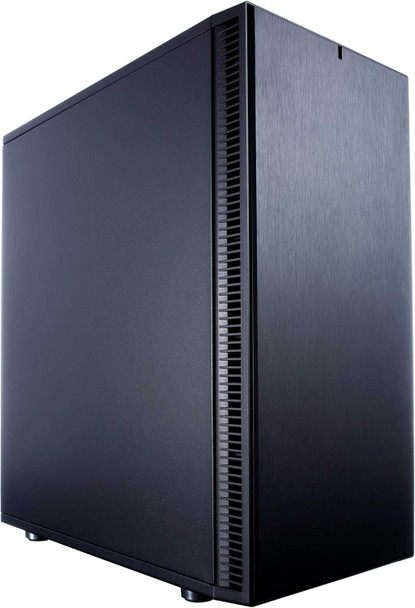

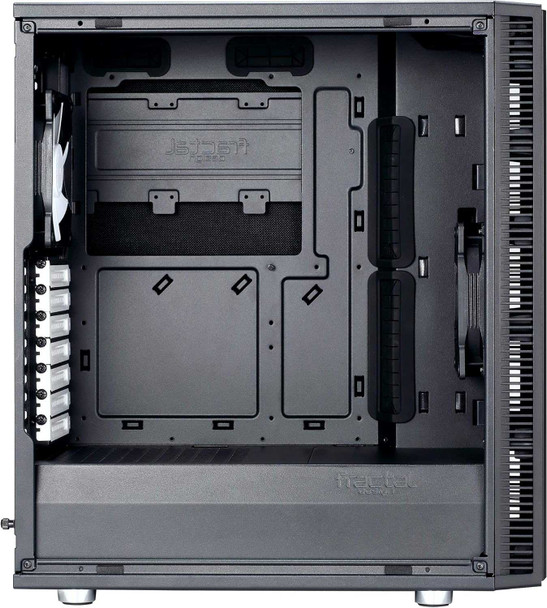

The Define C is an ATX case that features a highly optimized open air interior design offering room for the most popular component setups.
Dense sound dampening material throughout the case in conjunction with Fractal Design’s signature ModuVent™ technology gives users the option for near silent operation or added cooling capacity.
The case includes two Dynamic X2 Series fans with bottom, top and front intakes protected by easy-to-clean, high airflow removable dust filters.
With extra attention to cable management features such as hidden drive cages and a PSU shroud, the Define C makes it easy to create a stunningly clean build that’s sure to impress.
Specification
Form Factor: ATX
Power Supply Wattage: No PSU
Motherboard Support: ATX, Micro ATX, Mini ITX
Connectors / Controls:
2 x USB 3.0
Audio in/out
Power button with LED
HDD activity LED
Reset button
Drive Bays:
2 x 3.5" or 2.5" drive capacity
3 x Dedicated 2.5" drive capacity (max thickness 10 mm)
Expansion Slots: 7 Expansion slots
Cooling System:
Included
Front: 1 x Dynamic X2 GP-12 120mm fan

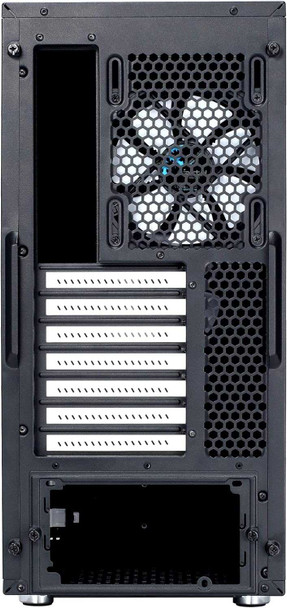

Rear: 1 x Dynamic X2 GP-12 120mm fan
Fan Mounts
Front: 3 x 120 / 2 x 140 mm
Top: 2 x 120 / 2 x 140 mm
Rear: 1 x 120 mm
Bottom: 1 x 120 mm
Water Cooling options:
Front: 120/240/360 mm or 140/280 mm (max 144 mm width)
Top: 120/240 mm (max 40 mm motherboard component height)
Rear: 120 mm (max 125 mm width)
Colour: Black
Material:
Left side panel: Industrial sound-dampened steel
Right side panel: Industrial sound-dampened steel
Compatibility:
GFX Card:
Max 315 mm with front fan mounted
Max CPU Cooler:
172 mm
PSU:
175 mm
Weight/Dimensions:
7.4 kg
(LxWxH) 399 x 210 x 440 mm
With feet/protrusions/screws: 413 x 210 x 453 mm
Additional Features: See Description / Video
Accessories:
User manual
Accessory box
Optional top filter
Package Weight: 7.3500 kg
Warranty: 2 Years
Reviews
"All told, Fractal's latest delivers every bit of the clean styling, quiet manners, modular touches, and solid performance we've come to expect from the company's other cases"
Read More
"The new design is tidy and, as our results show, efficient from an air-cooling perspective. It's a good choice for a new micro-ATX build"
Read More
"Sound-dampening materials, a top ModuVent, versatile radiator compatibility, a hidden PSU compartment and a design free of unnecessary frills. Define C ticks all those boxes and serves as a smaller, more affordable alternative to the trendsetting Define R5."
Read MoreFAQ: Frequently Asked Questions
FAQ – Frequently Asked Questions
1. Which motherboard sizes fit the Define C?
ATX, micro-ATX and Mini-ITX boards all install on the standard 7-slot tray.
2. How many fans come pre-installed, and how many can I add?
Two 120 mm Dynamic X2 GP-12 fans are factory-fitted (front + rear). There are 7 total mounts: front 3 × 120 / 2 × 140, top 2 × 120 / 140, rear 1 × 120, bottom 1 × 120.
3. What radiator sizes are supported?
Front: up to 360 mm or 280 mm
Top: up to 240 mm (motherboard components ≤ 40 mm tall)
Rear: 120 mm
All lengths assume standard 25 mm-thick fans.
4. What’s the maximum graphics-card length?
315 mm with a front fan installed (25 mm thick) or 340 mm if you remove the fan; subtract radiator + fan thickness if you water-cool the front.
5. How tall can the CPU air-cooler be?
Up to 170 mm (175 mm clearance recommended in Fractal’s spec sheet).
6. Does the Define C include dust filters?
Yes—nylon filters cover the front, PSU/bottom and top. The top filter is optional when you remove the ModuVent steel plate.
7. How quiet is the case and what is ModuVent?
Steel front and side panels are lined with industrial sound-dampening foam. The ModuVent top panel lets you choose silence (solid plate) or airflow (remove plate and fit the supplied mesh filter).
8. Which front-panel connectors do I get?
2 × USB-A 3.0, headphone + mic jacks, power & HDD LEDs, and a reset button. (No USB-C on this model.)
9. How many drives can I install?

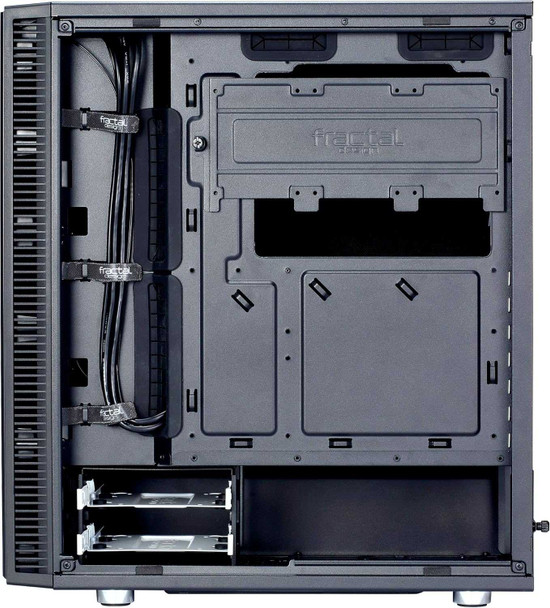

Inside the PSU shroud sits a 2-bay cage for two 3.5″/2.5″ drives, plus three dedicated 2.5″ SSD brackets behind the motherboard—five drives total.
10. What is the PSU length limit and does a shroud hide cables?
ATX PSUs up to 175 mm long fit, fully concealed by the integrated full-length shroud that also masks drive cages and excess wiring.
11. Can I swap the solid side for tempered glass later?
Fractal sells a separate Define C Tempered-Glass edition; panels are not cross-compatible, so you would replace the whole case rather than just the panel.
12. Is there room for vertical GPU mounting?
The Define C has no native vertical slots; you can add Fractal’s Flex B-20 bracket, but you’ll sacrifice the bottom 120 mm fan mount and need a PCIe riser.
13. What warranty does Fractal Design provide?
All Define-series enclosures carry a 2-year worldwide manufacturer warranty.
