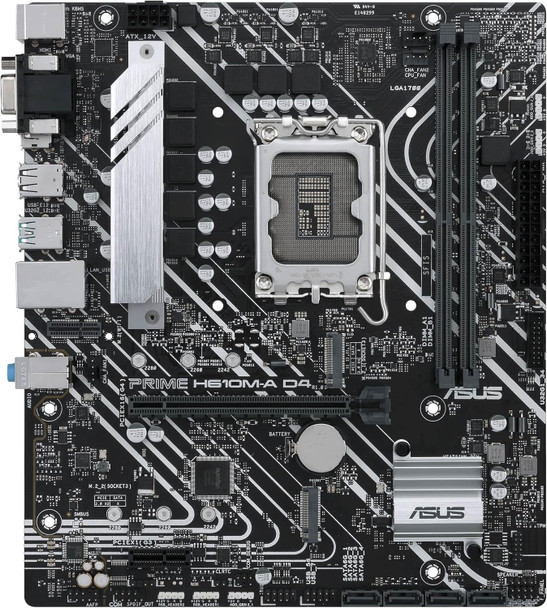

Asus PRIME H610M-A D4 CSM - Corporate Stable Model, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, PCIe4, 2x M.2

SKU:
AUMBH610MACSMPRD4-SB
UPC:
4711081514442
MPN:
90MB19P0-M0EAYC
Availability:
In Stock
  • Asus PRIME H610M-A D4 CSM - Corporate Stable Model, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, PCIe4, 2x M.2
  • Asus PRIME H610M-A D4 CSM - Corporate Stable Model, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, PCIe4, 2x M.2
  • Asus PRIME H610M-A D4 CSM - Corporate Stable Model, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, PCIe4, 2x M.2
  • Asus PRIME H610M-A D4 CSM - Corporate Stable Model, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, PCIe4, 2x M.2
  • Asus PRIME H610M-A D4 CSM - Corporate Stable Model, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, PCIe4, 2x M.2
  • Asus PRIME H610M-A D4 CSM - Corporate Stable Model, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, PCIe4, 2x M.2
  • Asus PRIME H610M-A D4 CSM - Corporate Stable Model, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, PCIe4, 2x M.2
£78.07
Frequently bought together:

Description



Intel H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, dual M.2 slots, Intel 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 2 ports, SATA 6 Gbps, Addressable Gen 2 headers, and Aura Sync


  • Intel LGA 1700 socket: Ready for 12th Gen Intel processors
  • Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
  • Ultrafast connectivity: 32Gbps M.2 slot, Intel 1 Gb Ethernet and USB 3.2 Gen 2 ports
  • Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
  • ASUS Control Center Express (ACCE) for easier IT endpoint management





ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.





ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Centre Express - server-grade IT management software.
* Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information.





ASUS Control Centre Express

ASUS Control Centre Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Centre Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.





Flexibility

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.





UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.





Cooling

Prime H610 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.





Performance

Prime H610 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.





Customization

Prime H610 series add the nuanced details that improve every experience, from the exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

For more information please click here.


Specification

Motherboard Type: Desktop
Form Factor: Micro ATX
Socket: Intel 1700
Chipset: Intel H610
CPU Support: Click here for CPU support
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 2 x DIMM
RAM Speeds: Up to 3200 MHz
Maximum Memory: 64GB
Graphics:
Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports
1 x VGA
1 x HDMI
1 x DisplayPort

PCI/PCI Express
1 x PCIe 4.0 x16 slot
1 x PCIe 3.0 x1 slot

Storage
4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe

Wireless: -
LAN: GB LAN
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported
2 x USB 3.2 Gen2 Type-A (at back)
2 x USB 3.2 Gen1 Type-A (at mid-board)
7 x USB 2.0 (4 at back, 3 at mid-board)

Back Panel I/O Ports
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x DisplayPort
1 x D-Sub
1 x HDMI
1 x V-M.2 slot (Key E)
1 x Intel 1Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard (purple)
1 x PS/2 Mouse (green)

Internal I/O Connectors
1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
3 x Addressable Gen2
2 x AURA RGB
1 x Clear CMOS
1 x Front Panel Audio

1 x COM Port
1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

Accessories
2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 SSD screw package
1 x Support DVD
1 x User guide
1 x ACC Express Activation Key Card

Additional Features: See Description
Package Type: Retail
Package Weight: 1.1000 kg
Warranty: 3 Years

Return

30 Days Return

FAQ: Frequently Asked Questions

FAQ: ASUS PRIME H610M-A D4-CSM (Intel LGA1700, DDR4, mATX)

1) Which CPUs does this board support?
LGA1700 socket for Intel® Core™ 12th, 13th, and 14th Gen processors (plus select Pentium® Gold/Celeron®). A BIOS update may be required for 13th/14th Gen—update to the latest UEFI before installing newer CPUs.
2) Does it work with Windows 11 (TPM 2.0)?
Yes. It supports Windows 11 via firmware TPM (fTPM) and Secure Boot in UEFI. Enable fTPM in BIOS if needed.
3) What memory does it take—and how much?
2× DDR4 UDIMM slots (dual-channel) up to 3200 MT/s (Intel spec). Capacity depends on DIMM availability; 2×32 GB (64 GB) is widely supported on H610. Check the ASUS Memory QVL for specific kits.
4) Is XMP supported for my DDR4 kit?
Yes—enable Intel XMP in UEFI to run your kit at its rated speed (subject to CPU/IMC capability).
5) How many M.2 slots and what speeds? Can I boot from NVMe?
Two M.2 (Key-M) slots for NVMe SSDs (2242/2260/2280). On this board class, M.2 slots are PCIe 3.0 x4 (up to ~3.9 GB/s each), with one slot also supporting SATA-M.2 depending on configuration. NVMe boot is supported. Always check the manual for lane-sharing notes with SATA ports.
6) What graphics outputs are on the rear I/O?
DisplayPort, HDMI, and VGA (D-Sub) from the CPU’s integrated graphics—handy for multi-monitor office setups without a GPU. (Ports and max resolutions depend on CPU iGPU.)
7) What PCIe slots are available for GPUs and add-in cards?
One full-length PCIe x16 slot (from the CPU, PCIe 4.0 on 12th–14th Gen) for graphics, plus two PCIe 3.0 x1 slots for peripherals (capture/NICs, etc.).
8) Does it include front-panel USB-C and other USB headers?
Yes—front-panel USB 3.2 Gen 1 (including a Type-C header on many board revisions) plus USB 2.0 headers; rear I/O has multiple USB-A ports (check the exact port mix in the spec table/manual).
9) Is Wi-Fi built in?
No. This model is the non-Wi-Fi version. Add Wi-Fi via PCIe or USB, or choose the PRIME H610M-A D4-CSM-WIFI variant if you need integrated wireless.
10) Does it have BIOS Flashback? Can I update BIOS without a CPU?
BIOS Flashback is typically not included on the PRIME H610M-A D4-CSM; update BIOS the usual way (EZ Flash within UEFI). Check your board’s rear I/O and manual to confirm.
11) Any tips for 13th/14th Gen CPU stability?
Use the latest ASUS UEFI (includes Intel’s updated microcode and power profiles). This helps address widely reported Raptor Lake stability concerns—keep firmware current.
12) What is “CSM – Corporate Stable Model” and why choose it?
ASUS CSM boards offer a stable supply lifecycle (up to 36 months), EOL notices, and ASUS Control Center Express (IT fleet management & remote BIOS/asset features), ideal for business rollouts.
13) Does it support Intel Rapid Storage/RAID?
On H610, SATA RAID is generally limited vs. higher chipsets; NVMe RAID is not available. Use single NVMe drives or move up to B660/B760/Z-series if you need advanced RAID.
14) Can I run a modern GPU (e.g., RTX 4070/4080) on this board?
Yes—electrical x16 slot with PCIe 4.0 support from the CPU. Ensure your PSU has the required wattage/cables; motherboard compatibility is not the bottleneck.
15) What comes in the box?
Motherboard, I/O shield (pre-mounted on some revisions), 2× SATA cables, M.2 screws/standoffs, quick guide, and driver download info. (Bundle items can vary by region.)
