ASROCK

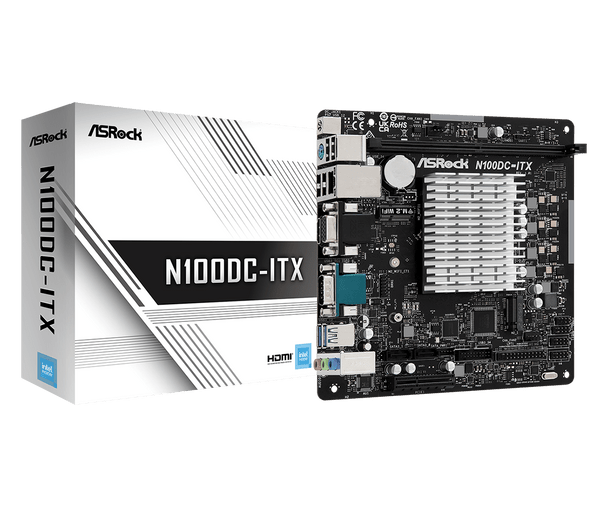

Asrock N100DC-ITX, Integrated Intel Quad-Core N100, Mini ITX, 1 DDR4, VGA, HDMI, DC Jack, Fanless Design, 1x M.2

(No reviews yet) Write a Review
SKU:
ASMBN100DC-ITX
UPC:
4710483943188
MPN:
N100DC-ITX
Availability:
In Stock
  • Asrock N100DC-ITX, Integrated Intel Quad-Core N100, Mini ITX, 1 DDR4, VGA, HDMI, DC Jack, Fanless Design, 1x M.2 physical ASROCK New N100DC-ITX MemoX
  • Asrock N100DC-ITX, Integrated Intel Quad-Core N100, Mini ITX, 1 DDR4, VGA, HDMI, DC Jack, Fanless Design, 1x M.2 physical ASROCK New N100DC-ITX MemoX
  • Asrock N100DC-ITX, Integrated Intel Quad-Core N100, Mini ITX, 1 DDR4, VGA, HDMI, DC Jack, Fanless Design, 1x M.2 physical ASROCK New N100DC-ITX MemoX
  • Asrock N100DC-ITX, Integrated Intel Quad-Core N100, Mini ITX, 1 DDR4, VGA, HDMI, DC Jack, Fanless Design, 1x M.2 physical ASROCK New N100DC-ITX MemoX
  • Asrock N100DC-ITX, Integrated Intel Quad-Core N100, Mini ITX, 1 DDR4, VGA, HDMI, DC Jack, Fanless Design, 1x M.2 physical ASROCK New N100DC-ITX MemoX
  • Asrock N100DC-ITX, Integrated Intel Quad-Core N100, Mini ITX, 1 DDR4, VGA, HDMI, DC Jack, Fanless Design, 1x M.2 physical ASROCK New N100DC-ITX MemoX
£121.68

Description

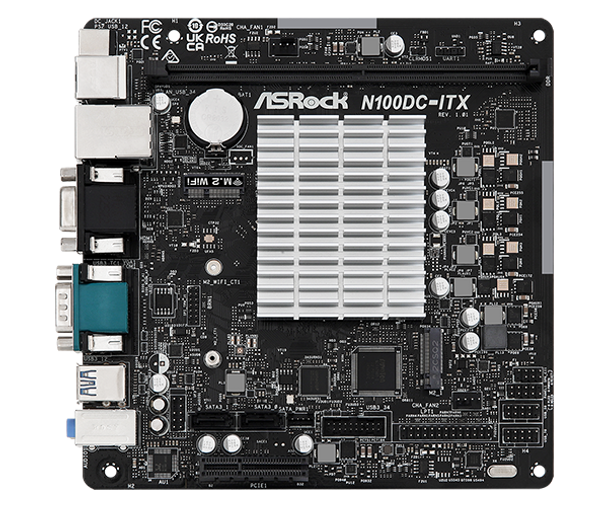

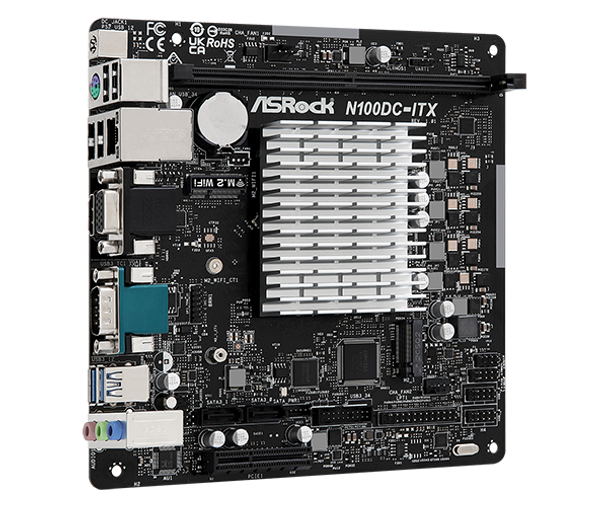

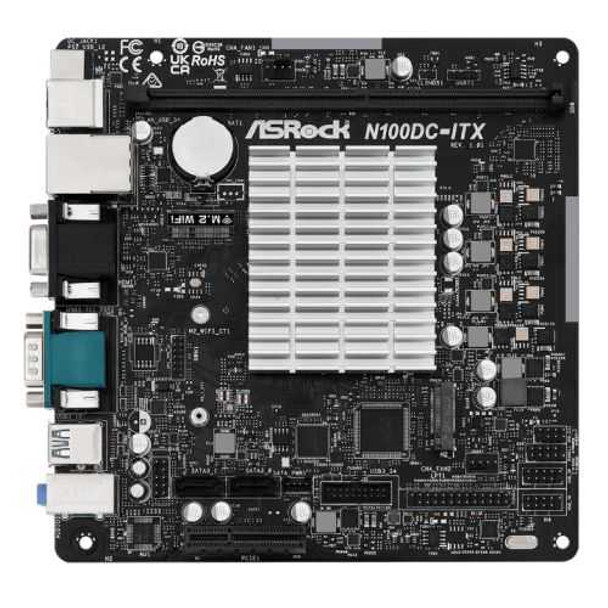

N100DC-ITX


  • Intel® Quad-Core Processor N100 (up to 3.4 GHz)
  • Supports 1 DDR4 DIMM
  • 1 DC Jack (Compatible with the 19V power adapter)
  • 1 PCIe 3.0 x4 (x2 mode), 1 M.2 Key E for WiFi
  • Graphics Output Options: D-Sub, HDMI
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • 2 SATA3, 1 M.2 (PCIe Gen3x2)
  • 4 USB 3.2 Gen1 (2 Rear, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer
Intel® Alder Lake-N N100 Processor

The newest Intel® N100 processor, built on the Gracemont CPU microarchitecture using the Intel® 7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel® UHD Graphics with 24 EUs. It is suitable for affordable, entry-level computing.

DC-In Design

The DC-In jack is compatible with 19V power adapters. Without a bulky power supply unit, this unique design allows this motherboard to fit in compact chassis.
*Power adapter is not included.

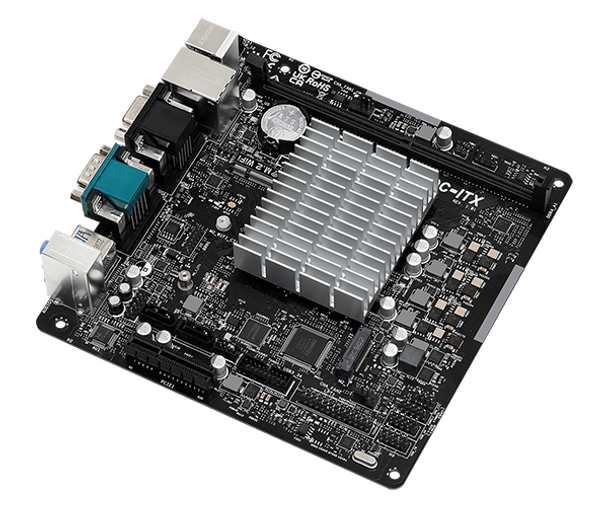

Fanless Design

The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment.


AV1 Decoding + 4K

Supports 10-bit HEVC & VP9 encoding/decoding, hardware-accelerated AV1 decoding, and a max. resolution of up to 4K x 2K 60Hz.


M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.


Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.

step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!




Specifications

Motherboard Type: Desktop
Form Factor: Mini ITX
Socket: Embedded CPU
CPU: Intel Quad-Core Processor N100 (Up to 3.4 GHz)
CPU Support: N/A (Integrated CPU)
RAM Technology: Supports DDR4 non-ECC, un-buffered memory
RAM Slots: 1 x DIMM
RAM Speeds: Up to 3200 MHz
Maximum Memory: 16GB

Graphics:
Integrated Intel UHD Graphics
24 EUs inside (Up to 750MHz)

Graphics Ports
1 x VGA
1 x HDMI

PCI/PCI Express
1 x PCIe 3.0 x4 (supports x2 mode)

Storage
2 x SATA III
1 x M.2 (2280) - PCIe 3.0 x2

Wireless: -
LAN: GB LAN
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

USB Ports Supported:
Rear:
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0

Front:
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0

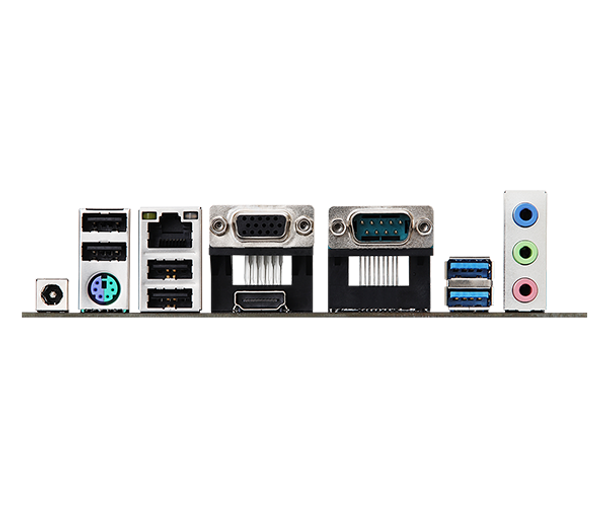

Back Panel I/O Ports:
1 x DC Jack (Compatible with 19V power adapters)
2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard
1 x Serial Port: COM1
1 x D-Sub
1 x HDMI
2 x USB 3.2 Gen1
4 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks

Internal I/O Connectors:
1 x Print Port
1 x SPI TPM
1 x Chassis Intrusion and Speaker
2 x Chassis Fan
1 x Front Panel Audio
2 x USB 2.0 Headers
1 x USB 3.2 Gen1

Accessories:
1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
1 x SATA Power Cable
2 x Screws for M.2 Sockets

Additional Features: See Overview
Package Type: Retail
Package Weight: 0.6400 kg
Warranty: 3 Year Replacement Warranty

Frequently Asked Questions

General Information

What is the form factor of the ASRock N100DC-ITX motherboard?

The ASRock N100DC-ITX motherboard is a Mini ITX form factor, measuring 170mm x 170mm.

What type of CPU is integrated into this motherboard?

The motherboard comes with an integrated Intel Quad Core N100 processor.

What processor is in the n100dc?

The newest Intel® N100 processor, built on the Gracemont CPU microarchitecture using the Intel® 7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel® UHD Graphics with 24 EUs. It is suitable for affordable, entry-level computing.

Does this motherboard support DDR4 RAM?

Yes, it supports DDR4 RAM with one slot available.

What display outputs are available?

The motherboard includes VGA and HDMI outputs.

Is this motherboard fanless?

Yes, it features a fanless design for silent operation.

How many M.2 slots does this motherboard have?

There is one M.2 slot available for storage expansion.

What power connector does this motherboard use?

It uses a DC jack for power input.

Can I use this motherboard for a compact or HTPC build?

Yes, its small form factor and fanless design make it suitable for compact and home theater PC (HTPC) builds.
