ASROCK
Asrock H510M-H2/M.2 SE, Intel H510, 1200, Micro ATX, 2 DDR4, 2 HDMI, 1x M.2
- SKU:
- ASMBH510M-H2M.2SE
- UPC:
- 4710483944192
- MPN:
- H510M-H2/M.2 SE
- Availability:
- In Stock
Frequently bought together:
Description

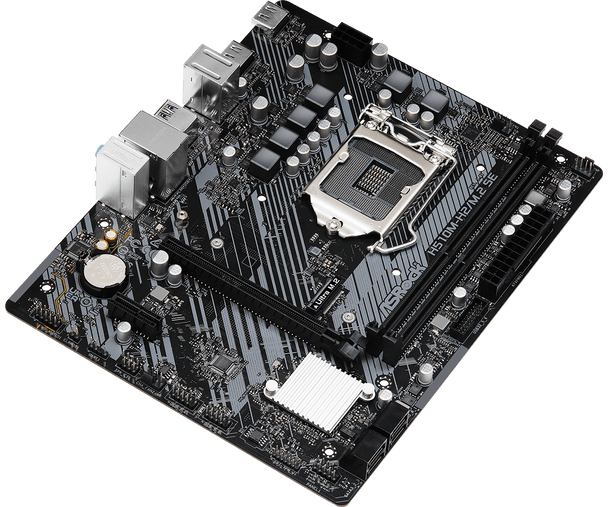

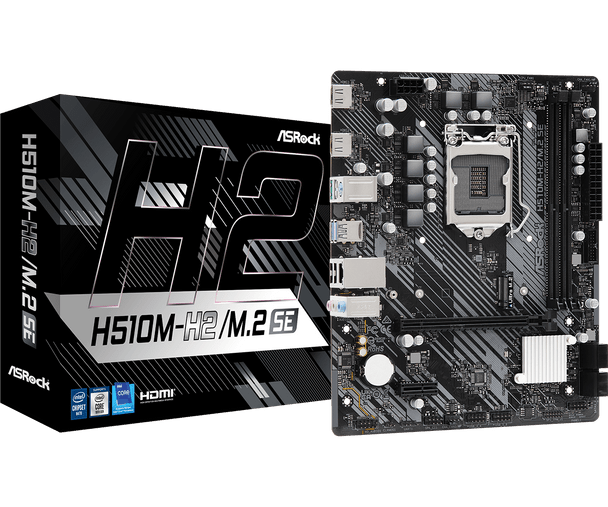

H510M-H2/M.2 SE
- Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200)
- 4 Power Phase Design
- Supports DDR4 3200 MHz*
- Intel® H470 Chipset
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: 2 HDMI
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 6 USB 3.2 Gen1 (4 Rear, 2 Front),
- 6 USB 2.0 (2 Rear, 4 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer
Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
Dual HDMI Outputs
Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop
Specification
Motherboard Type: Desktop
Form Factor: Micro ATX
Socket: Intel 1200 - Rocket Lake
Chipset: Intel H510
CPU Support: Supports 10th Gen & 11th Gen Intel Core Processors
RAM Technology:
DDR4, Dual Channel
Supports non-ECC, un-buffered memory
Supports ECC UDIMM modules (operate in non-ECC mode)
Supports Intel®Extreme Memory Profile (XMP) 2.0
Supports non-ECC, un-buffered memory
Supports ECC UDIMM modules (operate in non-ECC mode)
Supports Intel®Extreme Memory Profile (XMP) 2.0
RAM Slots: 2 x DIMM
RAM Speeds: 3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Maximum Memory: 64GB
Graphics:
Integrated Graphics*
*Graphics specifications may vary between CPU types
*Graphics specifications may vary between CPU types
Graphics Ports: 2 x HDMI
PCI/PCI Express:
1 x PCIe 4.0 x16
1 x PCIe 3.0 x1
1 x PCIe 3.0 x1
Storage:
4 x SATA III
1 x M.2 (2260/2280) - SATA & PCIe 3.0 x4
1 x M.2 (2260/2280) - SATA & PCIe 3.0 x4
RAID: Supports RAID 0, 1, 5 and 10 for SATA storage devices
Wireless: -
LAN: GB LAN
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
USB Ports Supported:
Rear:
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0
Front:
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0
Front:
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0

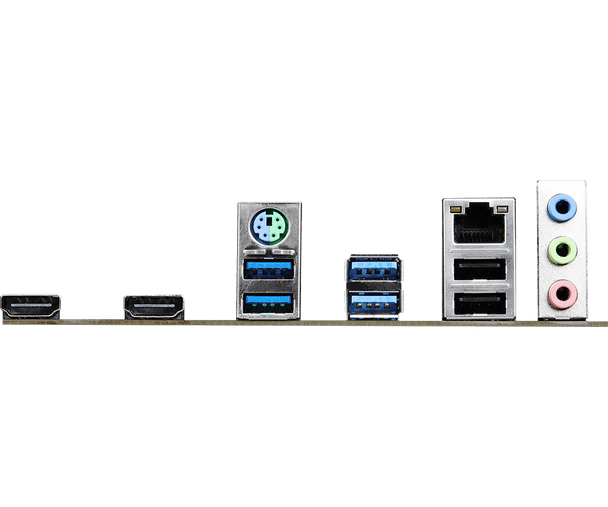

Back Panel I/O Ports:
1 x PS/2 Mouse/Keyboard
2 x HDMI
2 x USB 2.0
4 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks
2 x HDMI
2 x USB 2.0
4 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks
Internal I/O Connectors:
1 x SPI TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan
2 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
2 x USB 2.0
1 x USB 3.2 Gen1
1 x Chassis Intrusion and Speaker
1 x CPU Fan
2 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
2 x USB 2.0
1 x USB 3.2 Gen1
Accessories:
1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket
1 x I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket
Additional Features: See Description
Package Type: Retail
Package Weight: 0.7500 kg
Warranty: 3 Year Replacement Warranty
Returns
30 Days Return
FAQ: Frequently Asked Questions
FAQ — ASRock H510M-H2/M.2 SE (Intel H510, LGA1200, Micro-ATX)
1) Which Intel® CPUs are supported?
10th-Gen and 11th-Gen Intel Core™ i9/i7/i5/i3 plus Pentium®/Celeron® processors in the LGA1200 socket. Always check your exact CPU on the board’s CPU support list before purchase.
2) Do I need a BIOS update to use 11th-Gen (Rocket Lake) CPUs?
Some boards ship ready; older stock may require a BIOS update. Check your motherboard’s CPU Support page for the minimum BIOS version for your processor.
3) Does the PCIe x16 slot run at PCIe 4.0?
Yes — with an 11th-Gen CPU the primary x16 slot operates at PCIe 4.0 x16 (it runs at PCIe 3.0 with 10th-Gen).
4) What display outputs are on the rear I/O? Does it do 4K60?
This H2/M.2 SE revision provides dual HDMI. With 11th-Gen CPUs, the HDMI 2.0 output supports up to 4K @ 60 Hz; with 10th-Gen, HDMI 1.4 supports up to 4K @ 30 Hz.
5) How many displays can I run from the motherboard?
Up to two monitors via the two HDMI ports when using a CPU with Intel UHD Graphics (no discrete GPU required).
6) Does it have NVMe M.2 for SSDs?
Yes — 1 × Ultra M.2 (PCIe 3.0 ×4 / SATA, 2242/2260/2280) for fast NVMe or SATA SSDs, plus 4 × SATA 6 Gb/s ports for 2.5″/3.5″ drives.
7) What memory does it support?
2 × DDR4 DIMM slots (up to 64 GB). With 11th-Gen CPUs you can run DDR4-3200; 10th-Gen typically tops out lower per Intel spec. Enable XMP/DOCP in BIOS for best speeds.
8) Is this motherboard Windows 11 ready (TPM 2.0)?
Yes — enable Intel PTT (firmware TPM 2.0) in the UEFI to meet Windows 11 requirements; a separate TPM module isn’t needed.
9) How many fan headers are there?
Commonly 1 × CPU-fan and 2 × chassis headers (one can function as a water-pump header). Check your manual for exact header locations.
10) Does it include Wi-Fi or Bluetooth?
No onboard Wi-Fi/Bluetooth on this model — add a PCIe or USB adapter if needed.
11) What USB connectivity do I get?
Up to USB 3.2 Gen1 and USB 2.0 ports via rear I/O and internal headers (exact port count varies by revision — see product spec sheet/manual).
12) Will 12th/13th-Gen Intel CPUs work?
No. This is an LGA1200 motherboard designed for 10th/11th-Gen Intel processors only.
13) Does it support integrated-graphics features like Quick Sync and dual-monitor?
Yes — if your installed CPU has Intel UHD Graphics, you can use the HDMI ports for display and hardware media encoding/decoding. (11th-Gen enables HDMI 2.0 4K60.)
14) Any tips for best performance on this board?
Use an 11th-Gen CPU to unlock PCIe 4.0 x16, a PCIe 3.0 x4 NVMe SSD in the M.2 slot, enable XMP for your DDR4, and keep BIOS up to date (per your CPU support list).
