ASROCK

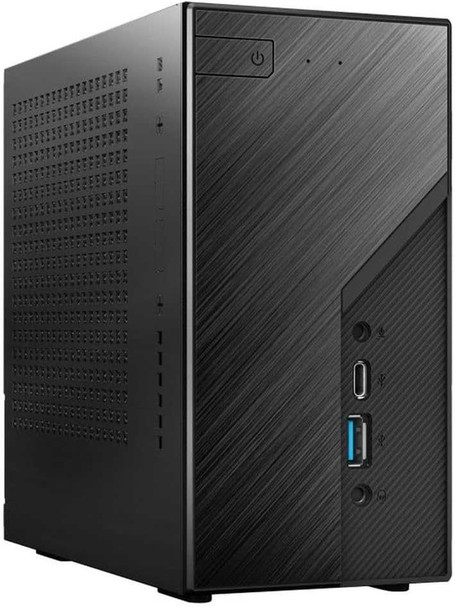

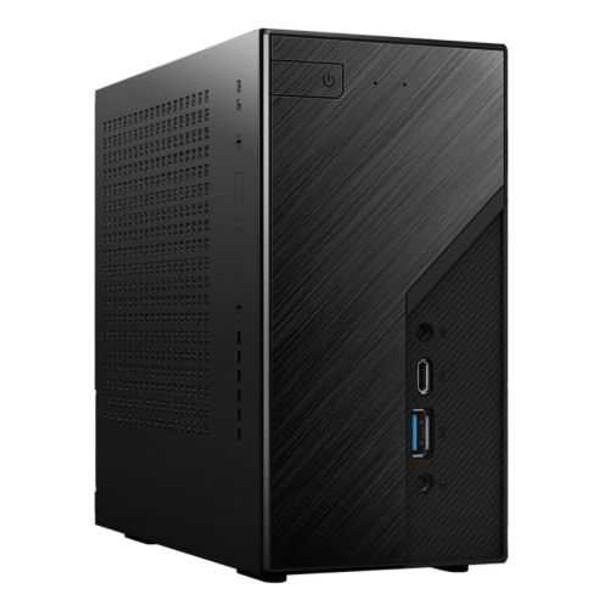

Asrock DeskMini X300 SFF Barebone PC, AM4 (X300), 2x DDR4 SO-DIMM, 2x SATA, 2x M.2, VGA, HDMI, DP, USB-C - No CPU, RAM, HDD or O/S

(No reviews yet) Write a Review
SKU:
PCAS-DESKMINIX300
UPC:
4710483931666
MPN:
90BXG3T01-A10GA0W
Availability:
In Stock
  • Asrock DeskMini X300 SFF Barebone PC, AM4 (X300), 2x DDR4 SO-DIMM, 2x SATA, 2x M.2, VGA, HDMI, DP, USB-C - No CPU, RAM, HDD or O/S physical ASROCK New 90BXG3T01-A10GA0W MemoX
  • Asrock DeskMini X300 SFF Barebone PC, AM4 (X300), 2x DDR4 SO-DIMM, 2x SATA, 2x M.2, VGA, HDMI, DP, USB-C - No CPU, RAM, HDD or O/S physical ASROCK New 90BXG3T01-A10GA0W MemoX
£147.98

Description


DeskMini X300

  • AMD AM4 Socket CPU - Renoir, Picasso, Raven Ridge, up to 65W
  • Supports Overclocking Option with X300
  • High-Speed DDR4-3200MHz Memory
  • Dual Ultra M.2 (NVMe)
  • 2 x 2.5" SATA 6Gb Hard Drive
  • Support RAID 0/1 function
  • HDMI, DisplayPort, D-Sub
  • M.2 For Wi-Fi Module
  • USB 3.2 Gen1 Type-C



Overclocking Option in BIOS
ASRock DeskMini X300 supports overclocking options. Improve system performance by tuning the core clock and release the potential of the AM4 APU.



Insane Memory Performance
ASRock DeskMini supports Dual Channel DDR4-3200+MHz (OC) memory, up to 64GB. Thanks to high speed memory and Radeon™ Graphics, DeskMini provides awesome 3D performance.



4X Storages
ASRock DeskMini supports up to 4 Storages
M2_1 M.2 (2280) –PCIe Gen3 x4
M2_2 M.2 (2280) –PCIe Gen3 x2/x4
2x 2.5” SATA 6Gb SSD/HDD Tray



Mini Home Data Center
DeskMini supports RAID 0/1 function! Build mini data center at home!
RAID 0 –offers superior I/O performance
RAID 1 –protects critical data in mirrored data



Heatsink on MOSFET
ASRock DeskMini features with Aluminum MOSFET Heatsink provides great heat dissipation to ensure system stable in loading.



Triple Display
DeskMini supports 3 display output simultaneously
Expanding desktop by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.



USB Type-C
A Type-C USB 3.2 Gen1 connector for fast charging and delivering up to 5Gbps data transfer rates.



Optional upgrades (sold seperately):
DeskMini Addressable LED
DeskMini USB Hub
Rear Audio Cable
VESA Mount Kit
M.2 Wi-Fi Kit
USB 2.0 Cable


Specification

Tower / Small Form Factor: Small Form Factor
Chassis: Asrock DeskMini Mini STX
Processor: None

Processor Details:
AM4 Socket - Renoir, Picasso, Raven Ridge CPUs
Max. TDP 65W
Support MAX Height 46mm CPU Cooler

Chipset: AMD X300
Memory: None

Memory Details:
2 x DDR4 SO-DIMM Slots
Ryzen 4000 series – 3200MHz
Ryzen 3000/2000 series – 2933MHz
Max. 64GB

Hard Drive: None
SSD Drive: None
Optical Drive: None

Supported Drives:
2 x 2.5" SATA III
2 x Ultra M.2 (2280) - PCIe
1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
RAID 0/1 supported

Operating System: No O/S

Front I/O:
1 x USB 3.2 Gen1 Type-C
1 x USB 3.2 Gen1 Type-A
1 x Head Phone with MIC Jack
1 x MIC-In (RealtekALC233)

Back I/O:
1 x USB 3.2 Gen1 Type-A
1 x USB 2.0 Type-A
1 x VGA
1 x HDMI
1 x DisplayPort
1 x LAN

LAN: GB LAN
Wireless: 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module - sold separately
Bluetooth: -
Power Unit: 1 x 120W/19V adapter
Keyboard and Mouse: No
Dimensions: 155 x 155 x 80 mm (1.92L)
Additional Features: See Description

Accessories:
2 x SATA Data with Power Cable
1 x Screws Pack

Package Weight:2.2000 kg
Package Type:Retail
Warranty:2 Year Replacement Warranty

Reviews

TweakTown Must Have Award

The DeskMini X300 is a fantastic Mini PC platform that expands on the A300 with manual overclocking capabilities.

Read More



PC Mag Review

The system is exceptionally easy to build-anyone with a little experience could probably get it built and start installing Windows in under five minutes. (Cutting through the packing tape was more work than setting up this PC.) For someone who has never built a computer before, it would be a good first-time project.

Read More
